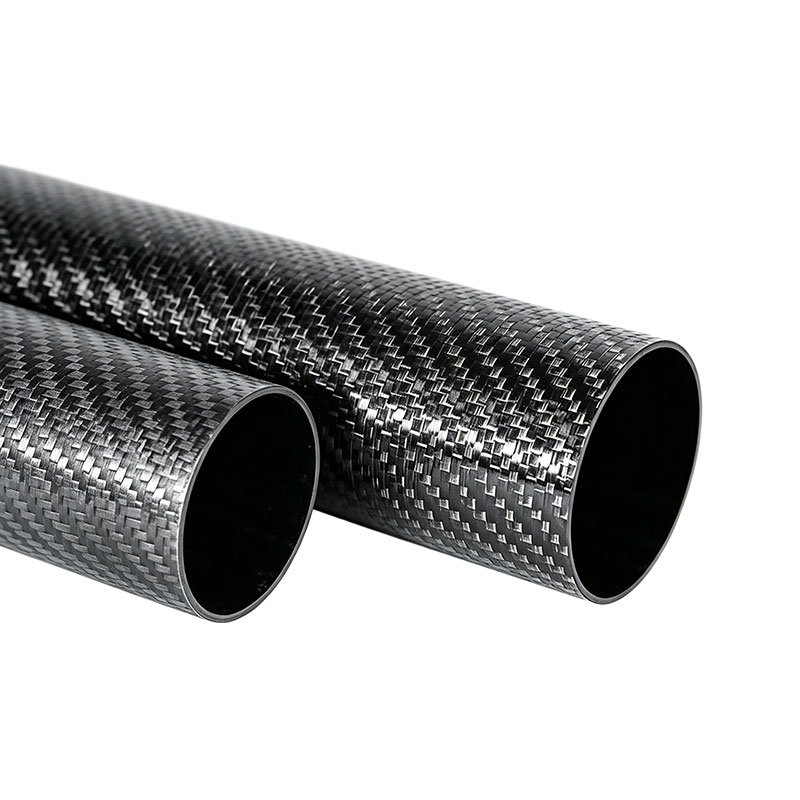

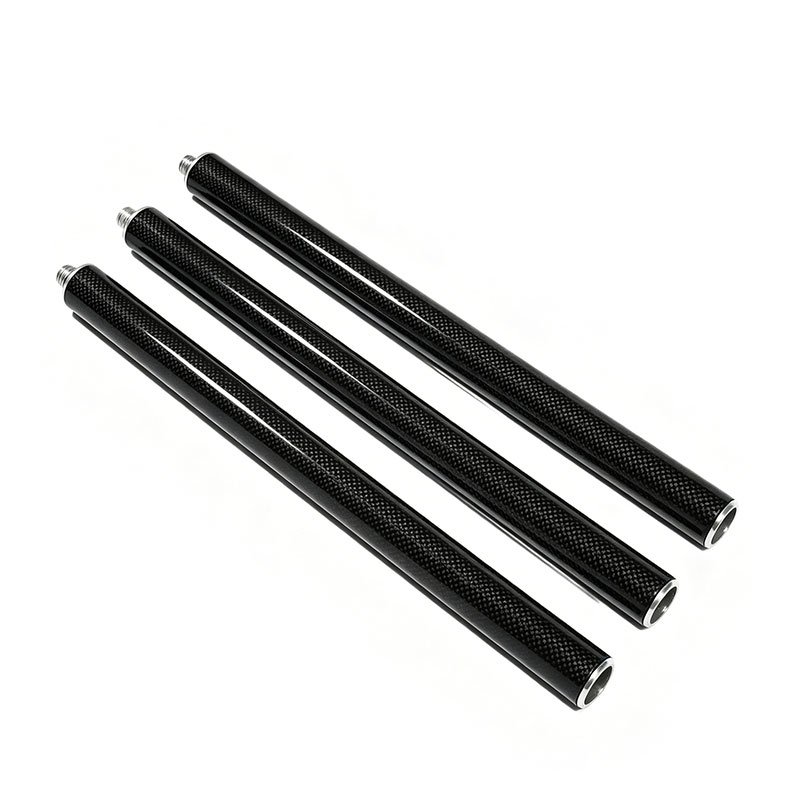

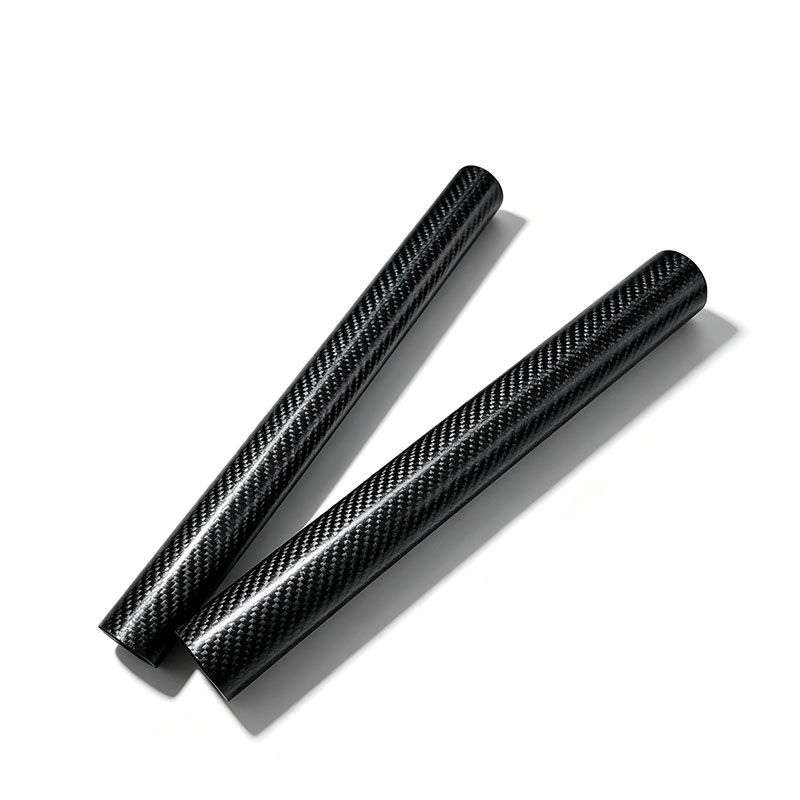

Custom Carbon Fiber Guide Rollers for High-Speed Packaging Machinery
Product Overview:
In modern packaging lines—where ultra-thin plastic films, metallic foils, and delicate papers are processed at staggering speeds exceeding 800 meters per minute—traditional guide rollers become the bottleneck. Heavy steel or aluminum rollers possess massive rotational inertia. When the web accelerates, these heavy metal rollers lag behind, dragging against the delicate film, causing scratches, tension spikes, and catastrophic web breaks. AstraRoll completely revolutionizes web handling with our Packaging Machinery CFRP Guide Rollers. Manufactured from advanced Carbon Fiber Reinforced Polymer, these rollers weigh up to 80% less than steel and 30% less than aluminum, yet deliver superior structural stiffness. This ultra-low inertia allows the roller to spin up and stop instantly in perfect synchronization with your packaging web. The result is flawless tension control, elimination of surface scratching, and the ability to run your packaging machinery at maximum theoretical speeds without vibration.
Roll Function: Printing Roller, Material Handling
Industry Applications: Printing, Packaging
Inquiry Email: sales@astraroll.com
Custom Carbon Fiber Guide Rollers for High-Speed Packaging Machinery Details
The AstraRoll Technical Advantage
Engineering a true high-speed carbon fiber roller requires absolute mastery over composite winding and mechanical bonding:
Ultra-Low Rotational Inertia: Because CFRP is incredibly lightweight, the force required to start or stop the roller's rotation is virtually zero. This ensures the roller tracks perfectly with the web during sudden speed changes, eliminating "hydroplaning" and bottom-surface scratching on delicate optical or packaging films.
Extreme Stiffness-to-Weight Ratio: On wide-web converting machines (spanning 2 to 4 meters), aluminum rollers will bow (deflect) in the center under web tension. Carbon fiber possesses a higher modulus of elasticity than steel. AstraRoll CFRP rollers remain perfectly straight across massive spans, ensuring uniform nip pressure and flat web tracking.
Natural Vibration Dampening: Metal rollers transmit and amplify machine harmonic frequencies, causing "web flutter" at high speeds. Carbon fiber has naturally superior acoustic and harmonic dampening properties, actively absorbing vibrations and ensuring a whisper-quiet, incredibly stable web path.

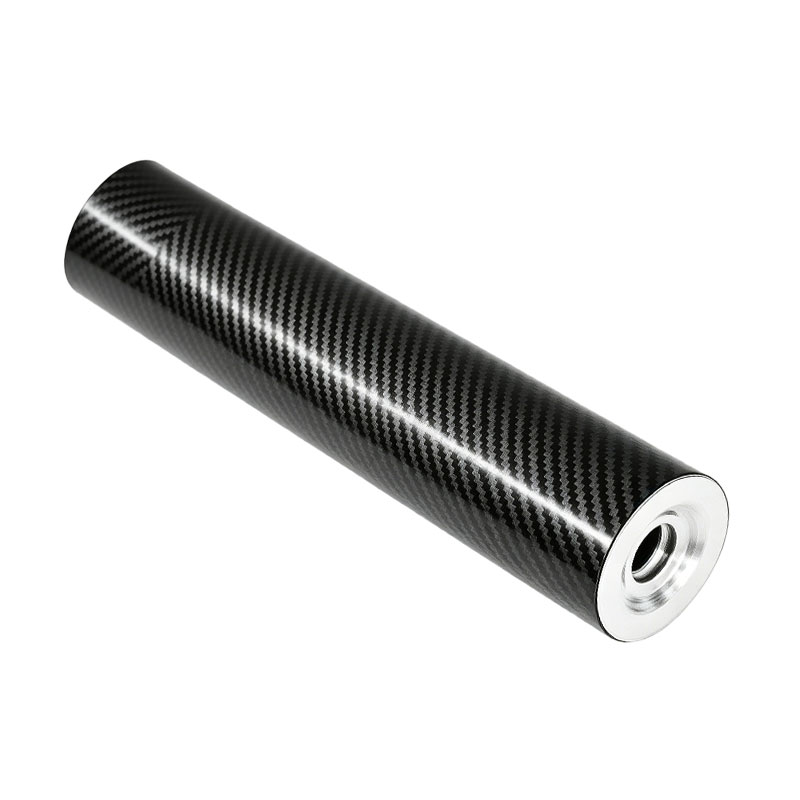

Aerospace Structural Bonding: The weakest point of a carbon fiber roller is where the metal shaft meets the composite tube. AstraRoll utilizes proprietary interference-fit geometries and high-temperature aerospace epoxies to bond the anodized aluminum end caps, guaranteeing they will never shear or spin out under high torque.
Key Specifications
Please note: Every AstraRoll Custom Carbon Fiber Guide Roller is engineered specifically to your packaging machine's web tension, width, and speed parameters.
Outer Diameter (O.D.): Custom from 30mm up to 300mm+.
Face Length: Custom manufactured from 300mm up to 6,000mm.
Tube Structure: Filament-wound or roll-wrapped High-Modulus CFRP.
Concentricity (TIR): CNC precision ground to ≤ 0.05mm.
Dynamic Balancing: ISO Grade G2.5 or G1.0 at maximum operating RPM.
| Comparison Item | AstraRoll Carbon Fiber (CFRP) |
| Vs. Aluminum Guide Rollers | Inertia & Deflection: While aluminum is light, it still deflects over wide spans. CFRP is 30% lighter than aluminum but significantly stiffer, allowing for wider machine designs without center-sagging or heavy inertia drag. |
| Vs. Steel Guide Rollers | Weight & Machine Speed: Steel is extremely heavy and limits machine acceleration. CFRP rollers allow packaging machinery to operate at vastly higher speeds by virtually eliminating rotational drag. |
Why Choose AstraRoll?
1. Precision Dynamic Balancing
A lightweight roller is useless if it vibrates. Due to the high speeds of modern packaging machinery, AstraRoll subjects every Carbon Fiber Guide Roller to rigorous computerized dynamic balancing. We strategically place micro-weights internally to achieve an ISO 1940 Grade G2.5 (or tighter G1.0 upon request) balance, ensuring zero chatter at speeds exceeding 1,000 m/min.
2. Seamless Machine Integration
You do not need to redesign your packaging machine to upgrade to carbon fiber. AstraRoll manufactures the aluminum or stainless steel bearing housings and shaft extensions to the exact dimensional tolerances of your existing metal rollers. They act as direct, drop-in upgrades for your most problematic high-speed tension zones.
Frequently Asked Questions (FAQs)
Q: Are carbon fiber guide rollers electrically conductive?
A: Yes, carbon fiber itself is naturally conductive. However, the epoxy resin matrix that binds the fibers can act as an insulator. If your packaging line suffers from heavy static electricity buildup, AstraRoll can formulate the CFRP with specialized conductive resins or install integrated grounding brushes to ensure static charges are safely dissipated to the machine frame.
Q: Can you apply coatings to a carbon fiber roller?
A: Absolutely. While the bare polished CFRP surface is excellent for most plastic films and papers, we can apply Teflon Coating if you are processing sticky adhesives, or Urethane / NBR Rubber Coatings if you require a high coefficient of friction for driving or spreading the web.
Q: What is the maximum face length you can manufacture for a CFRP roller?
A: Because carbon fiber resists bending so effectively, we can manufacture guide rollers with extremely long face lengths—up to 6,000mm (6 meters)—without suffering the severe mid-span deflection that plagues aluminum or steel rollers of the same diameter.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
