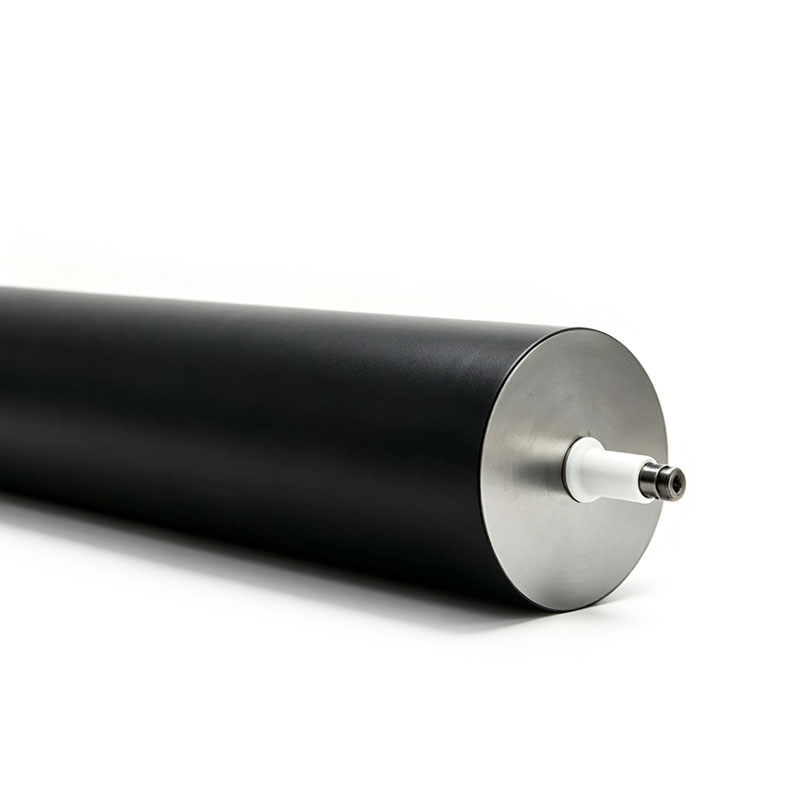

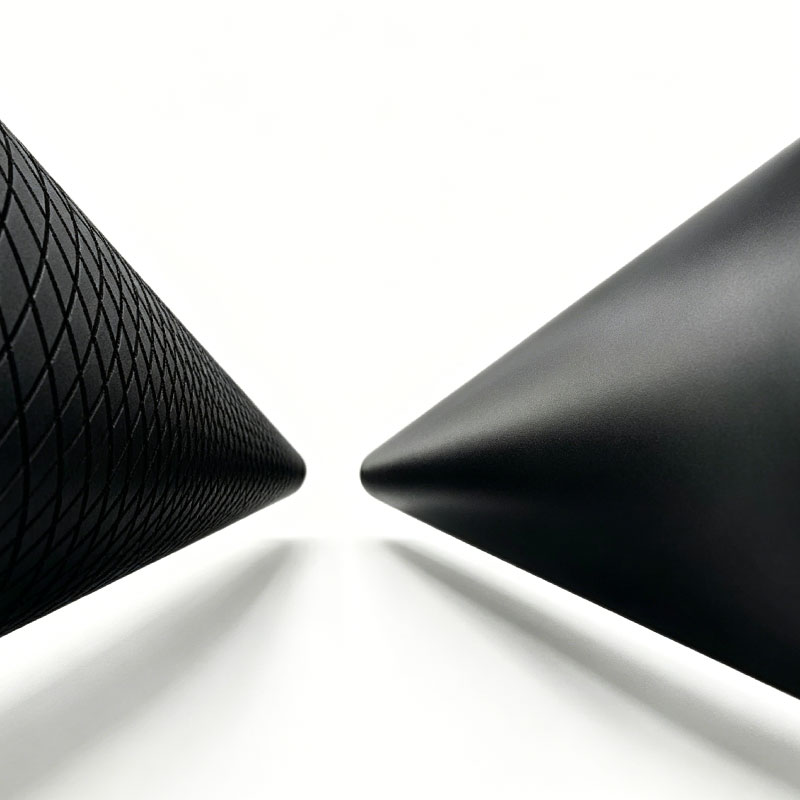

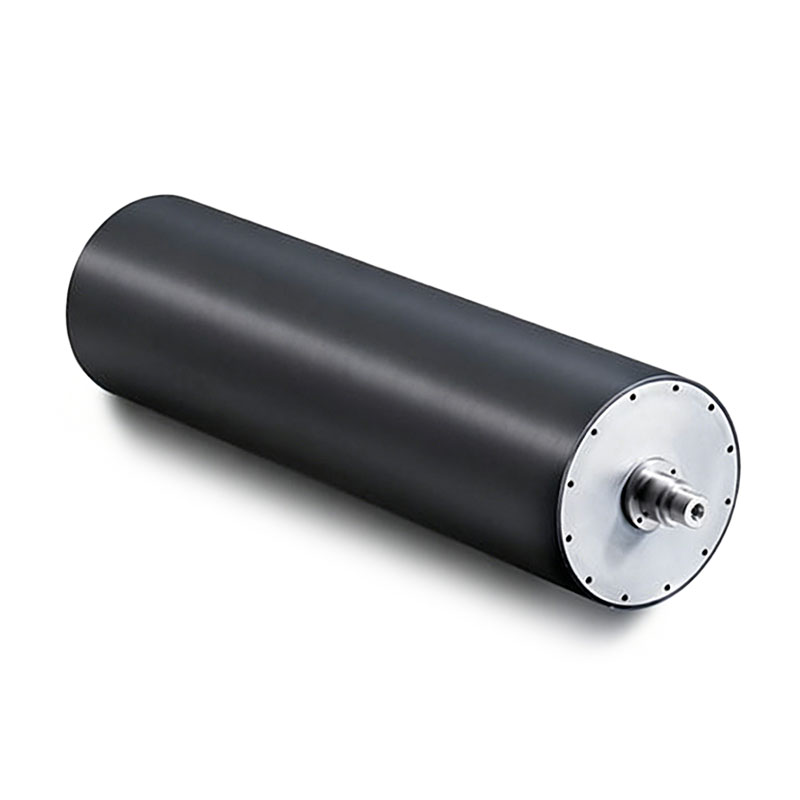

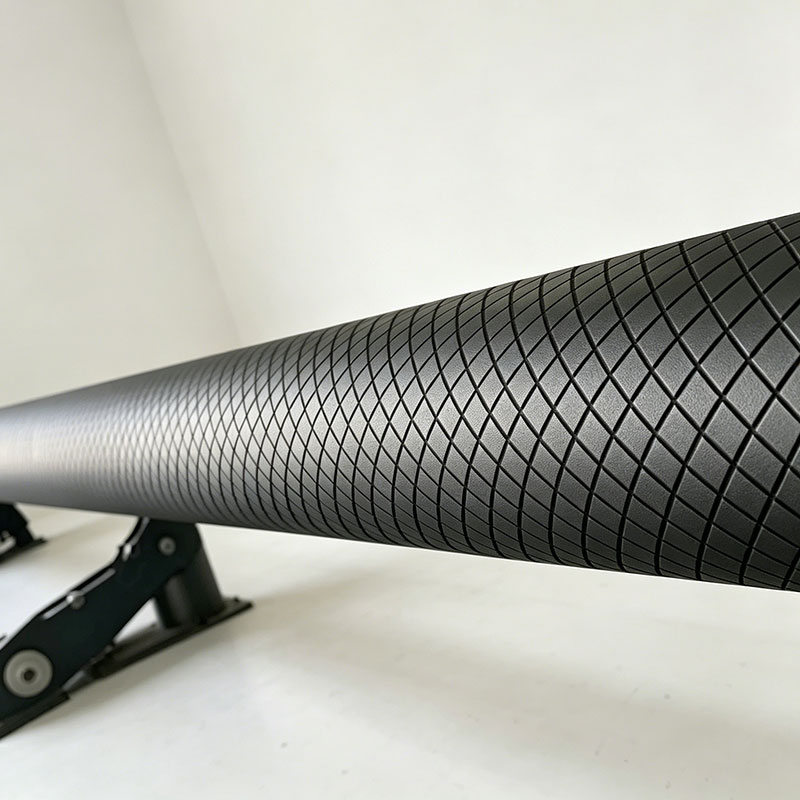

Carbon Fiber Contact Roller for High-Web-Tension Lines

The AstraRoll Carbon Fiber Contact Roller is a high-performance, low-inertia component engineered explicitly for modern roll-to-roll web handling, high-speed slitter-rewinders, and continuous coating lines running under intense web tension. In high-velocity lines, traditional steel or aluminum rollers suffer from heavy rotational inertia and center deflection, which causes material scuffing, wrinkles, and slow response to speed variations.

Our carbon fiber rollers overcome these physical limits by offering an exceptional rigidity-to-weight ratio. The composite sleeve structure is dynamically balanced to maintain flawless geometric running profiles under extreme mechanical stress, providing ultra-smooth substrate interaction and reliable tracking for sensitive thin-gauge films, optical sheets, and lithium battery foils.

Technical Parameter

Roller Body: Multi-Layer Multi-Axial Carbon Fiber Composite (CFRP)

Core Journal Material: High-Strength Aerospace Aluminum Alloy or Premium Carbon Steel

Weight Reduction Ratio: 60% - 70% lighter than traditional steel rollers

Surface Finish Coating: Hard Chrome Plating / Polyurethane / Non-Marking Conductive Rubber

Surface Roughness (Ra): Up to Super Mirror Polish: Ra≤0.02μm (Custom matte finishes available)

Total Indicator Runout (TIR): ≤0.005mm (Maintained under continuous high-speed tracking)

Dynamic Balancing Level: ISO 21940 Grade G2.5 standard for high-velocity line stability

Critical Deflection Resistance: Superior modulus of elasticity to prevent center sagging under tension

Applications

High-Speed Slitter-Rewinders: Operating as primary contact/lay-on rollers at winding stations to expel air pockets and prevent roll interleaving.

Precision Coating & Laminating: Serving as low-inertia guide and nip rollers across multi-stage high-clear film converting lines.

Lithium-Ion Battery Manufacturing: Handling ultra-thin copper and aluminum foils requiring instant tracking response without foil wrinkling or breaking.

High-Velocity Printing Machinery: Providing vibration-free web tracking and steady tension control in flexible packaging lines.

Why Choose AstraRoll's Carbon Fiber Contact Roller for High-Web-Tension Lines?

Ultra-Low Rotational Inertia to Eliminate Film Slippage: Weighing 70% less than steel, our carbon fiber roll significantly lowers starting and braking torque. It starts, stops, and changes velocity in perfect sync with the moving web, preventing the friction lag that causes surface scratches on high-clear packaging or optical substrates.

Exceptional Rigidity-to-Weight Ratio with Zero Sagging: High web tensions cause standard aluminum or steel shafts to deflect at the center, resulting in uneven contact pressure. AstraRoll's multi-directional carbon fiber layout delivers extreme bending resistance, eliminating core deflection and securing a perfectly linear nip profile across the entire web width.

Vibration-Damping Matrix for High-Velocity Smoothness: Carbon fiber inherently dampens mechanical harmonics much faster than metals. This prevents the transfer of high-speed system vibrations to the moving web, suppressing chatter marks and thickness gauge variations in functional coatings.

ISO G2.5 Dynamic Balancing & Precision Runout (≤0.005mm Runout): Our carbon fiber sleeves undergo CNC precision cylindrical grinding and computer-stabilized dynamic balancing under ISO 21940 G2.5 metrics. This guarantees a total indicator runout within ≤0.005mm, providing steady, pulse-free web tension even at operation speeds exceeding 800 m/min.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
