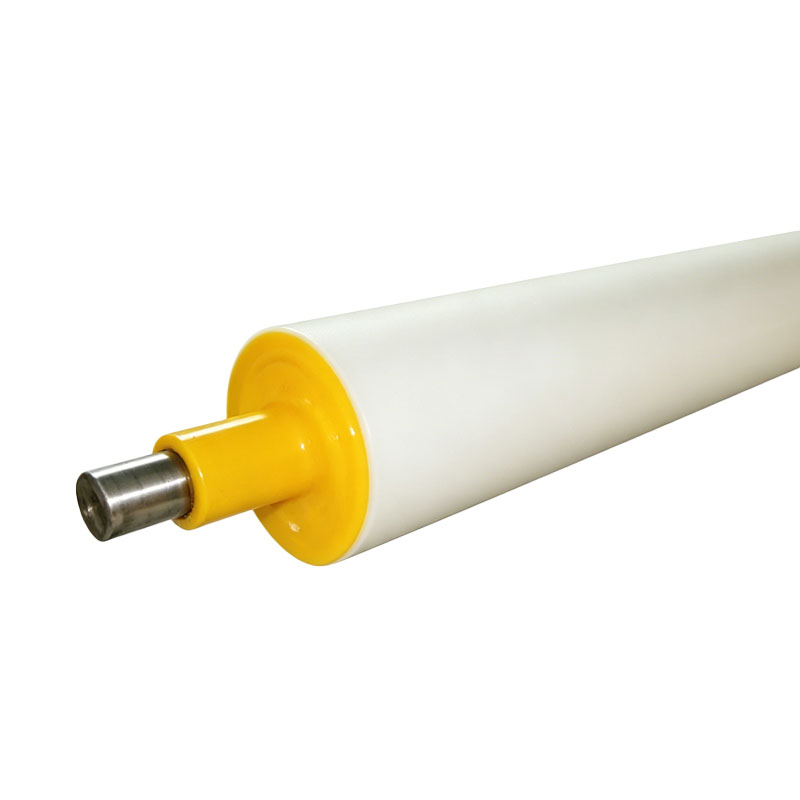

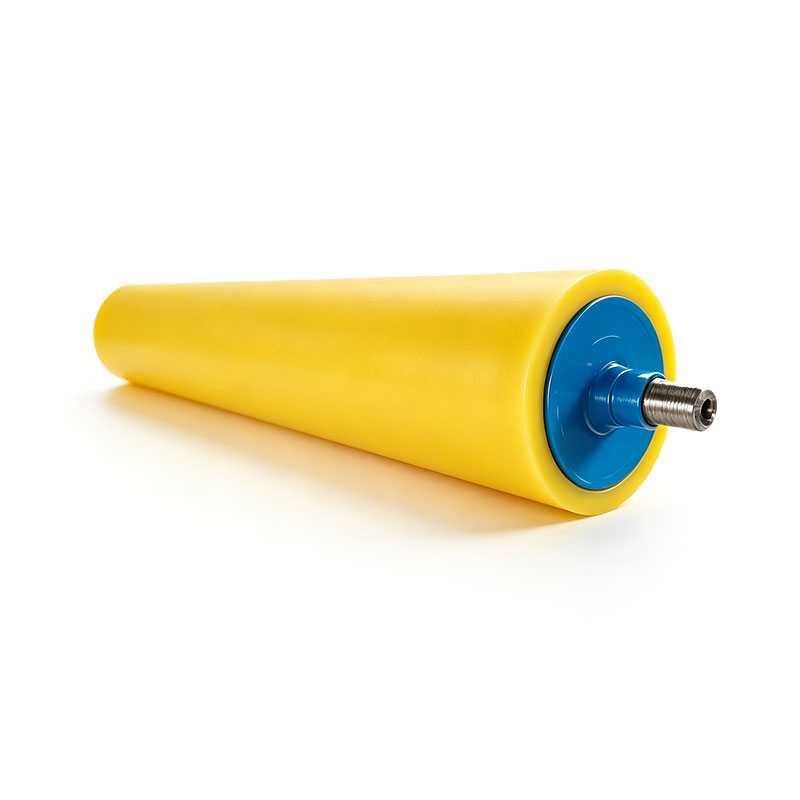

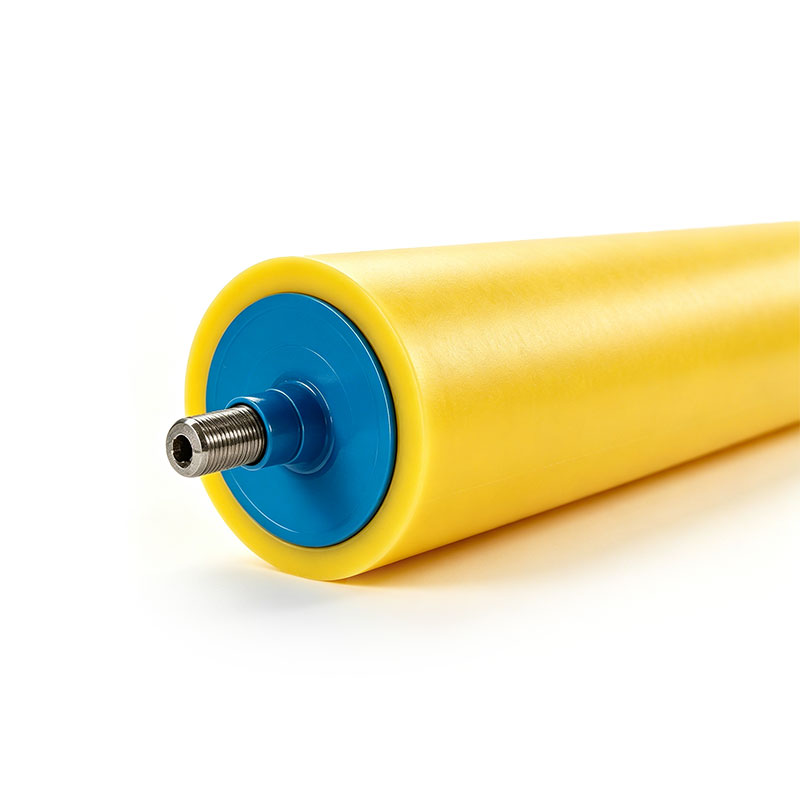

Custom Anti-Static Rubber Guiding Roller

The AstraRoll Custom Anti-Static Rubber Guiding Roller is an advanced safety and quality-control component engineered explicitly for modern web-handling machinery operating at high linear speeds. When synthetic films rub against industrial rollers, they generate massive electrostatic fields that cause web tracking errors, attract cleanroom debris, and pose severe discharge spark hazards in volatile printing environments.

AstraRoll solves this by combining rigid, dynamic-balance-calibrated steel shafts with a proprietary carbon-black or specialized polymer conductive rubber lining. Unlike standard rubber rollers that degrade under high tension or act as electrical insulators, our anti-static rubber rollers maintain excellent physical resilience, heat resistance, and consistent surface conductivity. Every roller undergoes precision cylindrical grinding to ensure tight geometric tolerances, delivering a smooth, high-friction, and zero-scratch driving or idling interface that actively drains localized charges to ground.

Technical Specifications

Product Category: High-Precision Conductive / Anti-Static Rubber Idler & Guiding Roller

Core Base Material: Heavy-Duty Forged Steel / Thick-Walled Seamless Tube (45# Steel or 42CrMo)

Rubber Compound: Premium NBR / EPDM / Silicone blended with specialized conductive agents

Surface Electrical Resistivity: Stable Anti-Static Range (10⁶ - 10⁹Ω) or Customized Conductive Level

Rubber Hardness:Shore A 50 - Shore A 90 (Tailored based on film tension and wrap angle)

Concentricity / Runout: ≤0.01mm (Achieved via precise wet-grinding on CNC lathes)

Dynamic Balance Rating:G2.5 Class (Vibration-free operation at high line velocities)

Environmental Resilience:High resistance to abrasion, thermal aging, alcohol washdowns, and typical solvents

Product Applications

Delivers slip-free web tracking and active electrostatic protection across automated lines:

High-Speed Film Extrusion & Slitting: Essential guiding and pulling rollers for PET, CPP, BOPA, and PE lines to prevent films from sticking together or catching dust post-discharge.

Flexible Packaging & Rotogravure Printing: Acting as the safe guiding or impression backing roller, preventing dangerous static sparks near solvent-based inks.

Lithium Battery Separator and Foil Handling: Smooth, anti-static transportation for ultra-thin polyolefin separator membranes, copper foils, and aluminum foils.

Laminating and Coating Machine Segments: Providing uniform web contact and tension control prior to or immediately following thermal bonding or chemical liquid application.

Why Choose AstraRoll's Anti-Static Rubber Guiding Roller?

Permanent, Uniform Conductive: Many cheap rubber rollers only use a temporary surface chemical coating that wears off after a few weeks of abrasion. AstraRoll embeds specialized conductive nanoparticles directly throughout the entire molecular structure of the rubber matrix. This guarantees uniform, uncompromised 106 - 109Ω surface resistivity that lasts for the entire operational lifespan of the rubber sleeve, keeping your cleanroom completely safe from static buildup.

Precision Core Engineering for Zero Deflection: A rubber roller is only as good as the steel skeleton inside it. AstraRoll machines the core shafts from premium structural steel or forgings, followed by rigorous thermal tempering to relieve internal stresses. This prevents the roller from bowing or sagging under high web tension, guaranteeing perfectly parallel linear contact across the entire width of the film.

High-Traction, Non-Marking Surface Geometry: Slippage between a fast-moving web and a slow-turning roller creates immediate frictional scratches on optical or sensitive packaging films. Our specialized rubber blends offer a high friction coefficient with balanced elasticity. They grip the film firmly but gently, absorbing microscopic tension spikes and tracking the material smoothly without leaving any physical impressions, marks, or micro-scratches.

Advanced CNC Grinding for Flawless Concentricity (≤0.01mm): High radial runout in rubber rollers causes cyclical vibration and uneven tension, leading to film wrinkles. Every AstraRoll rubber roller is ground on ultra-precision CNC cylindrical grinders using specific cooling profiles to prevent thermal deformation of the elastomer. This locks the concentricity below ≤0.01mm, ensuring vibration-free tracking even at maximum production line speeds

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
