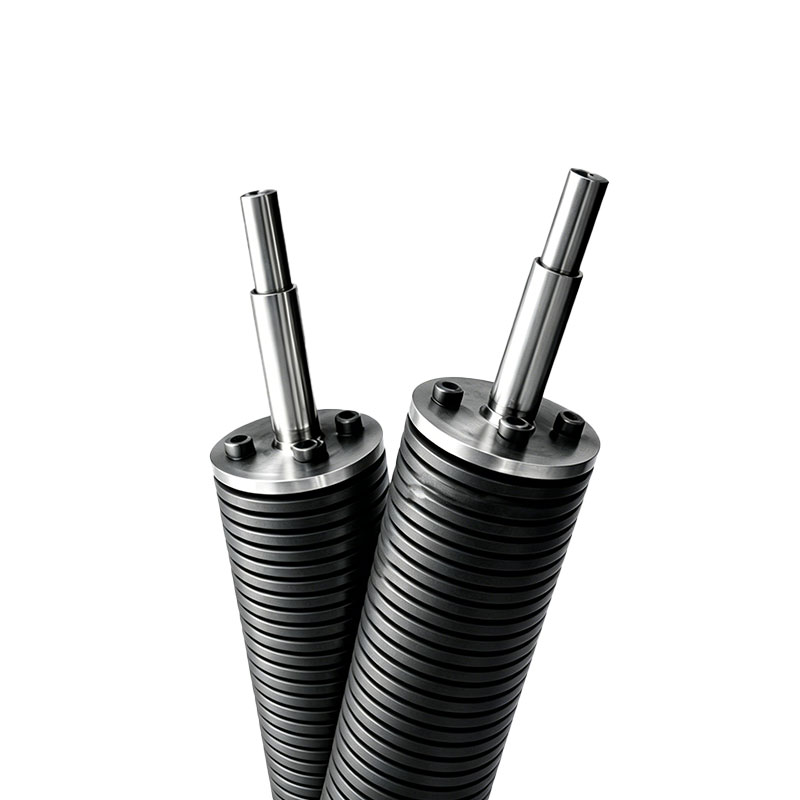

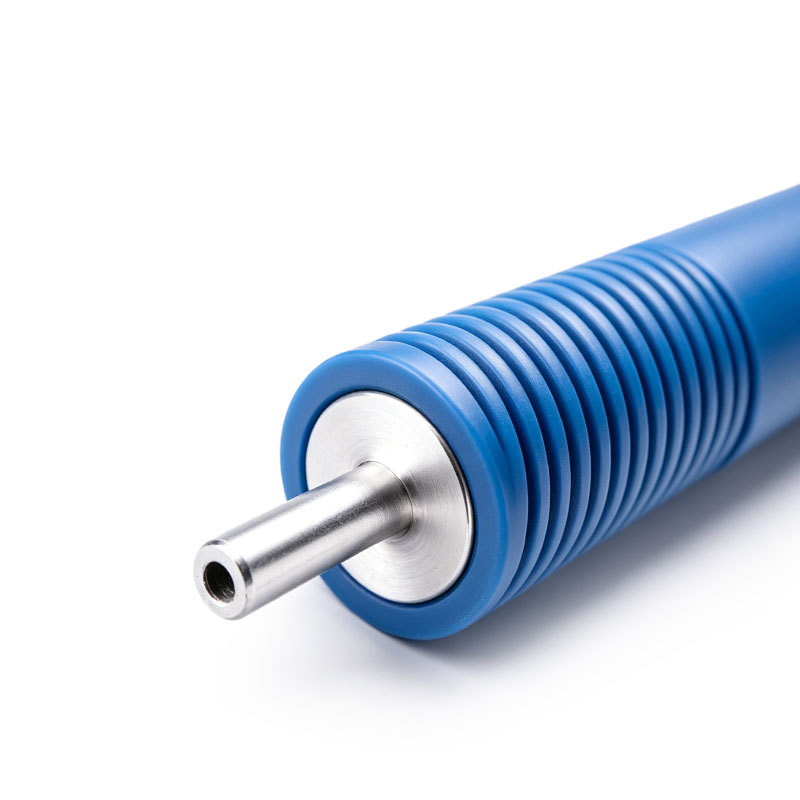

Custom Rubber Spreader Roller for Wrinkle Elimination

The AstraRoll Custom Rubber Spreader Roller represents the industry's premium solution for continuous mechanical web spreading, specifically engineered to defeat high-frequency wrinkling, web slackness, and material interleaving in demanding converting lines. When transferring thin polymer matrices, complex co-extruded films, or delicate metal foils at high velocities, minor variations in machinery alignment or ambient moisture instantly cause localized tension dropouts, creating web creases. Passing these wrinkles into a slitter mandrel, laminator, or coating die causes permanent substrate damage, uneven chemical deposition, and immediate material rejection.

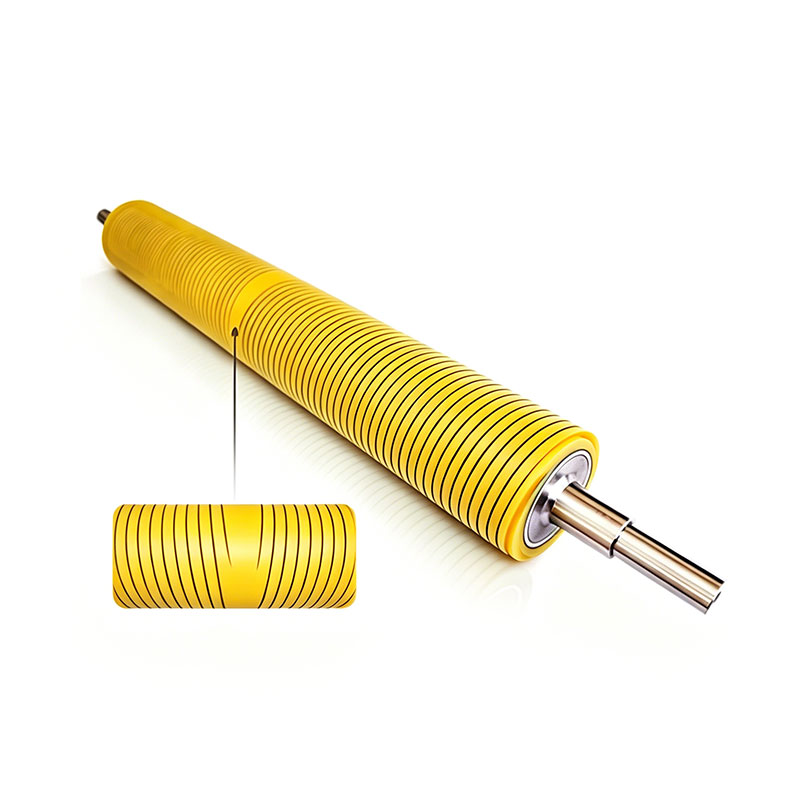

AstraRoll solves this persistent converting challenge by implementing highly engineered rubber surface patterns directly onto a multi-tempered, rigid steel foundation. Through specialized CNC grinding and precision tool etching, we carve tailored micro-grooves—such as progressive chevron (V-shape) grooves, dual-helix channels, or diamond-hatch matrices—calculated precisely to your web's elasticity. As the moving web wraps over the roller face, the rubber grooves gently flex outward from the centerline to the margins, transferring a smooth, uniform tractive tension that flattens out creases and stabilizes web tracking without outgassing or web marking.

Technical Parameter

Product Framework: Precision Rubber Spreader and Matrix Expander Roller for Web Handling

Core Base Material: Premium 45# Seamless Steel Steel / 42CrMo Forged Alloy Steel

Outer Rubber Protective Layer: High-Elasticity Anti-Static EPDM / High-Wear Nitrile Rubber (NBR)

Rubber Hardness Options: 60 Shore A - 80 Shore A (Strictly custom-tailored to substrate fragility)

Groove Configuration Matrices: Chevron (V-Groove), Helical (Spiral Channels), Diamond Non-Slip Slits

Total Indicator Runout (TIR): ≤0.005mm (Achieved through specialized cylindrical grinding)

Parallelism / Cylindricity: ≤0.005mm across the entire working face width

Operational Velocity Limit: Rated for continuous web line speeds up to 600m/min - 800m/min

Dynamic Balance Rating: ISO 21940 G2.5 precision calibrated on multi-axis electronic rigs

Applications

Engineered for continuous wrinkle-free expansion and precision cross-web tension tracking:

Plastic Film Extrusion & Converting: Vital for smoothing out thin polymer films (BOPP, PET, PVC, CPP) immediately after the T-die or prior to high-speed laminating and printing stations.

Lithium-Ion Battery Foil Processing: Prevents thin-gauge copper and aluminum current collector foils from creasing before the slot-die coating, pressing, and slitting stages.

High-Speed Slitter Rewinders: Installed directly ahead of the rewind mandrels to guarantee clean multi-ribbon separation and completely prevent interleaving or overlapping after slitting.

Specialty Paper & Textile Converting: Distributing uniform silicone releases, non-woven fleeces, or packaging boards under high tension without web wrinkling or slippage.

Why Choose AstraRoll's Custom Rubber Spreader Roller?

Tailored Micro-Groove Trajectory for Flawless Spreading: A grooved pattern with incorrect angles or depth will either tear sensitive films or fail to open up wrinkles. AstraRoll utilizes advanced mathematical models to calculate the precise chevron or helix groove geometry based on your web thickness, width, wrap angle, and tension profile. We lock in the exact outward vector to deliver flat tracking without edge stress fatigue or marking.

Premium Anti-Static, Non-Marking Rubber Matrix: Standard industrial rubbers build up massive static fields that attract airborne debris, leaving micro-dents and scratches on sensitive optical sheets. Our premium EPDM and Nitrile rubber compounds are blended with active conductive matrix additives. This lowers surface electrical resistance, continuously discharging static buildup while providing high structural defense against ozone degradation.

Micro-Level Concentricity (≤0.005 mm) to Prevent Web Flutter: At high linear production speeds (up to 800m/min), any mechanical imbalance or structural eccentricity in the spreader roll turns it into a vibration generator, creating periodic web flutter and uneven tension. Every AstraRoll spreader is subjected to meticulous multi-plane dynamic balancing to a strict G2.5 rating and cylindrical grinding to restrict TIR below ≤0.005mm, securing whisper-quiet operation.

Stress-Relieved Core For Heavy-Duty Tension Resilience: Spreader rollers operating in continuous lines endure high-frequency cyclic bending stress. Standard shafts quickly suffer from structural fatigue and dynamic sagging. AstraRoll subjects every steel core to comprehensive thermal tempering to remove internal stresses before precision assembly, ensuring zero geometric deflection even under multi-ton web tension loads.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
