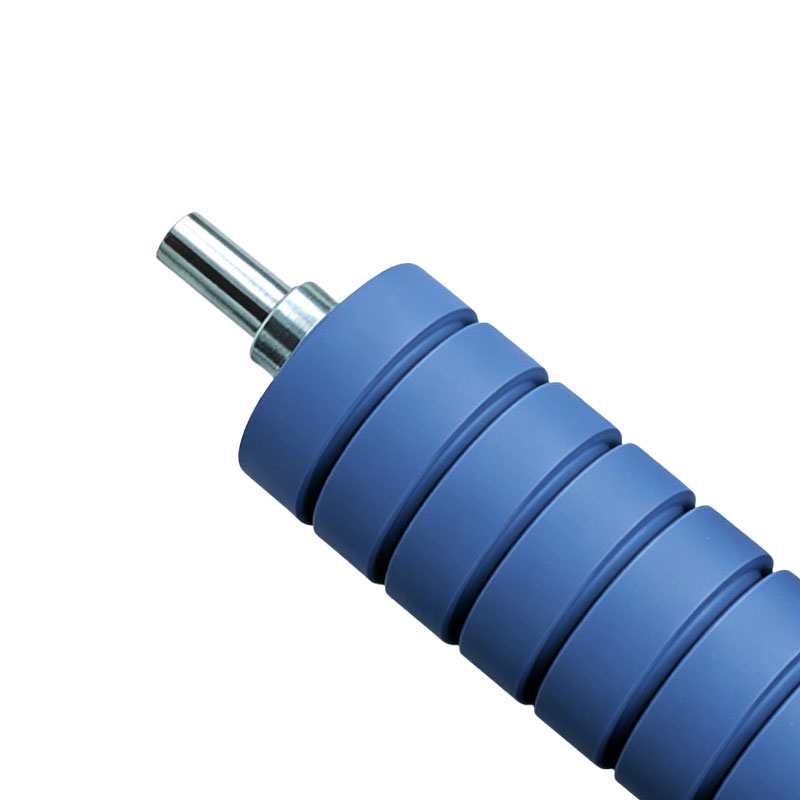

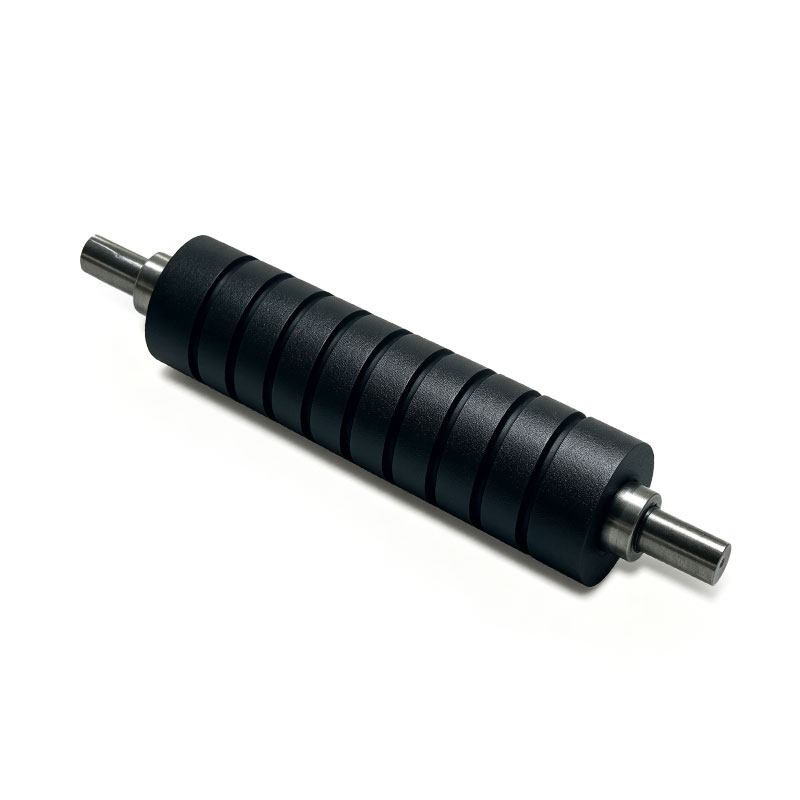

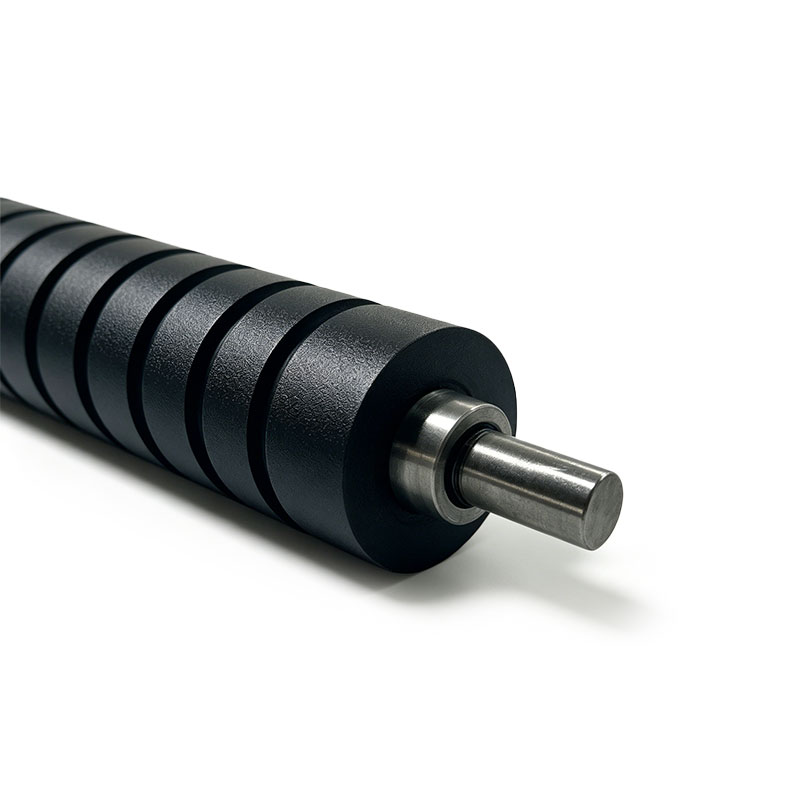

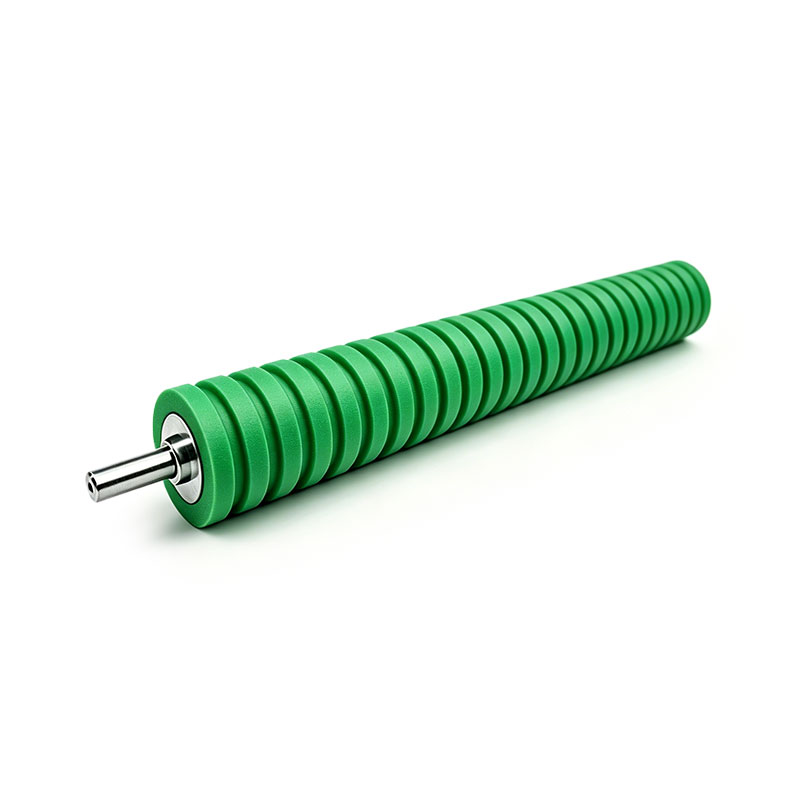

Precision Spiral Grooved Rubber Rollers Manufacturer

The AstraRoll Technical Advantage

Cutting a groove into rubber seems simple, but engineering a groove that spreads a delicate web without tearing it requires absolute precision:

Active Web Spreading: We machine bi-directional spirals that start at the center of the roller and helix outward toward the edges. As the roller turns against the web, the rubber "threads" act like microscopic fingers, gently pulling the material laterally to perfectly flatten creases and wrinkles.

Air Entrapment Elimination: High-speed webs drag a boundary layer of air with them. Our spiral grooves act as exhaust channels, giving the air a place to vent. This ensures the web makes 100% physical contact with the rubber, preventing slippage and loss of tension.

Self-Cleaning Architecture: In dusty environments (like tissue paper or corrugated board manufacturing), smooth rollers build up debris rings that dent the product. Spiral grooves continuously push dust, water, and chemical residue out to the edges of the roller, keeping the contact surface clean.

Precision CNC Machining: We do not hand-cut or mold our grooves. After vulcanization, every roller is ground perfectly cylindrical and then mounted on a multi-axis CNC lathe. This guarantees an exact groove pitch and depth, ensuring uniform spreading force across the entire face width.

Key Specifications

Please note: Every AstraRoll grooved roller is custom-manufactured to your specific web material and tension parameters.

Outer Diameter (O.D.): Custom from 50mm up to 600mm+.
Overall Length: Custom from 100mm up to 4,000mm.
Groove Types: Center-Out (Herringbone), Uni-directional, Diamond/Cross-Hatch, or Custom Multi-Start Spirals.
Groove Angles: Carefully calculated (typically 15° to 45°) to match the required spreading aggressiveness.
Hardness Range: 30A to 90A (Shore A).
TIR (Concentricity Tolerance): ≤ 0.05mm.

Why Choose AstraRoll?

1. A Dedicated Spiral Grooved Rubber Rollers Manufacturer

Many suppliers buy blank rubber rollers and outsource the grooving, leading to sharp, uneven cuts that scratch delicate films. AstraRoll handles the core machining, rubber compounding, vulcanization, and CNC grooving entirely under one roof. We chamfer (smooth) the edges of our grooves to ensure they aggressively grip the web without leaving physical marks or tearing thin substrates.

2. Turnkey Recovering Services

Do not throw away your expensive steel or aluminum cores when the rubber wears down. Send your worn spreader rolls to AstraRoll. We will strip the old elastomer, apply a brand-new Custom Grooved Rubber Roller jacket, and re-cut the spiral profiles to your exact OEM specifications, saving you high operational costs.

Frequently Asked Questions (FAQs)

Q: Will the spiral grooves leave indentation marks on my thin plastic film?
A: Not if engineered correctly. For ultra-thin or delicate films, we specify a softer durometer rubber (e.g., 40-50 Shore A) and meticulously smooth the "lands" (the flat parts between the grooves). The softer rubber compresses slightly under web tension, providing gentle spreading without embossing the film.

Q: Should I use a single-direction spiral or a center-out (bi-directional) spiral?
A: It depends on your goal. If you need to remove wrinkles and spread the web, you must use a Center-Out pattern (left-hand thread on one side, right-hand thread on the other). If you are simply trying to push water/dust to one side of a machine or laterally shift a narrow belt, a Single-Direction spiral is required.

Q: Can you apply spiral grooves to Silicone or Polyurethane rollers?
A: Yes, absolutely. While NBR is the most common, we frequently CNC machine spiral grooves into high-temperature Silicone rollers for coating lines, and into extreme-wear Polyurethane (PU) rollers for heavy material handling applications.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
