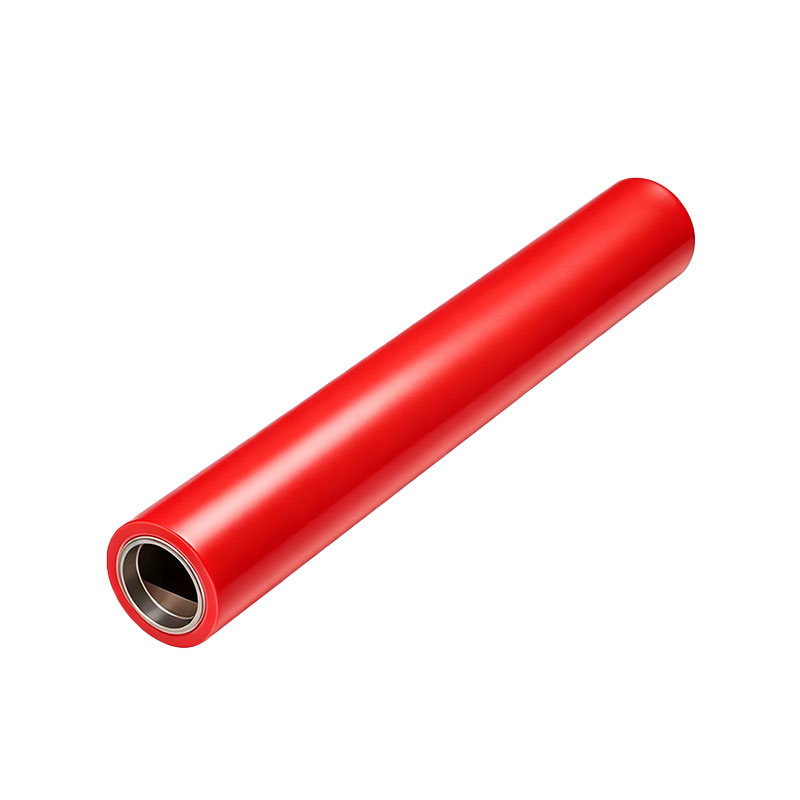

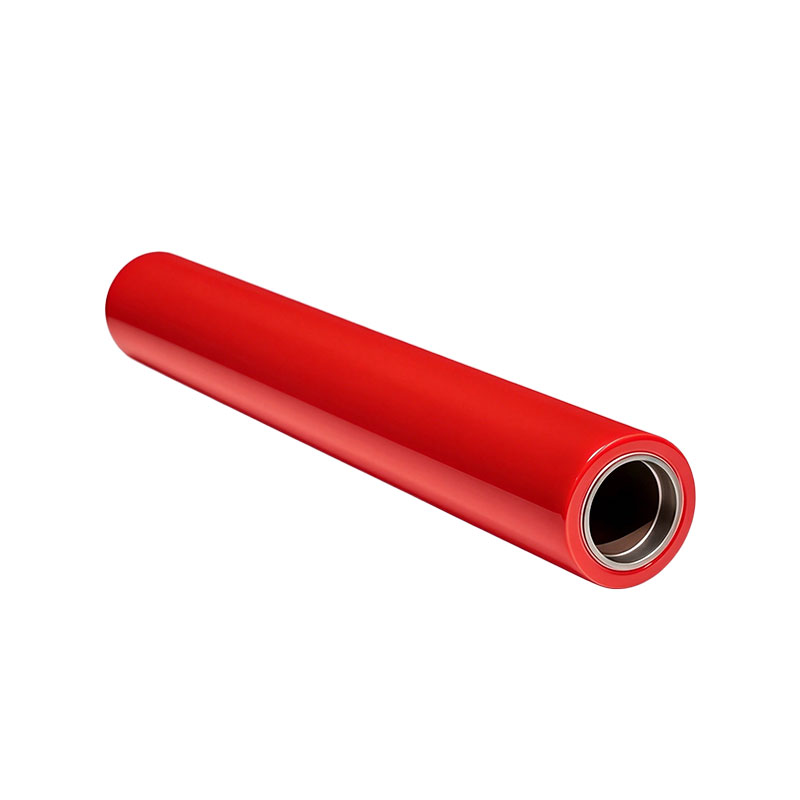

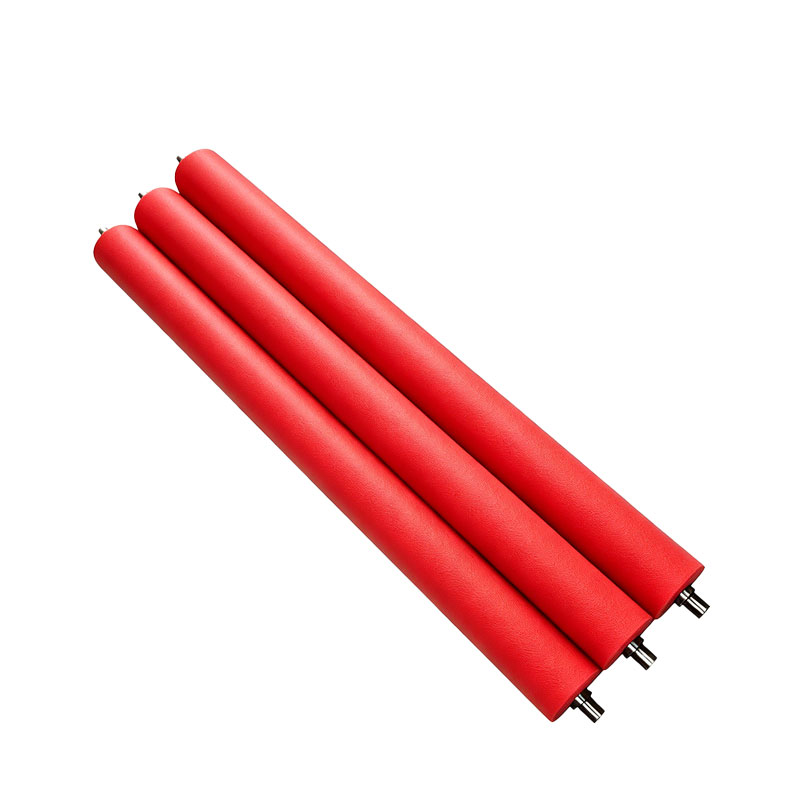

Custom High-Temperature Red EPDM Rubber Rollers

The AstraRoll Technical Advantage

Compounding a premium EPDM roller that won't delaminate under heat and chemical attack requires advanced vulcanization chemistry:

Ozone & UV Immunity: EPDM is the ultimate outdoor and high-radiation elastomer. In plastic film corona treatment stations or UV ink curing lines where ozone levels are high, AstraRoll EPDM rollers will never crack, glaze, or harden, offering years of reliable service.

Polar Solvent Resistance: While EPDM cannot handle oil, it is highly resistant to aggressive polar chemicals that destroy other rubbers. It is the perfect choice for flexographic printing lines using alcohol-based or water-based inks, and for metallurgical pickling lines submerged in acidic baths.

High-Temperature Stability: EPDM effectively bridges the thermal gap between standard NBR (which maxes out at 100°C) and costly Silicone. Our EPDM formulations operate continuously in high-speed laminating and hot-coating environments up to 150°C.

Anti-Delamination Bonding: High heat and chemical exposure rapidly degrade roller adhesives. We utilize a proprietary multi-stage sandblasting and extreme-heat autoclave vulcanization process to create an unbreakable chemical bond between the metal core and the EPDM jacket.

Key Specifications

Please note: Every AstraRoll EPDM roller is 100% custom-manufactured to your specific CAD drawings and chemical exposure requirements.

Outer Diameter (O.D.): Custom from 30mm up to 600mm+.
Overall Length: Custom from 50mm up to 4,000mm.
Temperature Resistance: -40°C to +150°C (-40°F to 302°F).
Hardness Range: 30A to 90A (Shore A).
Chemical Compatibility: Excellent for Alcohols, Ketones (MEK, Acetone), Dilute Acids, and Alkalis.
TIR (Concentricity Tolerance): CNC ground to ≤ 0.05mm for vibration-free rotation.

Why Choose AstraRoll?

1. In-House Custom Compounding

Many suppliers use cheap, pre-mixed generic EPDM that contains excessive fillers, degrading its chemical resistance. AstraRoll houses advanced rubber mixing mills. We formulate our Red EPDM specifically for industrial roller applications, ensuring maximum polymer purity so your rollers won't swell or degrade in your coating baths.

2. Roll Core Recovering Services

If your steel or aluminum shafts are still perfectly straight but the rubber is worn, do not buy a completely new roller. AstraRoll offers a turnkey recovering service. Ship us your worn rollers; we will strip the old elastomer, apply our proprietary chemical primer, vulcanize a brand new Red EPDM jacket, and CNC grind it back to exact OEM tolerances at a fraction of the cost.

Frequently Asked Questions (FAQs)

Q: Can I use this Red EPDM roller in applications involving mineral oil or petroleum-based lubricants?
A: Absolutely not. This is the critical weakness of EPDM. If exposed to petroleum products, mineral oils, or hydrocarbon-based solvents (like gasoline or toluene), the EPDM will immediately swell, soften, and be destroyed. For oily environments, you must specify our NBR (Nitrile) Rubber Rollers.

Q: Why is the roller specifically red? Can I order it in black?
A: We standardly manufacture our high-temp EPDM in red as a visual management tool. In factories that use both NBR (usually black) and EPDM rollers, mixing them up is disastrous (e.g., putting an EPDM roller in an oil bath). The red color ensures your operators install the correct roller. However, we can absolutely compound it in Black, White, or Green upon request.

Q: What is the maximum operating temperature for EPDM?
A: Our premium EPDM compound can handle continuous operating temperatures of 150°C (302°F) and intermittent spikes slightly higher. If your application (such as hot-melt extrusion or high-heat lamination) consistently exceeds 150°C, you must upgrade to our Custom Silicone Rubber Rollers.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
