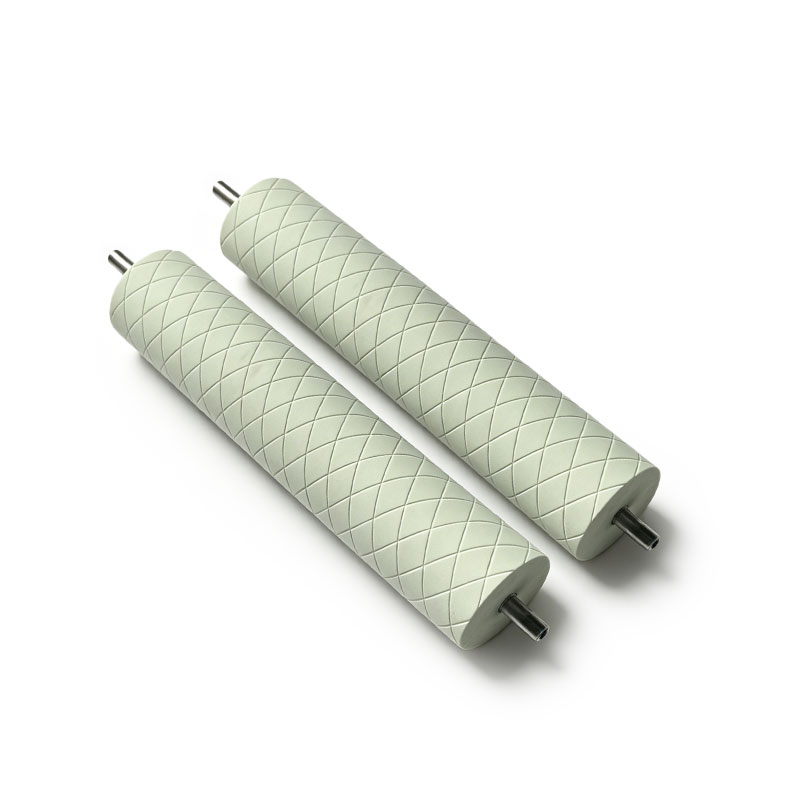

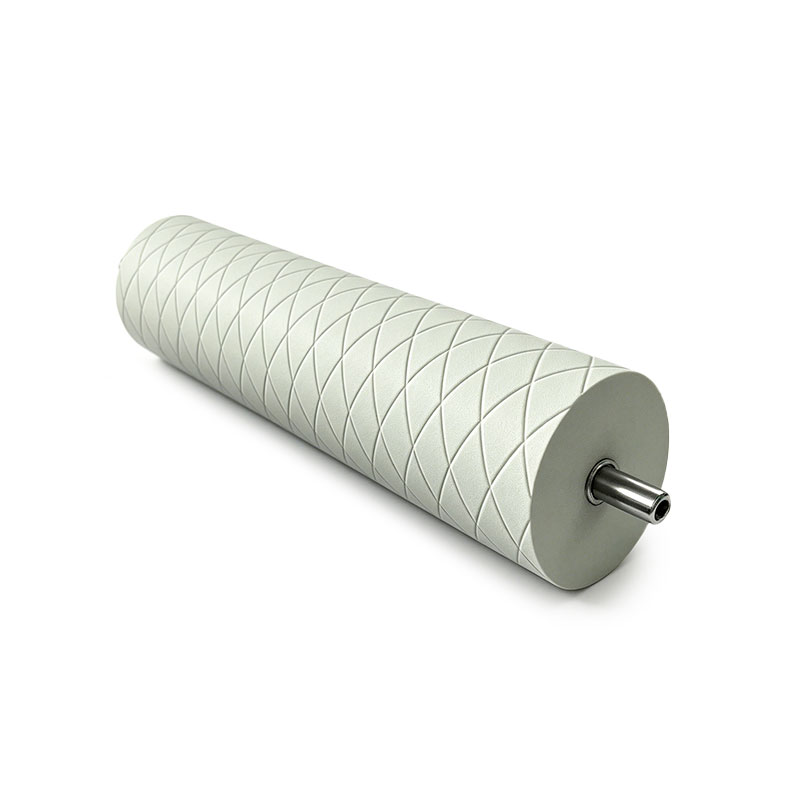

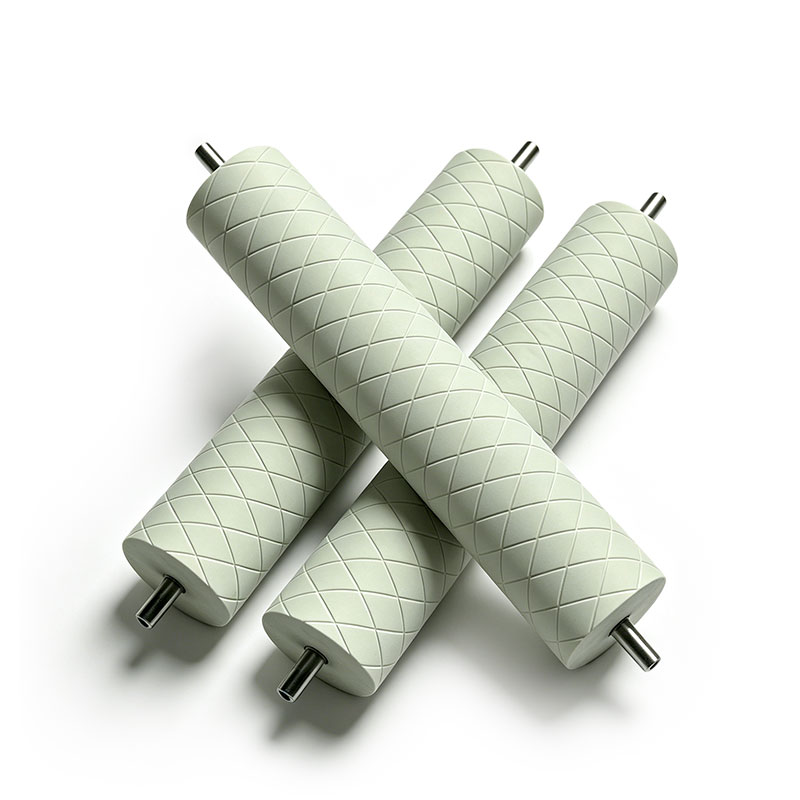

Custom Diamond Grooved White Rubber Rollers for Anti-Slip Conveyors
Product Overview:
In heavy-duty conveyor systems and high-speed packaging lines, a smooth rubber roller often fails when exposed to moisture, oil, or paper dust. The surface becomes slick, causing the conveyor belt to slip, wander off-track, or stall completely. Furthermore, standard black rubber rollers utilize carbon black, which can leave disastrous dark scuff marks on food packaging, white paper, and pristine PVC belting. The AstraRoll Custom Diamond Grooved White Rubber Roller is the ultimate solution for extreme traction and cleanroom-level material handling. We utilize 100% non-marking white elastomer compounds that will never scuff your products. Through advanced CNC lathe machining, we cut a precise intersecting diamond (rhombus) pattern into the rubber surface. This diamond grooving acts exactly like a rain tire on a car: it actively channels water, oil, and dust away from the contact surface, drastically increasing the coefficient of friction and guaranteeing relentless, slip-free drive power in the most demanding industrial environments.
Roll Function: Printing Roller, Conveyor Roller, Material Handling
Industry Applications: Printing, Textile, Logistics Conveyor Systems, Packaging, Food, Beverage
Inquiry Email: sales@astraroll.com
Custom Diamond Grooved White Rubber Rollers for Anti-Slip Conveyors Details
The AstraRoll Technical Advantage
Creating a grooved roller that maintains its structural integrity under heavy belt tension requires superior vulcanization and machining:
Diamond Grooved Anti-Slip Traction: The intersecting grooves create hundreds of individual rubber "blocks" that independently compress and grip the conveyor belt. This eliminates belt slippage (hydroplaning) even when the system is drenched in water, grease, or heavy manufacturing dust.
100% Non-Marking White Compound: By replacing cheap carbon black with advanced silica fillers, our white rubber formulation provides the same high-tensile strength and wear resistance as industrial black rubber, but guarantees zero color transfer onto your conveyed goods or belts.
Active Web Spreading & Tracking: The bi-directional angles of a diamond groove naturally push outward from the center of the roller as it rotates. This helps smooth out wrinkles in delicate films/papers and keeps conveyor belts tracking perfectly straight.
Anti-Delamination Bonding: Grooving removes structural material from the rubber jacket, increasing the risk of the rubber tearing away from the steel core under high torque. We use a proprietary multi-stage sandblasting and adhesive priming process before autoclave vulcanization to ensure an unbreakable bond between the steel shaft and the white rubber.
Key Specifications
Please note: Every AstraRoll rubber roller is 100% custom-manufactured to your specific CAD drawings and machinery requirements.
Outer Diameter (O.D.): Custom from 50mm up to 600mm+.
Overall Length: Custom from 100mm up to 4,000mm.
Groove Dimensions: Custom pitch, angle, and depth (Standard diamond pitch often ranges from 10mm to 50mm).
Hardness Range: 45A to 85A (Shore A).
TIR (Concentricity Tolerance): CNC ground to ≤ 0.05mm for flawless, vibration-free rotation.
Why Choose AstraRoll?
1. In-House CNC Custom Grooving
We do not use pre-molded, generic rubber tubes. Every AstraRoll roller is freshly vulcanized and then precision-ground on our heavy-duty CNC lathes. This allows our engineers to cut the exact diamond angle, groove depth, and spacing required for your specific application, maximizing traction without damaging your conveyor belt.
2. Turnkey Core Manufacturing & Recovering
AstraRoll can manufacture the entire roller from scratch, including machining the internal steel shaft, welding the end plates, and pressing the bearing journals. Alternatively, if you have existing worn-out drive pulleys, you can ship the steel cores to us. We will strip the old rubber, apply our premium white grooved coating, and return them in better-than-OEM condition at a fraction of the cost.
Frequently Asked Questions (FAQs)
Q: Should I choose Diamond Grooving or Chevron (V-shaped) Grooving?
A: Diamond Grooving is best for reversing conveyors or applications where you need maximum multi-directional traction and fluid displacement. Chevron (V-shaped) Grooving is highly recommended for one-way, high-speed conveyors where you specifically need to push water out to the sides and actively keep the belt centered.
Q: Will the grooves cause excessive wear on the back of my conveyor belt?
A: No, provided the roller is engineered correctly. We chamfer (smooth) the top edges of the diamond blocks so they are not razor-sharp. Additionally, by selecting a slightly softer rubber durometer (e.g., 60 Shore A), the roller grips the belt firmly without grinding into the belt's bottom fabric.
Q: Can this white rubber roller be used in direct food contact applications?
A: If your process requires the roller to directly touch bare food (e.g., dough sheeting or meat processing), you must specify our FDA-Compliant Food Grade White Silicone or NBR. We will compound the rubber using strictly approved, non-toxic raw materials and provide the necessary compliance documentation.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
