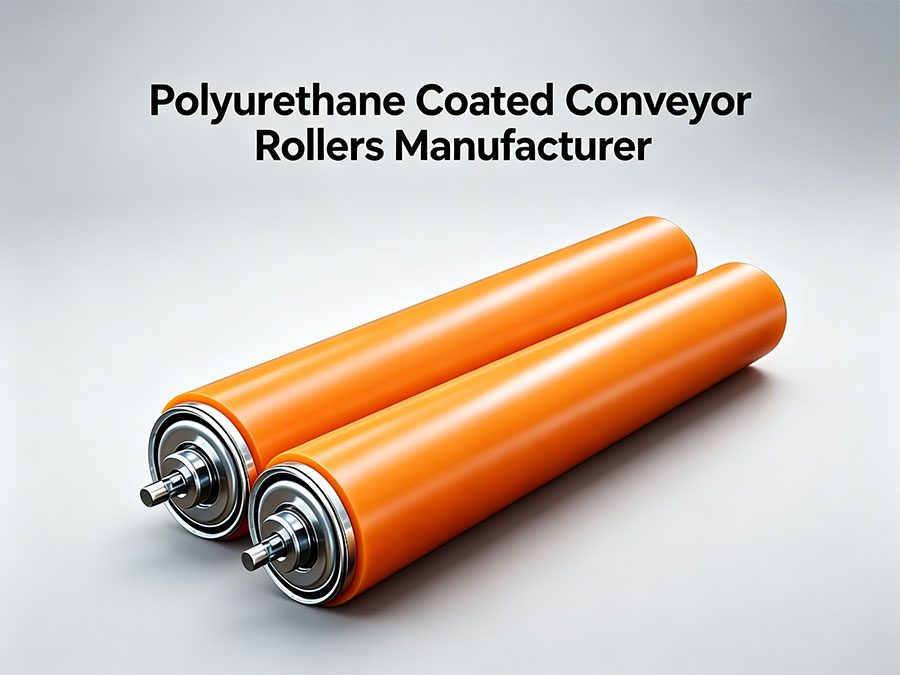

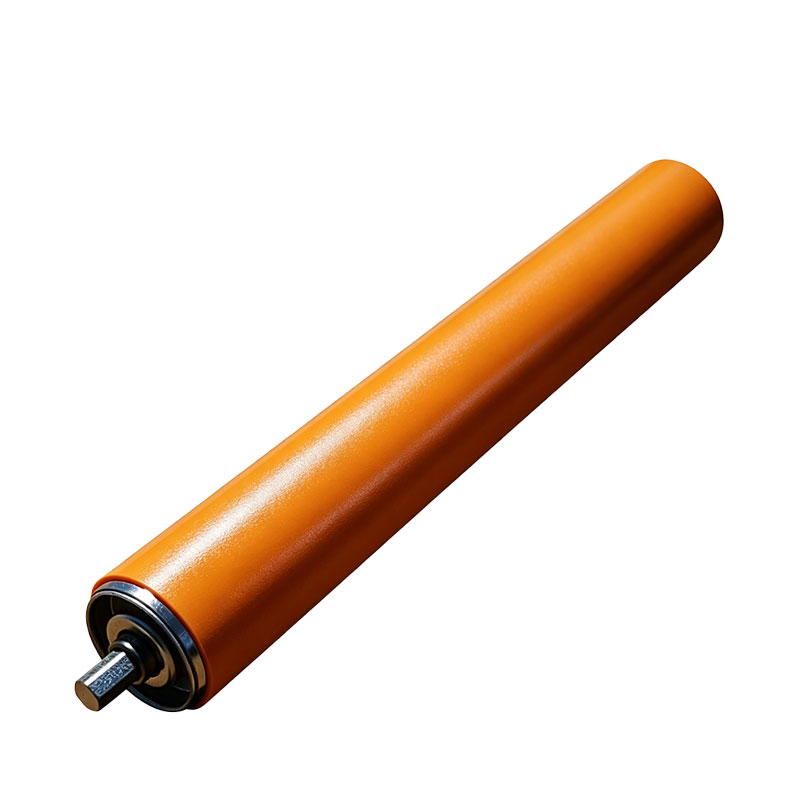

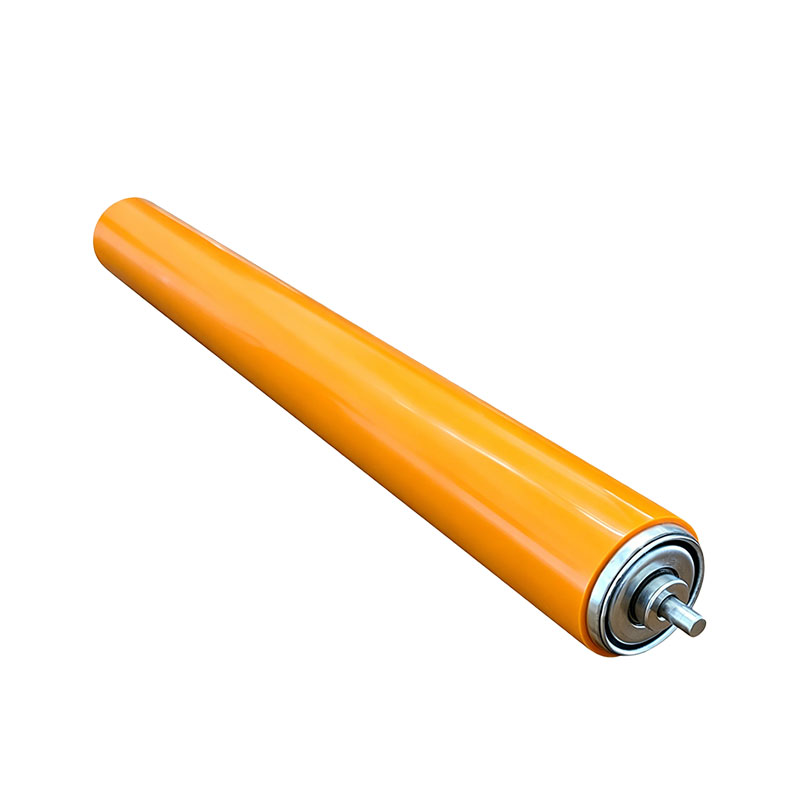

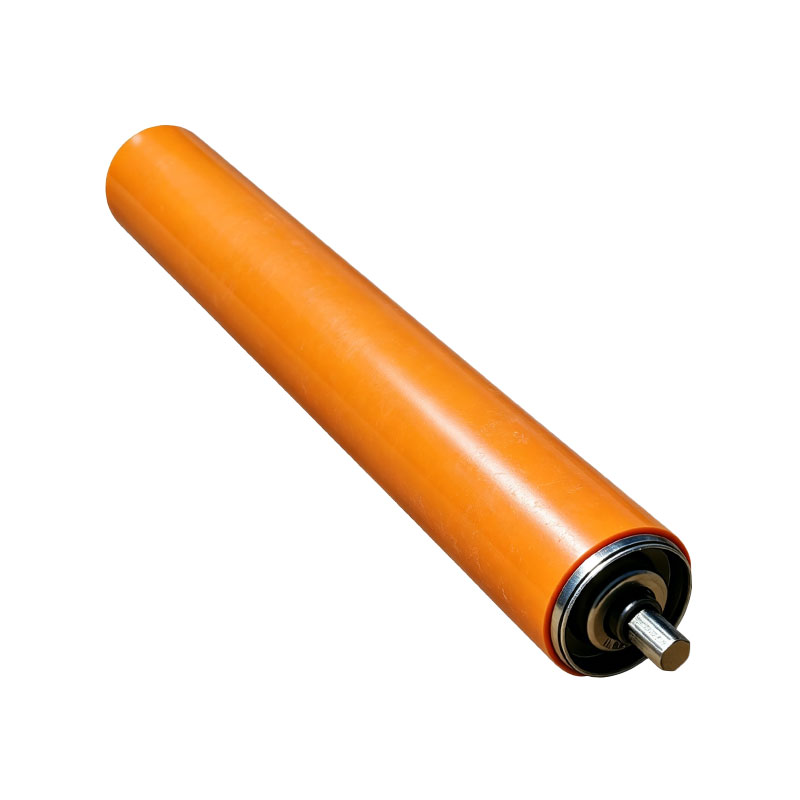

Polyurethane Coated Conveyor Rollers Manufacturer

The AstraRoll Technical Advantage: Silent, Protective, and Precise
Running bare steel rollers works for cardboard boxes, but it destroys high-value manufactured parts. We engineered our PU Coated Series to protect your payload and improve your facility's environment:

Zero-Damage Payload Protection: Steel-on-steel contact leads to scuffs, scratches, and rejected parts. Our premium PU coating provides a tough but forgiving surface that safely cradles delicate automotive components, glass panels, painted metals, and polished wood without leaving any marks.

Massive Noise Reduction: The clatter of hard products riding over hollow steel tubes creates a deafening factory environment. The Polyurethane acts as a natural acoustic dampener, absorbing vibration and silencing the impact of goods transitioning between rollers, ensuring OSHA-compliant noise levels.

High-Friction Grip for Inclines: On powered conveyor lines or inclines/declines, cardboard and plastic totes easily slip on bare steel. The PU coating acts like a tire tread, providing the essential traction needed to control descent speeds or positively drive heavy payloads up an incline.

Drop-In Replacement Design: Upgrading your line shouldn't require rebuilding your frames. We utilize standard 7/16" (or custom) spring-retained hex axles. Maintenance teams can simply push the axle in, remove the old steel roller, and snap the new AstraRoll PU roller perfectly into the existing conveyor frame.

Key Specifications & Custom Capabilities

Please note: As a custom manufacturer, every parameter below can be engineered to your exact requirements.
Between Frames (BF) Dimension: Manufactured to your exact millimeter/inch requirements.
Base Tube Material: 16-Gauge or 11-Gauge Galvanized Steel, Aluminum, or Stainless Steel.
Axle Type: 7/16" Hex (Standard), 5/16" Hex, or Round shafts. Spring-loaded on one or both ends.
Bearings: Commercial light-oil bearings, precision ABEC bearings, or greased sealed bearings.
PU Hardness (Durometer): Typically 80A to 90A (Customizable from soft/spongy to hard/durable).
Color: Standard Safety Orange, Black, or Custom Brand Colors.

Why Choose AstraRoll? (Your Conveyor OEM Partner)

1. "Between-Frames" (BF) Precision

Engineering Conveyor frames are unforgiving; if a roller is cut 1/4" too long, it won't fit. If it's too short, it falls out. As a direct manufacturer, we don't force you into "standard" lengths. You provide the exact internal distance between your conveyor frames (the BF), and our CNC cutting lines manufacture the rollers for a flawless, rattle-free fit.

2. Factory-Direct Retrofit Pricing

Replacing hundreds of rollers on an existing conveyor line is a major capital expense when buying through distributors. By purchasing directly from the AstraRoll manufacturing facility, fulfillment centers, automotive plants, and logistics integrators secure premium PU-coated upgrades at aggressive B2B wholesale pricing.

Frequently Asked Questions (FAQs)

Q: How do I measure the length I need? Do I measure the roller or the frame?
A: The most accurate way to order is by providing the Between Frames (BF) dimension. Measure the exact distance from the inside of one conveyor frame rail to the inside of the opposite rail. Our engineers will automatically calculate the necessary clearances and axle lengths to ensure the roller fits perfectly.

Q: What is the difference between a "PU Sleeved" and a "Hot-Cast PU" roller?
A: PU Sleeved: A highly resilient polyurethane tube is stretched and pneumatically installed over the steel core. This is highly cost-effective and perfect for gravity conveyors and standard powered lines.
 Hot-Cast PU: Liquid polyurethane is poured and chemically bonded directly to the steel core. This is more expensive but required for extreme heavy-duty applications (like moving 2-ton steel coils) where a sleeve might slip under massive rotational torque.

Q: Can these rollers build up static electricity?
A: Polyurethane is a natural insulator, which means friction can build up static charge on fast-moving lines. If you are conveying sensitive electronics or operating in a volatile environment, please let us know. We can formulate the PU coating with Anti-Static (ESD) properties to safely dissipate the charge through the steel axle.

Q: Can I just buy the PU sleeves and put them on my existing rollers?
A: While possible, installing stretch-fit PU sleeves manually is incredibly difficult without specialized pneumatic expansion tools. It is highly recommended and much more cost-effective in terms of labor to order the complete, pre-assembled AstraRoll PU-coated roller.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
