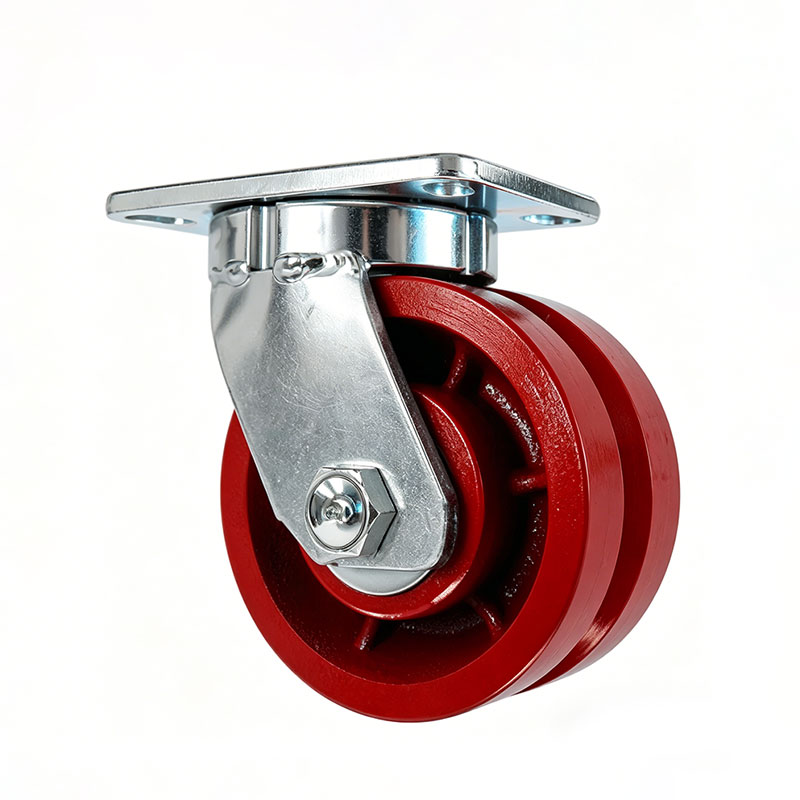

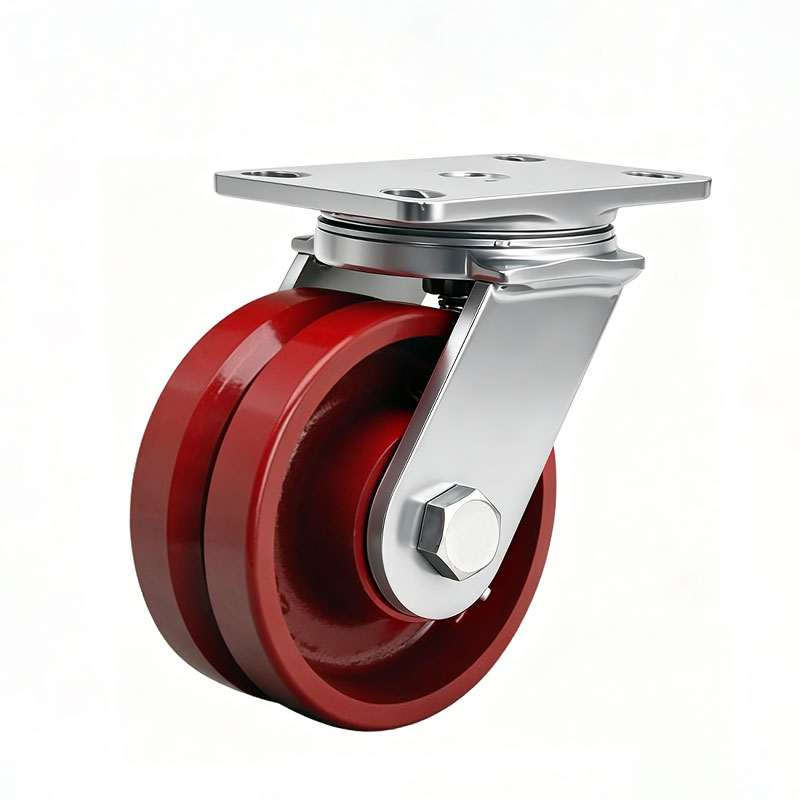

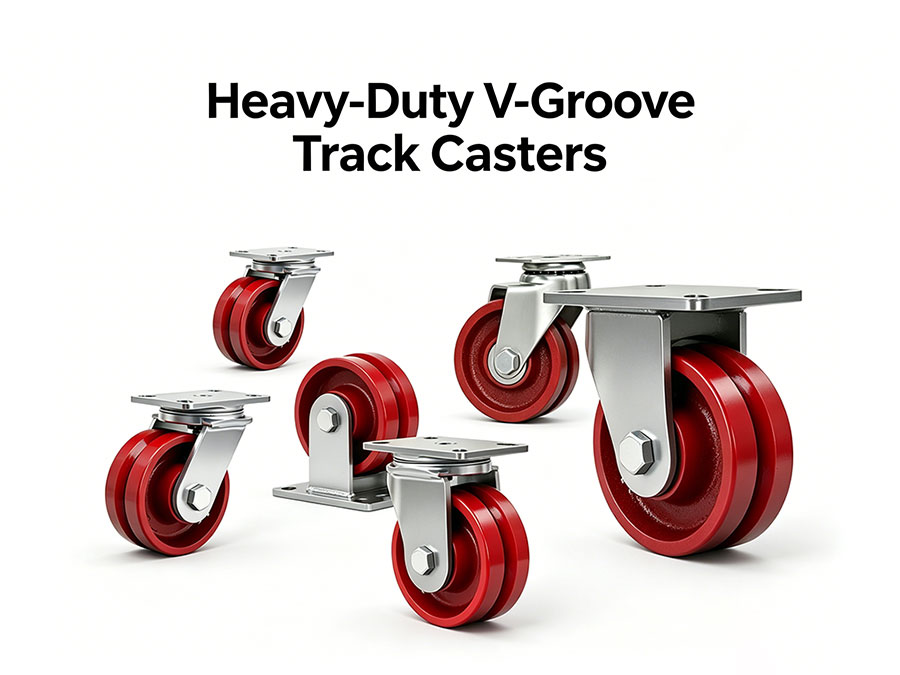

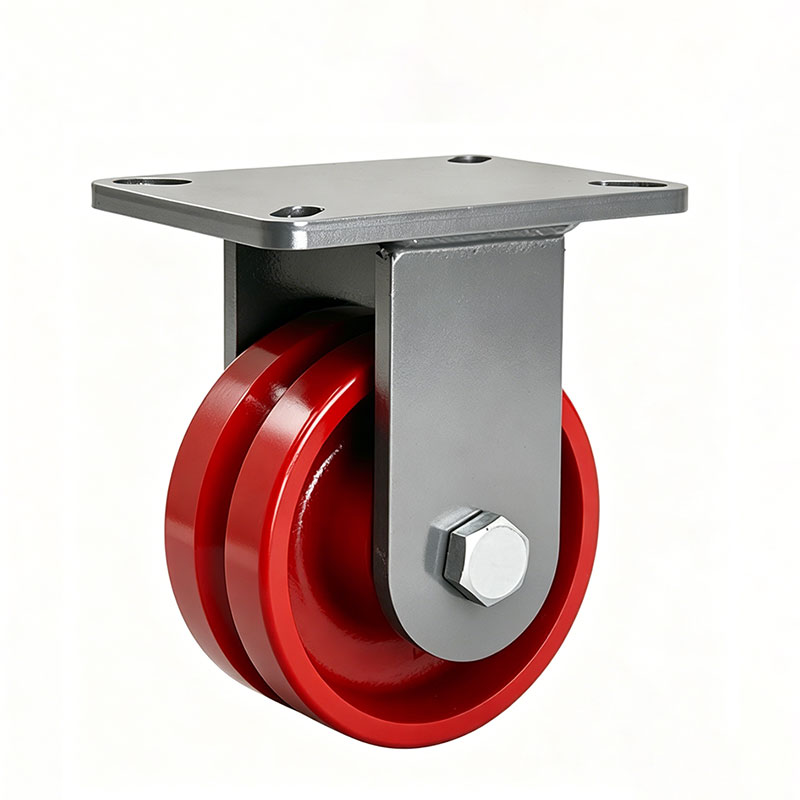

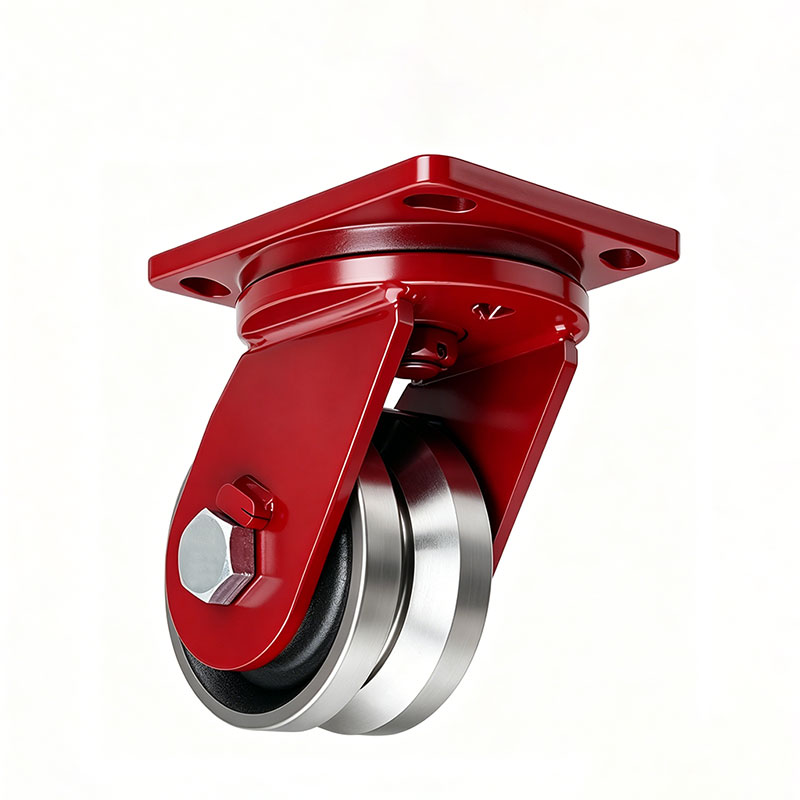

Heavy-Duty V-Groove Track Casters

The AstraRoll V-Groove Track Series is the definitive solution for high-capacity industrial movement where directional precision is non-negotiable. Designed to operate on inverted angle iron tracks or as standard floor casters, these wheels create a "fixed-path" system that maximizes safety and reduces the rolling effort required to move massive loads.

Each caster is precision-machined with a "V" groove to ensure perfect alignment and smooth travel along the track. Whether your project involves a simple linear assembly line or a complex multi-directional system with turntables and switches, AstraRoll V-Groove casters provide the structural integrity and high-torque performance needed for 24/7 industrial operations.

Product Parameter

Diameter Options: 4", 5", 6", 8", 10"

Load Capacity: 500 lbs (226kg) per caster, depending on wheel diameter

Temperature Range: -30℉ to 320 ℉(-34℃ to 160℃)

Material Options: High-Grade Cast Iron / Forged Steel (for impact resistance)

Bearing Types: Sealed Precision Ball Bearings / Tapered Roller Bearings

Mounting Type: Heavy-Gauge Top Plate (Swivel / Rigid / Swivel with Lock)

Finish: Industrial Zinc Plated / Black Enamel / Clear Protective Coat

Standard Compliance: Designed to operate on standard 1-1/4" to 2" inverted angle iron tracks

Application Industry

AstraRoll V-Groove casters are indispensable in sectors where "controlled mobility" is a safety and efficiency requirement:

• Heavy Manufacturing: Moving large engine blocks, heavy machinery, and industrial components through assembly stations.
• Aerospace & Ground Support: Transporting airframe sections and precision aerospace fixtures on fixed tracks.
• Automotive Production: High-capacity dollies for frame transport and automated guided vehicle (AGV) tracks.
• Lumber & Steel Mills: Moving heavy raw materials across factory floors while protecting the concrete surface.
• Foundries & High-Heat Environments: Heat-treated iron wheels are ideal for kilns and ovens where synthetic wheels would fail.

Why Choose AstraRoll's Heavy-Duty V-Groove Track Casters?

Directional Stability: Running on tracks eliminates the "swerving" associated with heavy loads on flat floors, significantly reducing the risk of collisions and workplace accidents.

Floor Protection Technology: By distributing massive weight onto a steel track, you eliminate the cracking and pitting of concrete floors caused by high-pressure rolling loads.

Maintenance-Free Longevity: Equipped with shielded precision bearings and heat-treated raceways, our casters are built to withstand debris, metallic dust, and high-frequency usage without seized bearings.

Engineering Excellence: Leveraging over 20 years of manufacturing experience, AstraRoll provides the same high-tier quality relied upon by listed automation and lithium-battery industry leaders.

FAQ (Frequently Asked Questions)

Q1: Can V-Groove casters be used without a track?

A: Yes. The face of the wheel is designed to be wide enough to roll on flat, smooth surfaces. However, they perform at their highest efficiency and load capacity when utilized on an inverted angle iron track.

Q2: What is the benefit of Tapered Roller Bearings versus Standard Ball Bearings for this product?

A: For Extra Heavy-Duty loads (exceeding 5,000 lbs), we recommend Tapered Roller Bearings. They are specifically designed to handle "thrust loads" (side-to-side stress) that occur when heavy carts are pushed through curves on a track.

Q3: How do I choose between Cast Iron and Forged Steel wheels?

A: Cast Iron is excellent for standard industrial use and high-heat applications. Forged Steel is recommended for "Shock Load" environments where the cart might be dropped or subjected to extreme impact, as forged steel will not crack under sudden stress.

Q4: Do you offer custom V-Groove widths or depths?

A: Absolutely. Since we are a direct factory, our engineering team can customize the groove dimensions to match your specific track geometry (e.g., U-groove or custom-angle V-grooves) for specialized production lines.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical. Our delivery schedule is generally structured as follows:
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
