Custom 90 Degree Curved Belt Conveyor System

Product Overview

AstraRoll’s Custom 90 Degree Curved Belt Conveyor System is engineered to change material flow direction by 90 degrees within continuous conveying lines. By integrating a smooth curved belt path with a stainless steel or carbon steel frame and a motorized drive unit, it ensures stable and efficient transfer of cartons, packages, and bulk goods without interruption.

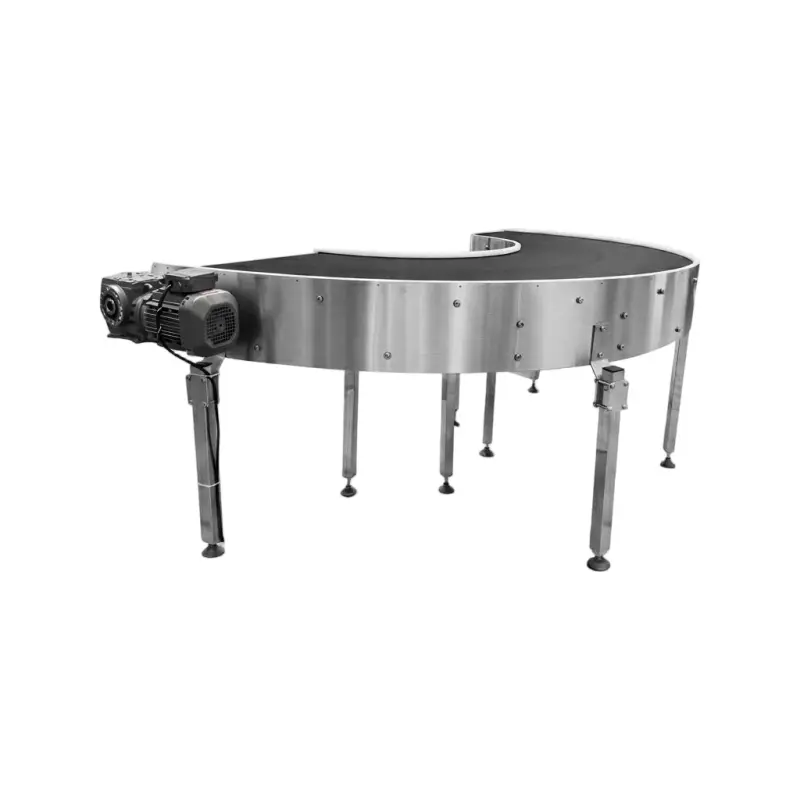

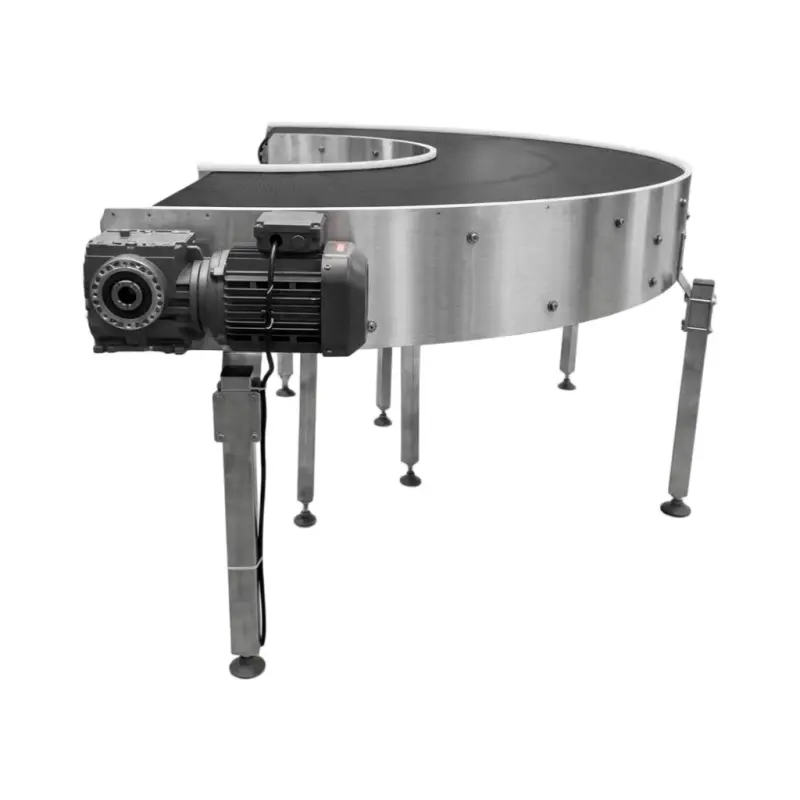

Designed for seamless integration, the conveyor features a durable stainless steel or carbon steel frame, adjustable support legs, and a motorized pulley or geared motor drive. The curved belt path minimizes product jamming and enables smooth transitions between straight conveyor sections. Custom belt widths, radii, and heights are available to match your layout.

Technical Parameter

Turning Angle: 90° (Custom 45°, 60°, 180° available)

Belt Type: High-Traction PVC, Food-Grade PU, or Reinforced Rubber

Belt Width: 300mm – 1200mm (Customizable)

Inner Radius: Customizable to match belt width and layout

Frame Material: Stainless Steel SUS304, Powder-Coated Carbon Steel, or Extruded Aluminum Profile

Roller Design: Precision Tapered Rollers for differential speed compensation between inner and outer radii

Belt Tracking: Guide rails / V-guide / anti-deviation structure

Conveying Speed: Standard fixed speed or optional VFD (5 – 30 m/min)

Drive Type: Geared Motor / Motorized Pulley

Power: 0.75kW – 2.2kW (Customizable)

Voltage: 220V / 380V (Customizable)

Loading Capacity: Customizable based on belt width, radius, and drive configuration

Support Legs: Adjustable Height with Leveling Feet

Surface Treatment: Polishing, Painting (for steel frame); Anodizing (for aluminum frame)

Certification: CE Certified

Application Industrial

Logistics & E-Commerce: 90-degree sorting and transfer in distribution centers and parcel handling lines.

Packaging & Bottling: Connecting perpendicular production lines for labeling, filling, and shrink-wrapping.

Food & Beverage: Curved transfer in cooling, proofing, and hygienic handling lines.

Electronics Manufacturing: 90-degree direction change in cleanroom assembly cells.

Automotive Parts: Transporting components through multi-stage inspection and washing cycles.

Why choose AstraRoll’s Custom 90 Degree Curved Belt Conveyor System?

Space-Saving Design: The 90-degree curved belt path enables precise directional changes within a compact footprint, optimizing floor utilization and reducing layout complexity.

Smooth Product Transfer: Precision tapered rollers and high-traction belt maintain product orientation and spacing throughout the turn, minimizing jamming and product damage.

Hygienic & Durable Construction: Stainless steel frame and food-grade belt options are suitable for washdown environments and comply with hygiene standards. The heavy-duty frame supports continuous operation in demanding conditions.

Customizable Configuration: Belt width, inner radius, turning angle, drive power, frame material, and belt type are fully customizable to match your facility layout and product requirements.
