Custom Blue Food Grade PVC Conveyor Belt

Product Overview

AstraRoll's Custom Blue Food Grade PVC Conveyor Belt is engineered for hygienic and reliable conveying in food processing, packaging, and material handling environments. The belt is manufactured from food-grade PVC compound, featuring a smooth, low-porosity surface that resists microbial contamination and simplifies cleaning between production runs.

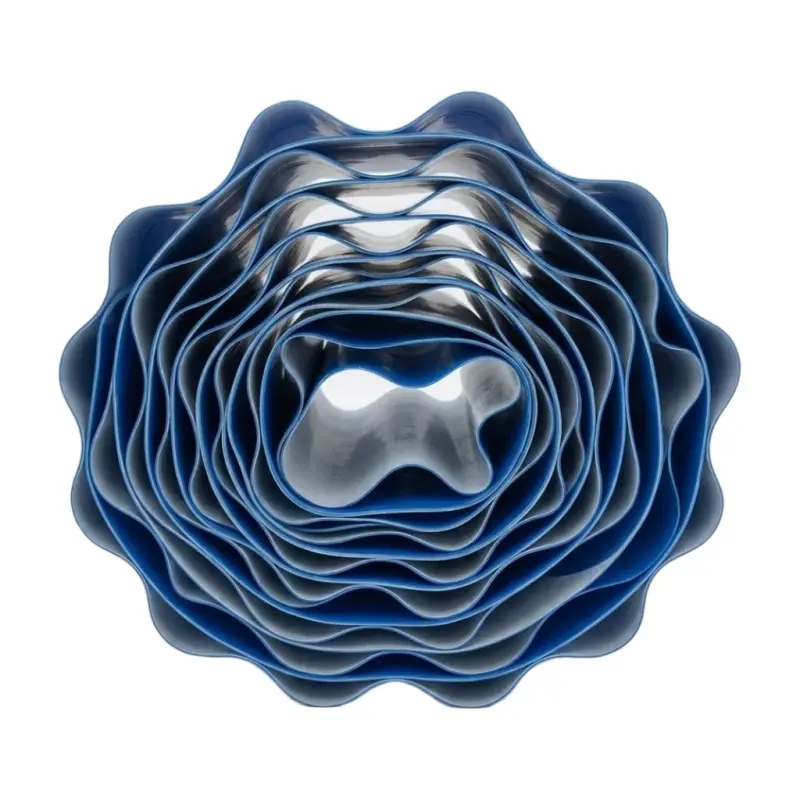

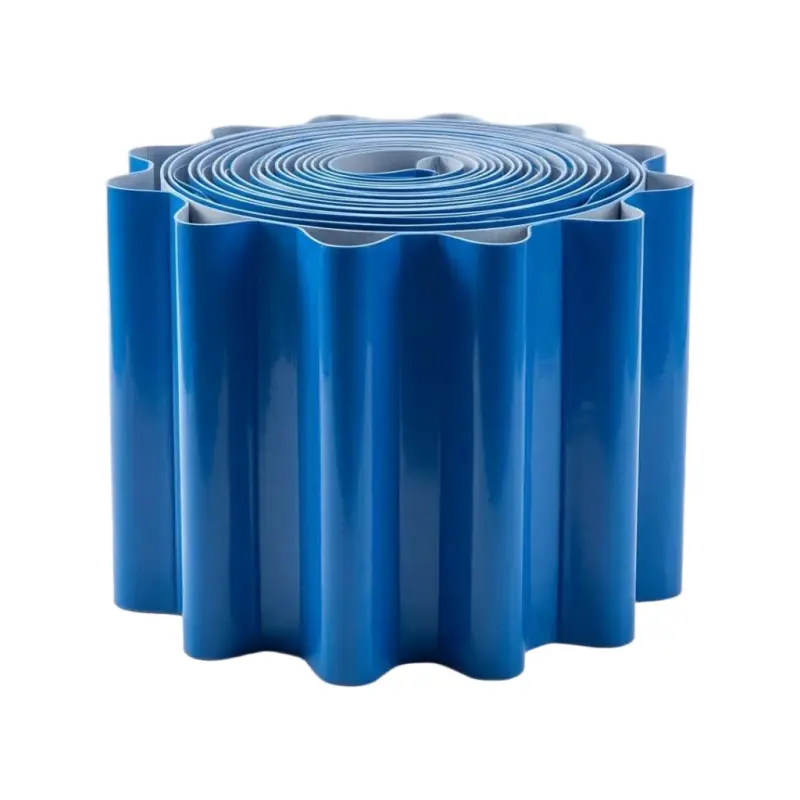

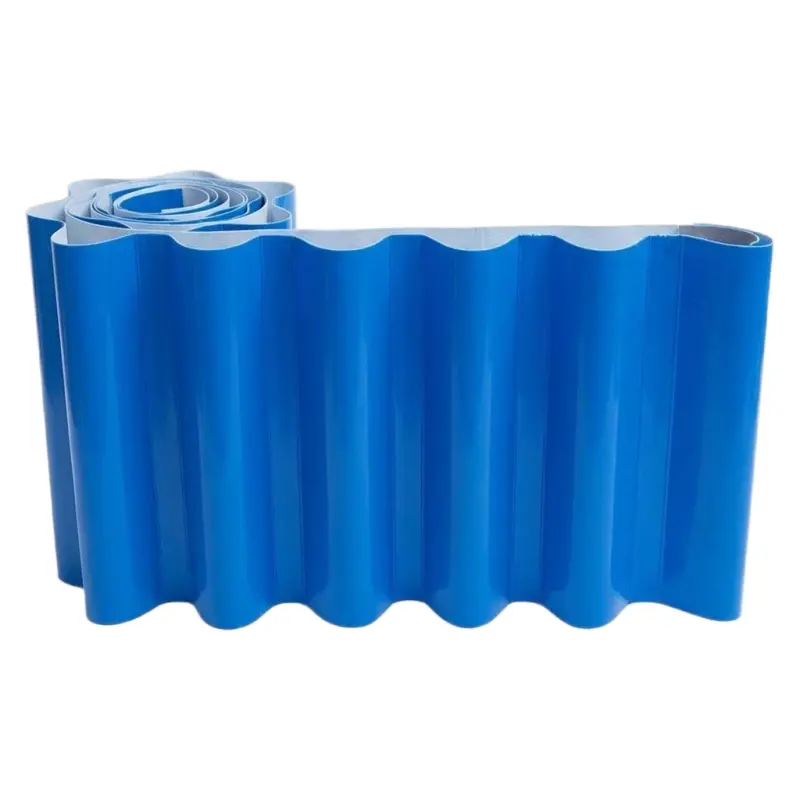

The blue cover provides high visual contrast against most food products, supporting foreign-object detection and HACCP compliance. The PVC compound resists animal fats, vegetable oils, and moisture. The belt's flexible construction allows quiet operation, reducing noise levels. The product images display a customized edge profile; we manufacture standard flat belts as well as specialized corrugated, flanged, or cleated edges based on your specific conveyor layout. Optional V-guides and endless splicing are available for installation flexibility.

Technical Parameter

• Product Name: Custom Blue Food Grade PVC Conveyor Belt
• Material: Food-Grade PVC (Polyvinyl Chloride)
• Belt Color: Blue (Standard Food Grade Blue)
• Surface Finish: Smooth / Matte (Customizable)
• Number of Plies: 2 – 3 Plies (Customizable)
• Total Thickness: 1.5mm – 4.0mm (Customizable)
• Top Cover Hardness: 75 – 85 Shore A (Standard for food grade)
• Weight: Approx. 1.8 – 4.0 kg/m² (Depending on Thickness)
• Tensile Strength: Approx. 15 – 40 N/mm (Depending on Ply Configuration and Thickness)
• Maximum Working Tension: Approx. 8 – 15 N/mm
• Minimum Pulley Diameter: 50mm – 150mm (Depending on belt thickness and ambient temperature)
• Working Temperature: -10°C to +70°C (Short-term peak up to +80°C)
• Food Contact Compliance: FDA 21 CFR 175.300 / EU Regulation 10/2011
• Oil & Fat Resistance: Resistant to animal fats and vegetable oils
• Customization Options: Width, length, thickness, edge profiles (corrugated/flanged/custom), V-guide, cleats
• Splicing: Endless / Finger Splice / Mechanical Fastener
• Certification: ISO 9001 (Optional)

Application Industrial

Meat & Poultry Processing: Direct contact conveying of raw and processed meat; oil and fat resistant surface.

Seafood Handling: Transport of fish and shellfish in washdown environments.

Bakery & Confectionery: Conveying of dough, pastries, and baked goods.

Fruit & Vegetable Sorting: Gentle handling of fresh produce with high visual contrast.

Food Packaging & Logistics: Conveying of packaged food goods in distribution centers.

Why Choose AstraRoll's Custom Blue Food Grade PVC Conveyor Belt?

Food-Grade Compliance for Direct Contact: Manufactured from food-grade PVC compliant with FDA and EU regulations, suitable for direct contact with unpackaged food products.

Blue Color for HACCP & Foreign-Object Detection: The blue cover provides high visual contrast, supporting HACCP protocols and making foreign-object detection easier during inspection.

Smooth Low-Porosity Surface for Easy Cleaning: The PVC surface resists microbial contamination and simplifies washdown routines.

Custom Edge Profiles: As shown in the images, we offer customized edge profiles (such as corrugated or flanged edges) to meet specific tracking, containment, or product transition requirements.

Low-Noise Operation: The flexible PVC construction and low-friction surface allow quiet running.

Factory-Direct Supply & Long-Term Support: AstraRoll supplies food-grade PVC conveyor belts factory-direct, with strict quality inspection and long-term technical support.
