Custom White Food Grade PVC Corrugated Sidewall Conveyor Belt

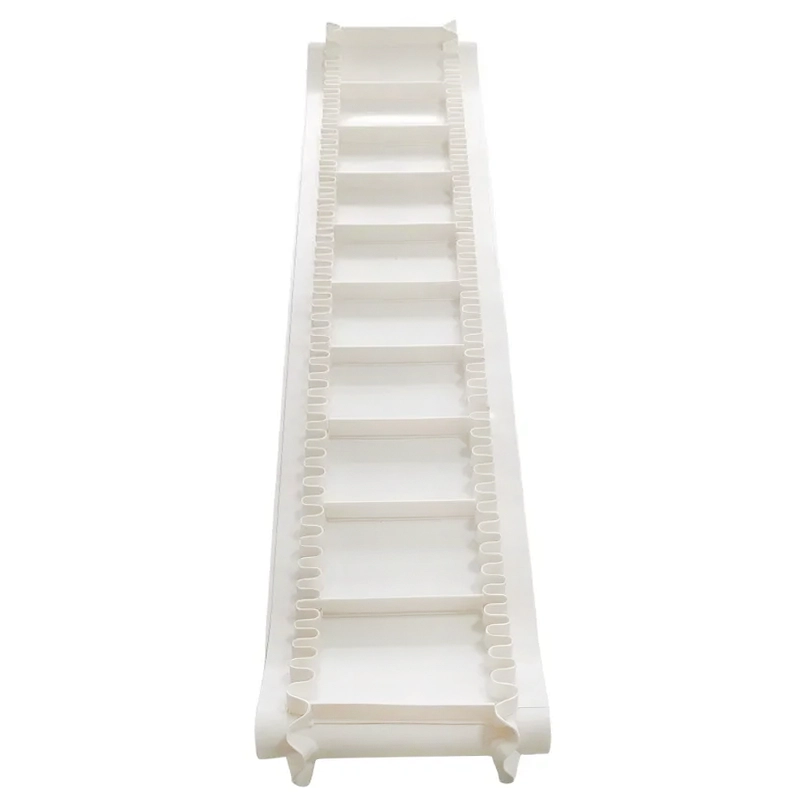

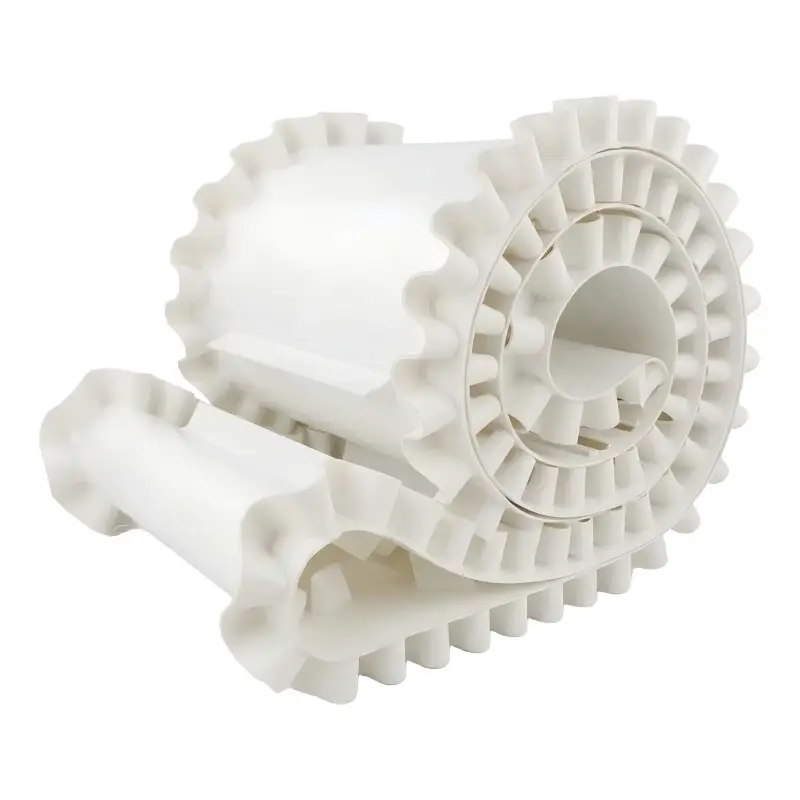

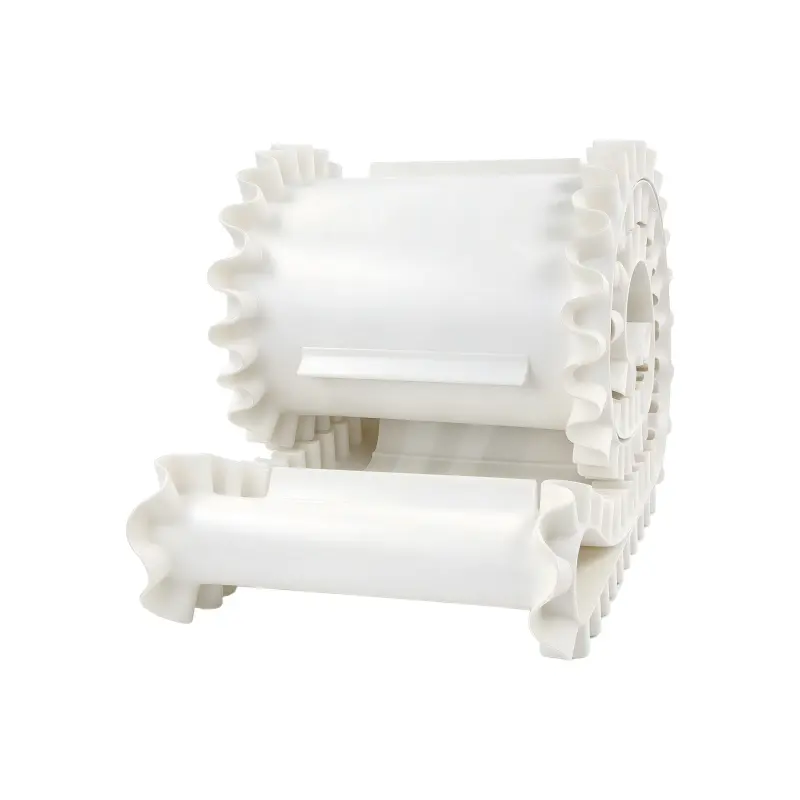

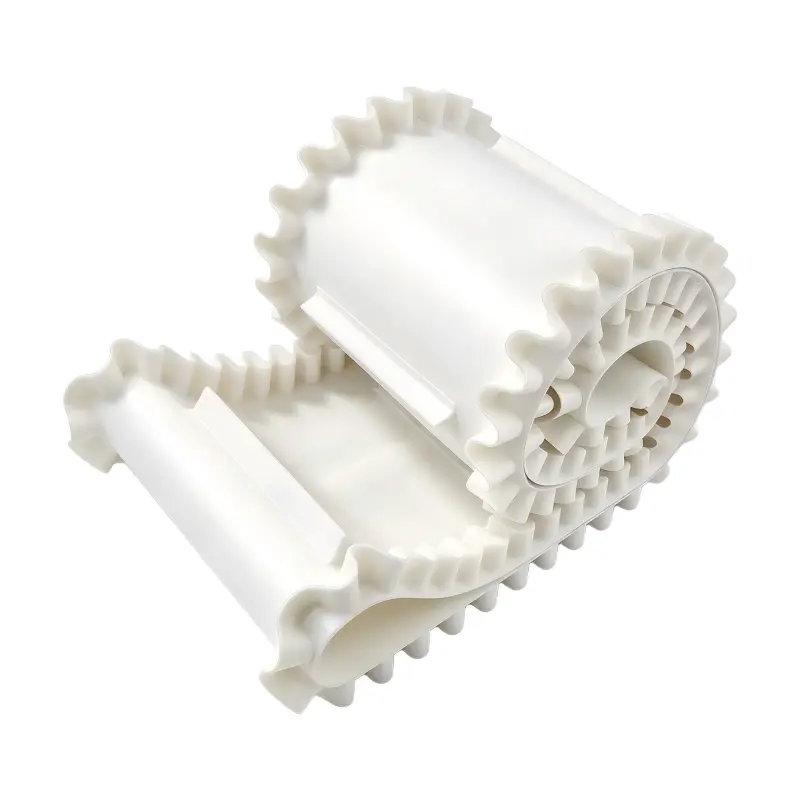

AstraRoll’s Custom White Food Grade PU/PVC Corrugated Sidewall Conveyor Belt is engineered for inclined and vertical conveying of loose, granular and delicate food products. The belt consists of a food-grade white base belt, corrugated sidewalls, and transverse cleats (the image shows T-type straight cleats). The sidewalls prevent lateral spillage, while the cleats support the product and prevent rollback, enabling reliable conveying at angles up to 90°.

The base belt uses FDA-compliant white PU or PVC with polyester fabric plies. The white color provides high visual contrast against most food products, supporting foreign-object detection. The surface is non-toxic, odorless and non-porous, resisting oil, fat and common cleaning agents, allowing rapid washdown. Sidewalls and cleats are joined to the base belt using high-frequency welding, forming a continuous, delamination-resistant structure.

Cleat types are selected strictly according to the incline angle: C-type for gentle inclines (≤40°), and T-type (straight) or TC-type for steep and vertical lifting (40°–90°). The product shown in the images is the T-type straight cleat configuration.

Technical Parameter

• Product Name: Custom White Food Grade PU/PVC Corrugated Sidewall Conveyor Belt
• Base Belt Material: FDA-Compliant White PU or PVC with Polyester Carcass
• Sidewall Material: PU or PVC (Corrugated Profile)
• Cleat Type: T-Type (Straight) - As shown in images; C-Type / TC-Type available on request
• Belt Color: White (Blue / Green / Custom on Request)
• Belt Width: 300mm – 2000mm (Customizable)
• Base Belt Thickness: 1.5mm – 6mm (Customizable)
• Fabric Plies: 1 – 4 Ply (Customizable)
• Sidewall Height: 20mm – 100mm (Customizable)
• Cleat Height: 20mm – 80mm (Matched to Sidewall Height)
• Conveying Angle: 0° – 90°
• Working Temperature: PU: -20°C to +80°C; PVC: -10°C to +60°C
• Food Contact Compliance: FDA and EU Compliant
• Special Options: Oil-Resistant / Anti-Static / Wear-Resistant on Request
• Splicing: Endless / Finger Splice / Mechanical Fastener
• Certification: ISO 9001 (Optional)

Application Industrial

Fruit & Vegetable Processing: Inclined conveying of washed produce with minimal bruising.

Bakery & Confectionery: Elevating dough, pastries, and chocolate products on hygienic white belts.

Egg Handling & Grading: Gentle incline conveying with sidewalls and cleats keeping eggs stable.

Meat & Poultry Handling: Transport of raw and processed meat in washdown environments.

Packaging & Logistics: Steep-angle transfer of packaged food goods where floor space is limited.

Why Choose AstraRoll’s Custom White Food Grade PU/PVC Corrugated Sidewall Conveyor Belt?

FDA-Compliant White Compound: Manufactured from non-toxic white PU or PVC complying with food contact regulations. The white color supports foreign-object detection and HACCP compliance.

Steep-Angle Lifting Capability: Corrugated sidewalls and T-type cleats form a secure pocket, preventing product spillage and rollback at angles up to 90°.

High-Frequency Welded Bond: Sidewalls and cleats are welded (not glued) to the base belt, ensuring a strong, delamination-resistant bond under repeated flexing over pulleys.

Oil, Fat & Moisture Resistance: The non-porous surface resists oils and fats, extending service life and simplifying washdown routines.

Customizable Configuration: Sidewall height, cleat height, cleat type, and belt width are fully customizable to match specific conveyor systems and product characteristics. AstraRoll provides one-stop supply, strict quality control, and long-term technical support to reduce downtime and total cost of ownership.

Complete Conveyor System Supply

In addition to food-grade sidewall conveyor belts, AstraRoll supplies complete belt conveyor systems and components including idler rollers, drive pulleys, bend pulleys and take-up pulleys for food processing, agriculture, packaging and industrial material handling.
