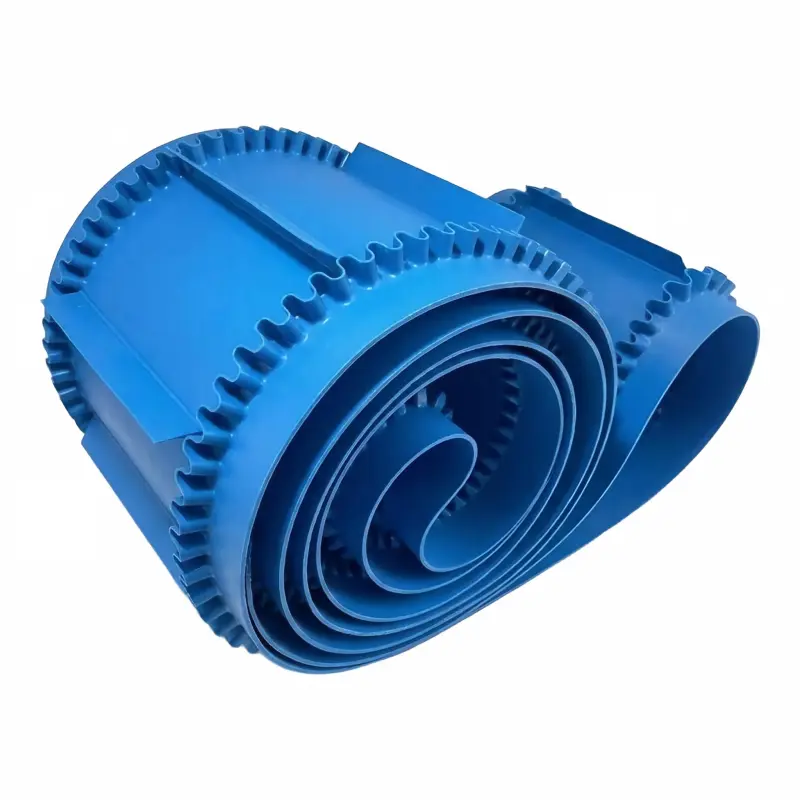

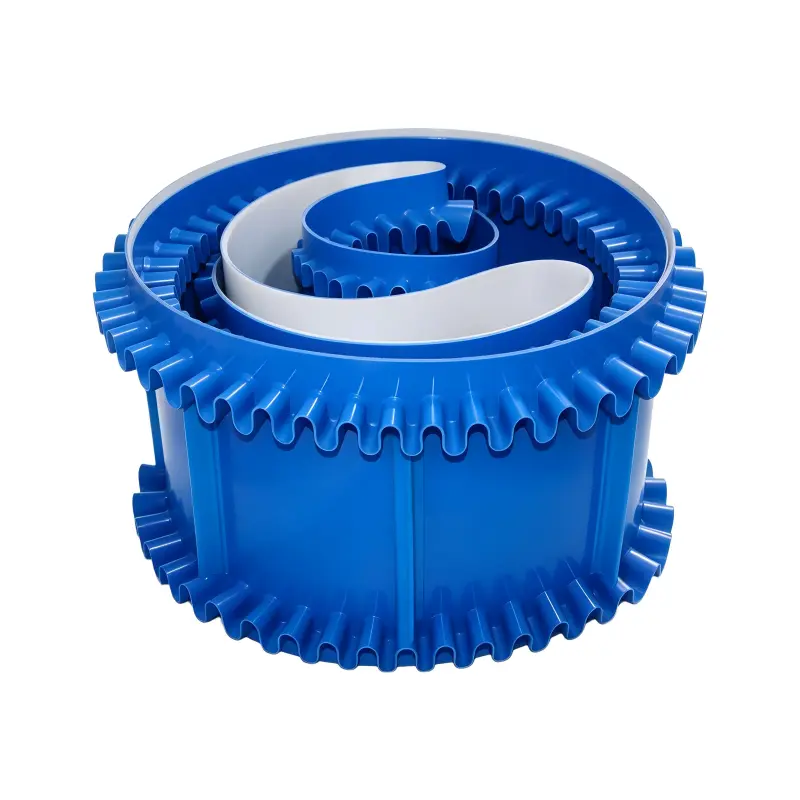

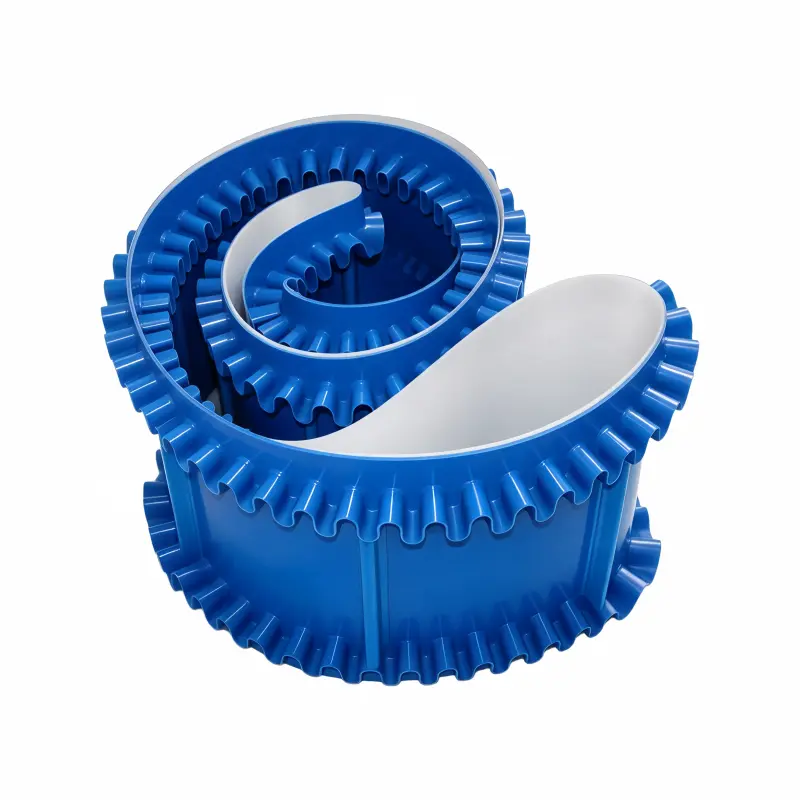

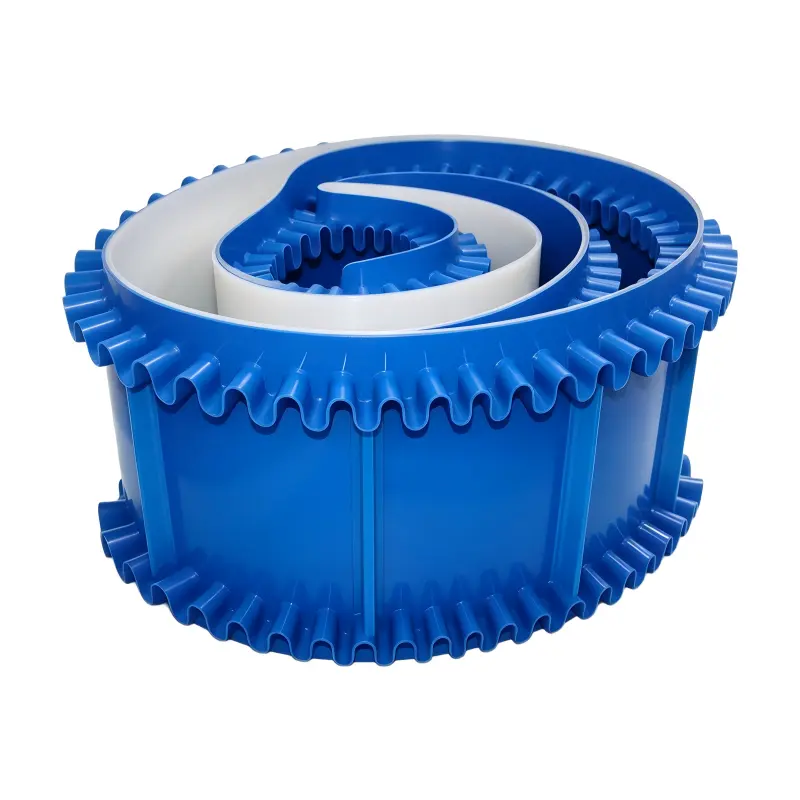

Custom Blue PVC Corrugated Sidewall Conveyor Belt

Product Overview

AstraRoll’s Custom Blue PVC Corrugated Sidewall Conveyor Belt is engineered for steep-angle and vertical conveying of bulk materials in food processing, agriculture, logistics and general industrial handling where smooth-surface belts cannot retain the load. The belt consists of three functional elements: a base belt, corrugated sidewalls on both edges, and transverse cleats. The sidewalls prevent lateral material spillage, while the cleats support the load and prevent rollback on inclines. This structure enables conveying at angles from 0° to 90°, eliminating multiple transfer points and reducing layout footprint.

The belt is manufactured from food-grade blue PVC. The blue color provides visual contrast against most food products, supporting foreign-object detection and HACCP protocols. The material complies with FDA and EU food contact regulations. PVC offers good moisture resistance, resistance to common cleaning agents, and a smooth, non-porous surface that reduces bacterial retention. The base belt uses a polyester fabric carcass for dimensional stability and tensile strength.

Corrugated sidewalls and cleats are integrally joined to the base belt using high-frequency welding or hot-air welding, forming a high-strength bond that resists delamination under repeated flexing. The sidewall height and cleat height are matched: the sidewall typically stands 20mm to 60mm above the cleat top (or approximately 1.1–1.25 times the cleat height) to retain material surge and dust at the loading point and on the incline.

Cleat type must be selected strictly according to the conveying angle:

C-Type (Wave/Corrugated Cleat): Suitable for conveying angles ≤40°. Offers excellent flexibility over troughing idlers.

T-Type (Straight/Flat Cleat): Suitable for conveying angles 40°–90°. Provides a rigid support face for steep and vertical lifting.

TC-Type (Combined Cleat): Suitable for conveying angles 40°–90°. Adds side wings to the T-cleat for better sealing on vertical lifts.

Custom sidewall heights, cleat heights, cleat pitches, belt widths and surface patterns are available to match specific conveyor configurations.

Technical Parameter

Product Name: Custom Blue PVC Corrugated Sidewall Conveyor Belt

Base Belt Material: Food-Grade Blue PVC with Polyester Fabric Carcass

Sidewall Material: PVC (Corrugated / Wavy Profile)

Cleat Material: PVC or Reinforced Fabric

Belt Color: Blue (White / Green / Black on Request)

Belt Width: 300mm – 2000mm (Customizable)

Base Belt Thickness: 2mm – 6mm (Customizable)

Fabric Layers: 1 – 4 Ply (Customizable)

Sidewall Height: 40mm – 100mm (Standard Range; Higher on Request)

Cleat Height: Matched to Sidewall Height (Sidewall typically 20–60mm above Cleat Top)

Cleat Type: C-Type (≤40°) / T-Type (40°–90°) / TC-Type (40°–90°)

Conveying Angle: 0° – 90°

Working Temperature: -10°C to +70°C (PVC Standard; Peak +80°C short-term)

Food Contact: FDA and EU Compliant (Blue PVC)

Surface Options: Smooth / Matte / Custom

Special Options: Oil-Resistant / Anti-Static / Wear-Resistant on Request

Splicing: Endless / Finger Splice / Mechanical Fastener

Certification: ISO 9001 (Optional)

Application Industrial

Food Processing: Inclined and vertical conveying of dough, snacks, frozen products, meat, poultry, seafood and bakery goods; blue PVC supports foreign-object detection and HACCP compliance.

Agriculture & Grain: Elevating grain, seeds, fertilizer and feed at steep angles.

Logistics & Packaging: Steep-angle transfer of cartons, bags and packaged goods where floor space is limited.

General Industrial Handling: Conveying powders, granules and small-lump materials on inclines up to 90°.

Why Choose AstraRoll’s Custom Blue PVC Corrugated Sidewall Conveyor Belt?

Steep-Angle and Vertical Conveying Capability: Corrugated sidewalls and transverse cleats form a material pocket that prevents spillage and rollback, enabling conveying at angles from 0° to 90° and eliminating multiple transfer points.

Food-Grade Blue PVC with HACCP Support: Blue PVC complies with FDA and EU food contact regulations. The color provides visual contrast against most food products, supporting foreign-object detection and HACCP protocols in food processing environments.

Correct Sidewall-to-Cleat Ratio: The sidewall stands 20–60mm above the cleat top, retaining material surge and dust that would otherwise spill over the pocket edge.

Angle-Matched Cleat Selection: C-type cleats for gentle inclines (≤40°), and T-type or TC-type cleats for steep and vertical lifting (40°–90°). This ensures optimal material retention and prevents belt failure caused by mismatched cleat profiles.

Customizable Configuration: Sidewall height, cleat height, cleat type, belt width, fabric ply count and surface pattern are fully customizable to match specific conveyor systems. AstraRoll provides one-stop supply, strict quality control and long-term technical support to reduce downtime and total cost of ownership.

Complete Conveyor System Supply: In addition to sidewall conveyor belts, AstraRoll supplies complete belt conveyor systems and components including idler rollers, drive pulleys, bend pulleys and take-up pulleys for food processing, agriculture, packaging and industrial material handling.
