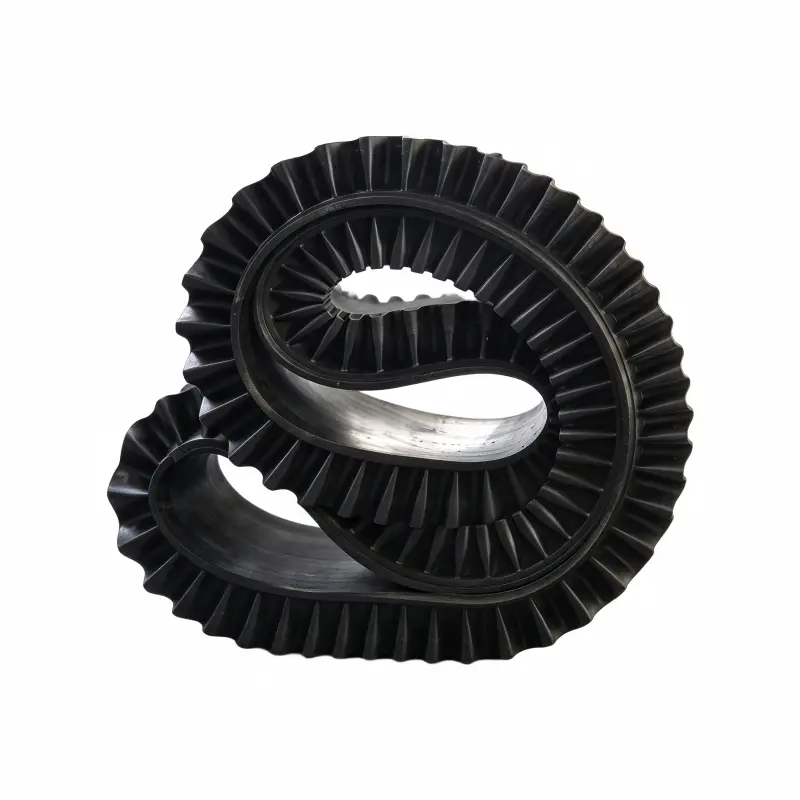

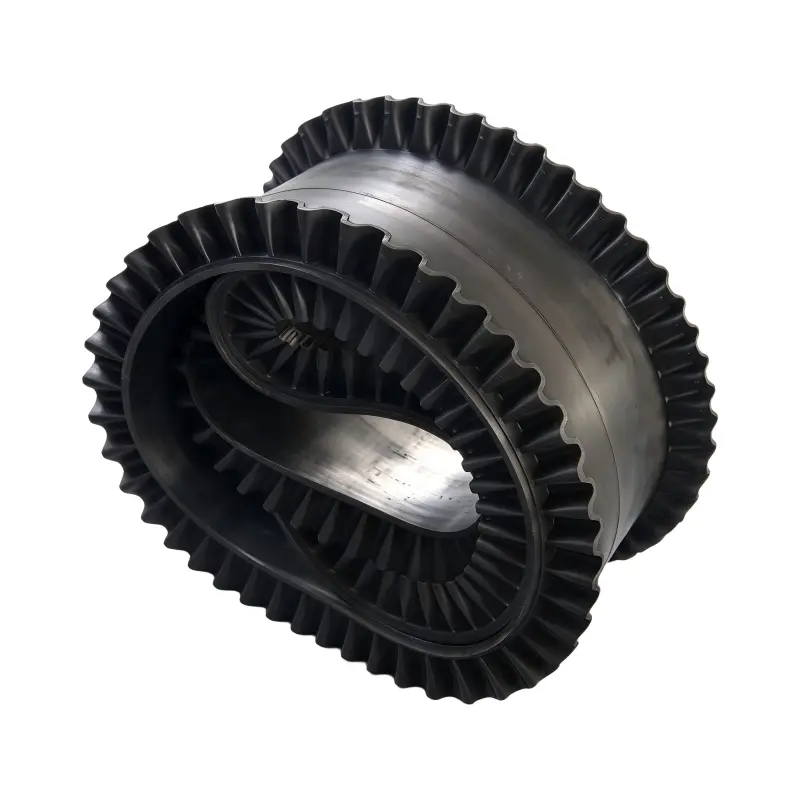

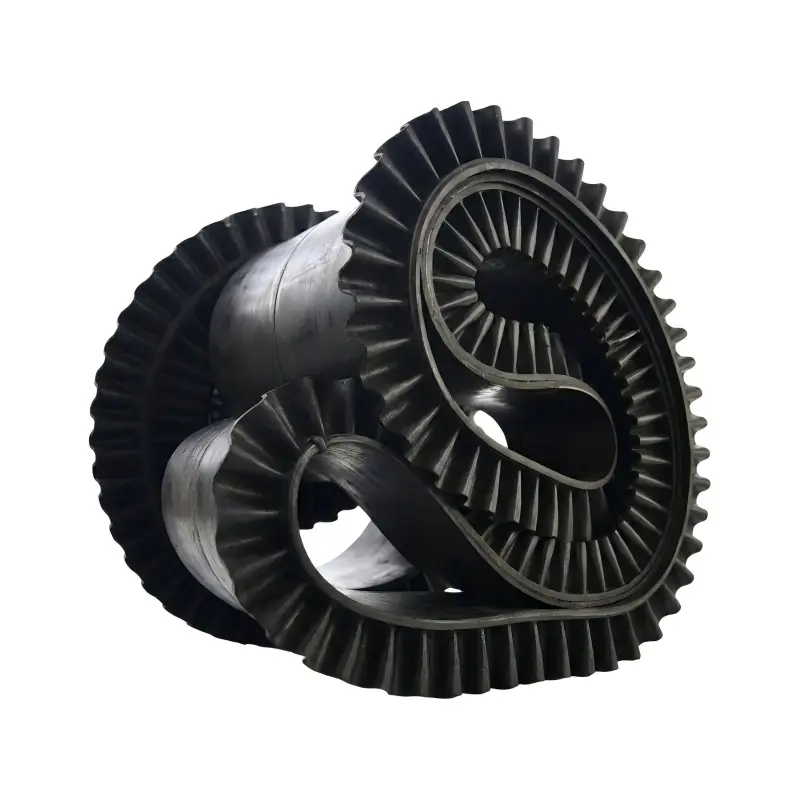

Heavy Duty Cleated Corrugated Sidewall Conveyor Belt

Product Overview

AstraRoll’s Heavy Duty Cleated Corrugated Sidewall Conveyor Belt is engineered for steep-angle and vertical lifting of bulk materials in mining, port terminals, coal preparation plants, steel mills, construction sites and other confined spaces where smooth-surface belts cannot retain the load. The belt integrates corrugated sidewalls on both edges with transverse cleats on the carrying side, forming a series of open-top pockets that prevent material spillage and rollback at conveying angles from 0° to 90°. This design eliminates multiple transfer points and reduces the overall conveyor footprint compared with conventional multi-stage systems.

The base belt uses a cross-rigid construction with EP or NN fabric plies, reinforced with transverse stiffeners to prevent belt sagging and maintain the trough shape under heavy loads. The sidewalls and cleats are hot-vulcanized to the base belt, creating a high-strength bond that resists delamination under repeated flexing and heavy impact. The sidewall profile is designed to flex smoothly around small-diameter pulleys while maintaining the material pocket.

Cleat type must be selected strictly according to the conveying angle:

C-Type (Wave/Corrugated Cleat): Suitable for conveying angles ≤40°. Offers excellent flexibility for troughing over idlers.

T-Type (Straight/Flat Cleat): Suitable for conveying angles 40°–90°. Provides a rigid support face for steep and vertical lifting.

TC-Type (Combined Cleat): Suitable for conveying angles 40°–90°. Adds side wings to the T-cleat for better sealing and material retention on vertical lifts.

Sidewall heights are available up to 500mm, with cleat heights matched accordingly to maintain the pocket geometry. The rubber cover is compounded for high abrasion resistance (≥15 MPa), with optional heat-resistant, oil-resistant or flame-retardant grades available. Custom belt widths, cleat pitches, fabric constructions and rubber grades are available to match specific conveyor systems.

Technical Parameter

• Product Name: Heavy Duty Cleated Corrugated Sidewall Conveyor Belt
• Base Belt Construction: Cross-Rigid, Multi-Ply Fabric (EP / NN)
• Fabric Ply Count: 3 – 8 Plies (Customizable depending on tension)
• Sidewall Type: Corrugated / Wavy Profile
• Cleat Type: C-Type (≤40°) / T-Type (40°–90°) / TC-Type (40°–90°)
• Sidewall Height: Up to 500mm (Customizable)
• Cleat Height: Matched to Sidewall Height (Customizable)
• Cleat Pitch: 200mm – 600mm (Customizable)
• Belt Width: 300mm – 2200mm (Customizable)
• Top Cover Thickness: 3mm – 8mm (Customizable)
• Bottom Cover Thickness: 1.5mm – 4.5mm (Customizable)
• Rubber Grade: Abrasion-Resistant (DIN X / W); Heat / Oil / Flame-Retardant on Request
• Tensile Strength (Cover): ≥15 MPa (Standard); Up to 25 MPa on Request
• Conveying Angle: 0° – 90°
• Working Temperature: -20°C to +80°C (Standard); Higher with Special Compounds
• Standard: DIN 22118 / GB/T 7984 (Sidewall Conveyor Belts Standard)
• Certification: ISO 9001

Application Industrial

Mining & Quarrying: Vertical and steep-angle lifting of ore, crushed stone and minerals in confined shafts and transfer stations.

Port & Terminal Handling: Steep-angle loading and unloading of bulk vessels and stockpile transfer systems.

Coal Preparation Plants: Vertical lifting of coal and washed coal in space-limited plant layouts.

Steel Mills & Metallurgy: Transport of sinter, coke and iron ore at steep angles in confined plant areas.

Construction & Aggregates: Elevation of sand, gravel and cement at angles up to 90° on construction sites.

Chemical & Processing: Vertical transport of powders, granules and small-lump materials without spillage.

Why Choose AstraRoll’s Heavy Duty Cleated Corrugated Sidewall Conveyor Belt?

Steep-Angle and Vertical Lifting Capability: The combination of corrugated sidewalls and transverse cleats forms a secure material pocket, enabling conveying at angles from 0° to 90°. This eliminates multiple transfer points and allows a single belt to replace complex multi-stage conveying systems.

Cross-Rigid Base Belt Construction: The base belt is reinforced with transverse stiffeners and multi-ply EP or NN fabric to prevent sagging and maintain the trough shape under heavy load. The cross-rigid design ensures stable belt tracking and reduces spillage at high conveying angles.

Hot-Vulcanized Sidewall and Cleat Bond: Sidewalls and cleats are hot-vulcanized to the base belt, creating a high-strength bond that resists delamination under repeated flexing and heavy impact. This extends service life in demanding mining and port applications.

Correct Cleat Selection for Each Angle: C-type cleats for gentle inclines (≤40°), and T-type or TC-type cleats for steep and vertical lifting (40°–90°). This ensures optimal material retention and prevents premature belt failure caused by mismatched cleat profiles.

Abrasion-Resistant Rubber Cover: The rubber cover is compounded for high abrasion resistance (≥15 MPa), suitable for handling sharp, abrasive materials such as ore, crushed stone and coal. Heat-resistant, oil-resistant and flame-retardant grades are available for specialized applications.

Customizable Configuration: Belt width, fabric ply count, sidewall height, cleat height, cleat pitch, cleat type and rubber grade are fully customizable to match specific conveyor systems and material characteristics. AstraRoll provides one-stop supply, strict quality control from raw material to finished product, and long-term technical support to reduce downtime and total cost of ownership.

Complete Conveyor System Supply: In addition to sidewall conveyor belts, AstraRoll supplies complete belt conveyor systems and components including idler rollers, drive pulleys, bend pulleys and take-up pulleys for mining, quarrying, cement, coal, port and bulk material handling.
