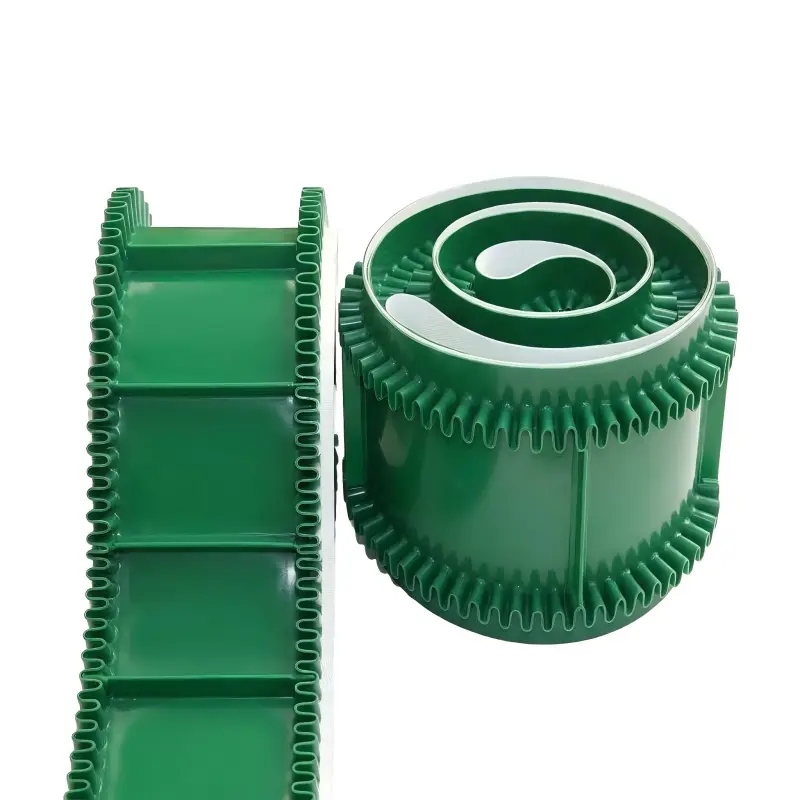

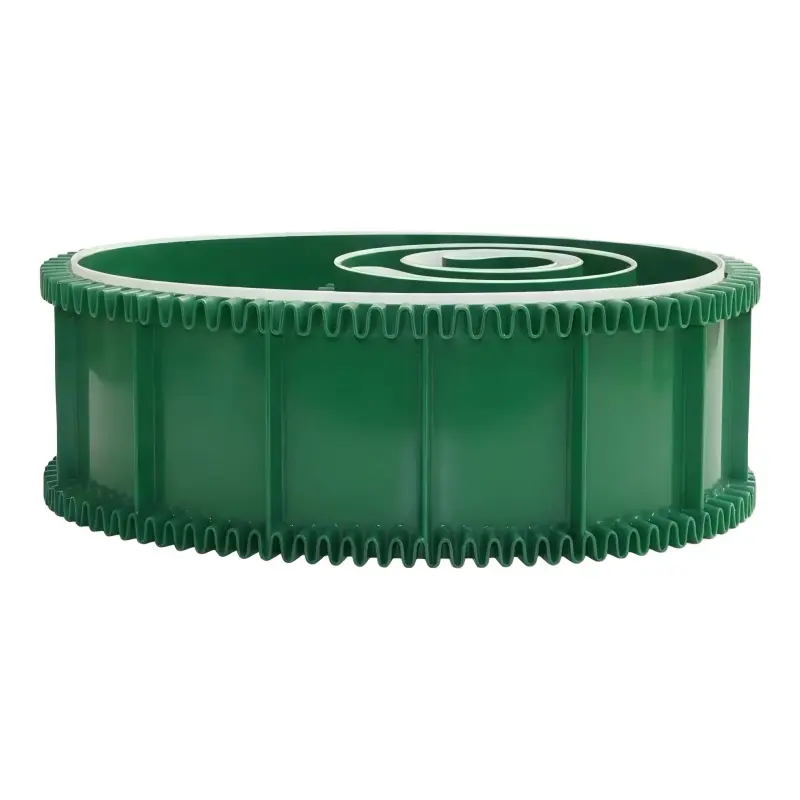

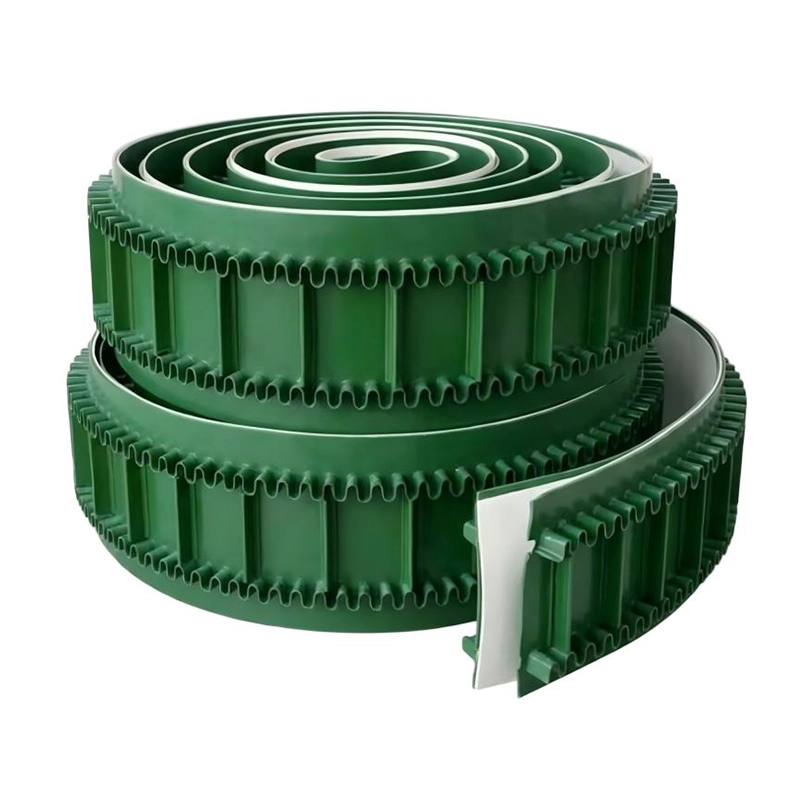

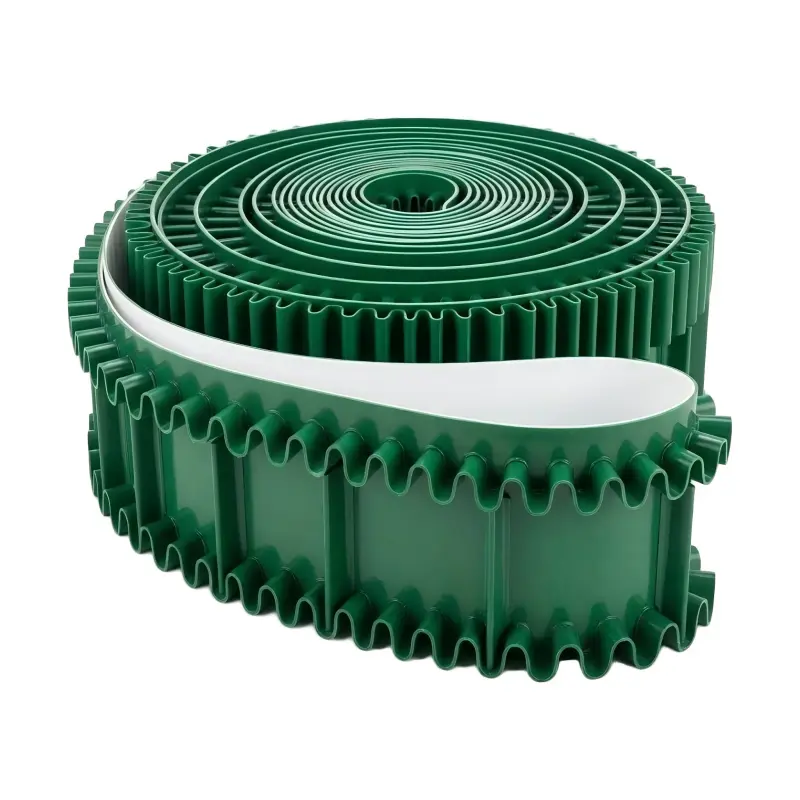

Custom Green PVC Corrugated Sidewall Conveyor Belt

Product Overview

AstraRoll’s Custom Green PVC Corrugated Sidewall Conveyor Belt is engineered for steep-angle and vertical conveying of loose bulk materials in food processing, packaging, agriculture, electronics and general industrial handling. The belt consists of three functional elements: a base belt, corrugated sidewalls on both edges, and transverse cleats. The sidewalls prevent lateral material spillage, while the cleats support the load and prevent rollback on inclines. This structure enables conveying at angles from 0° to 90°, eliminating the need for multiple transfer points and reducing layout footprint.

The base belt is made from green PVC combined with polyester fabric layers, providing dimensional stability, tensile strength and resistance to stretching during operation. PVC offers natural moisture resistance and is compatible with common food-industry cleaning agents. Food-grade PVC options are available for applications involving direct food contact. The corrugated sidewalls and cleats are integrally welded to the base belt to form a continuous, high-strength structure, allowing the belt to flex smoothly around small-diameter pulleys while maintaining the material pocket.

The selection of cleat type depends on the conveying angle and material characteristics:

• C-Type (Wave/Corrugated Cleat): Suitable for gentle inclines (typically ≤30°–40°), offering flexibility over troughing idlers.
• T-Type (Straight/Flat Cleat): Suitable for steep inclines and vertical conveying (40°–90°), forming a closed pocket with the sidewalls.
• TC-Type (Combined Cleat): Provides both the rigidity of a T-cleat and the flexibility of a C-cleat, used for steep-angle conveying of materials requiring additional sealing.

Custom sidewall heights, cleat heights, cleat pitch and belt widths are available to match specific conveyor configurations.

Technical Parameter

• Product Name: Custom Green PVC Corrugated Sidewall Conveyor Belt
• Base Belt Material: Green PVC with Polyester Fabric Layers
• Sidewall Material: PVC (Corrugated / Wavy Profile)
• Cleat Material: PVC or Reinforced Fabric
• Belt Color: Green (White / Black / Custom on Request)
• Belt Width: 300mm – 2000mm (Customizable)
• Total Belt Thickness: 1.5mm – 5mm (Customizable)
• Fabric Layers: 1 – 4 Ply (Customizable)
• Sidewall Height: 20mm – 100mm (Standard Range; Higher on Request)
• Cleat Height: 20mm – 80mm (Standard Range; Must not exceed sidewall height)
• Cleat Type: C-Type (≤40°) / T-Type (40°–90°) / TC-Type (40°–90°)
• Conveying Angle: 0° – 90°
• Working Temperature: -15°C to +80°C (PVC Standard)
• Food Contact: Food-Grade PVC Available (FDA / EU Compliant Options)
• Surface Options: Smooth / Rough Top / Custom
• Special Options: Oil-Resistant / Anti-Static / Wear-Resistant / Flame-Retardant
• Splicing: Endless / Finger Splice / Mechanical Fastener
• Certification: ISO 9001 (Optional)

Application Industrial

Food Processing: Inclined and vertical conveying of dough, snacks, frozen products, meat, seafood and bakery goods; food-grade PVC options available.

Packaging & Logistics: Steep-angle transfer of cartons, bags and packaged goods where floor space is limited.

Agriculture: Elevating grain, fertilizer, feed and seeds at steep angles.

Electronics & Components: Vertical transport of small parts and components in assembly lines.

General Industrial Handling: Conveying powders, granules, small lumps and paste-like materials on inclines up to 90°.

Why Choose AstraRoll’s Custom Green PVC Corrugated Sidewall Conveyor Belt?

Steep-Angle and Vertical Conveying Capability: Corrugated sidewalls and transverse cleats form a material pocket that prevents spillage and rollback, enabling conveying at angles from 0° to 90° and eliminating multiple transfer points.

Space-Saving Design: A single sidewall belt replaces complex multi-stage conveying systems, reducing layout footprint and civil construction requirements.

Correct Cleat Selection for Each Angle: C-type cleats for gentle inclines, T-type and TC-type for steep and vertical conveying. This ensures optimal material retention and belt flexibility across different conveyor configurations.

PVC Material Advantages: PVC offers good moisture resistance and compatibility with common cleaning agents, with a working temperature range of -15°C to +80°C. Food-grade PVC options are available for direct food contact.

Customizable Structure: Sidewall height, cleat height, cleat type, belt width, fabric ply count and surface pattern are fully customizable to match specific conveyor systems and material characteristics.

One-Stop Supply & Long-Term Support: AstraRoll provides one-stop supply, strict quality control from raw material to finished product, and long-term technical support to reduce downtime and total cost of ownership.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
