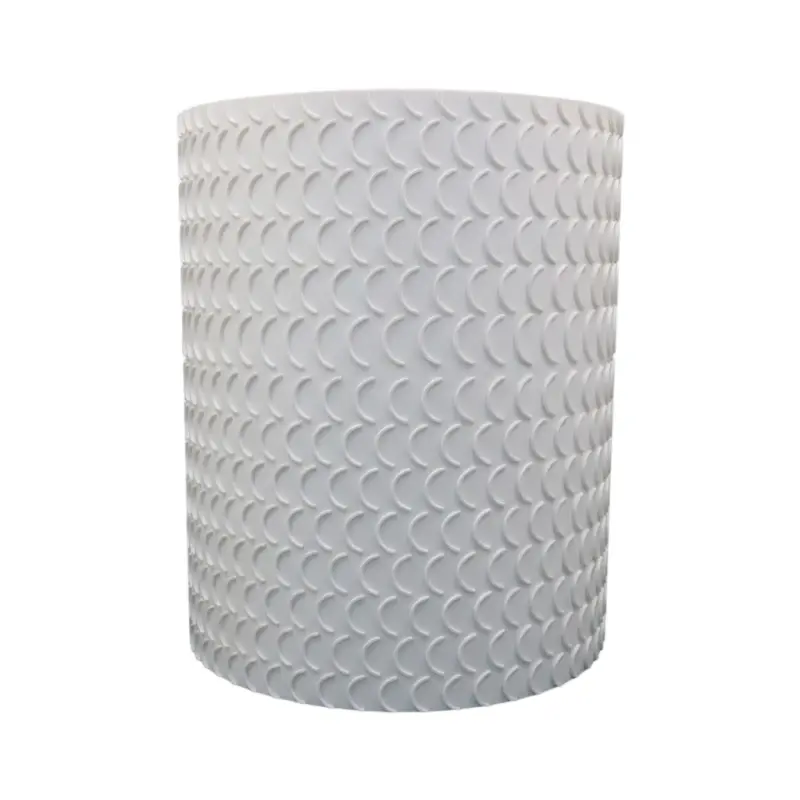

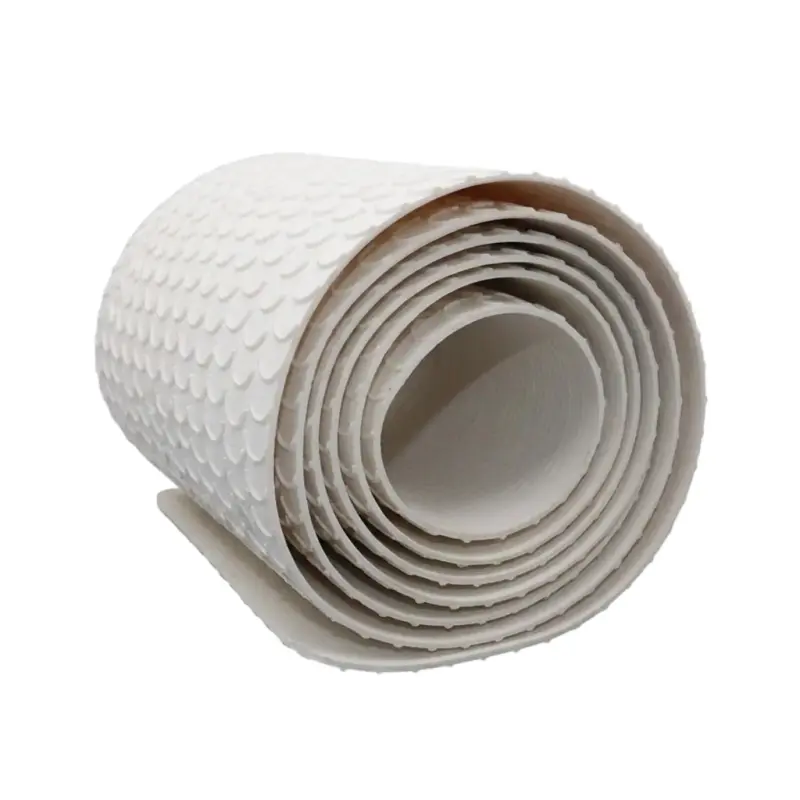

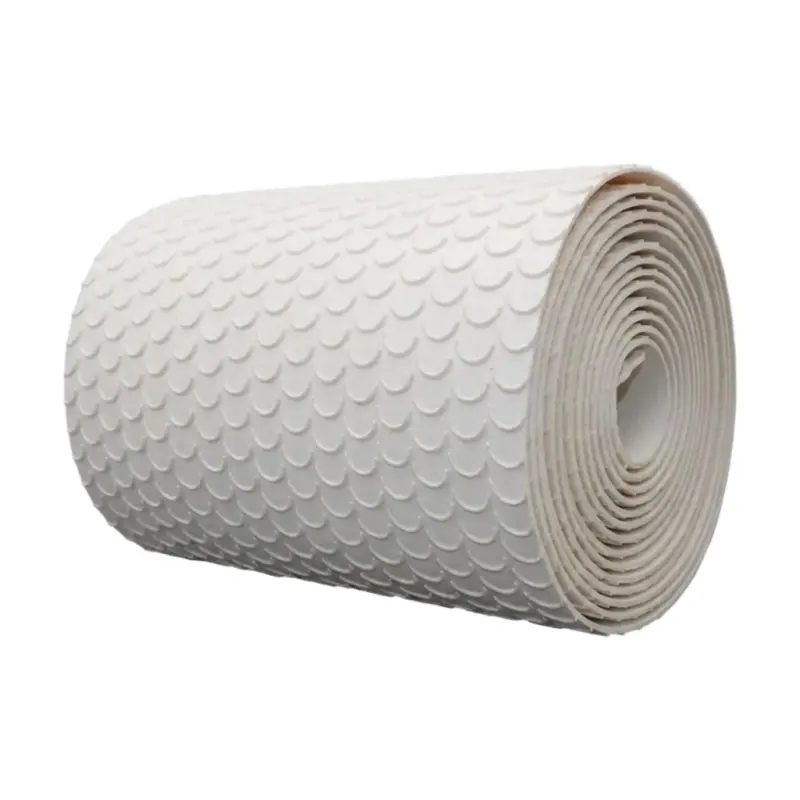

Custom Food Grade White PU PVC Conveyor Belt

AstraRoll’s Custom Food Grade White PU PVC Conveyor Belt is engineered for direct food contact in processing, packaging and conveying lines. Manufactured from food-grade PU or PVC with a polyester fabric carcass, it complies with FDA food contact regulations and EU 10/2011. The non-toxic, odorless and easy-to-clean surface resists oil, fat, mild chemicals and moisture, suitable for bakery, confectionery, meat, poultry, seafood, fruit, vegetable and dairy production.

The belt is available in 1-ply, 2-ply and 3-ply constructions, 0.8mm to 4.0mm total thickness. Its rough top surface (grip top or rice grain) provides higher friction than smooth belts, preventing product slippage on inclines. Tensile strength reaches up to 80 N/mm depending on construction, with force at 1% elongation from 6 N/mm to 11 N/mm. Working temperature: PU -20°C to +80°C; PVC -10°C to +60°C. Custom widths up to 4000mm, cleats, sidewalls, V-guides and perforations are available. The belt suits slider bed, roller bed and PEHD support systems. Minimum pulley diameter varies with thickness and temperature; at 20°C, a 1.2mm belt requires a minimum pulley diameter of 20mm, and lower temperatures require larger diameters. Splicing is by hot splicing, finger splice or mechanical fasteners.

Technical Parameter

• Product Name: Custom Food Grade White PU PVC Conveyor Belt
• Material: Food-Grade Polyurethane (PU) / Polyvinyl Chloride (PVC)
• Carcass: Polyester Fabric
• Number of Plies: 1 Ply / 2 Ply / 3 Ply (Customizable)
• Total Thickness: 0.8mm – 4.0mm (Customizable)
• Top Cover Hardness: 85 – 90 Shore A
• Surface Pattern: Smooth / Matte / Rough Top / Rice Grain / Diamond (Customizable)
• Tensile Strength: Up to 80 N/mm (Depending on Construction)
• Force at 1% Elongation: 6 N/mm – 11 N/mm (Depending on Construction)
• Maximum Working Tension: 15 N/mm
• Minimum Pulley Diameter: 15mm – 100mm (Depending on Thickness and Temperature)
• Working Temperature: PU: -20°C to +80°C; PVC: -10°C to +60°C
• Ambient Temperature: -25°C to +60°C
• Belt Width: Up to 4000mm (Customizable)
• Coefficient of Friction (on Steel Slider Bed): 0.50 ± 20%
• Food Contact Compliance: FDA Food Contact Regulations / EU 10/2011
• Splicing: Hot Splicing / Finger Splice / Mechanical Fastener
• Certification: ISO 9001, CE Certified (Optional)

Application Industrial

Bakery & Confectionery: Direct contact conveying of dough, bread, biscuits, chocolate and candy.

Meat & Poultry Processing: Transport of raw and processed meat in hygienic environments.

Seafood Processing: Conveying of fish, shrimp and shellfish with resistance to moisture and oils.

Fruit & Vegetable Processing: Handling of fresh produce, sorting and packaging lines.

Dairy Production: Transport of cheese, butter and dairy products in temperature-controlled environments.

Packaging & Logistics: Light-duty conveying of packaged food products in distribution centers.

Why Choose AstraRoll’s Custom Food Grade White PU PVC Conveyor Belt?

Food-Grade Compliance: The belt complies with FDA food contact regulations and EU 10/2011 for plastic materials in contact with food. The non-toxic, odorless surface is suitable for direct contact with unpackaged food products.

High Tensile Strength & Low Elongation: The polyester fabric carcass and polyurethane cover provide tensile strength up to 80 N/mm (depending on construction) and low elongation at working tension, ensuring stable belt tracking and reliable power transmission.

Rough Top Surface for Inclined Conveying: The rough top surface provides a higher coefficient of friction than smooth belts, preventing product slippage on inclined and decline conveying lines. Available in rice grain, diamond and other patterns.

Oil, Fat & Chemical Resistance: The PU/PVC cover resists animal and vegetable oils, fats, mild acids and alkalis, and moisture, extending service life in demanding food processing environments.

Easy to Clean & Hygienic: The non-porous, non-absorbent surface reduces cleaning time and resists bacterial growth, meeting hygiene requirements for food processing facilities.

Customizable Configuration: Ply count, thickness, surface pattern, belt width, cleats, sidewalls, V-guides and perforations are fully customizable to match specific conveyor systems and product characteristics. AstraRoll provides one-stop supply, strict quality control from raw material to finished product, and long-term technical support to reduce downtime and total cost of ownership.

Complete Conveyor System Supply: In addition to food-grade conveyor belts, AstraRoll supplies complete belt conveyor systems and components including idler rollers, drive pulleys, bend pulleys and take-up pulleys for food processing, packaging, logistics and bulk material handling.
