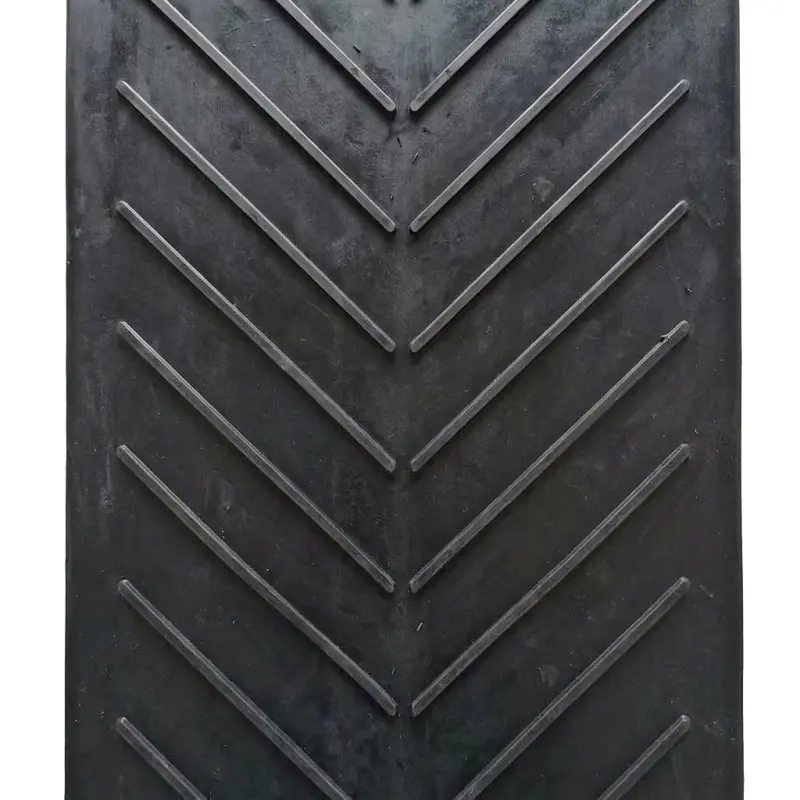

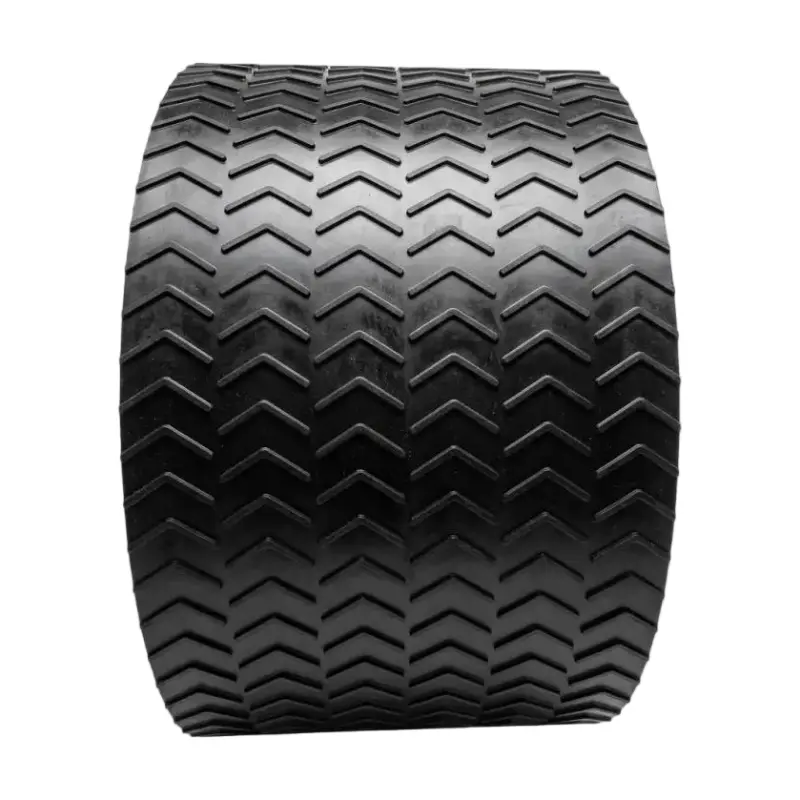

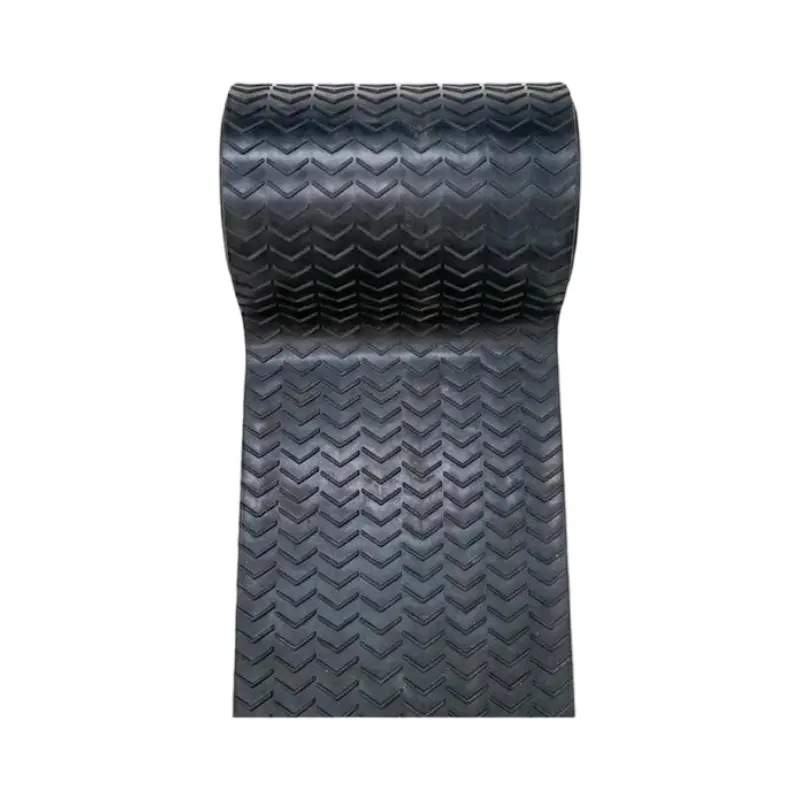

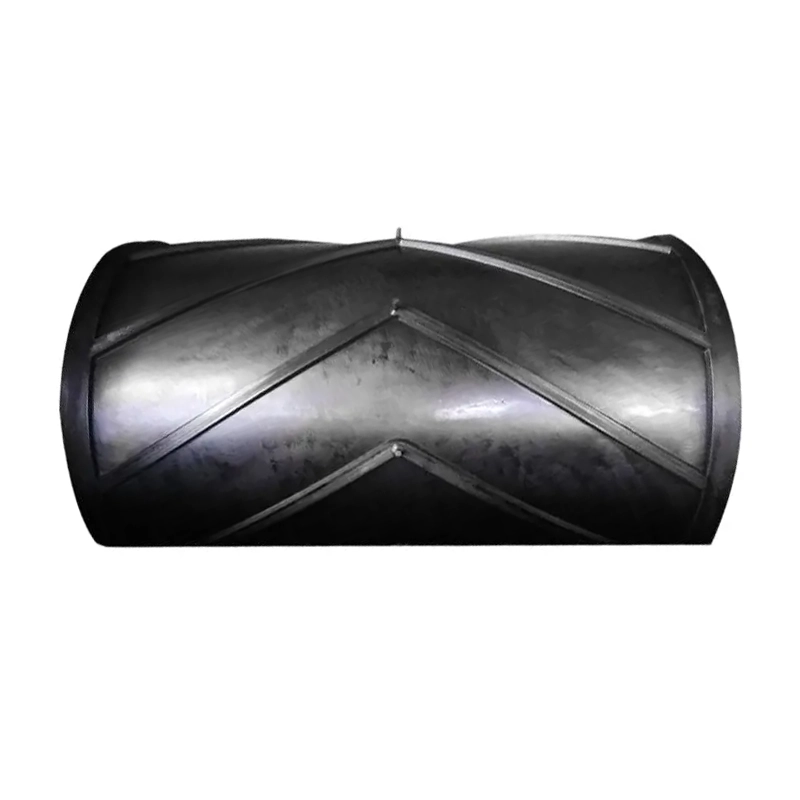

Custom V Pattern Chevron Rubber Conveyor Belt

AstraRoll’s Custom V Pattern Chevron Rubber Conveyor Belt is engineered for inclined conveying of loose, bulky and bagged materials at angles up to 40°, depending on material characteristics and cleat height. Its integrally moulded V-shaped cleats form a secure pocket that prevents material rollback and spillage on slopes, increasing conveying capacity and reducing material loss compared with smooth-surface belts. The belt is available in open V and closed V patterns: open V cleats allow material flow across the belt width for general inclined conveying, while closed V cleats form a continuous pocket for higher material retention on steeper inclines and finer materials. Cleat heights range from 5mm to 25mm, with 30mm available on request; pitch and angle are designed for smooth travel over return idlers.

The fabric carcass is available in EP (polyester-polyamide), NN (nylon-nylon) or CC (cotton canvas) construction. EP fabric provides low elongation and high tensile strength, NN fabric offers excellent impact resistance and flexibility, and CC fabric is suitable for general-purpose applications. The carcass is available in EP100 to EP500 tensile grades with 2 to 5 plies depending on tensile grade and application. The wear-resistant rubber cover is compounded to resist abrasion, cutting and gouging from sand, stone, coal and other abrasive materials. The belt is manufactured to DIN 22102 and GB/T 7984 standards, ensuring dimensional consistency and reliable performance across different production batches.

Technical Parameter

• Product Name: Custom V Pattern Chevron Rubber Conveyor Belt
• Surface Pattern: Open V / Closed V / Multi-V / U Type / Y Type (Customizable)
• Carcass Type: EP (Polyester-Polyamide) / NN (Nylon-Nylon) / CC (Cotton Canvas)
• Fabric Grades: EP100 / EP125 / EP150 / EP200 / EP250 / EP300 / EP400 / EP500 (Customizable)
• Number of Plies: 2 – 5 Plies (Depending on Tensile Grade and Application)
• Belt Width: 300mm – 2200mm (Customizable)
• Total Belt Thickness: 5mm – 30mm (Customizable)
• Cleat Height: 5mm / 10mm / 15mm / 20mm / 25mm (30mm on Request)
• Cleat Pitch: 200mm / 250mm / 330mm / 400mm / 500mm (Customizable)
• Top Cover Thickness: 1.5mm – 12mm (Customizable)
• Bottom Cover Thickness: 1.0mm – 4.5mm (Customizable)
• Rubber Grade: 12MPa – 20MPa (Standard); Up to 25MPa on Request
• Abrasion Resistance: ≤200 mm³ (DIN Standard)
• Working Temperature: -30°C to +80°C (Customizable)
• Inclination Angle: Up to 40° (Depending on Material Characteristics and Cleat Height)
• Standard: DIN 22102 / GB/T 7984 / ISO 10247
• Certification: ISO 9001, CE Certified (Optional)

Application Industrial

Quarry & Aggregate Plants: Inclined conveying of crushed stone, sand, gravel and aggregate.

Sand & Gravel Production: Transport of wet and loose sand on slopes up to 40°.

Coal Mining & Preparation: Inclined coal conveying where material rollback must be prevented.

Cement Plants: Clinker, limestone and raw material transport on inclined lines.

Port & Terminal Handling: Inclined loading and unloading of bulk materials.

Construction & Recycling: Transport of construction waste and granular materials on slopes.

Agriculture: Handling of grain, fertilizer and bulk agricultural products on inclines.

Why Choose AstraRoll’s Custom V Pattern Chevron Rubber Conveyor Belt?

Prevents Material Rollback on Inclines: The raised V-shaped cleats form a secure pocket that holds loose materials in place on slopes up to 40°, preventing rollback and spillage without the need for reduced conveyor angles or expensive transfer points.

Open V & Closed V Options: Open V cleats allow material flow across the belt width for general inclined conveying. Closed V cleats form a continuous pocket for higher material retention on steeper inclines and finer materials. Multi-V, U type and Y type patterns are also available for specialized applications.

High-Strength Fabric Carcass: EP, NN and CC fabric options provide high tensile strength, low elongation and excellent troughability. Available in EP100–EP500 grades with 2–5 plies depending on tensile grade and application.

Wear-Resistant Rubber Cover: The high-grade rubber cover resists abrasion, cutting and gouging from sand, stone, coal and other abrasive materials. Cleat heights from 5mm to 25mm (30mm on request) provide flexibility for different material sizes and incline angles.

Customizable Configuration: Cleat pattern, cleat height, cleat pitch, fabric type, ply count, belt width, cover thickness and rubber grade are fully customizable to match specific conveyor systems and material characteristics. AstraRoll provides one-stop supply, strict quality control from raw material to finished product, and long-term technical support to reduce downtime and total cost of ownership.

Complete Conveyor System Supply: In addition to chevron conveyor belts, AstraRoll supplies complete belt conveyor systems and components including idler rollers, drive pulleys, bend pulleys and take-up pulleys for mining, quarrying, cement, coal and bulk material handling.
