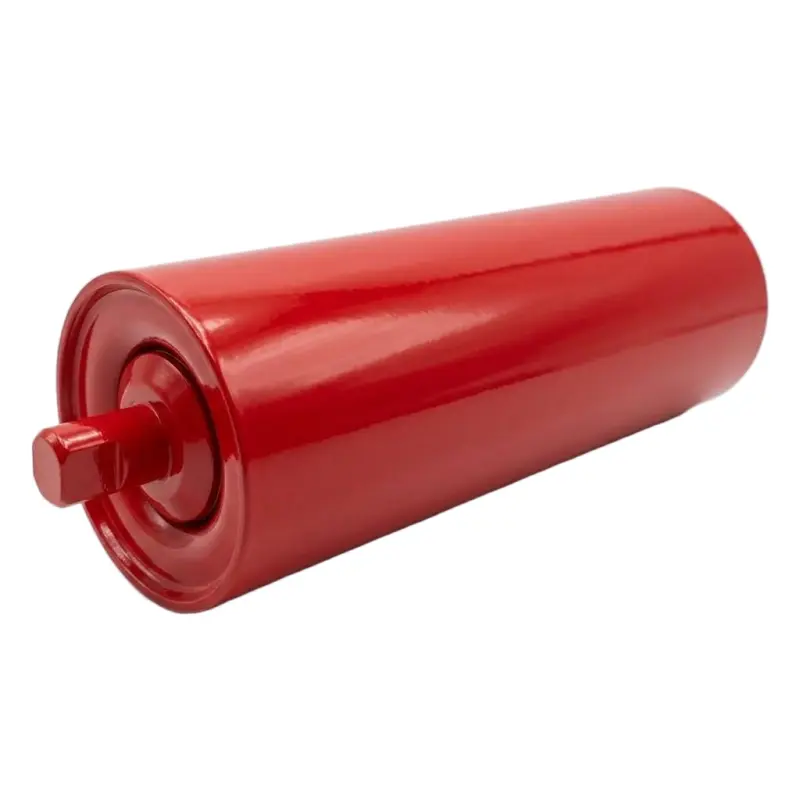

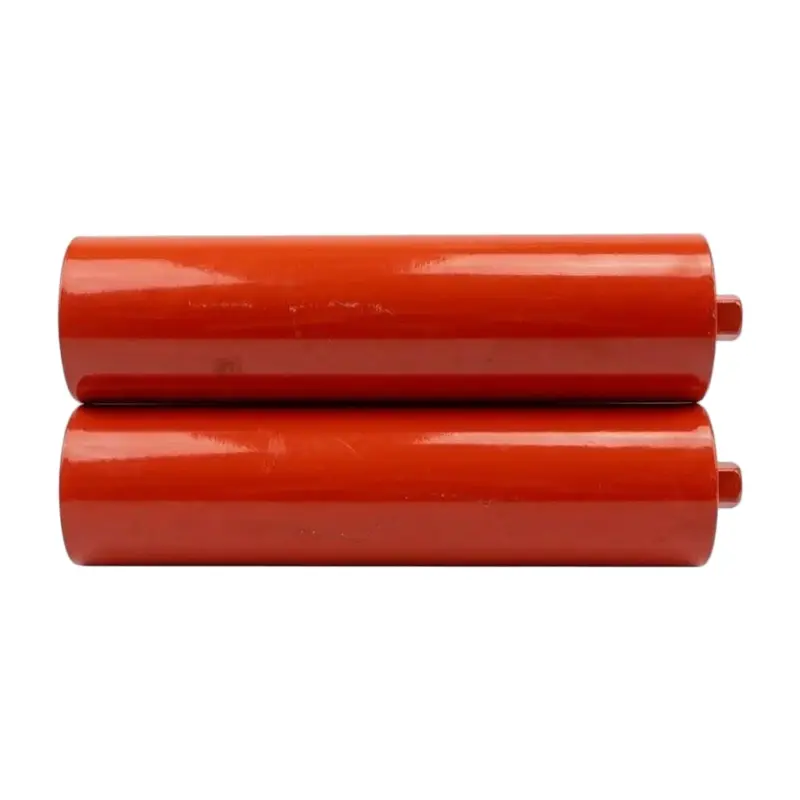

Custom Heavy Duty Carbon Steel Conveyor Idler Roller

Product Overview

AstraRoll’s Custom Heavy Duty Carbon Steel Conveyor Idler Roller is engineered for reliable belt support in mining, quarrying, coal preparation plants, cement plants, power stations and bulk material handling. The idler roller is a critical component of any belt conveyor system, supporting the belt and the material load while minimizing friction and belt wear.

The roller is fabricated from Q235 carbon steel tube (equivalent to S235JR / DIN) with a red-painted anti-rust finish that resists corrosion, moisture and abrasive wear. The tube ends are fitted with precision stamped bearing housings that hold deep groove ball bearings with C3 clearance, ensuring smooth rotation, low noise and minimal rotational resistance under continuous operation.

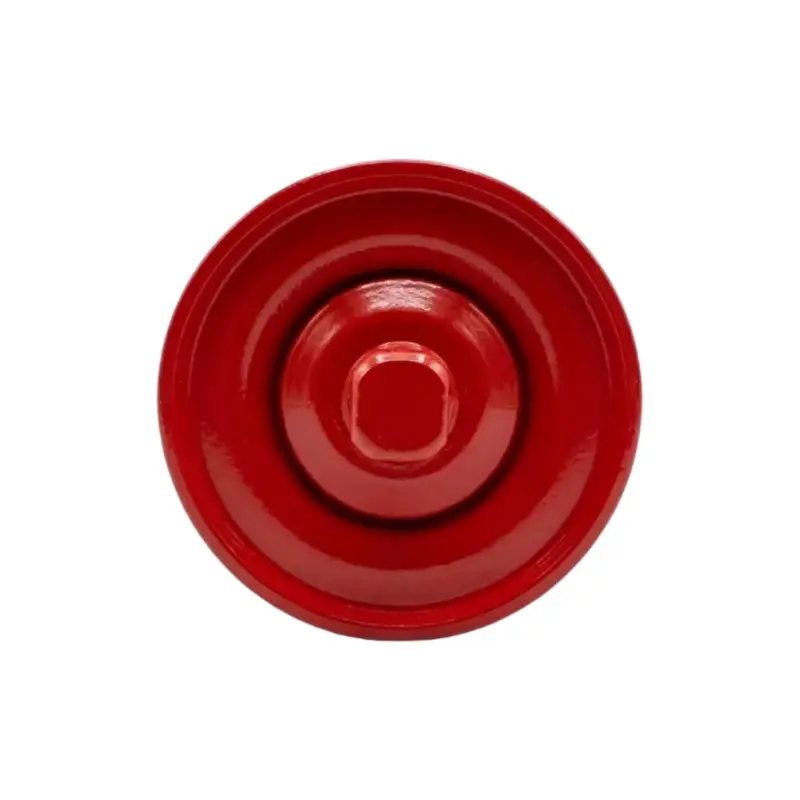

Each bearing housing is protected by a multi-stage labyrinth seal. The labyrinth seal uses interleaved annular projections to form a tortuous path that blocks dust, water and fine particles from entering the bearing area. This sealing system maintains lubrication integrity and extends bearing life in dusty and humid environments, reducing maintenance frequency and downtime.

The shaft is machined from 45# steel (equivalent to C45 / DIN) with milled flats at both ends for positive locking into the conveyor idler frame. The roller is dynamically balanced to reduce vibration and belt wear. Custom diameters, lengths, shaft diameters, bearing types and surface treatments are available to match specific conveyor systems and material characteristics.

Technical Parameter

• Product Name: Custom Heavy Duty Carbon Steel Conveyor Idler Roller
• Tube Material: Q235 Carbon Steel (Equivalent to S235JR / DIN)
• Shaft Material: 45# Steel (Equivalent to C45 / DIN)
• Roller Diameter: 63.5mm / 76mm / 89mm / 108mm / 127mm / 133mm / 159mm / 194mm / 219mm (Customizable)
• Roller Length: 150mm – 2000mm (Depending on application and belt width)
• Tube Thickness: 3mm – 6mm (Customizable)
• Shaft Diameter: 20mm / 25mm / 30mm / 35mm / 40mm (Customizable)
• Bearing Type: Deep Groove Ball Bearing, C3 Clearance (6204 / 6205 / 6305 / 6306 / 6308)
• Seal Type: Multi-Stage Labyrinth Seal (Dust-Proof & Water-Resistant)
• Surface Treatment: Red Painted / Anti-Rust Painting / Hot Galvanized
• Trough Angle: 20° / 35° / 45° (Matched with Trough Bracket)
• Applicable Belt Width: B500 – B1600 (Customizable)
• Working Temperature: -20°C to +80°C
• Standard: CEMA / DIN / JIS / GB/T (Customizable)
• Certification: ISO 9001, CE Certified (Optional)

Application Industrial

Mining & Quarrying: Belt support for ore, coal and rock conveying on inclined and horizontal lines.

Coal Preparation Plants: Troughing support for coal conveying in dusty and humid conditions.

Cement & Construction: Carrying idlers for clinker, cement and aggregate transport.

Power Plants: Carrying idlers for coal and biomass feeding lines.

Port & Terminal Handling: Belt support for ship loading and stockpile transfer systems.

Steel & Metallurgy: Idler support for sinter, coke and bulk material handling systems.

Why Choose AstraRoll’s Custom Heavy Duty Carbon Steel Conveyor Idler Roller?

Heavy-Duty Carbon Steel Construction: Q235 carbon steel tube and 45# steel shaft provide structural strength and load-bearing capacity for continuous operation in mining and quarrying applications. The red-painted anti-rust finish resists corrosion and abrasive wear, extending service life.

Dust-Proof & Water-Resistant Sealing: Deep groove ball bearings with C3 clearance and a multi-stage labyrinth seal prevent dust and moisture from contaminating the bearing housing, reducing bearing failure and extending maintenance intervals in abrasive environments.

Smooth Rotation & Low Friction: Dynamically balanced rollers with precision bearings ensure low rotational resistance, reducing power consumption and belt wear. The smooth painted surface helps reduce belt wear.

Customizable Configuration: Roller diameter, length, tube thickness, shaft diameter, bearing type, surface treatment and trough angle are fully customizable to match specific conveyor systems and material characteristics. AstraRoll provides one-stop supply, strict quality control from raw material to finished product and long-term technical support to reduce downtime and total cost of ownership.

Complete Conveyor System Supply: In addition to idler rollers, AstraRoll supplies complete belt conveyor systems and components including impact idlers, return rollers, drive pulleys, bend pulleys and take-up pulleys for mining, quarrying, cement, coal and bulk material handling.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
