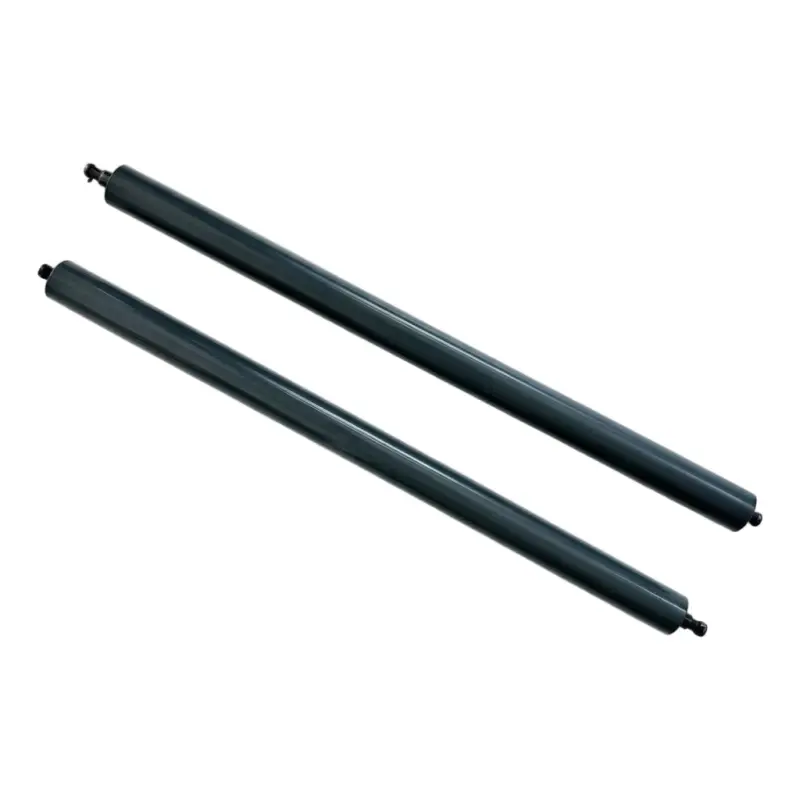

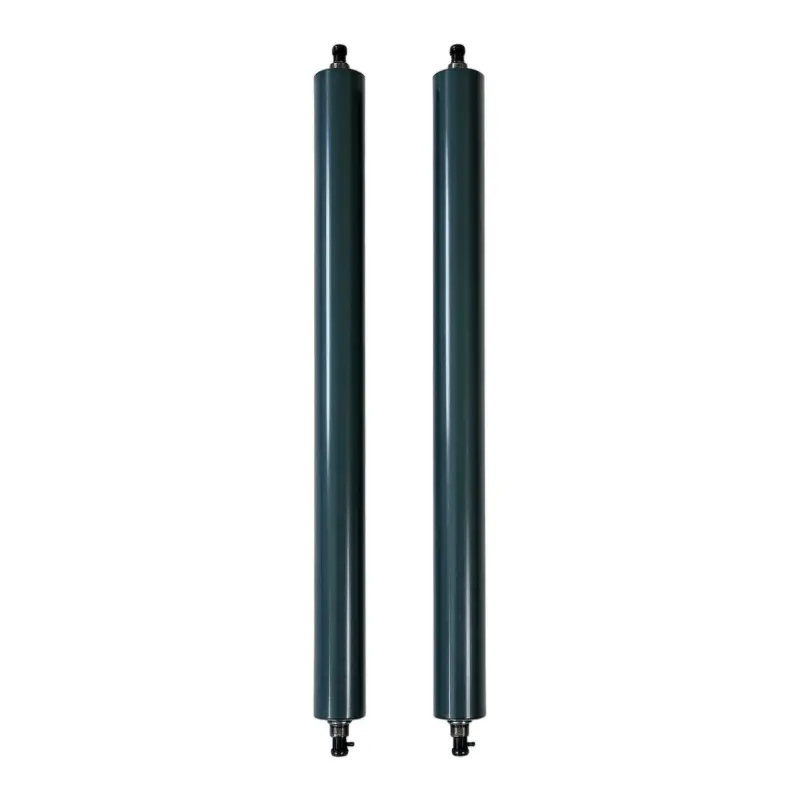

Custom High Quality M2.030.087F SM74 Z Roller

AstraRoll's Custom M2.030.087F Z Roller is a direct-fit replacement intermediate roller assembly for the Heidelberg Speedmaster SM74 offset press. In the SM74 Alcolor dampening architecture, the Z roller acts as a critical bridge between the inking unit and the dampening system. When engaged, it pre-inks the dampening form roller before water is applied, stabilizing the ink-water emulsion and preventing startup scumming. It is designed to be automatically disengaged by the press mechanism when operating in Vario mode.

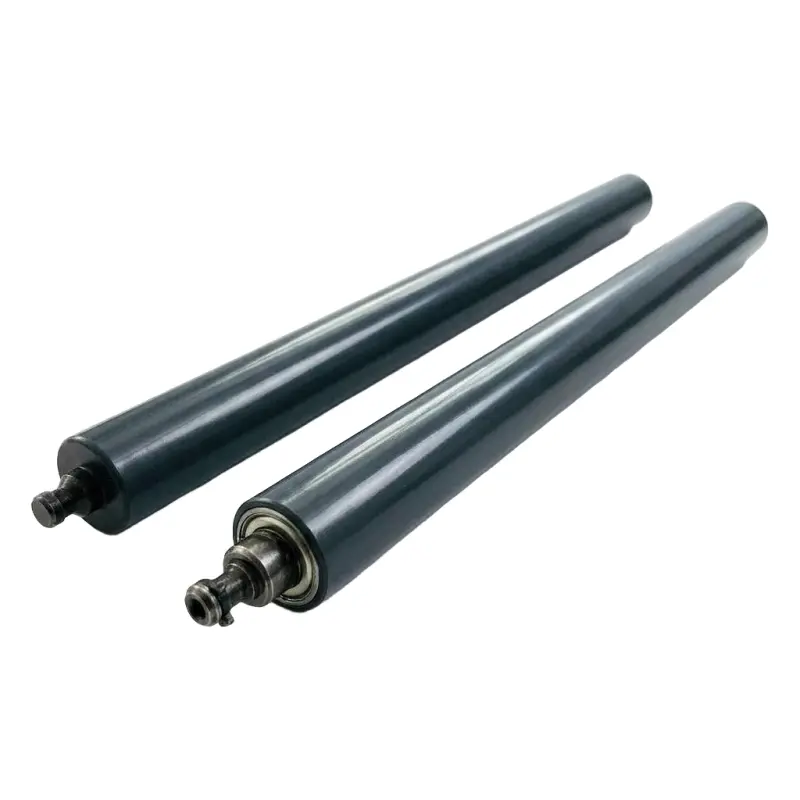

The roller features a high-hardness Rilsan (Polyamide/Nylon) coating in a characteristic dark green finish, mounted on a precision steel core with stepped journals. This construction provides a surface hardness of 90–100 Shore A (approx. 60–70 Shore D), delivering excellent resistance to washing solvents, ink buildup, and mechanical wear—critical for a roller operating in both ink and water environments.

Technical Parameter

• Product Name: Custom M2.030.087F SM74 Z Roller (Intermediate Roller CPL)
• OEM Part Number: M2.030.087F (Complete intermediate roller assembly)
• Related Part Number: M2.030.570F (Rilsan Z Roller body, SM74)
• Compatible Press: Heidelberg Speedmaster SM74
• Function: Bridge / Intermediate roller in Alcolor dampening system
• Standard Outside Diameter: 46.0 mm
• Face Length: 750 mm
• Overall Length: 795 mm
• Weight: Approx. 6.0 kg
• Surface Material: Rilsan (Polyamide / Nylon)
• Surface Hardness: 90–100 Shore A (Approx. 60–70 Shore D)
• Core Material: Precision Steel
• Journal Configuration: Stepped metal journals, matched to OEM drawing
• Supply Form: Complete assembly (CPL) with journals
• Customization: Dimensions, coating material, and hardness verified against customer physical sample or OEM specification

(Note: M2.030.087F and M2.030.570F both relate to the Rilsan Z roller position on SM74. M2.030.087F is the complete assembly, while M2.030.570F is the bare roller body. Please confirm against your machine's parts list before ordering.)

Application

Heidelberg SM74 Presses: Direct replacement for the intermediate/Z roller in the Alcolor dampening system.

Inking & Dampening Bridge: Engages to pre-ink the dampening form roller, stabilizing emulsion during production.

Commercial Offset Printing: Supports stable ink-water balance for consistent print results.

Why Choose AstraRoll's M2.030.087F Z Roller?

Correct Material & Hardness Specification: Rilsan coating at 90–100 Shore A, matching the functional requirements for the bridge position—not a generic rubber compound.

Complete Assembly (CPL): Supplied with precision journals, ready for installation without additional assembly.

Exact Part Number Match: Supplied against M2.030.087F, eliminating guesswork. Related part M2.030.570F is also available for verification.

Factory-Direct Supply with Full Data: Provides complete dimensional data (OD 46.0mm, face 750mm, overall 795mm) with strict inspection before shipment. Custom options available on request.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
