How to choose conveyor rollers for high-temperature environments?

In modern industrial manufacturing, the conveyor system is the "artery" of the production line. However, when the operating environment enters high-temperature zones—such as lithium battery baking, food processing, metal casting, or smart home assembly—standard rollers often face risks of lubrication failure, tube deformation, or bearing seizure.

Selecting the right high-temperature roller is a systematic engineering task. This guide analyzes the selection process across five dimensions: temperature grading, tube materials, coating technologies, bearing solutions, and industry-specific applications.

I. Temperature Grading: Defining Your Operating Environment

In international industrial standards, high-temperature environments are typically categorized into three critical levels, each requiring a distinct design logic:

1. Moderate Heat (80℃ - 120℃: Common in standard drying lines, packaging systems, and lightweight smart home production lines.
2. Medium-High Heat (120℃- 200℃): Found in lithium-ion battery electrode coating/baking, food dehydration, plastic processing, and automotive paint shops.
3. Extreme Heat (200℃- 450℃+): Characteristic of metal casting, glass manufacturing, heat treatment, and specific chemical reaction environments.

Expert Tip: Beyond ambient temperature, always consider the instantaneous heat transfer temperature when the material directly contacts the roller surface.

II. Tube Materials: From Traditional Steel to Advanced Composites

To meet the diverse needs of the global market, tube materials have evolved beyond basic metals:

1. Classic Metallic Series: The Foundation of Load & Durability

• Carbon Steel: Cost-effective and durable for dry environments under 150°C.
• Stainless Steel (SUS304/316): The global standard for corrosion resistance and thermal stability, ideal for food and chemical industries.
• Heat-Resistant Alloy Steel: Designed for extreme environments above 400°C to prevent creep deformation under high stress.

2. High-Tech Lightweight Series: The Future of Smart Manufacturing

• Aluminum Alloy: Excellent thermal conductivity helps dissipate heat from bearings. Its low weight significantly reduces energy consumption for robotics and AGVs.
• Carbon Fiber: Offers extreme rigidity and a near-zero thermal expansion coefficient. It is the ultimate solution for high-precision transport (e.g., optical films) to prevent thermal distortion.

3. Flexible Protection

• Silicone Tubing: For non-load-bearing, anti-scratch applications, thick-walled silicone tubes provide heat resistance up to 250°C with excellent cushioning.

III. Surface Coating: Multi-Functional Protective Layers

The coating determines the roller's grip, wear resistance, and material protection:

• High-Performance Silicone: Heat resistant (200°C-260°C) with superior "release" properties (non-stick), ideal for adhesive materials.
• Viton / FKM (Fluoroelastomer): For environments combining heat with chemical aggression (acids, solvents). Heat resistant up to 250°C.
• Modified High-Temp Polyurethane (PU): Maintains high physical wear resistance at 120°C-150°C, suitable for heavy-duty industrial manufacturing.
• PTFE (Teflon) Coating: Provides an extremely low friction coefficient and prevents adhesion even at 260°C.

IV. Bearings & Lubrication: Solving the Core of Failure

Bearing failure is the most common cause of roller damage. High-temperature bearings must feature:

• Large Internal Clearance (C4/C5): Standard bearings seize as metal expands. C4 or C5 clearance provides the necessary physical space for thermal expansion.
• Advanced Material Science: Utilizing high-temperature tempered steel or Full Ceramic Bearings (Silicon Nitride). Ceramic bearings can withstand 500°C+, are anti-magnetic, and electrically insulated.
• PFPE (Perfluoropolyether) Lubricants: These do not evaporate, carbonize, or coke at high temperatures. In the lithium battery industry, they ensure no volatile gases contaminate active battery materials.

V. Industry-Specific Solutions

1. New Energy & Solar Power

• Lithium Battery Manufacturing: Requires "Copper-Free & Zinc-Free" designs and high-precision run-out for electrode coating and baking.

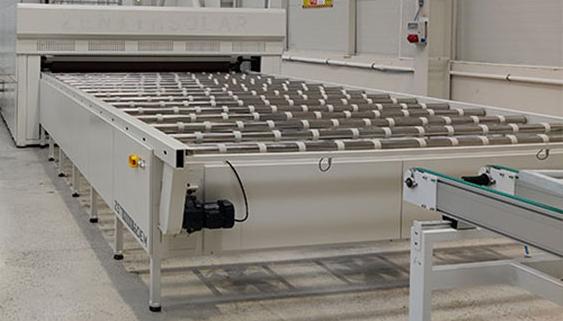

• Solar Panel Manufacturing: Essential for lamination and curing processes. Our rollers transport panels through high-heat zones, ensuring the integrity of both the vacuum-sealed panels and the conveyor system.

• Aerospace Industry: Specifically engineered for composite curing autoclaves and ovens. Our rollers handle critical aerospace components during high-temperature polymerization without outgassing or deformation.
• Robotics & Smart Manufacturing: Emphasizes lightweight materials (Aluminum/Carbon Fiber) for high-frequency start-stop precision.

3. Food, Packaging & Textiles

• Food Processing & Baking: During high-heat baking and cooking, our rollers transport food through ovens and cooling tunnels, maintaining food safety and equipment integrity.
• Heat Sealing & Packaging: Crucial for materials like plastics and foils. High-temperature rollers facilitate smooth passage through sealing equipment, ensuring continuous operation without melting or damaging delicate packaging components.

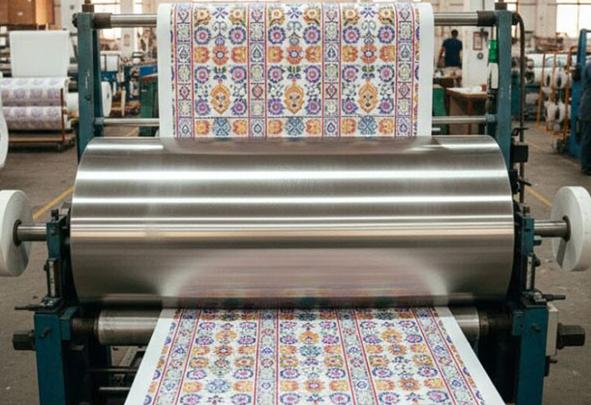

• Textile Industry: Specialized for heat-setting machines and drying equipment, enabling fabrics to pass through stabilization processes efficiently.

4. Heavy Industrial & Raw Materials

• Glass Manufacturing: Handles the extreme rigors of melting and forming. Our systems safely transport molten glass through furnaces and annealing lehrs.

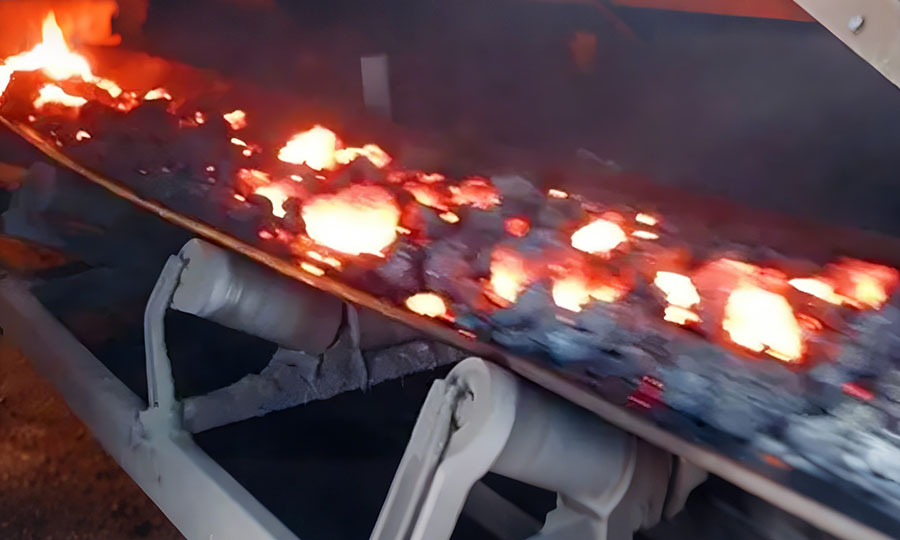

• Metallurgical Industry: Robust designs for the harsh environments of steel mills, aluminum plants, and foundries.
• Ceramic Industry: Tailored for kilns and drying furnaces, transporting ceramic wares through high-temperature firing zones.

VI. Final Selection Checklist for Global Buyers

Before placing an order, please confirm these 5 key indicators:

1. Peak Temperature vs. Duration: Ambient temp, material temp, and continuous duty cycles.
2. Load & Dynamic Stress: Heat reduces material strength; verify load capacity at operating temperatures.
3. Chemical Environment: Exposure to acids, bases, solvents, or volatile gases.
4. Precision Requirements: Allowable Run-out tolerances (critical for thin films and batteries).
5. Compliance: Requirement for FDA, RoHS, or ESD standards.

Why Choose AstraRoll?

AstraRoll has provided technical support to numerous renowned equipment manufacturers and listed companies. Our partner network includes Lead Intelligent Equipment, Lyric Automation, Han's Laser, HIT Automation, Colibri Technologies, and UW Laser.
Our casting and roller solutions are widely applied in new energy manufacturing, logistics systems, intelligent manufacturing equipment, textile Industry, aerospace Industry, smart home production lines, and medical device sectors.

With extensive engineering experience and rigorous quality standards, AstraRoll provides professional technical guidance and reliable roller products to equipment manufacturers worldwide, helping to enhance mobility performance, equipment durability, and operational efficiency.

Contact Us Today: Visit the official AstraRoll website or consult our engineers to tailor a custom solution for your high-temperature conveying challenges.
