Custom Food Grade Nylon Spiral Cleaning Roller Brush

Product Overview

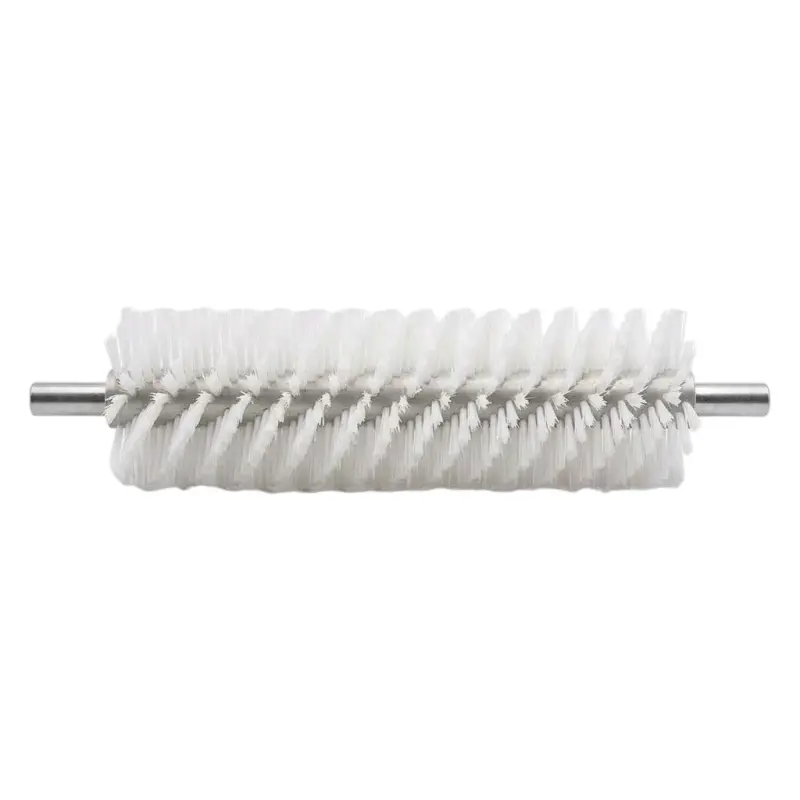

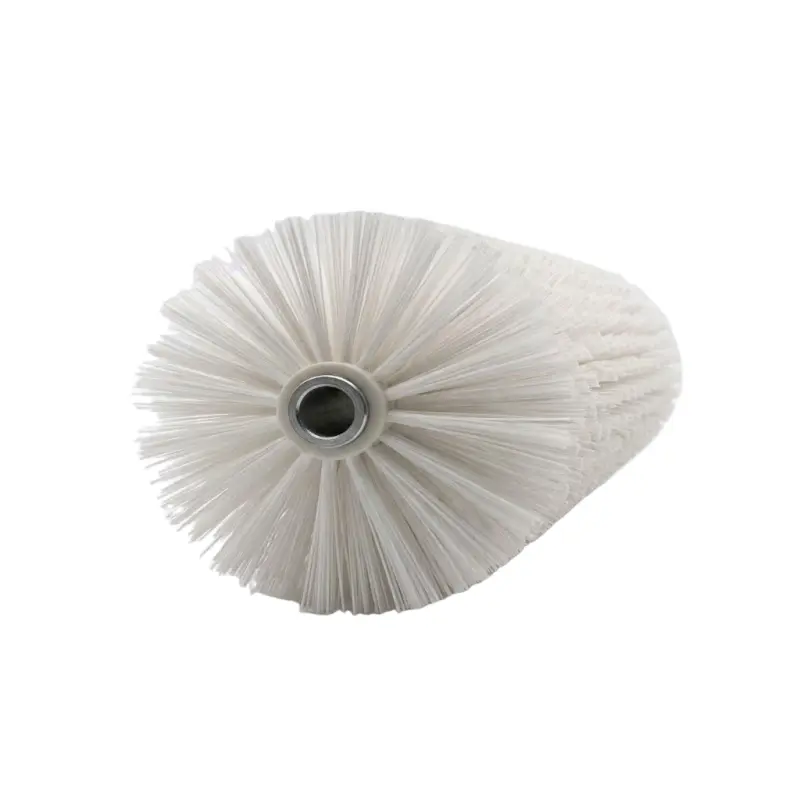

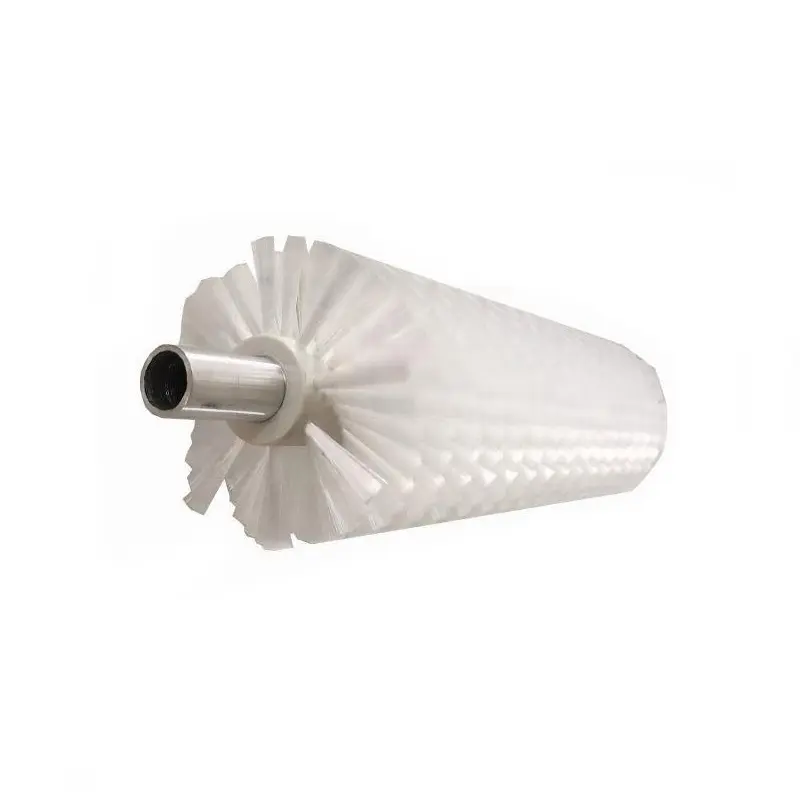

AstraRoll‘s Custom Food Grade Nylon Spiral Cleaning Roller Brush is engineered for cleaning, peeling, and surface polishing of fruits, vegetables, and root crops, as well as industrial conveyor belt cleaning. The brush consists of a continuous nylon filament wound in a spiral pattern around a central shaft. This spiral construction provides uniform filament density and consistent contact pressure across the full working face, eliminating the streaking and dead zones that can occur with tufted brush patterns in high-speed cleaning applications.

The filament is food-grade nylon (PA6/PA66), selected for flexibility, fatigue resistance, and suitability for direct contact with produce. Filament diameter is matched to the duty: 0.3mm soft filament for delicate washing and polishing, and 0.7–0.8mm filament for heavier peeling applications such as potatoes and carrots. The shaft is machined from stainless steel, with end rings to retain the filament, and can be supplied with custom shaft extensions or mounting ends. Overall length, brushing length, outer diameter, shaft diameter, and spiral pitch are all customizable per drawing or sample.

Technical Parameter

• Product Name: Custom Food Grade Nylon Spiral Cleaning Roller Brush
• Filament Material: Food-Grade Nylon PA6 / PA66
• Filament Diameter: 0.3mm (Soft Washing) / 0.7–0.8mm (Peeling/Heavy Duty) / Customizable
• Shaft Material: Stainless Steel (304 / 316L) or 45# Steel
• Brush Construction: Continuous Spiral-Wound
• Outer Diameter: Customizable (Typical Range: 100mm – 500mm)
• Brushing Length: Customizable
• Shaft Diameter: Customizable
• Shaft Ends: With End Rings; Custom Extensions/Mountings Available
• Working Temperature: Suitable for standard food processing washdown environments (approx. -10°C to +80°C)
• Food Contact: Food-Grade Materials
• Customization: Diameter, length, shaft size, and spiral pitch matched to customer drawings.
• Certification: ISO 9001 (Optional)

Application Industrial

Fruit & Vegetable Washing: Gentle removal of dirt, soil, and surface residues from apples, citrus, tomatoes, and leafy greens using 0.3mm filament.

Root Crop Peeling & Polishing: Aggressive cleaning and peeling of potatoes, carrots, and ginger using 0.7–0.8mm filament.

Conveyor Belt Cleaning: Continuous removal of carryback and debris from food-grade and industrial conveyor belts.

Industrial Surface Treatment: Light deburring or cleaning of components in automated lines (with appropriate filament selection).

Why Choose AstraRoll’s Custom Food Grade Nylon Spiral Cleaning Roller Brush?

Uniform Spiral Cleaning Action: The continuous spiral winding provides consistent filament density and contact pressure, eliminating dead zones and ensuring thorough cleaning across the entire working width.

Food-Grade Filament & Custom Sizing: Food-grade PA6/PA66 filament is available in various diameters, from 0.3mm for delicate produce to 0.7–0.8mm for heavy peeling. Dimensions and shaft interfaces are customized to your equipment.

Stainless Steel Shaft Construction: Machined stainless steel shafts with end rings provide reliable mechanical support, corrosion resistance, and long service life in wet washdown environments.

Factory-Direct Supply & Strict Inspection: AstraRoll manufactures brushes to customer drawings or samples, with dimensional inspection performed before shipment. Factory-direct pricing and long-term technical support are provided for OEM and replacement requirements.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
