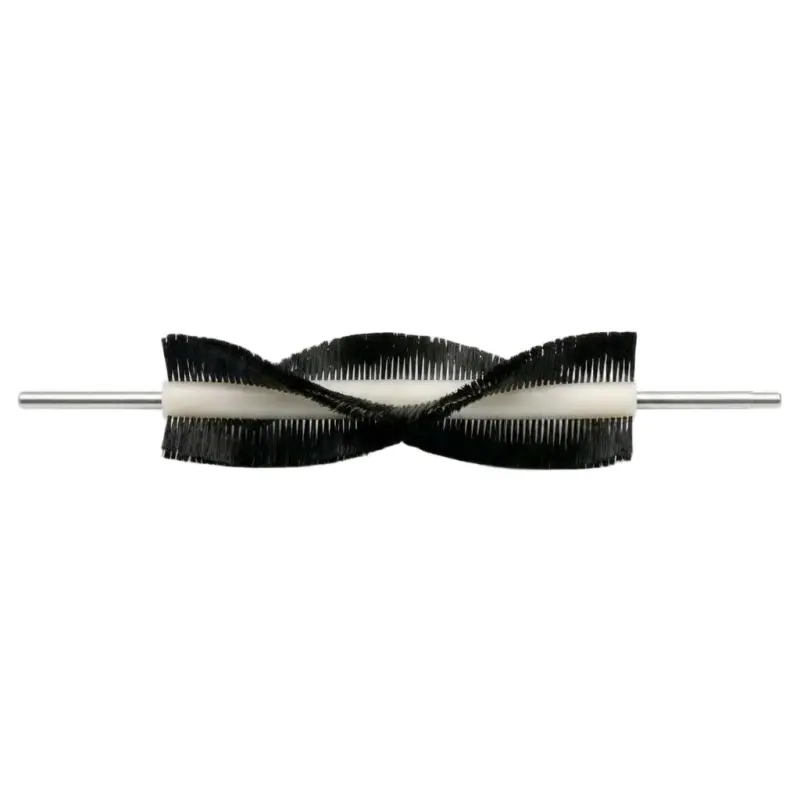

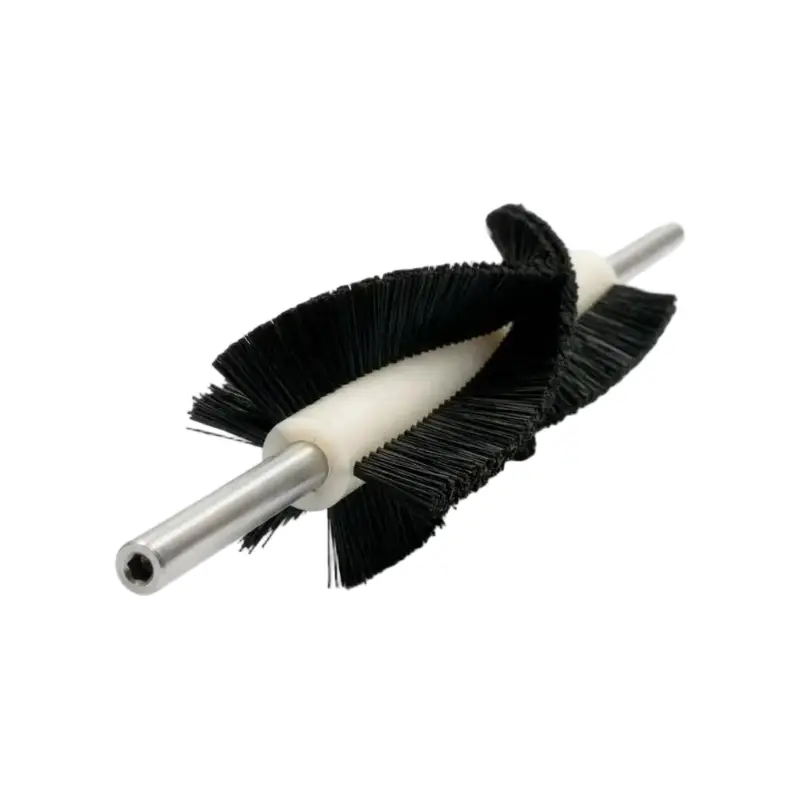

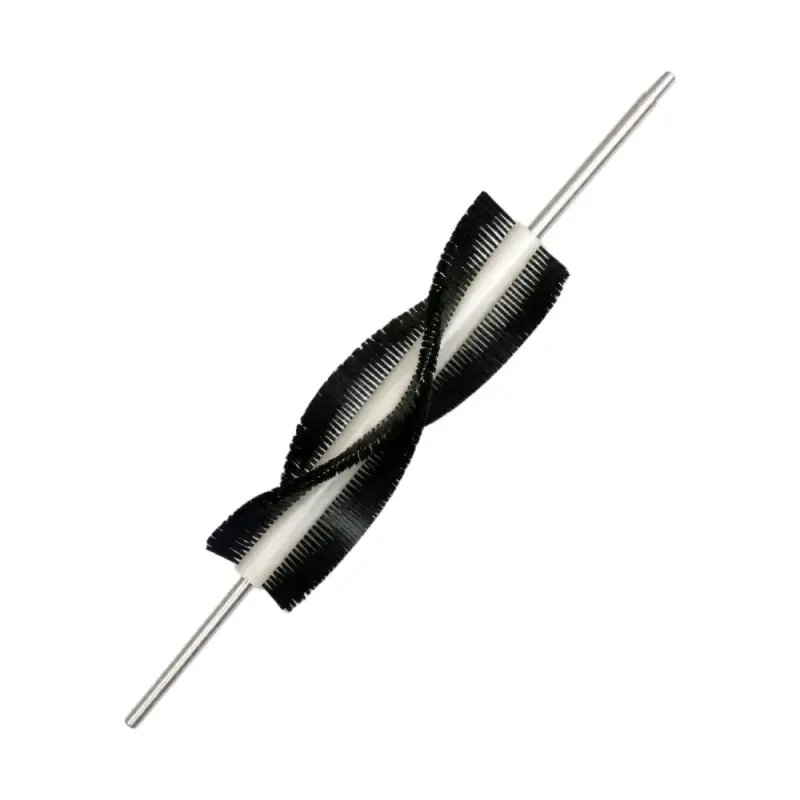

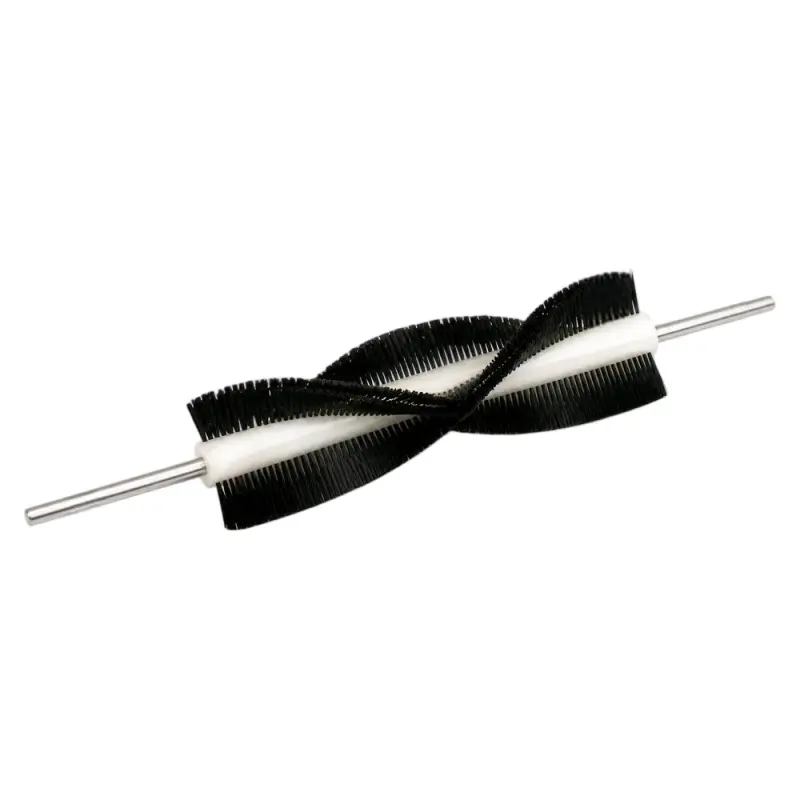

Custom Industrial Spiral Spring Brush Roller

Product Overview

AstraRoll’s Custom Industrial Spiral Spring Brush Roller is engineered for continuous cleaning, dust removal, deburring, and surface preparation in conveyor systems, printed circuit board (PCB) lines, and general industrial machinery. The brush consists of brush strips or dense bristle tufts spirally wound around a rigid white inner support core, which is mounted on a machined stainless steel through-shaft.

This spiral spring construction ensures consistent contact pressure across the full working face while allowing debris to be channeled out along the spiral grooves during rotation. It is a heavy-duty industrial component intended for surface cleaning and material handling—not for direct food contact. The bristle material is typically black nylon or PP for general cleaning, with abrasive nylon (e.g., silicon carbide) available for metal deburring and rust removal.

Technical Parameter

• Product Name: Custom Industrial Spiral Spring Brush Roller
• Brush Type: Spiral Wound (Spring Brush Pattern)
• Bristle Material: Black Nylon PA6/PA66, PP, or Abrasive Filament (Customizable)
• Bristle Diameter: 0.2mm – 0.5mm (Standard); Abrasive filament custom sized
• Shaft Material: Stainless Steel (304 / 316L) or Galvanized Steel
• Inner Core Material: Rigid Plastic/Resin (White, for structural support)
• Shaft Ends: Machined Extensions (Customizable)
• Outer Diameter (OD): Approx. 60mm – 150mm (Dependent on inner core + bristle length)
• Bristle Length: 10mm – 40mm (Customizable)
• Total Length: Up to 1500mm (Standard without mid-support; longer lengths require shaft support)
• Rotation Direction: Bidirectional
• Working Temperature: -10°C to +80°C (Standard nylon/PP)
• Customization: OD, length, bristle material, spiral pitch, and shaft ends matched to customer drawings
• Certification: ISO 9001 (Optional)

Application Industrial

Conveyor Belt Cleaning: Continuous removal of carryback, dust, and debris from industrial conveyor belts.

PCB Manufacturing: Pre-treatment surface cleaning and brushing of printed circuit boards.

Metal Processing: Deburring, descaling, and rust removal using abrasive filament options.

General Industrial Cleaning: Dust removal and surface preparation in automated production lines.

Why Choose AstraRoll’s Custom Industrial Spiral Spring Brush Roller?

Uniform Spiral Cleaning Action: The spiral-wound construction provides consistent contact pressure across the working width and prevents the streaking common with straight strip brushes.

Debris Channeling: The spiral grooves naturally direct dust and debris away from the working surface during rotation, reducing buildup and heat generation.

Heavy-Duty Materials: Black nylon/PP bristles for flexible cleaning, or abrasive filament for aggressive deburring, mounted on a corrosion-resistant stainless steel shaft.

Custom Engineering: Outer diameter, bristle length, material, and shaft extensions are all machined to your equipment's interface, ensuring direct fit and reliable operation.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
