OEM Customized High Precision Cathode Roller

Product Overview

AstraRoll’s OEM Customized High Precision Cathode Roller is the core deposition component of the electrolytic copper foil foil-forming machine. During operation, copper ions from the electrolyte deposit onto the rotating cathode drum surface to form continuous copper foil. The surface microstructure and geometric accuracy of the drum directly govern foil nucleation, thickness uniformity, and surface quality.

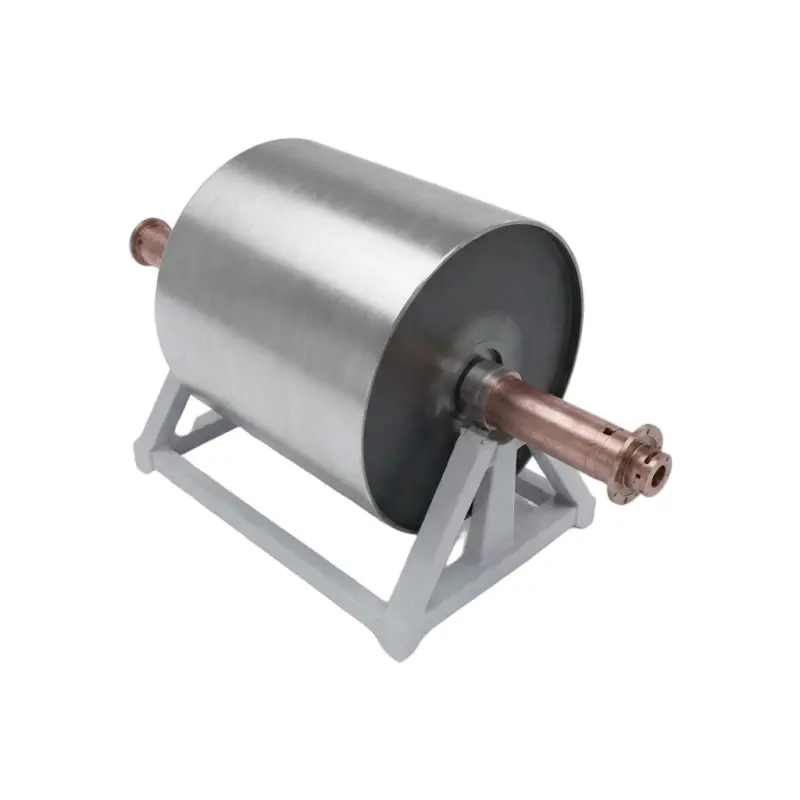

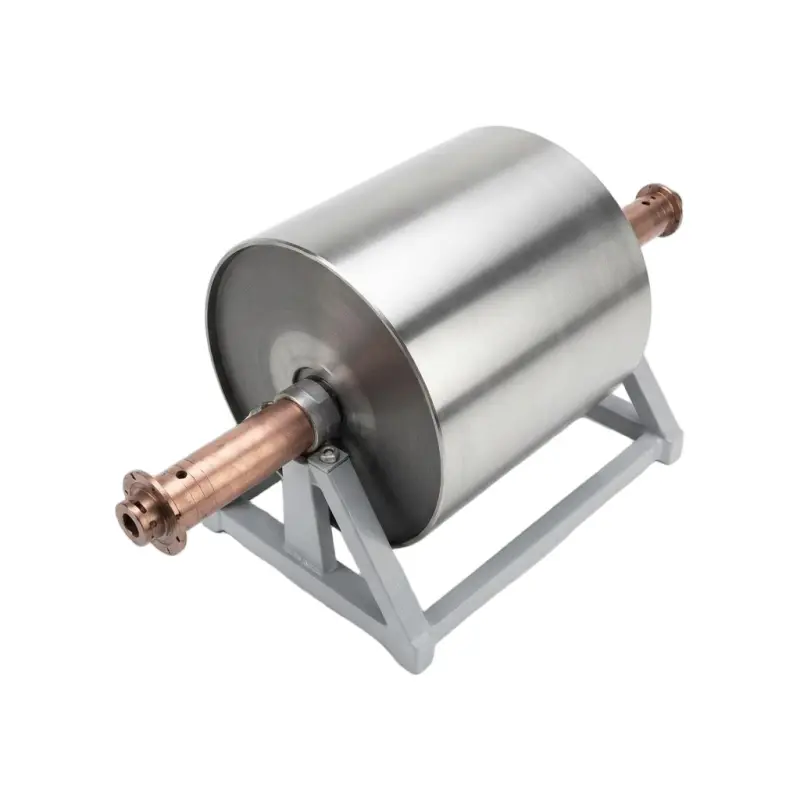

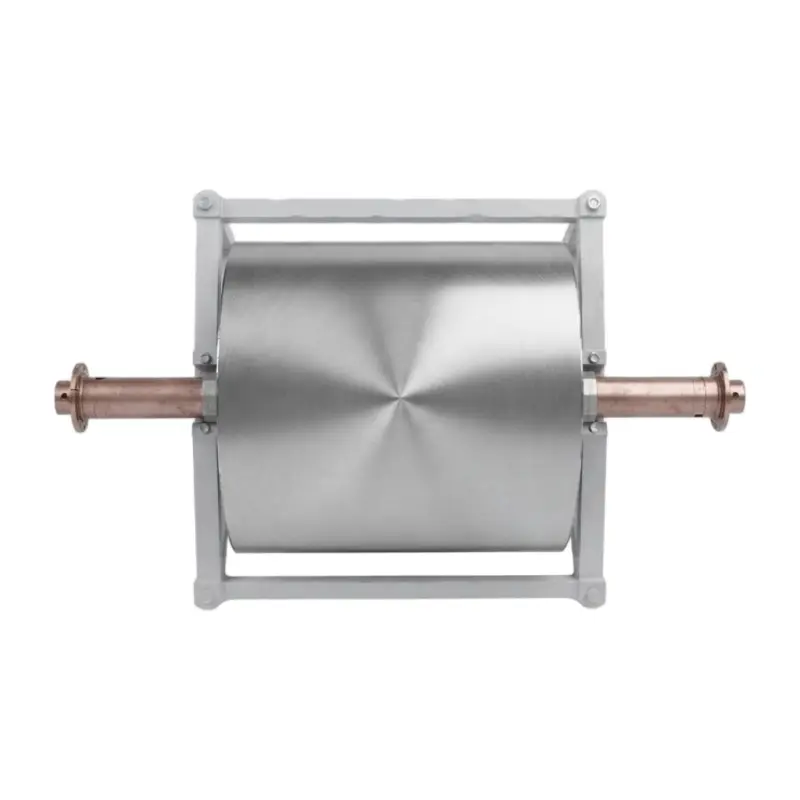

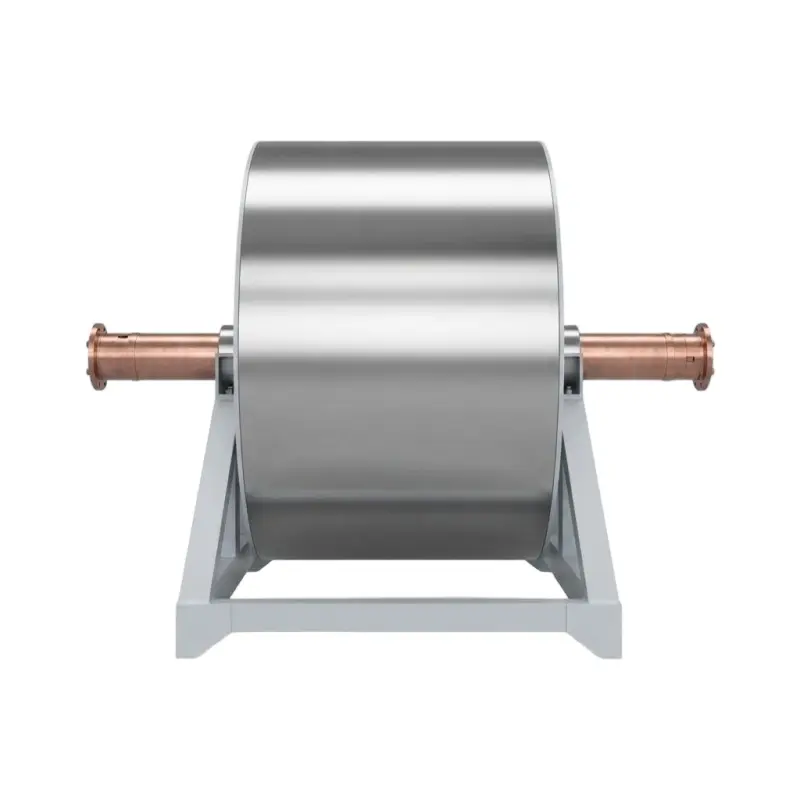

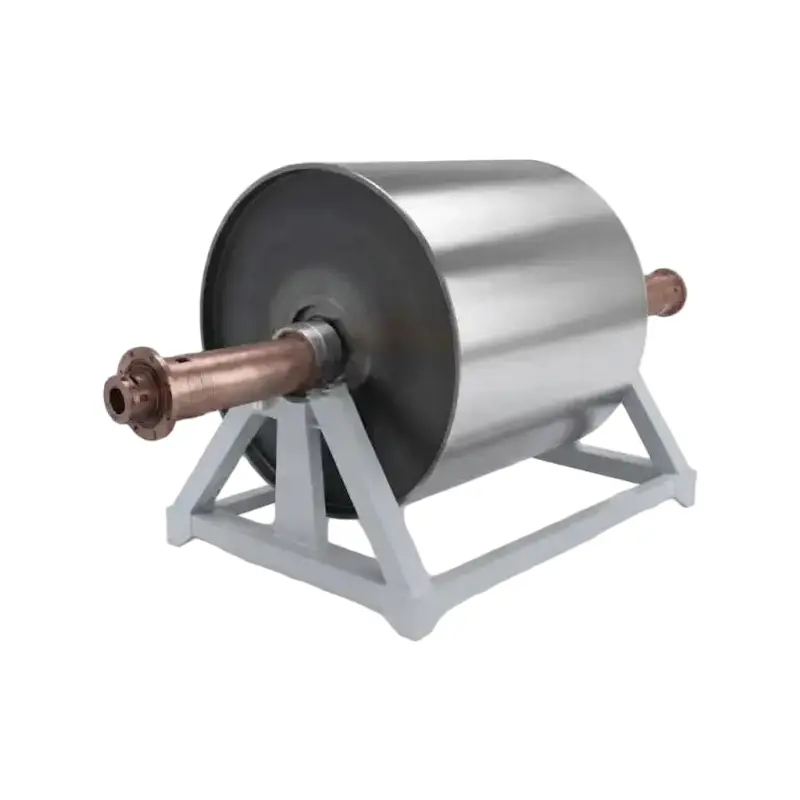

As shown in the product images, this assembly consists of a TA1 titanium working drum, precision T2 copper conductive shafts for high current transfer, and a structural support frame. The final dimensions—including drum diameter, face width, copper shaft diameter/interface, and frame mounting hole spacing—are prepared strictly according to the customer's equipment drawings or process specifications. This ensures direct replacement and seamless integration into your existing production line.

Technical Parameter

Product Name: OEM Customized High Precision Cathode Roller

Working Surface Material: TA1 Titanium

Conductive Shaft Material: T2 Copper

Support Frame Material: Carbon Steel (Painted) / Stainless Steel

Titanium Layer Thickness: ≥10mm (Customizable)

Titanium Grain Size: ≥10 grade (High-density fine grain)

Surface Roughness (Factory): Ra ≤0.2μm – Ra 0.3μm (Customizable)

Outer Arc Coaxiality: ±0.05mm

Straightness: ±0.05mm

Drum Diameter: Customizable (e.g., φ500mm – φ1500mm for pilot/small lines)

Face Width: Customizable (e.g., 500mm – 1500mm)

Copper Shaft Interface: Flange / Threaded / Customized

Typical Foil Thickness: 4.5μm – 105μm

Surface Inspection: 100% inspected for pinholes, scratches, color variation, and burrs on the working zone.

Inspection Report: Dimensional report and material certificates available upon request.

Certification: ISO 9001 (Optional)

Application Industrial

Electrolytic Copper Foil: Cathode drum for producing battery copper foil and PCB copper foil.

Specialized Electroplating: Conductive drum for continuous electroplating of films or metal strips.

Pilot & Lab Lines: Custom-sized cathode rollers for R&D, testing, and small-batch production equipment.

Electrochemical Processing: Cathode/anode drum components for specialized chemical machinery.

Why Choose AstraRoll’s OEM Customized High Precision Cathode Roller?

Accurate Drawing-to-Product Matching: We do not sell generic sizes. Every roller is machined based on your machine's interface drawing, ensuring the copper shaft keys, flange sizes, and mounting brackets fit directly.

Controlled Titanium Surface Quality: Using TA1 titanium with fine grain structure, we machine and polish the working face to Ra ≤0.2μm, ensuring stable copper nucleation and easy foil peeling.

High-Conductivity Copper Shafts: The T2 copper shafts are designed for high current transmission, with sealed interfaces to prevent electrolyte leakage into internal components.

Strict Geometric Inspection: Coaxiality and straightness are controlled to ±0.05mm, ensuring uniform foil thickness across the entire face width.

Factory-Direct & Flexible Order Volume: We support prototype trials, pilot line builds, and mass production, providing competitive pricing and consistent quality for OEM manufacturers and end-users.
