Customize Coal Industry High Quality Conveyor Roller

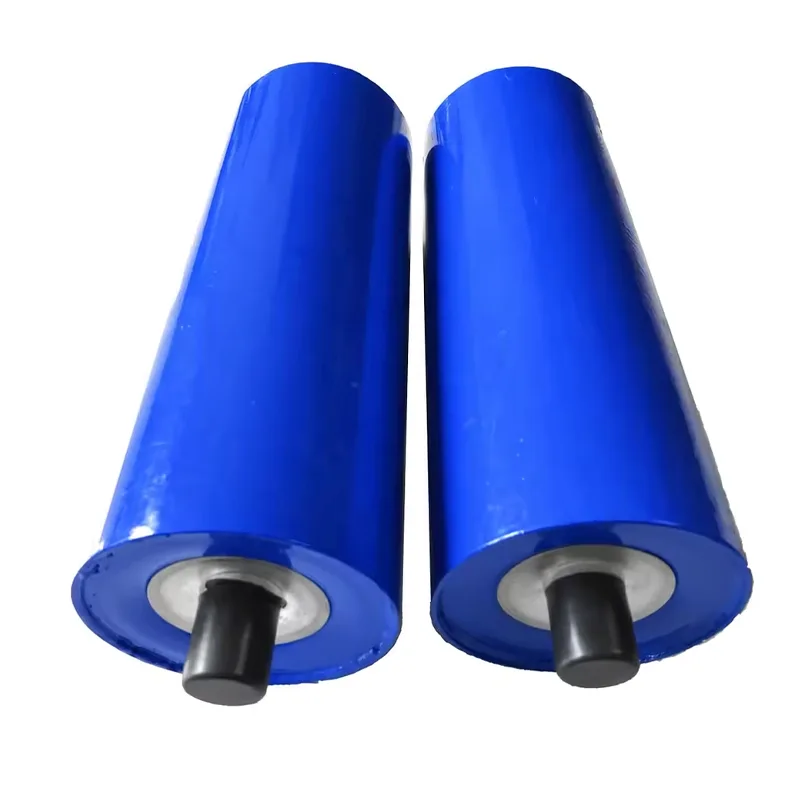

AstraRoll High-Quality Conveyor Roller (89-1100 mm)

Manufactured with high-grade Q235 seamless carbon-steel tube as roller shell, paired with precision-machined solid steel shaft. The standard outer diameter is 89 mm, and effective working length can be customised from 110 mm up to 1100 mm to match various conveyor frame widthses.Made-in.... Every roller assembly adopts premium deep-groove ball bearings (6205 / 6305 series) with C3 internal clearance and permanent high-performance lithium-based grease filling, delivering low starting torque, quiet running and reduced energy consumption for your whole conveyor line.

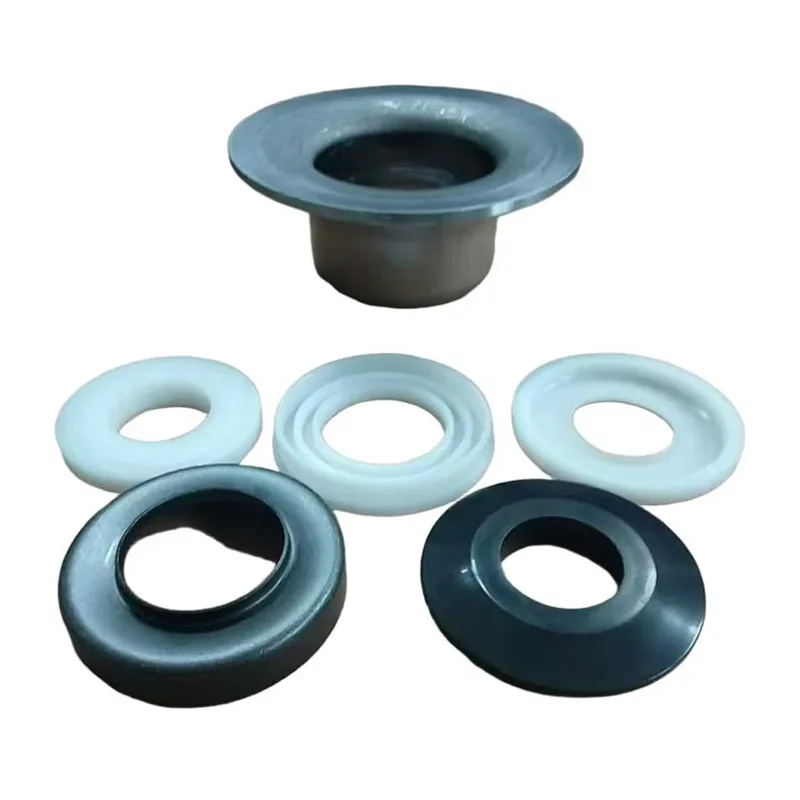

One of the core technical highlights of the AstraRoll conveyor roller is its multi-stage labyrinth combined sealing structure. Internal and external labyrinth seals plus dust-proof end caps block dust, mud splash and humid water vapour from penetrating into bearing chambers. This greatly extends service life under harsh outdoor, dusty or wet site conditions and lowers unplanned equipment downtime and maintenance workload.

Each roller undergoes strict quality-control procedures: tube straightening, shaft precision machining, automatic double-end welding assembly, dynamic-rotation testing and air-tightness inspection before packing. The roller surface can be supplied with spray-paint, powder-coating or hot-dip galvanised anti-corrosion finishes according to customer working-environment requirements. Both spring-loaded quick-release shafts and fixed-type solid shafts are available for different installation-and-maintenance scenariosHebei Binx.

Core Product Selling Points

• Flexible dimension range: OD 89 mm, customizable effective length 110-1100 mm; custom shaft diameter, shaft end style for your conveyor frames
• Multi-labyrinth dust-water-proof sealing: adapts to mining, port, open-air dusty working conditions
• Precision bearing & permanent lubrication: low rotation resistance, low noise, long operational life (30 000-50 000 service hours under normal working conditions)Made-in-Ch...
• Heavy-duty carbon-steel construction: high concentricity, small radial run-out, protects conveyor belt and reduces belt abrasion
• Multiple surface-treatment options: spray paint, powder coating, hot-dip galvanizing for anti-rust & anti-corrosion
• Two shaft-type options: spring-shaft for fast replacement; fixed shaft for heavy-load stable operation
• Factory-direct OEM / ODM service: custom colour, logo, packaging and special technical parameters for bulk orders
• Compliant with mainstream industry standards: meets general DIN / CEMA specification requirements for belt-conveyor idlers

Typical Application Scenarios

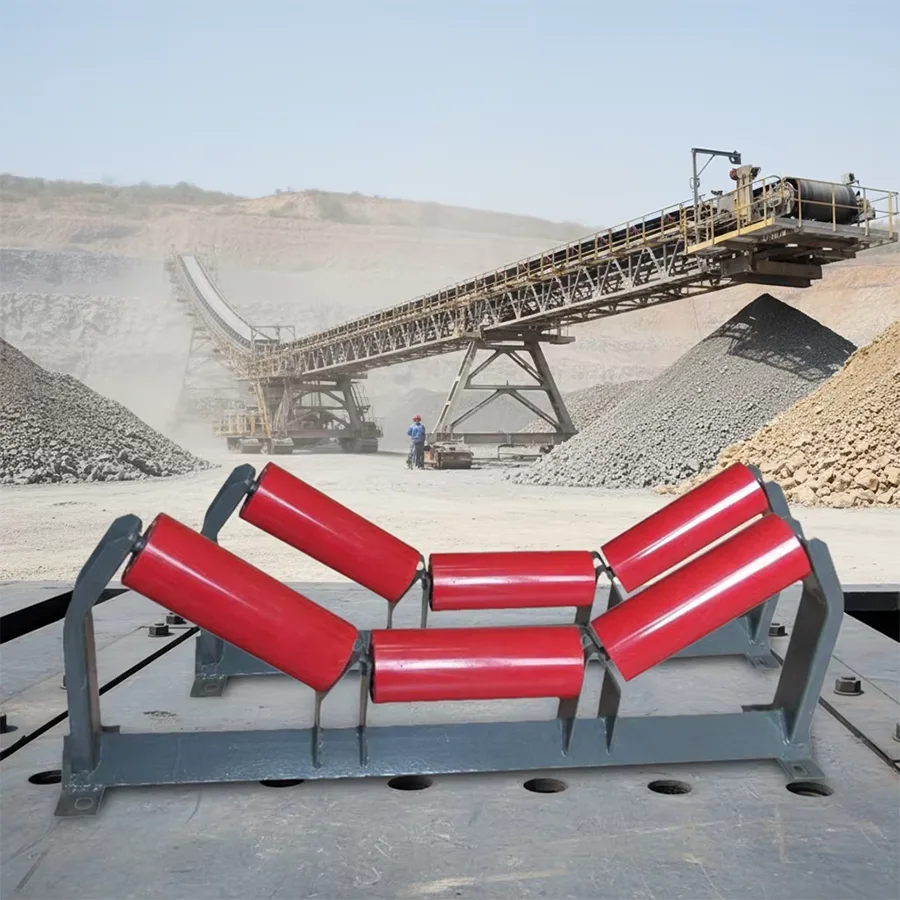

• Mining & quarrying: coal, ore, aggregate bulk-material belt-conveyor support rollers
• Building-material industry: cement plant, stone-processing production-line conveying equipment
• Port & logistics: wharf bulk-cargo transfer, warehouse sorting belt-conveyor systems
• Agriculture: grain depot, grain-and-feed processing plant transportation lines
• General-purpose factory: material-handling belt-conveyor supporting idler sets

AstraRoll Factory Service Support

As a direct manufacturer, AstraRoll provides complete one-stop service for conveyor-roller projects. We can produce samples for performance evaluation before bulk order. All finished goods are packed in export-grade plywood cases to avoid damage in long-distance sea or land transportation. Standard products come with a 1-year warranty against manufacturing defects. Spare-parts including bearings, seal assemblies and end caps can be supplied separately for later maintenance.

Whether you need small-batch replacement spare rollers for existing equipment or large-volume OEM supply for complete-set-conveyor equipment manufacturers, send us your key parameters including roller length, shaft specification, working environment and quantity requirement. Our engineering team will give you the optimized quotation and technical proposal for your 89-1100 mm conveyor-roller solution.

Call-to-action: Share your conveyor frame width, shaft-end dimension and on-site working-condition information, AstraRoll technical sales will reply with detailed drawing reference and unit price.

Sidebar concise bullet-point widget content (for web page sidebar)

• Size: OD 89 mm, custom length 110-1100 mm
• Material: Q235 seamless steel tube, precision steel shaft
• Seal: Multi-layer labyrinth dust-water-proof sealing
• Bearing: 6205 / 6305 deep-groove ball bearing, permanent grease lubrication
• Shaft option: Spring quick-release shaft / fixed solid shaft
• Surface finish: Spray paint, powder coating, hot-dip galvanized optional
• Service: Factory direct, OEM / ODM, 1-year warranty, export plywood-case packing

Optional FAQ

Q: Can I order non-standard length within 110-1100 mm?

A: Yes, we support custom-made working length, shaft diameter and shaft-end structure according to your conveyor drawing.

Q: What kind of working environment suits this 89 mm-diameter roller?

A: It fits medium-heavy-duty bulk-material conveying in dusty, open-air, humid sites such as mines, cement factories and grain depots.

Q: What is your warranty policy?

A: Standard rollers enjoy a 1-year factory warranty for manufacturing-related defects, excluding damage caused by improper installation or over-load operation.

Q: Can you provide samples before bulk purchase?

A: Sample-order service is available; please contact sales for sample cost and lead-time.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
