Custom Heidelberg Printing Machine Rubber Roller
Product Overview:
AstraRoll manufactures direct-fit replacement rubber rollers for Heidelberg GTO 46, 46Z, and 46S offset presses. Our set replicates the OEM color-coded system—Blue, White, Yellow, and Red ink form rollers, plus the Green water roller—so operators can install the correct roller without measuring or cross-referencing part numbers.
Each roller is precision ground to exact original dimensions (e.g., ink rollers at 45.5–51.5mm diameters; water roller at 46mm). Compound hardness is strictly matched to the ink system: 30–35 Shore A for conventional ink rollers, and 40–45 Shore A for UV ink rollers. Available with standard NBR compound or custom EPDM/Silicone formulations.
Roll Function: Printing Roller
Industry Applications: Industry, Printing, Packaging
Inquiry Email: sales@astraroll.com
Custom Heidelberg Printing Machine Rubber Roller Details
Product Overview
AstraRoll’s Custom GTO 46 Rubber Roller Set is engineered as a direct-fit replacement for the inking and dampening systems of Heidelberg GTO 46, GTO 46Z, and GTO 46S conventional offset presses. Replacing worn or glazed rollers is critical for maintaining ink transfer consistency and print quality on these compact sheet-fed machines.

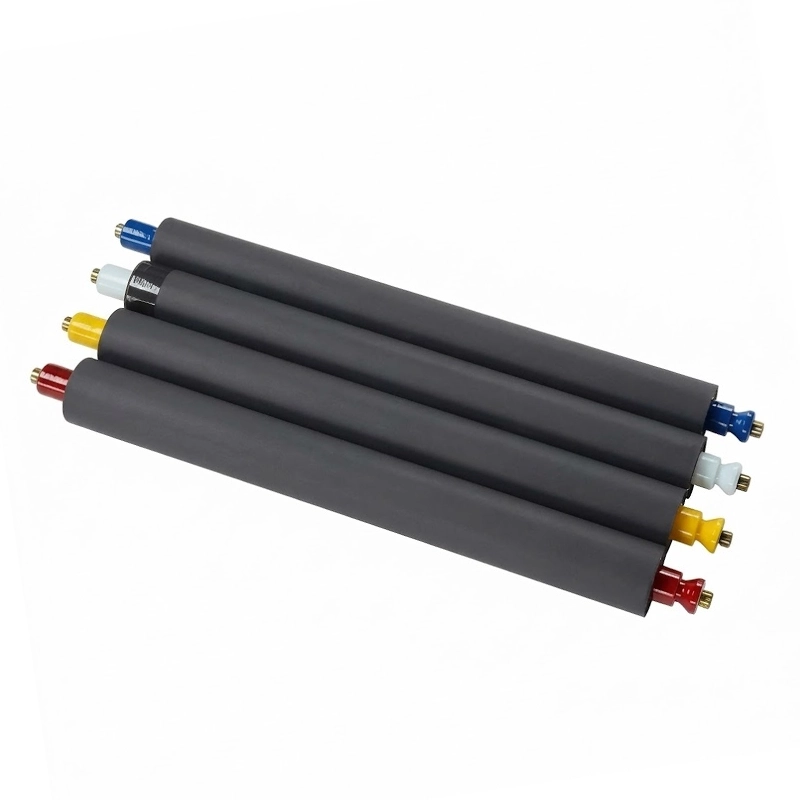

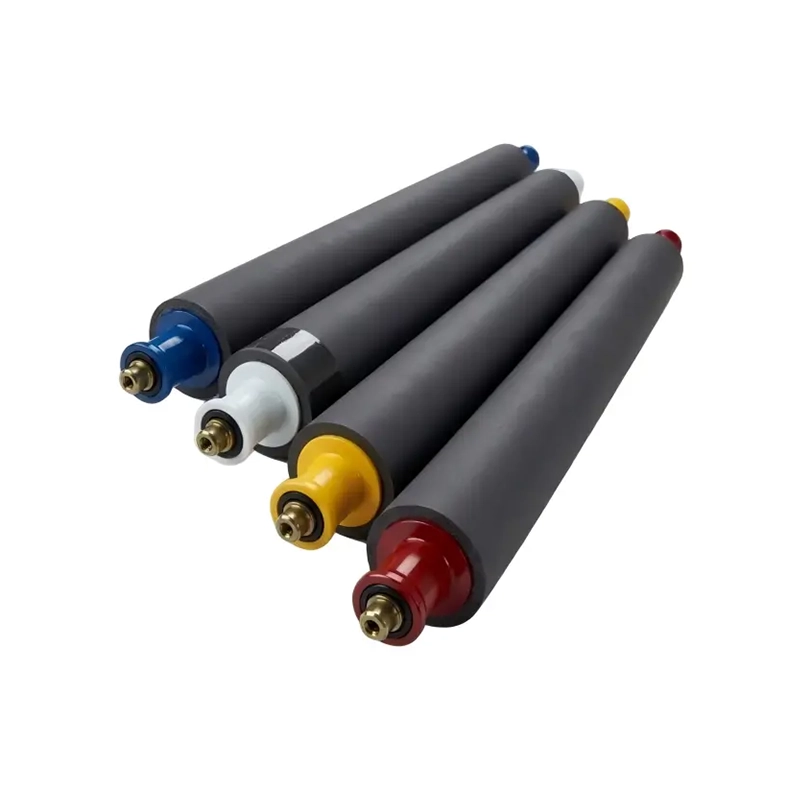

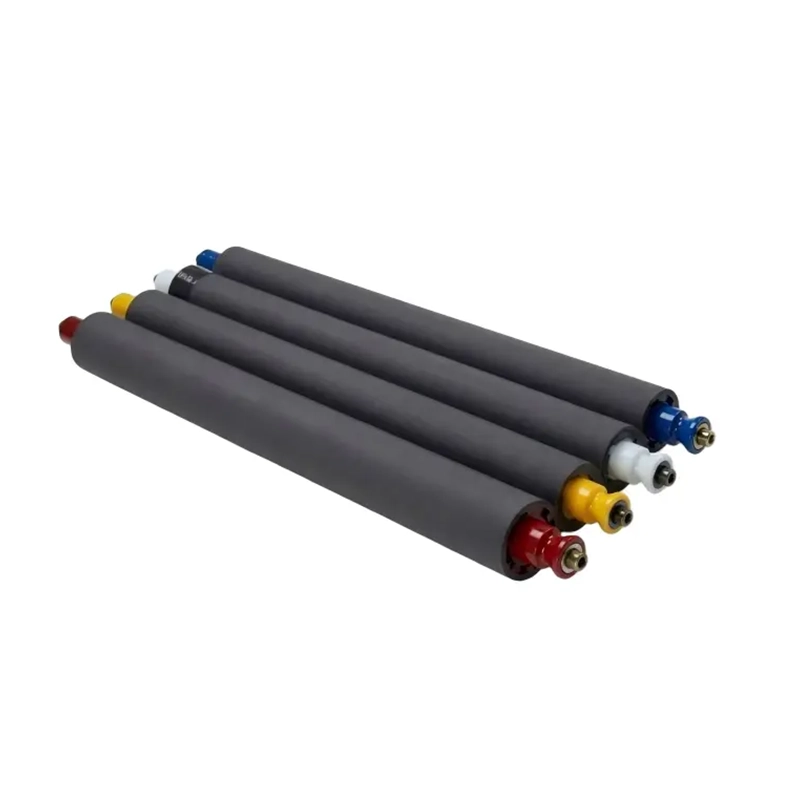

To eliminate installation errors, our rollers are fitted with OEM-standard color-coded end caps corresponding to their specific position on the press. This ensures the machine operator grabs the correct roller at a glance.
Technical Parameter
Product Name: Custom GTO 46 Rubber Roller for Heidelberg Machine
Compatible Press Models: Heidelberg GTO 46 / GTO 46Z / GTO 46S (Conventional)
Roller Types: Ink Form Roller (Blue/White/Yellow/Red), Dampening Water Roller (Green)
Ink Form Rollers (Rubber Length 453mm / Total Length 536mm)
| Color Code | Reference Diameter |
|---|---|
| Blue | 45.5 mm |
| White | 47.5 mm |
| Yellow | 49.5 mm |
| Red | 51.5 mm |
Water Roller (Total Length 536mm)
| Color Code | Reference Diameter | Rubber Length |
|---|---|---|
| Green | 46 mm | 463 mm |
Compound & Hardness (Critical for Ink Compatibility)
- Standard Compound: NBR (Nitrile)
- Conventional Ink Form Rollers: 30–35 Shore A
- UV Ink Form Rollers: 40–45 Shore A (Higher hardness for aggressive UV inks)
- Water Rollers: 25–28 Shore A (Softer for optimal water transfer)
- Optional Compounds: EPDM / Silicone / PU on Request
Core & Finish
- Core Material: Steel or Aluminum
- Surface Finish: Precision Ground
- Tolerance: Matched to OEM Dimensions
- Identification: Color-Coded End Caps (Blue / White / Yellow / Red / Green)
- Customization: Hardness, compound type, and dimensional verification against customer drawing or press model
- Certification: ISO 9001 (Optional)
Application Industrial
Heidelberg GTO 46 / 46Z / 46S Presses: Full-set replacement for worn ink and dampening rollers.
Commercial Offset Printing: Consistent ink transfer for short to medium runs on 32 × 46 cm format.
Label & Packaging Printing: Durable NBR compound for repeated production cycles.
Why Choose AstraRoll’s Custom GTO 46 Rubber Roller?
OEM Color-Coded System: Includes Blue (45.5mm), White (47.5mm), Yellow (49.5mm), Red (51.5mm) ink form rollers and Green (46mm) water roller, preventing costly maintenance errors.
Ink-System-Specific Hardness: We don't use a "one-size-fits-all" rubber. We supply 30–35 Shore A for conventional inks, 40–45 Shore A for UV inks, and 25–28 Shore A for water rollers.
Precision Dimensions per Position: Ink rollers are manufactured to exact 453mm rubber lengths, while water rollers are 463mm, ensuring perfect fit without shimming.
Precision-Ground Surface: Ensures consistent diameter and concentricity across the face width, delivering uniform nip pressure and even ink transfer.
Factory-Direct Supply: Manufactured with strict dimensional inspection and material traceability. Custom compound and hardness options available.
