Custom Rubber Rollers for Heidelberg SM74 CD74
Product Overview:

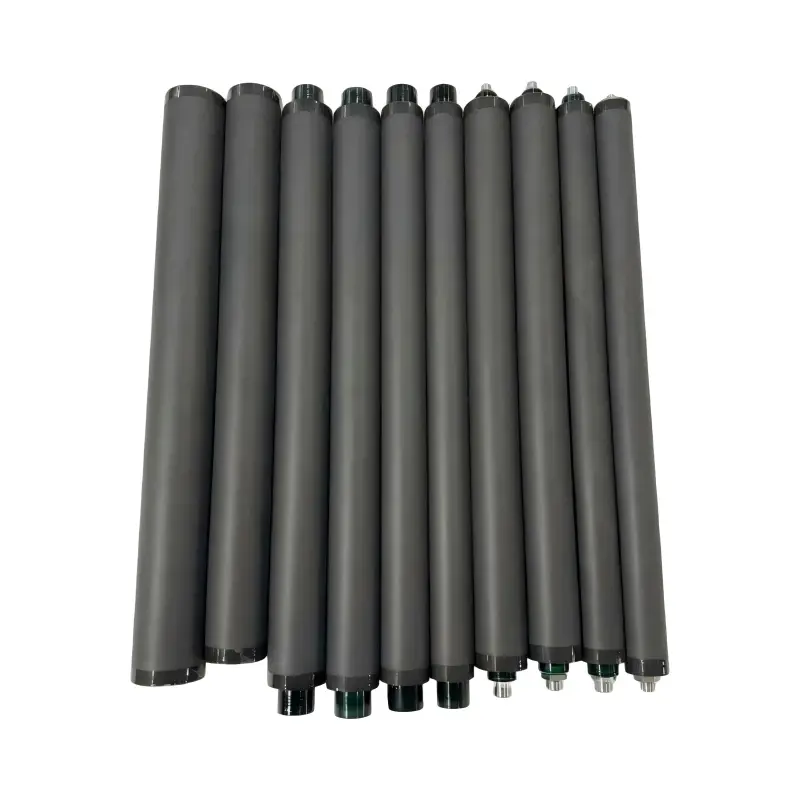

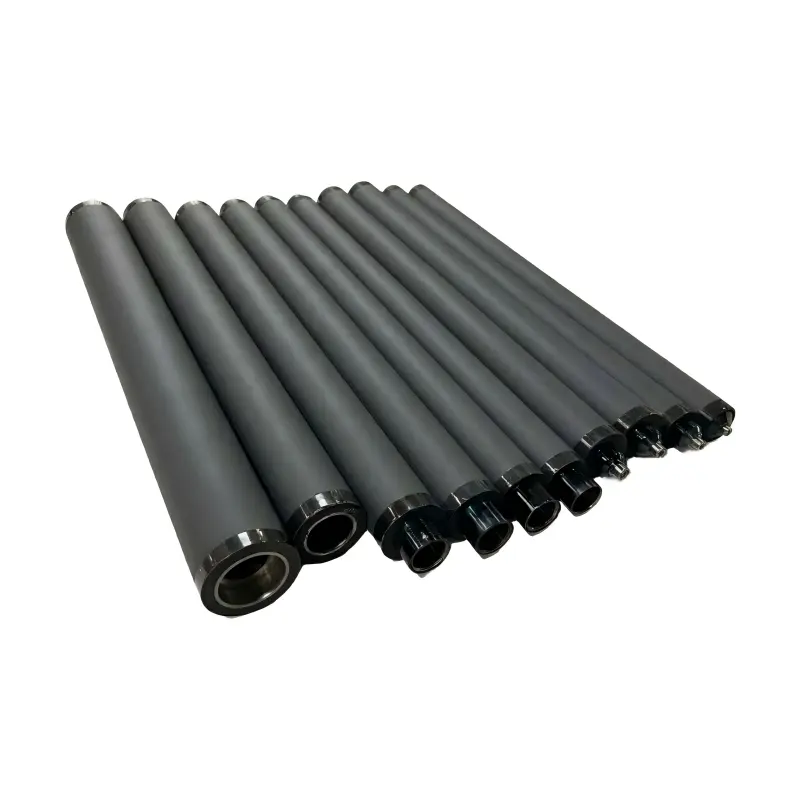

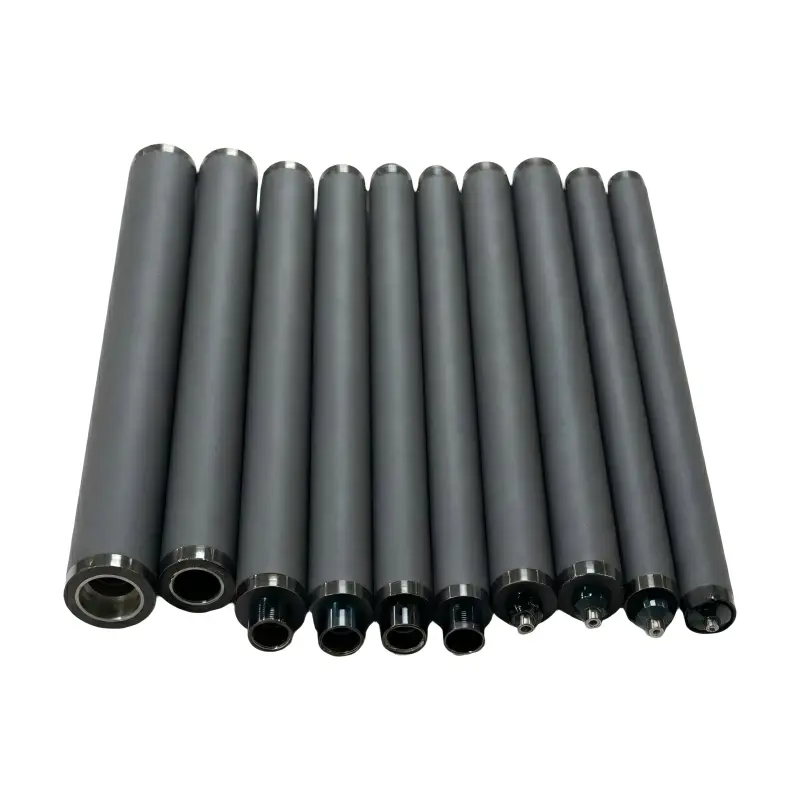

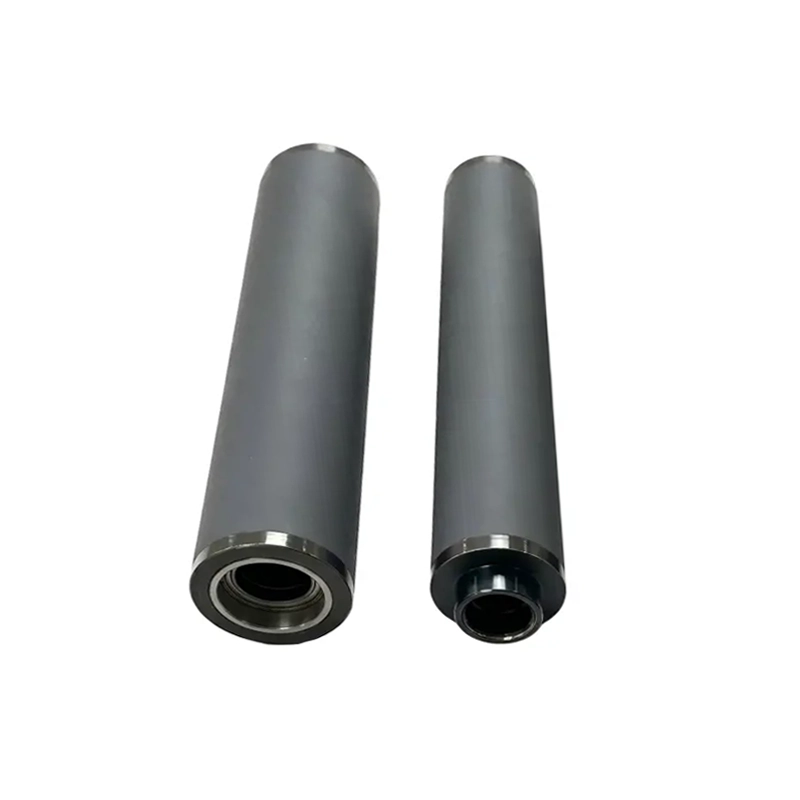

AstraRoll manufactures direct-fit replacement rubber rollers for Heidelberg Speedmaster SM74 and CD74 offset presses. Covering the full spectrum of ink form, oscillating distributor, ductor, and dampening positions, our rollers are CNC ground to ensure uniform nip pressure across the entire face width.
Each roller features precision-machined metal journals and positional end markings, allowing press operators to identify and install the correct roller without cross-referencing part numbers. Compound hardness is strictly matched to the application: 30–35 Shore A for conventional inks, 35–50 Shore A for UV inks, and 25–28 Shore A for dampening rollers. Available in standard NBR, with EPDM or Silicone options on request.
Roll Function: Printing Roller
Industry Applications: Industry, Printing, Packaging
Inquiry Email: sales@astraroll.com
Custom Rubber Rollers for Heidelberg SM74 CD74 Details
Product Overview
AstraRoll’s Custom Rubber Rollers are engineered as direct-fit replacements compatible with the inking and dampening units of Heidelberg Speedmaster SM74 and CD74 sheetfed offset presses. Replacing worn, glazed, or swollen rollers is critical for maintaining consistent ink film thickness and preventing print defects.

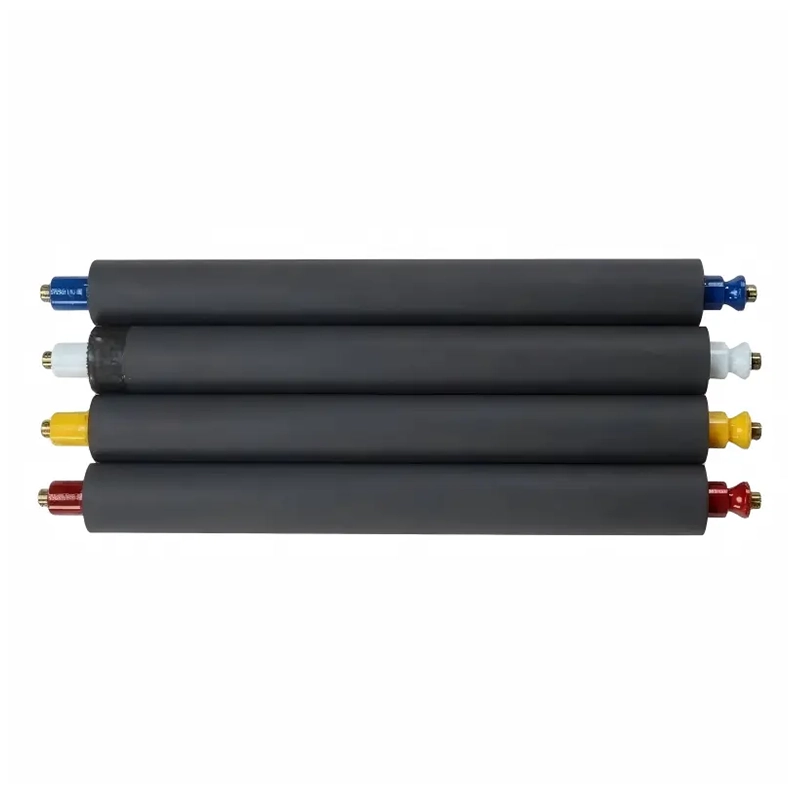

To eliminate maintenance errors, our rollers are fitted with precision-machined metal shafts and positional end markings. This allows operators to visually identify the correct roller for each specific position on the press. All dimensions are strictly matched to original specifications for a true drop-in fit, with custom shaft ends and core configurations available upon request.
Technical Parameter
- Product Name: Custom Rubber Rollers for Heidelberg SM74 & CD74
- Compatible Press Models: Heidelberg Speedmaster SM74, CD74
- Roller Types: Ink Form, Oscillating Distributor, Ductor, Dampening
- Identification System: Machined End Markings
- Core Material: Steel / Aluminum
Hardness & Compound
- Standard Compound: Premium NBR (Nitrile)
- Conventional Ink Rollers: 30–35 Shore A (Optimal film splitting)
- UV Ink Rollers: 35–50 Shore A (Depending on specific UV ink system and shear requirements)
- Dampening Water Rollers: 25–28 Shore A (Soft compound for water transfer)
Reference Dimensions (mm) — Ink & Ductor Units
| Position | Color Code | OD (mm) | Face Width (mm) | Total Length (mm) |
|---|---|---|---|---|
| Ink Form Roller | Blue | 60.5 | 754 | 814 |
| Ink Form Roller | Red | 55.5 | 754 | 814 |
| Ink Form Roller | White | 70.5 | 754 | 814 |
| Ink Form Roller | Yellow | 65.5 | 754 | 814 |
| Ductor Roller | Black | 52.0 | 750 | 787 |
| Oscillating Distributor | Red | 54.5 | 752 | 821.2 |
| Oscillating Distributor | Yellow | 64.5 | 752 | 821.2 |
Reference Dimensions (mm) — Alcolor Dampening Unit
| Position | Color Code | OD (mm) | Face Width (mm) | Total Length (mm) |
|---|---|---|---|---|
| Alcolor Water Form | Green | 75.0 | 752 | 785.5 |
| Alcolor Pan/Metering | Green | 84.5 | 768 | 805 |
Core & Finish
Surface Finish: Precision CNC ground, concentricity/runout ≤0.02mm
Dynamic Balancing: Verified for high-speed operation (15,000+ sheets/h)
Customization: Custom shaft ends, core configurations, and hardness verification available against customer drawing or physical sample.
Application Industrial
Heidelberg SM74 & CD74 Presses: Full-set replacement for worn or damaged ink and dampening rollers.
Commercial Offset Printing: Consistent ink transfer for high-quality commercial work.
Packaging & Label Printing: Durable NBR compound for long-run production.
UV & Specialty Printing: 35–50 Shore A compounds specifically engineered for aggressive UV ink systems.
Why Choose AstraRoll’s SM74 & CD74 Rubber Rollers?
Accurate Positional Identification: Machined end markings and precise shaft profiles ensure the correct roller is installed at the correct station, eliminating maintenance guesswork.
Application-Specific Hardness: We strictly separate material properties based on function—30–35 Shore A for conventional inks, 35–50 Shore A for UV inks, and 25–28 Shore A for water rollers. No generic compromises.
True Drop-In Fit: CNC ground and strictly matched to Heidelberg OEM dimensions, guaranteeing perfect nip pressure without shimming or recalibration.
High-Speed Stability: Dynamic balancing ensures vibration-free rotation even at maximum press speeds (15,000+ sph), extending bearing and roller life.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
