Expanding Air Shaft With Flexible Friction Bearing

AstraRoll Expanding Air Shaft With Flexible Friction Bearing

The AstraRoll expanding air shaft with flexible friction bearing (differential friction air shaft) is a high-performance core component specially engineered for slitting, rewinding and converting production lines. Built to solve the common industry pain point of uneven tension when winding multiple narrow slit rolls, this pneumatic air shaft delivers independent slip torque control for each individual roll core, keeping consistent winding tension across all positions, avoiding loose rolls, material wrinkling and edge deformation during high-speed production.

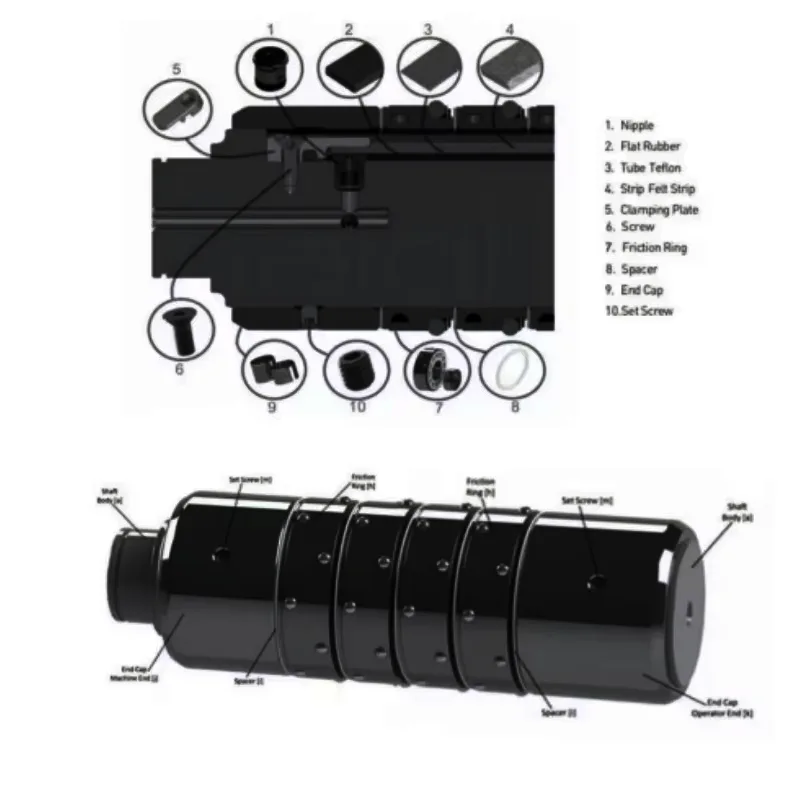

Constructed from premium hard-anodized aluminum alloy or high-strength cold-drawn steel tube for the shaft body, the AstraRoll air shaft features modular flexible friction-bearing slip-ring assemblies and heavy-duty internal air bladder. Once inflated by compressed air, the shaft expands radially and locks each friction unit against paper or plastic tube cores. Each friction ring can slip independently under preset torque. Even if roll diameters differ during winding, every single slit roll maintains stable tension, greatly improving finished-roll quality and lowering material scrap ratesAnar Rubte....

Core Selling Points

1. Flexible Friction-Bearing Differential Slip Mechanism Modular friction-bearing slip rings provide independent torque adjustment for each roll position. Compensates diameter difference of multi-slit rolls, maintains constant tension, perfectly suited for thin-film, foil, battery-separator narrow-web processing.
2. Durable Industrial-Grade Material Optional hard-anodized aluminum or chrome-plated steel shaft body. Wear-resistant friction pads, high-air-tightness rubber inner bladder, withstand tens-of-thousands inflation-deflation cycles, minimize air-leak risk in continuous shift-run productionAlibaba.
3. Quick Inflate & Deflate, Easy Roll Change-over Fast pneumatic inflation locks tube cores firmly within seconds; deflation retracts components instantly. Operators can load and unload roll cores rapidly, cut down machine downtime and boost line productivity.
4. High Concentricity & Stable High-Speed Operation Precision-machined shaft body guarantees low radial run-out. Supports high-speed rotating conditions without vibration, ensures neat roll edges for finished products.
5. Fully Customizable Specifications AstraRoll supports custom outer diameter, effective working length, number of friction rings, friction-pad material and shaft-end connection structure. Fits 3-inch /6-inch and other standard core inner diameters, adapts to light-duty thin-film and heavy-duty paper-roll working scenarios.

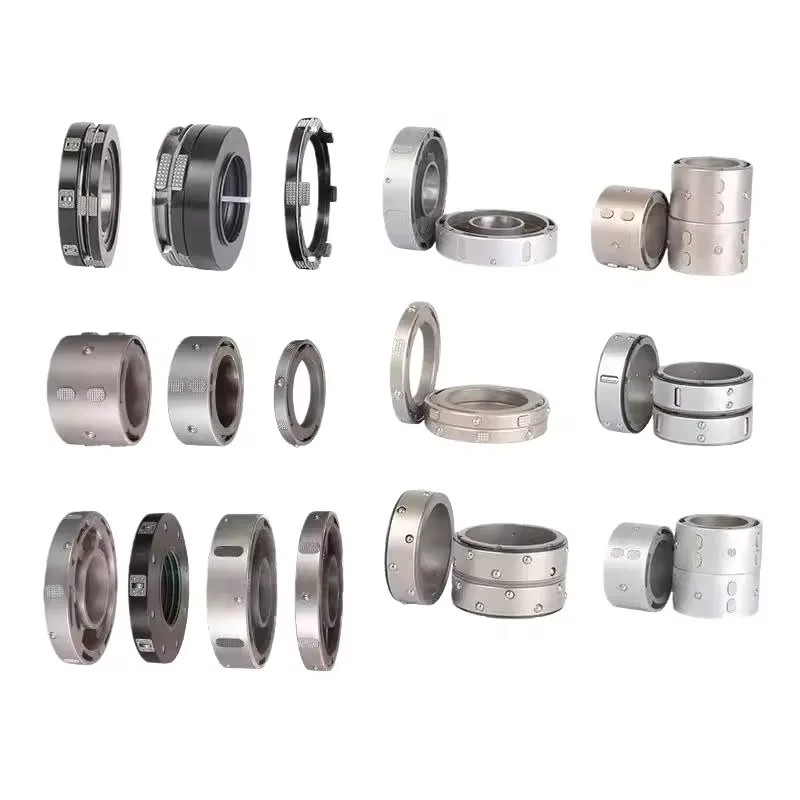

6. Modular, Low-cost Maintenance Friction-bearing units, rubber air bladders are replaceable spare-parts. No need to replace the whole shaft when partial components wear out, reduces long-term operating cost for factories.

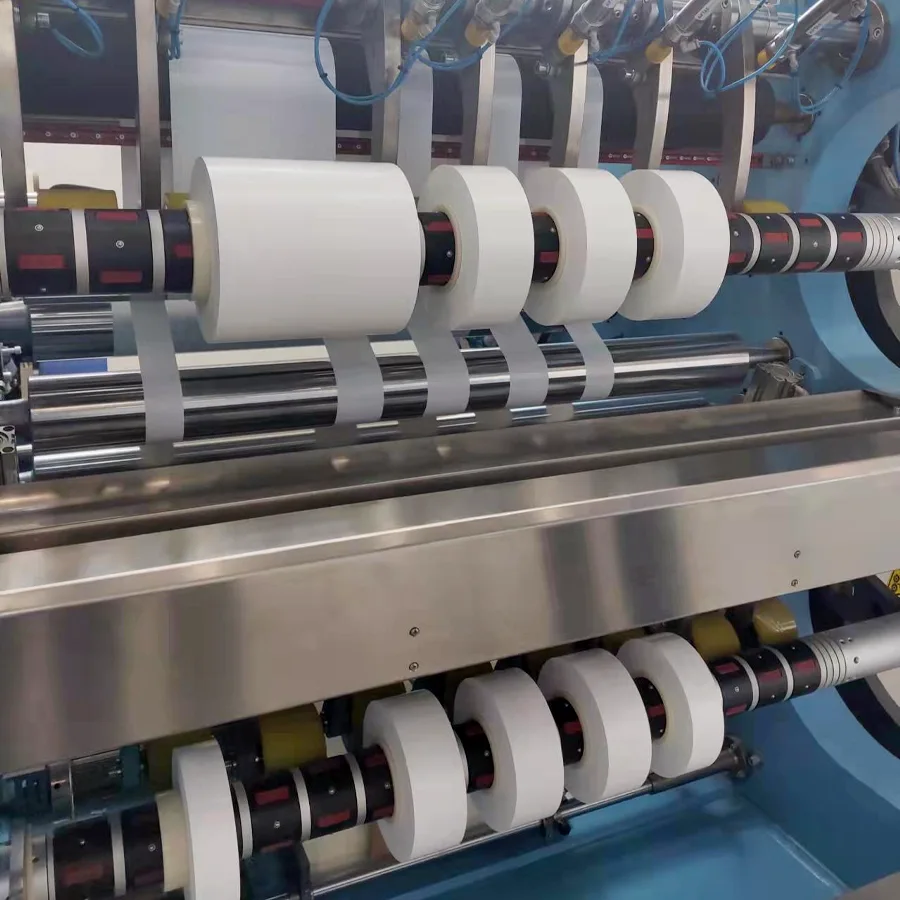

Typical Application Scenarios

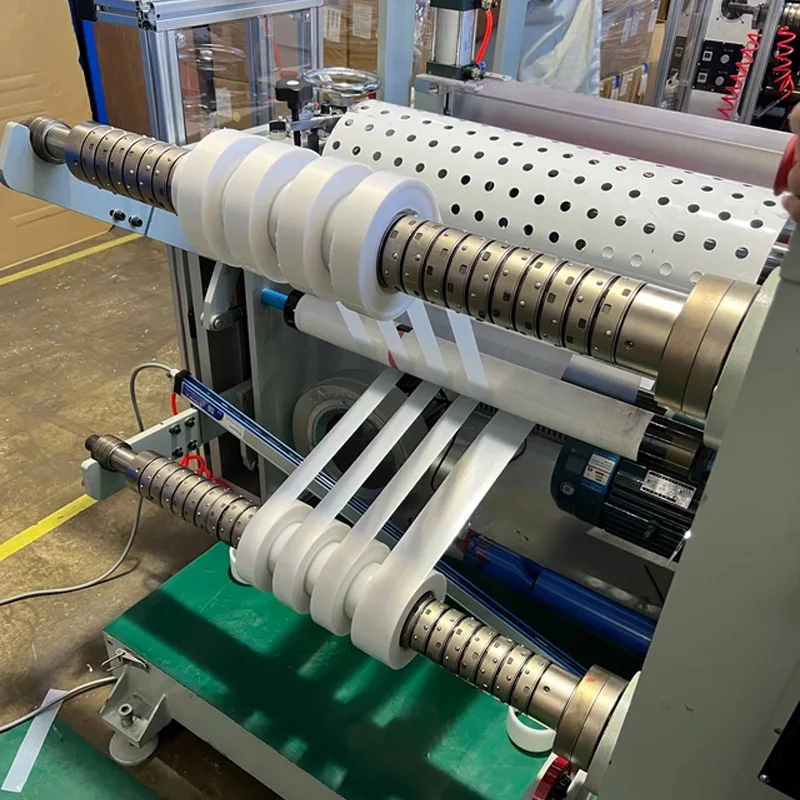

The AstraRoll friction-type expanding air shaft is widely installed on slitting-rewinding machines, coating machines, printing presses, laminating machines:

• Flexible packaging: BOPP, PET, CPP plastic-film slitting & rewinding
• New-energy industry: lithium-battery pole piece, battery-separator processing
• Paper-making & printing: thin paper, label stock, non-woven fabric converting
• Metal-foil processing: aluminum foil, copper-foil multi-roll winding

AstraRoll Factory Service

As direct manufacturer, AstraRoll provides complete OEM & ODM custom service. We can adjust shaft dimension, friction torque range, surface treatment according to your machine parameters. Each unit will pass air-tightness and dynamic-balance test before delivery. One-year warranty is offered for standard products, and we supply full-range spare-parts including friction bearings, inner air bladders and rotary joints.

Whether you need one unit for trial-testing or bulk volume for equipment manufacturers, contact AstraRoll technical sales team to get drawing review, quotation and lead-time information for your expanding air-shaft project.

Call-to-action: Send us your core inner-diameter, working width, max load and target material, our engineers will recommend the optimized friction-bearing expanding air-shaft solution for your production line.

Optional Short bullet-list for product sidebar

✅ Flexible friction-bearing differential slip design for multi-roll equal tension winding
✅ Aluminum / steel shaft body optional, heavy-duty industrial build-quality
✅ Fast pneumatic inflation & deflation, shorten roll-change downtime
✅ Custom OD, length, friction-ring quantity to fit your machine
✅ Replaceable modular spare-parts for low maintenance cost
✅ Widely used in film, paper, new-energy battery-material slitting-rewinding lines
✅ Factory direct supply, 1-year product warranty, technical support available
