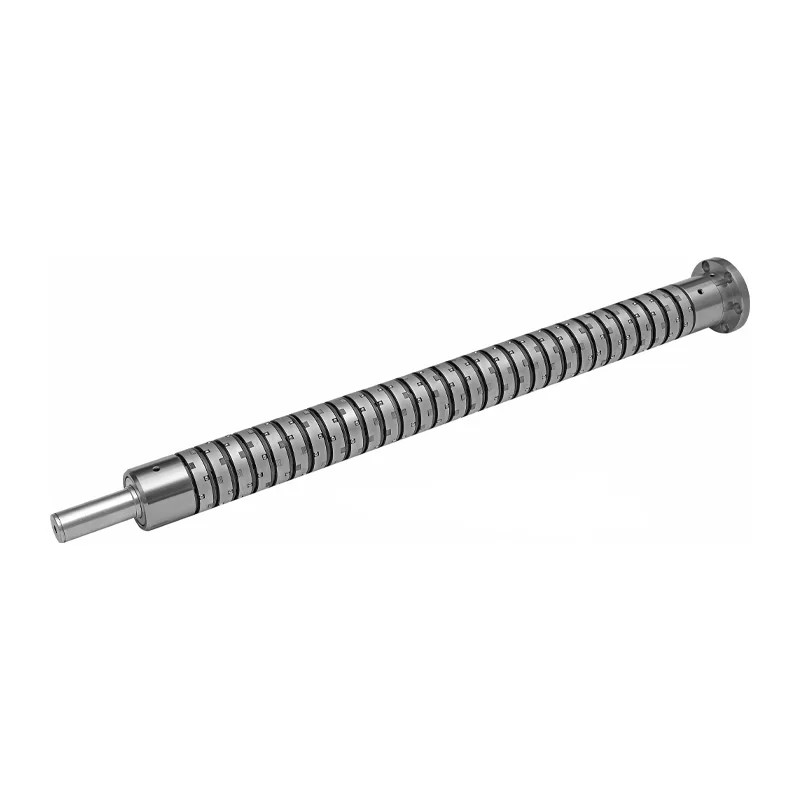

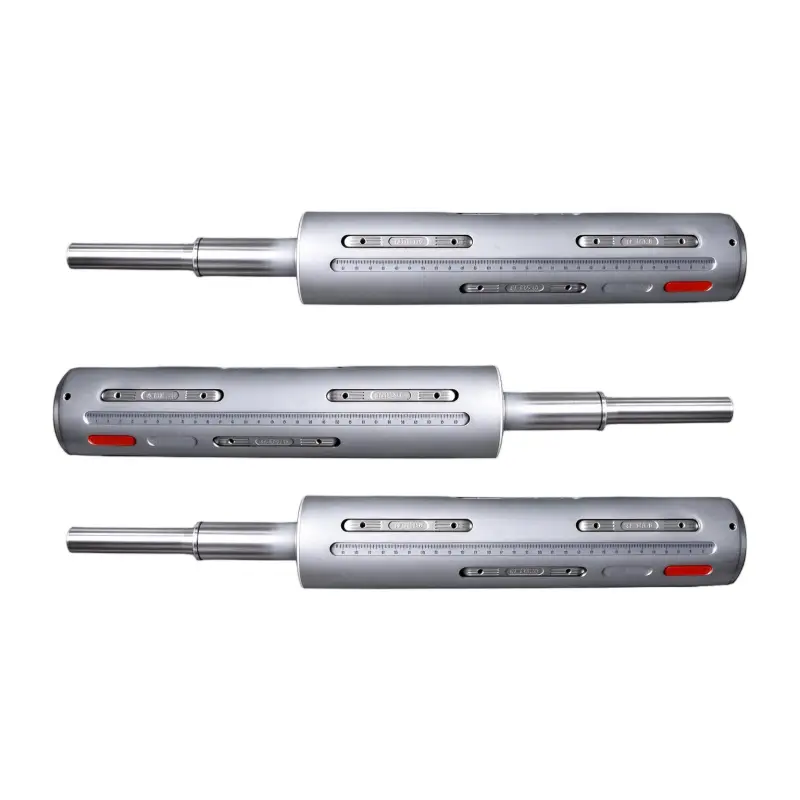

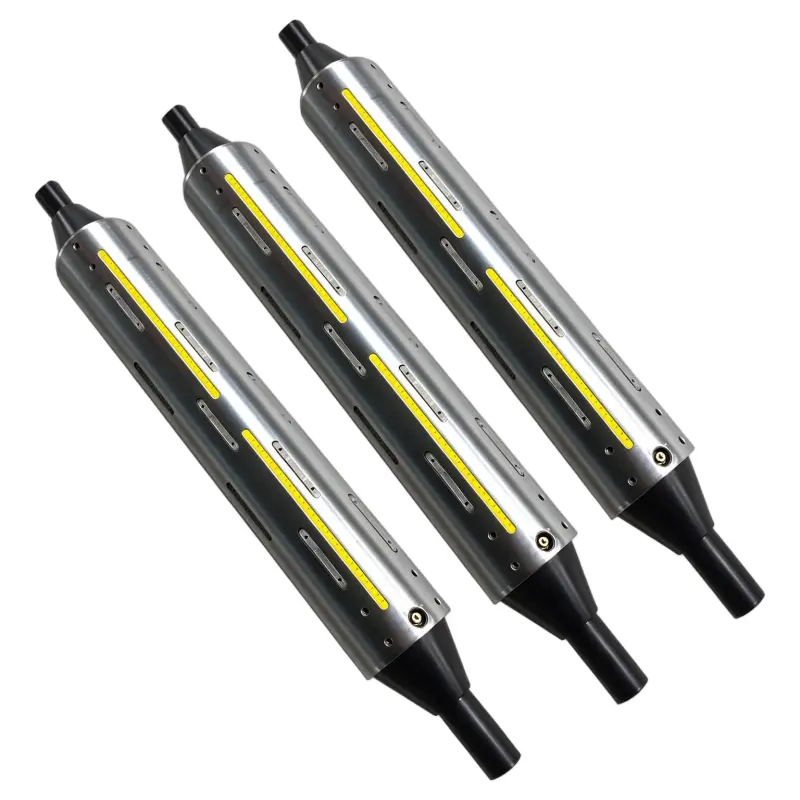

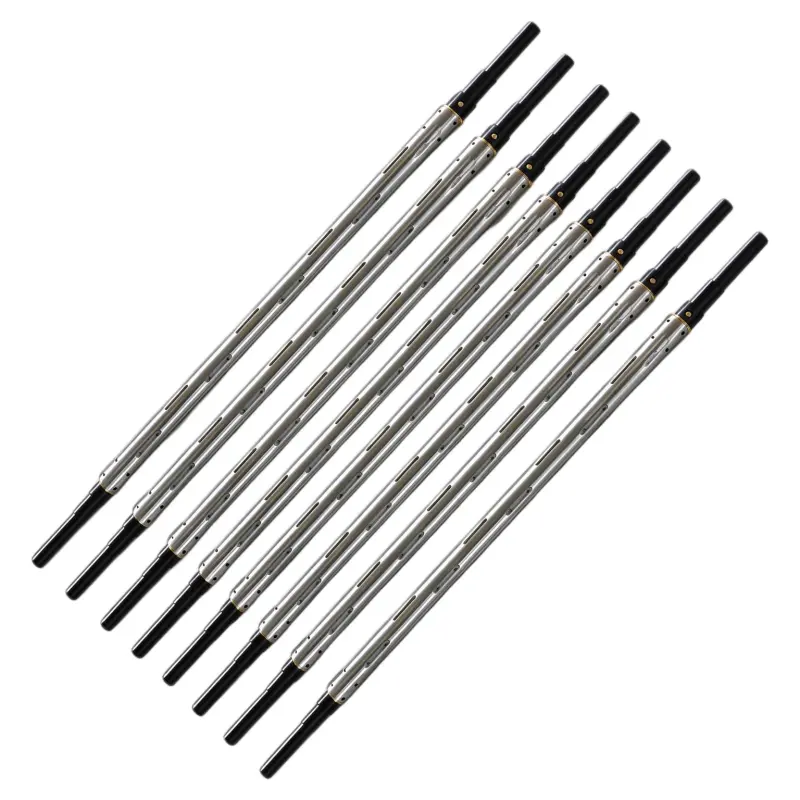

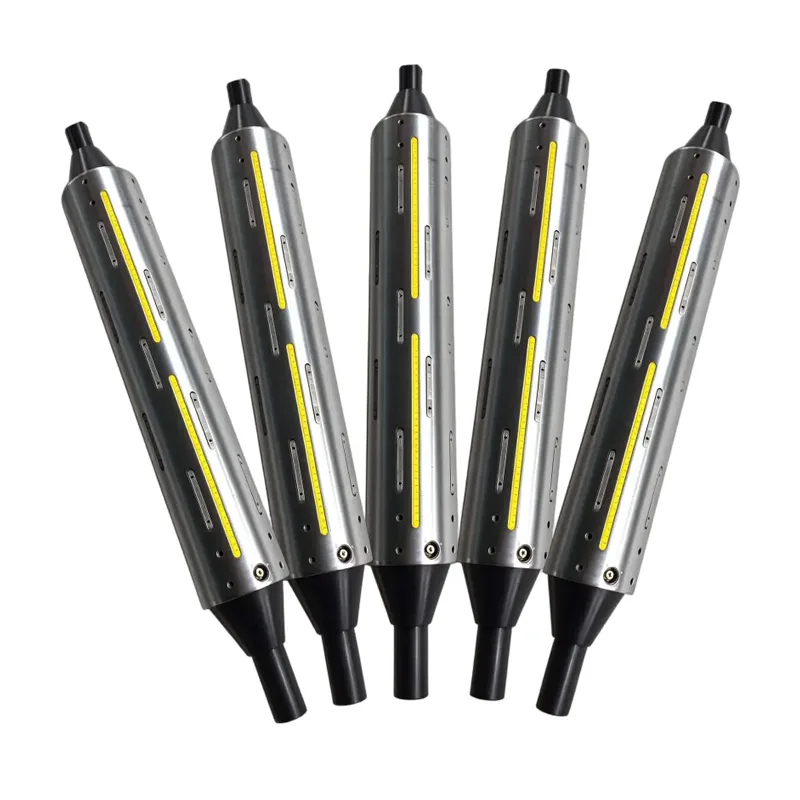

Key Bar Air Differential Slip Shaft

AstraRoll Key-Bar Aluminum Air Differential Shaft (Slip Shaft)

Engineered for Precision Multi-Strip Slitting and Rewinding

1. Product Overview

The AstraRoll Key-Bar Aluminum Air Differential Shaft, also widely known in the converting industry as a Differential Slip Shaft or Slip Shaft, is a specialized winding core component designed for slitting and rewinding machinery that processes multiple narrow web strips simultaneously.

Unlike a standard air expanding shaft, which locks every paper core to rotate in perfect synchronization with the main spindle, the differential air shaft integrates a series of independent friction slip-ring units along the shaft body. Each slip ring grips its own paper tube and is capable of controlled relative slipping against the spindle. This design enables every rewound roll to maintain its own optimum tension, regardless of how individual roll diameters grow at different rates during production.

As a key member of the AstraRoll portfolio for material handling and web converting components, this shaft is built for OEM equipment manufacturers and end-user converters who demand consistent finished-roll quality, minimal material waste, and reliable long-term performance.

2. How It Works

The differential slip shaft combines two distinct functions in one assembly:Key Bar Air Differential Slip Shaft

• Pneumatic inflation and locking: Compressed air is fed through the shaft end into an internal air bladder. As pressure rises (standard working range 0.6–0.8 MPa), the bladder expands and forces the external key bars to rise uniformly, gripping the paper tube core firmly. The tube is then driven by the shaft. When air is released, the key bars retract via internal springs, allowing quick and tool-free core replacement.
• Independent slip (differential) function: The main spindle rotates at a constant speed driven by the machine. Each slip-ring unit, however, contains its own friction control element. The friction torque of each slip ring is pre-set, and fine-tuned by adjusting the overall working air pressure or friction shims according to production demands. When a given roll's diameter increases and its linear web speed tends to accelerate, the corresponding slip ring performs controlled slipping. This compensates for diameter differences and keeps web tension uniform across all strips, preventing over-tension, material stretch, web wrinkling, telescoping, and uneven roll edges.

3. Construction and Materials

• Shaft body: High-strength aluminum alloy, lightweight with high straightness and rigidity, resistant to corrosion and suitable for high-speed operation.
• Key bars: Precision-machined steel key bars seated along the shaft surface; they provide strong, even gripping force on the paper core.

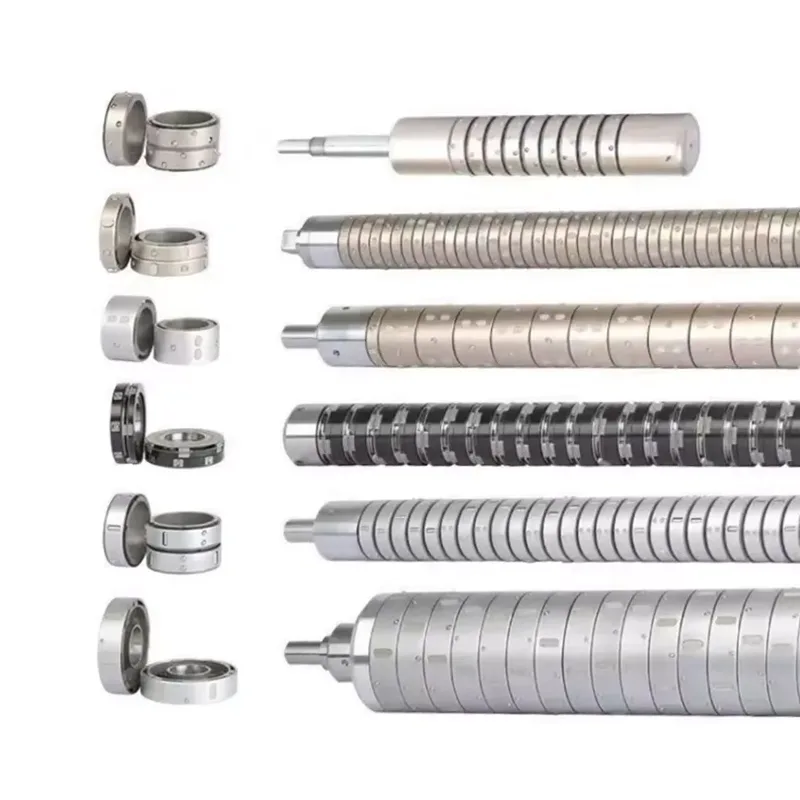

• Slip-ring units: Independently adjustable friction assemblies, each tailored to deliver stable, repeatable torque.
• Air system: Durable internal bladder and rotary air coupling designed for extended service life and minimal leakage.
• Surface treatment: Hard anodizing or other anti-wear coatings available per application requirement.

4. Technical Specifications (Standard Reference)

Structure: Key-bar type Shaft body material: Aluminum alloy Standard paper core I.D.: 3", 6", 12" (custom sizes available) Working air pressure: 0.6–0.8 MPa Quantity of slip rings: Customized based on customer slitting layout & web width Shaft length / O.D.: Made to customer drawing Dynamic balancing: Optional, required for high-speed slitting lines Warranty: 1 year

All dimensions and configurations are customizable to match your existing machine.

5. Key Features and Advantages

✅ Independent tension control per roll — each slip ring adjusts individually, ideal for multi-strip narrow-web slitting.

✅ Uniform finished-roll quality — reduces stretching, wrinkling, and telescoping; produces clean, even roll edges.

✅ Tension tunable via air pressure or friction shim adjustment — operators fine-tune web tension conveniently without full disassembly.

✅ Lightweight aluminum body — lower inertia, faster acceleration, reduced load on machine drive.

✅ Strong key-bar gripping — secure core locking, no slippage between shaft and paper tube.

✅ Fast roll change — quick inflation/deflation cycle shortens downtime.

✅ Durable construction — corrosion-resistant, low maintenance, long service life.

✅ Fully customizable — length, diameter, slip-ring quantity, and core size made to your drawing.

6. Applications

The AstraRoll differential air shaft is widely used in the processing of:

• Flexible packaging films — BOPP, PET, CPP, PE, nylon
• Aluminum foil and copper foil — battery foil, cable foil
• Lithium battery diaphragm and electrode materials
• Adhesive tape and labels — label stock, masking tape, double-sided tape
• Non-woven fabrics and textiles
• Paper and film composites

Typical equipment: slitter-rewinders, printing machines (gravure, flexo), coating and laminating machines, and converting lines requiring constant-tension, multi-roll rewinding.

7. Quality Assurance and Service

Every AstraRoll shaft is manufactured under strict quality control, with dimensional inspection, balance testing, and functional inflation/slip testing before shipment. We offer full OEM & ODM support, with fabrication strictly following customer technical drawings. We provide professional technical support for installation and troubleshooting, reliable spare-parts supply for long-term maintenance, prompt worldwide shipping and responsive after-sales communication.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
