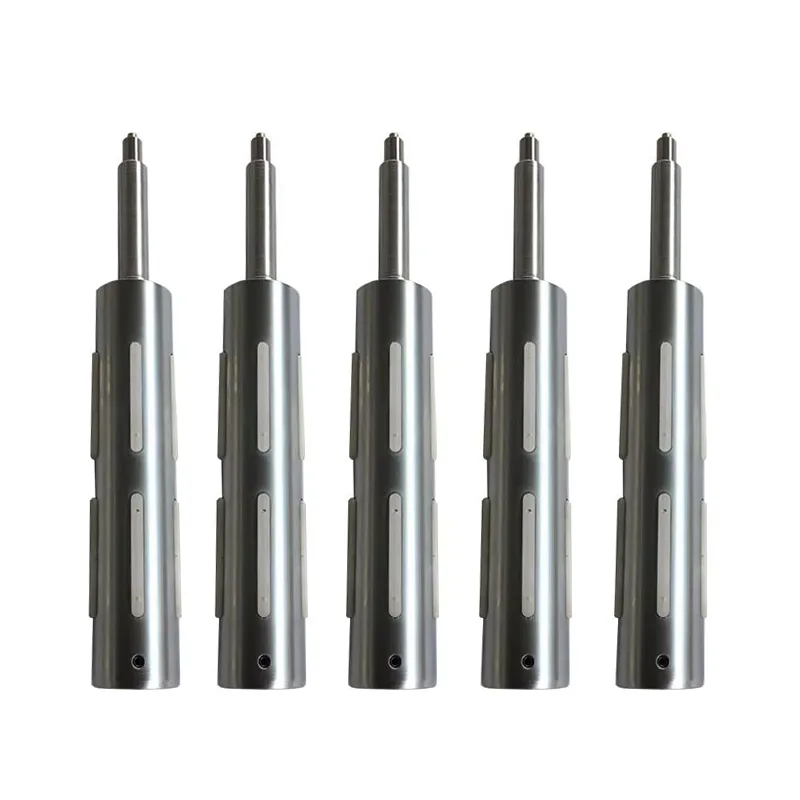

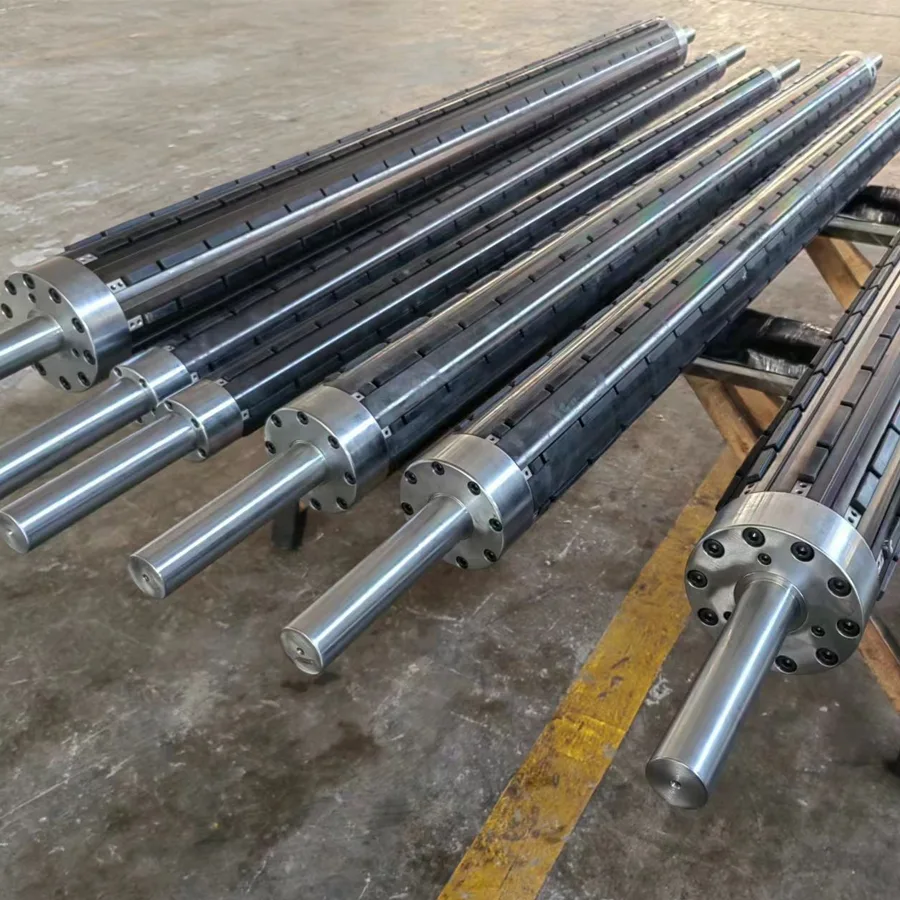

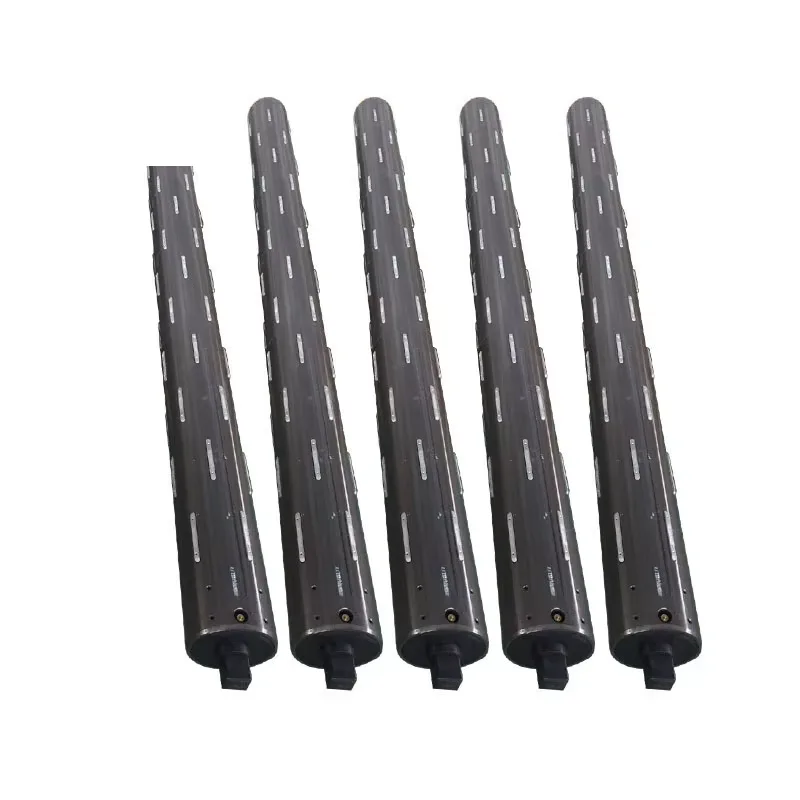

AstraRoll Inflatable Eccentric Air‑Expanding Shaft

The AstraRoll inflatable eccentric air‑expanding shaft is a high‑specialized pneumatic mandrel designed for slitting, rewinding, printing, coating and other web‑handling converting equipment. Different from standard concentric air shafts, it adopts a built‑in eccentric offset structural design, solving tricky installation and winding difficulties in limited‑space machine cabins, where conventional straight concentric shafts cannot fit. It firmly locks paper, plastic and fiber roll cores by compressed‑air inflation, delivering stable torque transmission for unwinding and rewinding processes.

The shaft main body is manufactured from high‑strength 45# steel or hard‑anodized aluminum alloy by precision CNC lathing. The internal eccentric mechanical assembly is heat‑treated for wear resistance. A heavy‑duty high‑elastic rubber air bladder serves as the inflation core. After injecting compressed air via the air valve, expansion keys extend radially outward to tightly engage the inner wall of roll cores. When exhausting air pressure, expansion keys retract, allowing operators to quickly load and unload tube cores without extra tools.

Thanks to its unique eccentric offset architecture, the shaft’s rotation centre deviates properly from the outer‑diameter centre. This design makes it ideal for retrofitting older machines and compact‑layout equipment with narrow installation clearance, where standard concentric air expanding shafts will suffer mechanical interference. It keeps the advantages of ordinary air shafts: fast roll‑changing, large gripping contact area and uniform force distribution, while adapting to special spatial constraints of various converting machines.

Core Selling Points

✅ Unique Eccentric Offset Structure Specially engineered eccentric mandrel design, perfectly adapts to equipment with limited internal installation space, avoids mechanical collision interference for retrofitted and compact slitting‑rewinding machines, where regular concentric air shafts cannot be mounted.

✅ Reliable Pneumatic Inflatable Locking Mechanism Heavy‑duty replaceable rubber inner bladder. Inflation pushes expansion keys outward to grip roll cores firmly; quick deflation for fast roll‑swap operations. Large contact surface disperses pressure, preventing paper‑core crushing and slipping during high‑speed rotation.

✅ High‑Precision Mechanical Workmanship CNC‑machined shaft body and heat‑treated eccentric components, low radial run‑out, smooth high‑speed running. Supports continuous long‑shift industrial production for paper, film, non‑woven‑fabric processing lines.

✅ Wide‑range Customizable Specifications Custom outer diameter (2‑inch / 3‑inch / 6‑inch standard core sizes and non‑standard OD), effective working length, eccentric offset value, shaft‑end journal structure, air‑valve position. Material options: high‑strength steel or lightweight hard‑anodized aluminum alloy to match your machine parameters.

✅ Modular & Convenient Maintenance Air bladder, expansion keys, sealing rings and air valve are independent replaceable spare‑parts. There is no requirement to replace the whole shaft when partial parts wear out, lowering long‑term equipment operating cost.

✅ Factory‑direct OEM & ODM Service AstraRoll supports custom drawing‑to‑production, custom surface treatment, logo marking and special modification for retrofit‑project demands. Every finished shaft undergoes air‑tightness inspection and dynamic‑balance testing before delivery.

Typical Application Scenarios

The eccentric inflatable air‑expanding shaft fits compact‑structure or retrofitted converting‑industry equipment:

• Slitting & rewinding machines with narrow internal cabin space
• Printing, coating, laminating and bag‑making machinery with limited assembly clearance
• Processing of paper rolls, BOPP/PET plastic film, non‑woven fabric, adhesive tape, aluminum foil
• Retrofit‑upgrade projects for old domestic and imported web‑handling production lines

AstraRoll Factory Technical Service

As a professional manufacturer of web‑handling core components, AstraRoll provides full‑set technical support for this eccentric air‑expanding shaft. We can review your machine drawing, confirm required eccentric offset, core size and working load, and recommend optimized configuration. Standard products enjoy 1‑year manufacturer warranty against manufacturing defects. We supply full‑range spare‑parts including rubber air bladders, expansion keys, sealing assemblies and air valves.

Whether you need single‑unit trial sample or bulk order for equipment OEM manufacturers, send us your machine drawing, roll‑core inner diameter, effective working width, required eccentric offset and maximum roll weight. Our engineering‑sales team will provide quotation, 2D drawings and estimated lead‑time for your project.

Call‑to‑action: Share your equipment installation‑space constraints and roll‑core specifications, AstraRoll engineers will select the proper eccentric air‑expanding shaft solution for your slitting‑rewinding or converting line.

Sidebar concise bullet‑point widget content (for web‑page sidebar)

• Type: Inflatable eccentric offset air‑expanding shaft
• Material: 45# steel / hard‑anodized aluminum alloy optional
• Core size: Custom 2‑inch, 3‑inch, 6‑inch and non‑standard OD
• Feature: Eccentric offset for limited‑space machine installation
• Operation: Compressed‑air inflate‑lock / deflate‑release for fast roll change
• Maintainability: Modular replaceable spare‑parts
• Service: Factory‑direct custom OEM / ODM, air‑tightness & dynamic‑balance test before shipment
• Warranty: 1‑year against manufacturing defects

FAQ

Q: What is the main difference between eccentric air‑expanding shaft and ordinary concentric air shaft?

A: The eccentric type has offset rotation centre, it is mainly used for compact‑layout or retrofitted machines with insufficient internal installation space to avoid mechanical interference, while maintaining pneumatic quick‑change advantages of regular air expanding shafts.

Q: Can you customize the eccentric offset distance?

A: Yes, the offset value can be customized according to your machine's actual installation‑space requirement, please provide equipment drawing for technical confirmation.

Q: Which roll‑core inner diameters can this shaft adapt to?

A: We can produce for standard 2‑inch, 3‑inch, 6‑inch paper/plastic cores, also support special non‑standard core‑diameter customization.

Q: Do you supply replacement spare‑parts for this eccentric air‑expanding shaft?

A: Yes, separate spare‑parts including rubber bladder, expansion keys, seals and air valves are available for purchase.

Q: What pre‑shipment tests will be performed?

A: Every eccentric air‑expanding shaft passes air‑leak tightness inspection and dynamic‑balance test before leaving factory.
