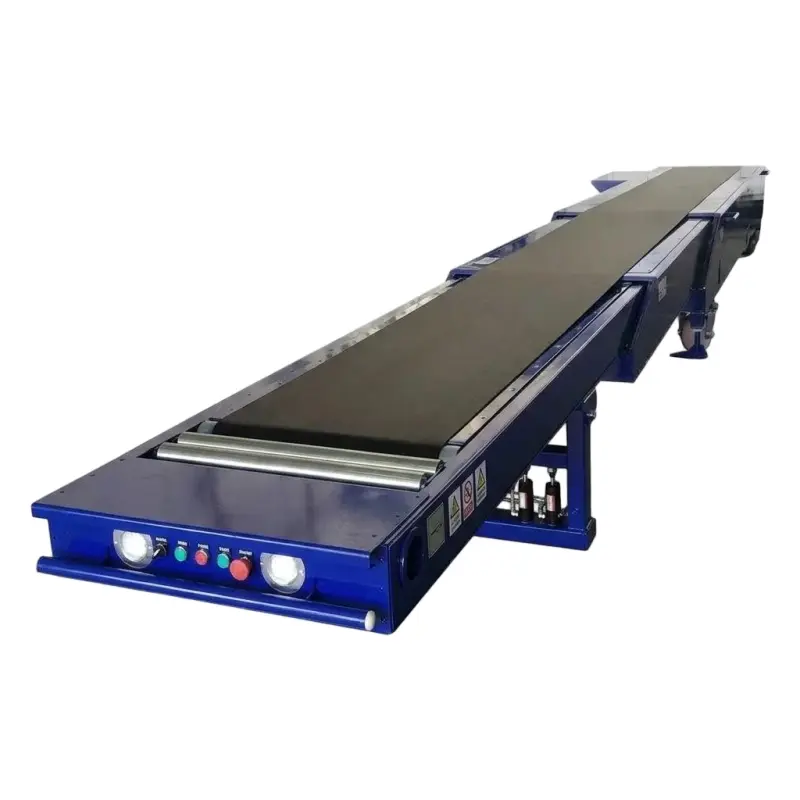

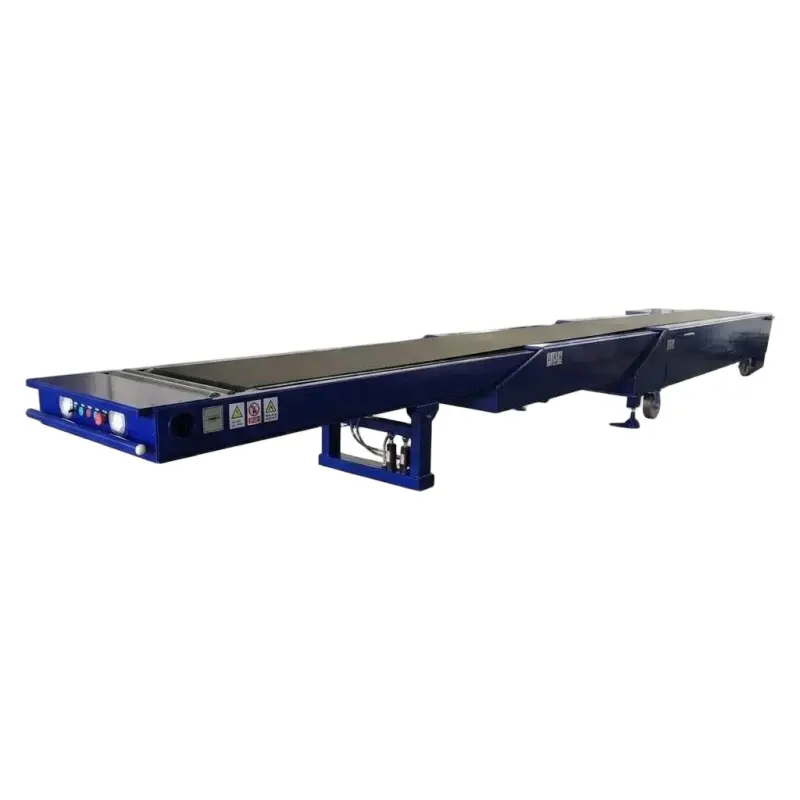

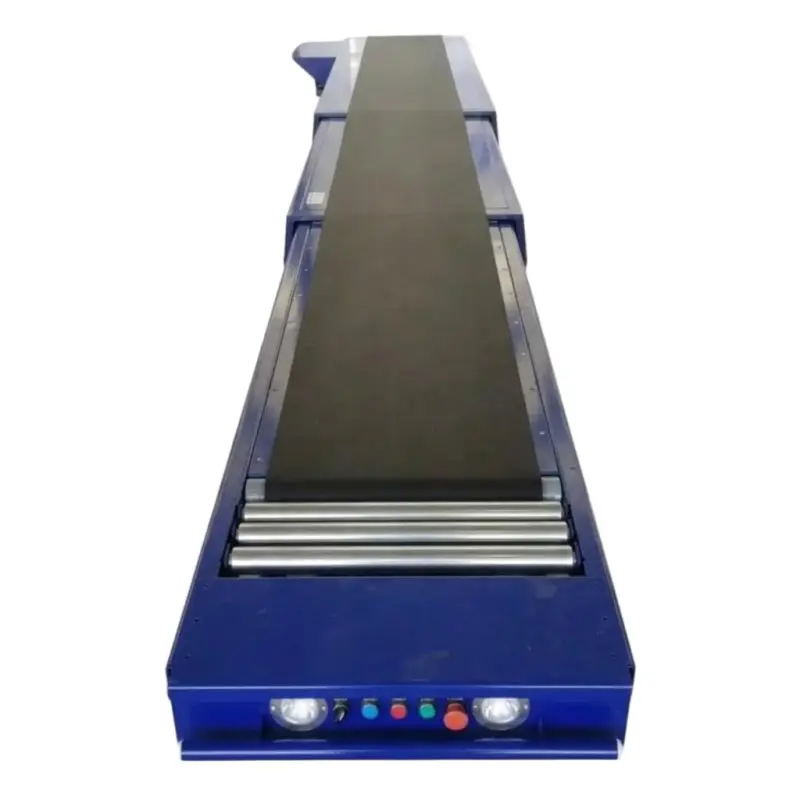

Custom Truck Loading Telescopic Belt Conveyor System

Product Overview

AstraRoll's Custom Truck Loading Telescopic Belt Conveyor System is engineered for fast, ergonomic loading and unloading of trucks, containers, and vans. By integrating a high-friction PVC belt with a telescopic steel frame and steel rim casters, the system extends directly into the vehicle, allowing operators to load and unload goods with minimal manual handling and reduced fatigue.

The conveyor features a 1-layer adjustable speed drive, reversible controls at both ends, and a powder-coated steel chassis for durability. It is suitable for cartons, woven bags, packages, luggage, tires, and plastic boxes/drums, with a uniform load capacity of 50kg/m and a maximum load of 125kg.The telescopic design allows the conveyor to be extended and retracted freely, adapting to different vehicle depths and loading positions. With a reach of up to 10 meters inside the vehicle, it significantly reduces loading time and labor cost.

Technical Parameter

Belt Type: High-Friction PVC Belt, 5mm Thickness

Belt Width: 600mm / 800mm (Customizable)

Conveying Speed: 10–30 m/min, Adjustable with Inverter Control

Load Capacity: 50kg/m Uniformly Distributed; Max 125kg

Telescopic Sections: 2 / 3 / 4 Sections (Customizable)

Fixed Length: 3000–8000mm (Customizable)

Extended Length: 2000–17000mm (Customizable)

Overall Length: 5000–25000mm (Depending on Configuration)

Frame Material: Powder-Coated Carbon Steel / Stainless Steel

Casters: 6" PU Casters with Brake

Drive Motor: 1.5kW for Belt Running; 2.2kW for Lifting

Voltage: 220V / 380V (Customizable)

Controls: Reversible Controls at Both Ends; Emergency Stop

Height Adjustment: Manual Hydraulic Hand Pump or Electric Pump Option

Application Industrial

Logistics & Distribution Centers: Fast loading and unloading of cartons and packages for vans and medium-sized vehicles.

E-Commerce Fulfillment: Efficient handling of parcels and loose-loaded goods in sorting and dispatch operations.

Warehousing & Factories: Loading and unloading of woven bags, plastic boxes, drums, and tires.

Express & Courier Services: Rapid transfer of luggage, tires, and packages between vehicles and sorting lines.

Food & Beverage: Transport of packaged food products and beverages in hygiene-sensitive environments.

Why Choose AstraRoll's Custom Truck Loading Telescopic Belt Conveyor System?

Ergonomic & Efficient Operation: The telescopic design extends directly into the vehicle, allowing operators to load and unload without walking deep into the container. Loading efficiency can reach approximately 30 pieces per minute, saving up to 50% of truck loading time.

Adjustable Speed & Reversible Control: The 1-layer adjustable speed drive and reversible controls at both ends allow operation from inside the vehicle or the warehouse floor, improving flexibility and reducing loading time.

Durable Construction: Powder-coated carbon steel chassis with pressed steel slider beds and high-friction PVC belt ensures long service life in demanding logistics environments. The 6" PU casters with brakes provide stable mobility and secure positioning.

Customizable Configuration: Belt width, telescopic sections, conveying speed, and height adjustment are customizable to match specific vehicle types and cargo requirements. AstraRoll provides one-stop supply, strict quality control, and long-term technical support.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
