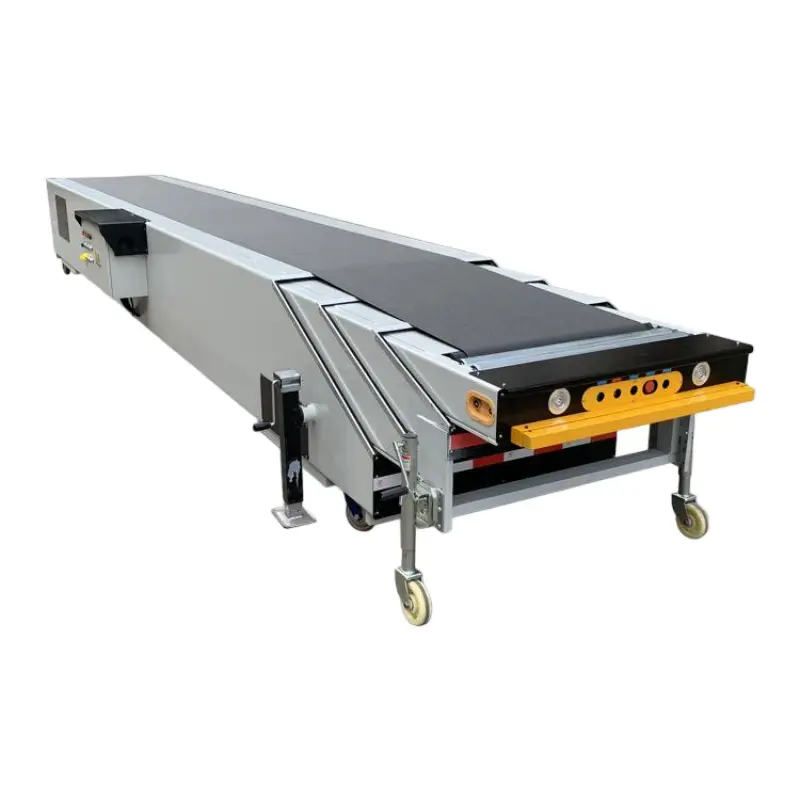

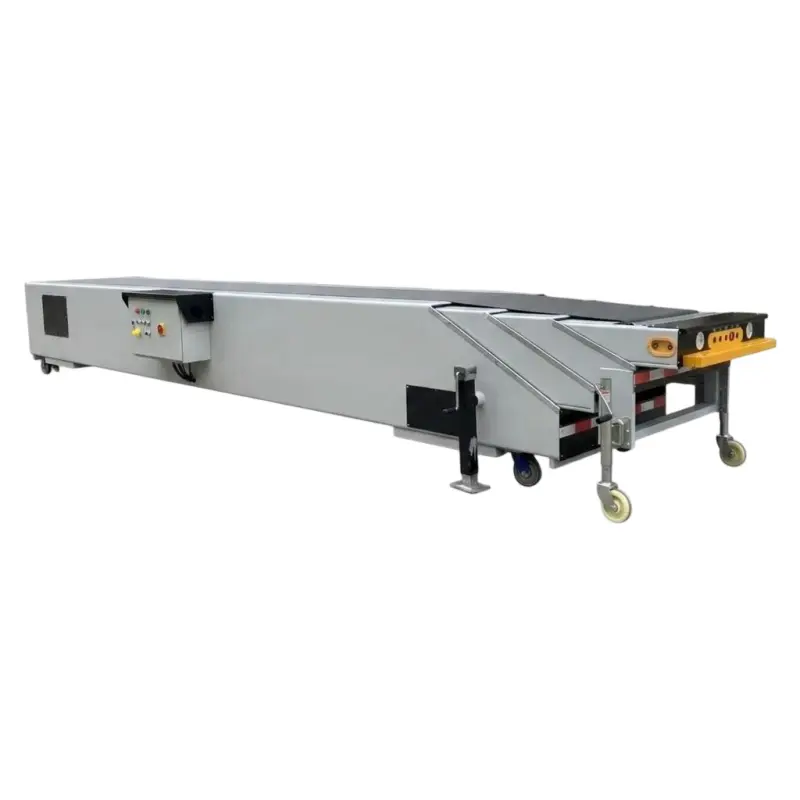

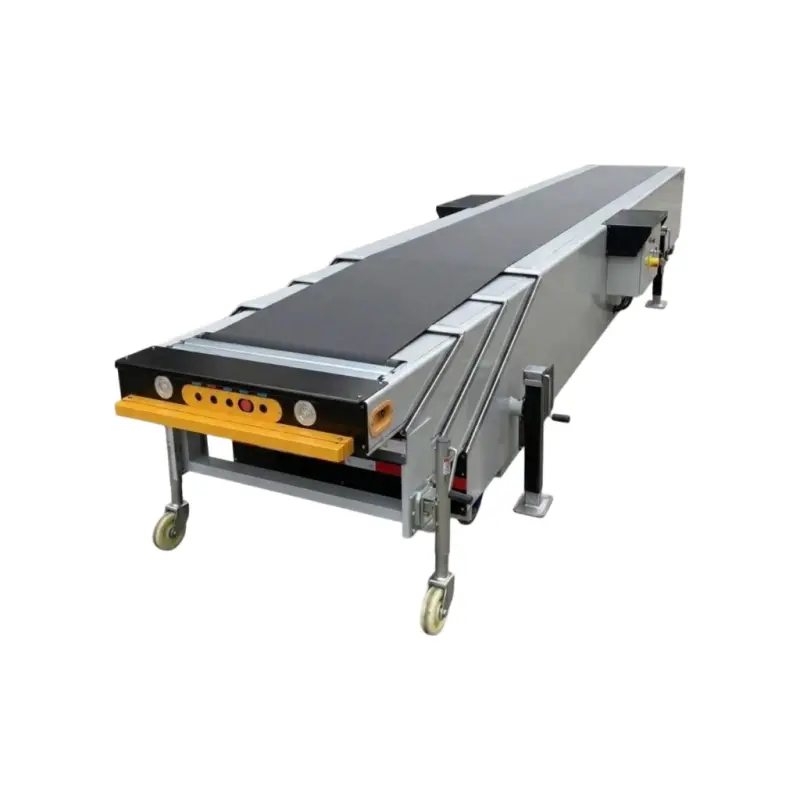

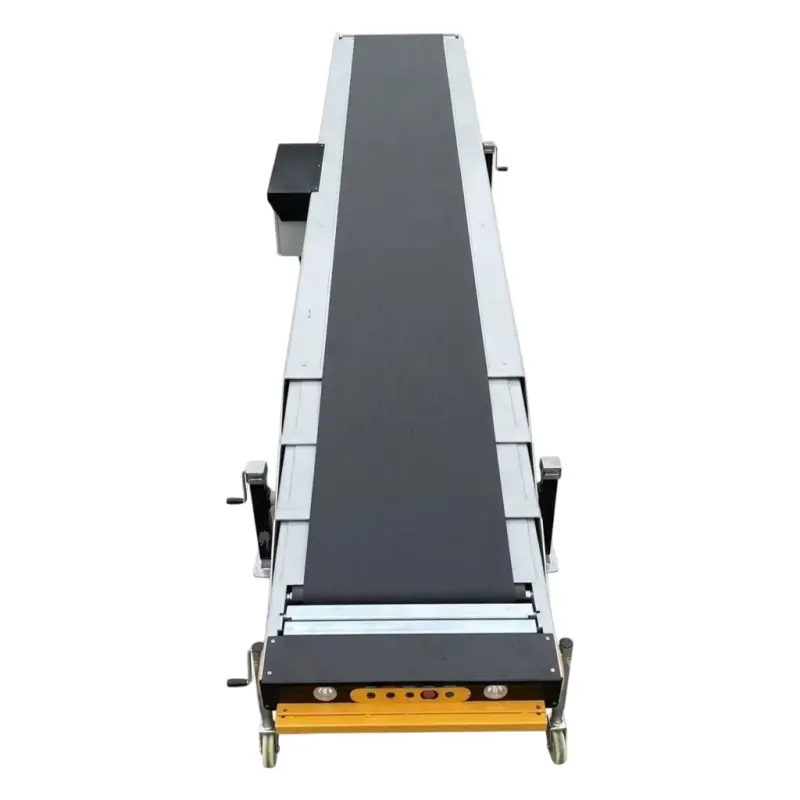

Custom Movable Telescopic Belt Conveyor System

Product Overview

AstraRoll's Custom Movable Telescopic Belt Conveyor System is engineered for fast, ergonomic loading and unloading of trucks, containers, and vans. The system consists of a telescopic belt conveyor mounted on a movable wheeled base. By extending the conveyor directly into the vehicle, operators can load and unload goods without walking deep into the container, significantly reducing labor intensity and loading time.

The telescopic mechanism allows the conveyor to extend and retract freely in the length direction, adapting to different vehicle depths. The belt speed is adjustable from 20 to 45 m/min via inverter control, and the system supports bidirectional operation for both loading and unloading. The movable base with casters enables easy repositioning between loading docks, making it suitable for multi-dock operations.

Technical Parameter

Product Name: Movable Telescopic Belt Conveyor

Structure: Telescopic Belt Conveyor + Movable Wheeled Base

Telescopic Sections: 3 / 4 / 5 Sections (Customizable)

Fixed Length: 5000 – 8000mm (Customizable)

Extension Length: 7000 – 17000mm (Customizable)

Total Length: 12000 – 25000mm (Depending on Configuration)

Belt Width: 600mm / 800mm (Customizable)

Belt Material: PVC / PVK / Rubber (High Friction)

Belt Thickness: 5mm

Conveying Speed: 20–45 m/min (Adjustable with Inverter Control)

Extend/Retract Speed: 10 m/min

Load Capacity: 60 kg/m (Standard); Up to 80 kg/m (Optional)

Height Adjustment: Manual Hydraulic / Electric Pump (Optional)

Controls: Reversible Controls at Both Ends; Emergency Stop

Drive Motor: 2.2kW – 3.2kW (Depending on Sections)

Voltage: 220V / 380V / 440V (Customizable)

Frame Material: Carbon Steel with Powder-Coated Finish

Mobility: PU Casters with Brake

Certification: CE Certified

Application Industrial

Warehouses & Distribution Centers: Fast loading and unloading of cartons and packages for vans and medium-sized vehicles.

E-Commerce Fulfillment: Efficient handling of parcels and loose-loaded goods in sorting and dispatch operations.

Logistics & Express Courier: Rapid transfer of luggage, tires, and packages between vehicles and sorting lines.

Manufacturing & Factories: Loading and unloading of woven bags, plastic boxes, drums, and components.

Food & Beverage: Transport of packaged food products in hygiene-sensitive environments.

Why Choose AstraRoll's Custom Movable Telescopic Belt Conveyor System?

Ergonomic & Efficient Operation: The telescopic design extends directly into the vehicle, allowing operators to load and unload without walking deep into the container. Loading efficiency can reach approximately 30 pieces per minute, and the conveyor can work inside the vehicle at a depth of about 10 meters.

Adjustable Speed & Reversible Control: The 20-45 m/min adjustable belt speed and reversible controls at both ends allow operation from inside the vehicle or the warehouse floor. The system supports bidirectional conveying for both loading and unloading.

Movable & Flexible Positioning: The wheeled base with PU casters and brakes enables easy repositioning between loading docks. The conveyor can be moved by 2 operators to different working locations, adapting to varying vehicle types and loading positions.

Durable Construction: Carbon steel frame with powder-coated finish, high-friction PVC/PVK belt, and standard safety anti-collision devices ensure long service life and operator safety in demanding logistics environments.

Customizable Configuration: Belt width, telescopic sections, conveying speed, height adjustment, and frame material are customizable to match specific vehicle types and cargo requirements. AstraRoll provides one-stop supply, strict quality control, and long-term technical support.
