Custom Truck Loading and Unloading Roller Conveyor System

Product Overview

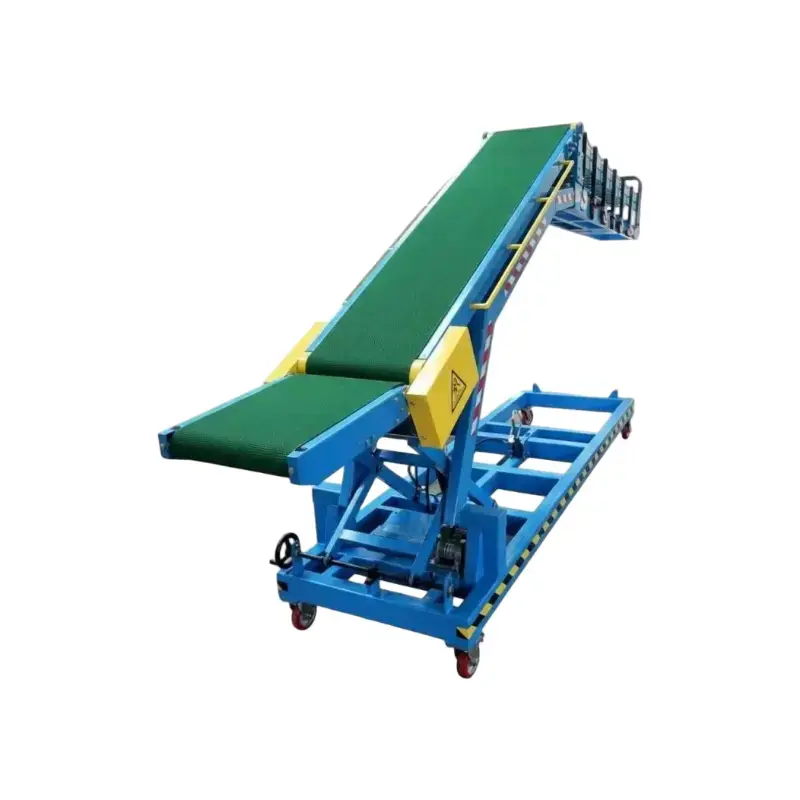

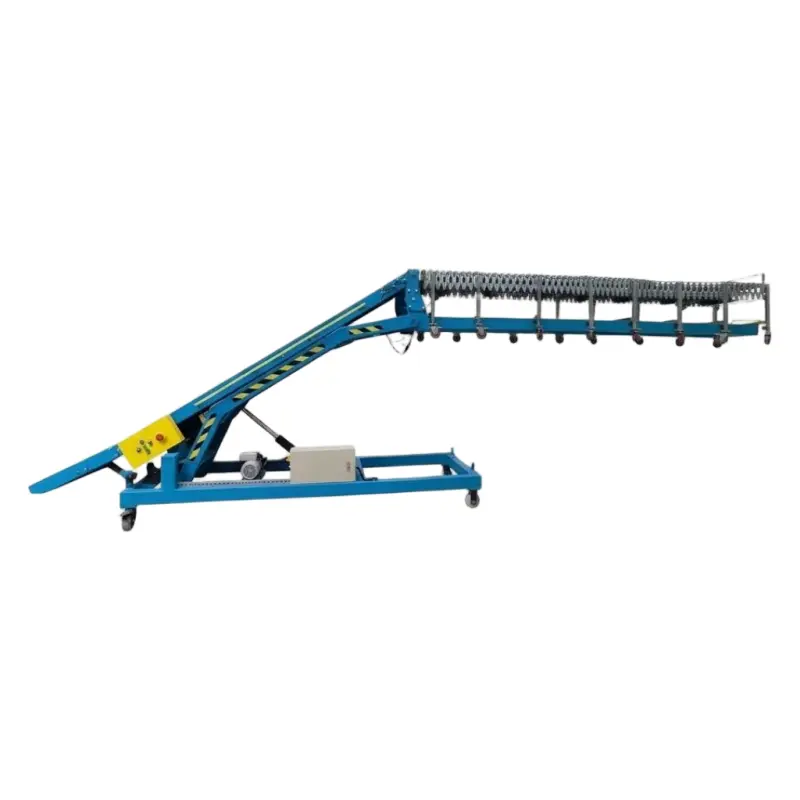

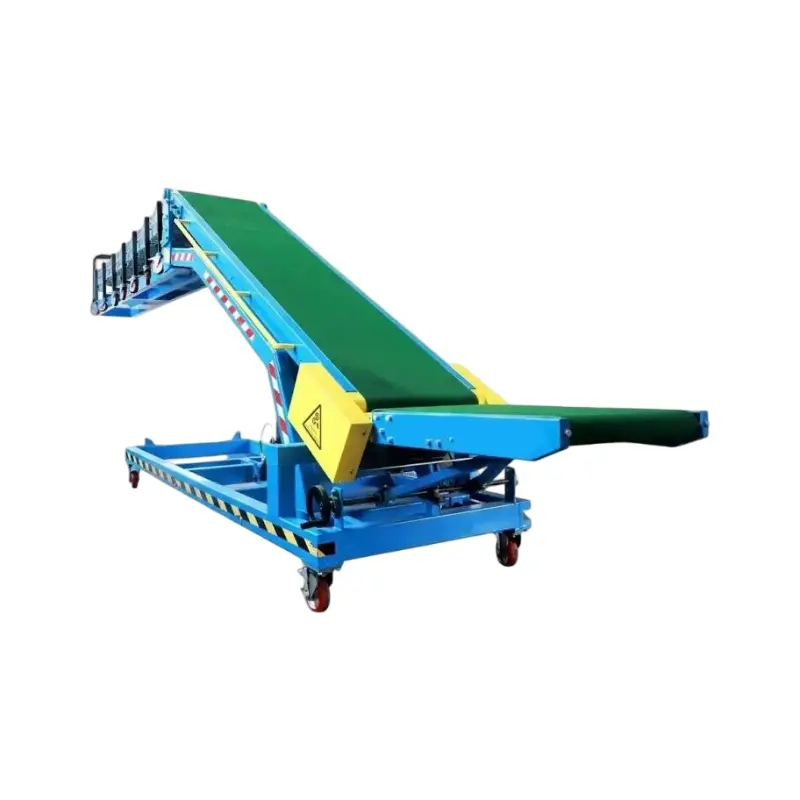

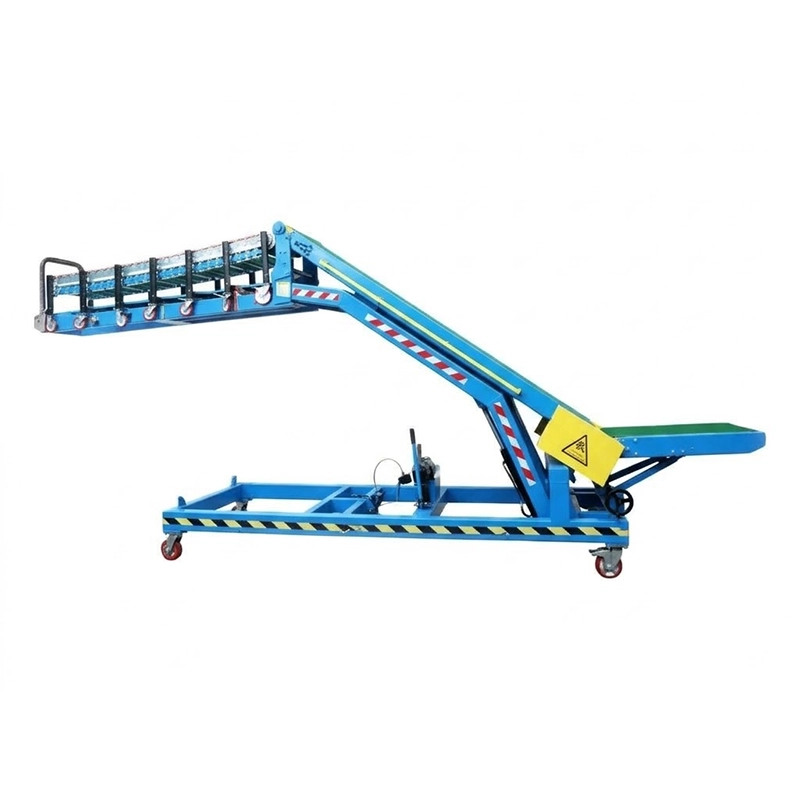

AstraRoll's Custom Truck Loading and Unloading Roller Conveyor System is engineered for fast, ergonomic loading and unloading of trucks, containers, and vans. The system consists of a motorized inclined belt conveyor and a motorized flexible roller conveyor. The front end is a lifting inclined belt conveyor, and products are transported to the rear flexible roller conveyor via the belt. This integrated design allows operators to move goods directly into the vehicle without walking deep into the container.

The conveyor features reversible controls at either end, allowing operation from within the vehicle or the warehouse floor. The height is easily adjustable using a manual hydraulic hand pump, with an optional electric pump for added convenience. The flexible tongue lifts and extends to reach target goods inside containers, adapting to different vehicle depths and loading positions.

Manufactured with a heavy gauge mild steel chassis, pressed steel slider beds, and a powder-coated finish, the conveyor is rated at 50kg/m uniformly distributed load and reaches a maximum load of 125kg. It handles cartons, woven bags, packages, luggage, tires, and plastic boxes/drums with ease.

Technical Parameter

• Product Name: Loading and Unloading Conveyor
• Structure: Motorized Inclined Belt Conveyor + Flexible Roller Conveyor
• Belt Width: 600mm / 800mm (Customizable)
• Conveying Speed: 10–20 m/min (Adjustable with Inverter Control)
• Load Capacity: 50kg/m Uniformly Distributed; Max 125kg
• Height Adjustment: Manual Hydraulic Hand Pump / Electric Pump (Optional)
• Adjustable Height Range: 700–1800mm
• Controls: Reversible Controls at Both Ends; Emergency Stop
• Frame Material: Heavy Gauge Mild Steel with Powder-Coated Finish
• Roller Material: Carbon Steel / Zinc-Plated Steel
• Power: 1.5kW / 2.2kW
• Voltage: 220V / 380V (Customizable)
• Casters: PU Casters with Brake

Application Industrial

• Warehouses & Distribution Centers: Fast loading and unloading of cartons and packages for vans and medium-sized vehicles.
• E-Commerce Fulfillment: Efficient handling of parcels and loose-loaded goods in sorting and dispatch operations.
• Logistics & Express Courier: Rapid transfer of luggage, tires, and packages between vehicles and sorting lines.
• Manufacturing & Factories: Loading and unloading of woven bags, plastic boxes, drums, and components.
• Food & Beverage: Transport of packaged food products in hygiene-sensitive environments.

Why Choose AstraRoll's Custom Truck Loading and Unloading Roller Conveyor System?

Ergonomic & Efficient Operation: The flexible roller tongue extends directly into the vehicle, allowing operators to load and unload without walking deep into the container. The system significantly reduces loading time and labor intensity.

Adjustable Height & Reversible Control: The height adjusts from 700 to 1800mm via manual hydraulic or optional electric pump. Reversible controls at both ends allow operation from inside the vehicle or the warehouse floor, improving flexibility and reducing loading time.

Durable Construction: Heavy gauge mild steel chassis with pressed steel slider beds and powder-coated finish ensures long service life in demanding logistics environments. PU casters with brakes provide stable mobility and secure positioning.

Customizable Configuration: Belt width, conveying speed, height adjustment, and roller configuration are customizable to match specific vehicle types and cargo requirements. AstraRoll provides one-stop supply, strict quality control, and long-term technical support.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
