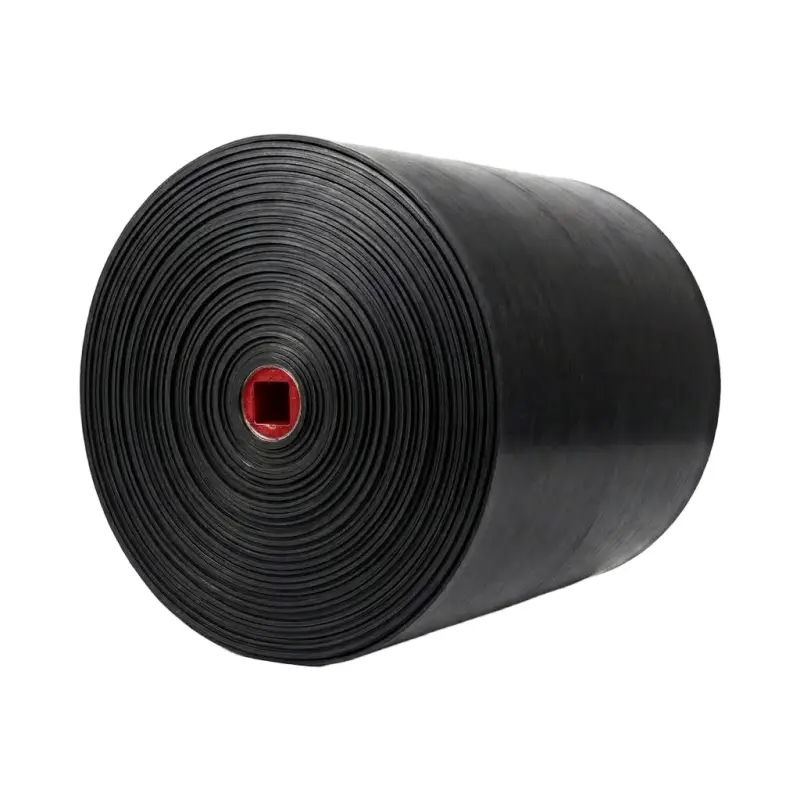

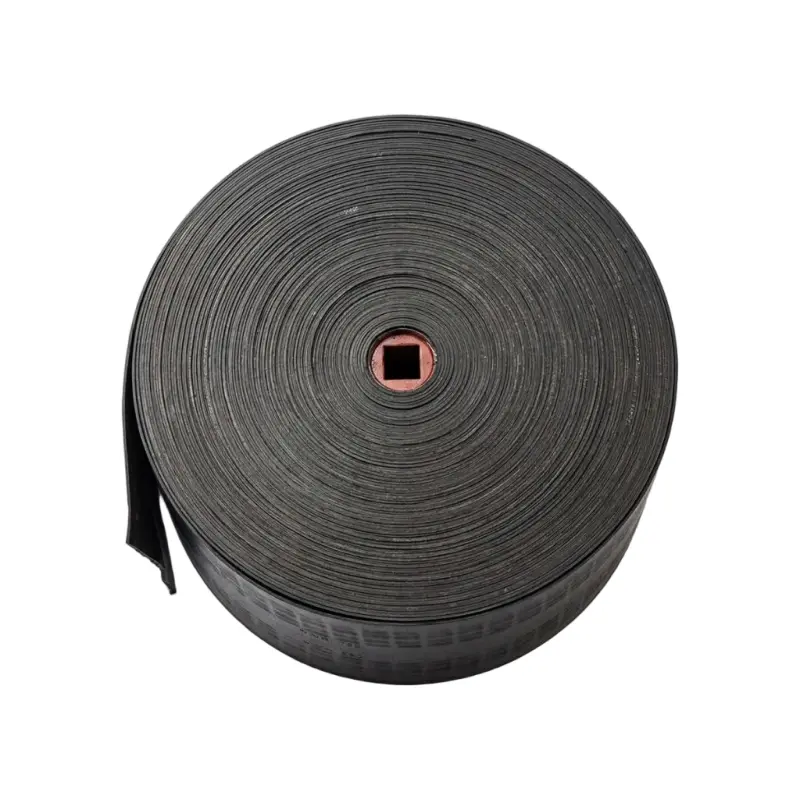

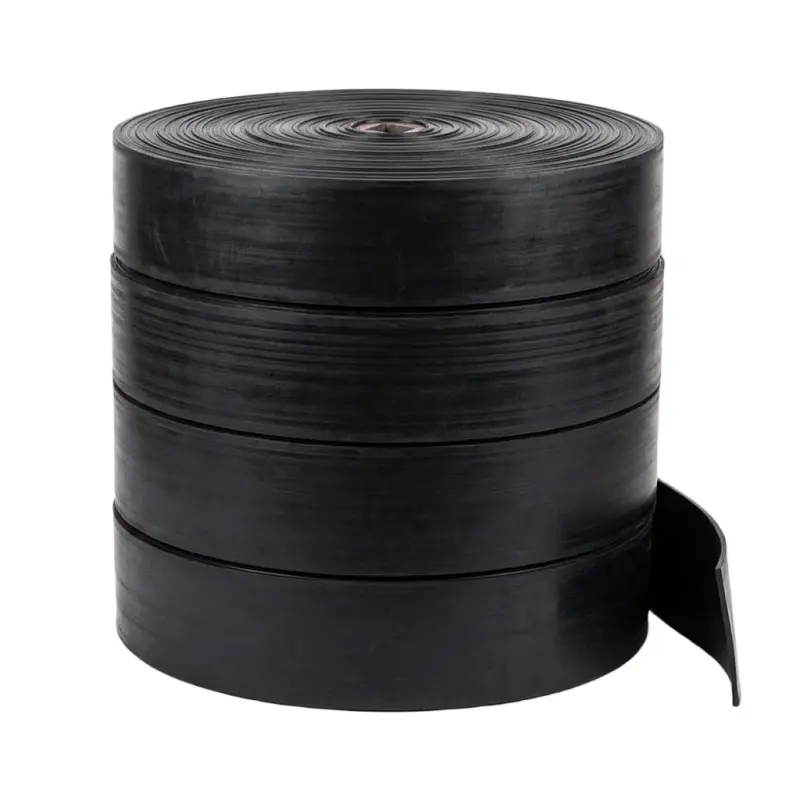

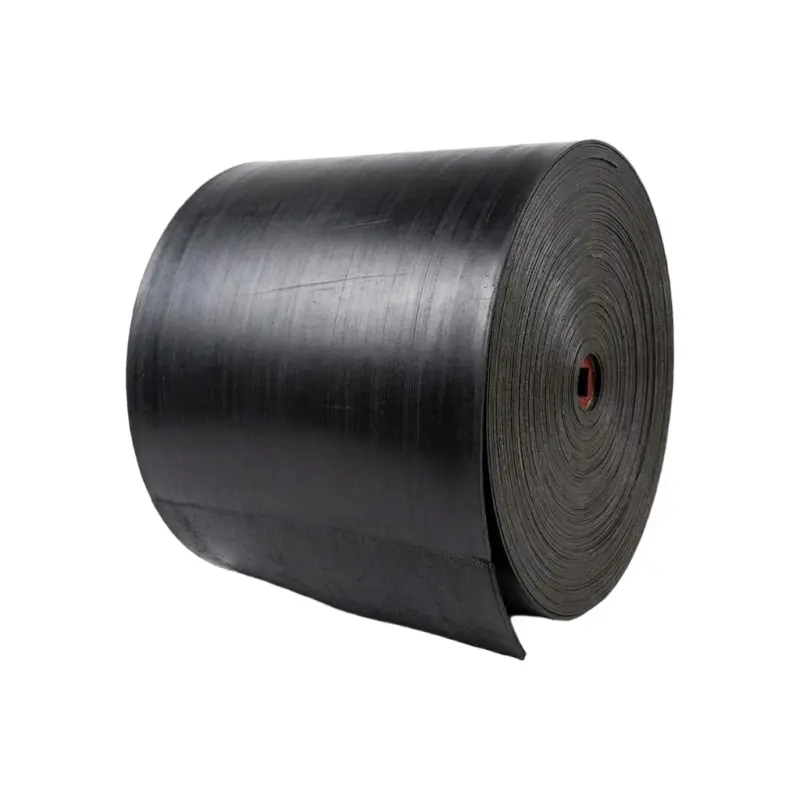

Custom Nylon Fabric Rubber Conveyor Belt

Product Overview

AstraRoll's Custom Nylon Fabric Rubber Conveyor Belt is engineered for heavy-duty bulk material transport in mining, quarrying, aggregate processing, and industrial applications. By integrating high-strength nylon fabric plies (warp and weft both nylon) with abrasion-resistant rubber covers, this belt delivers excellent impact resistance, high tensile strength, and reliable performance under high-load and high-speed conditions.

Unlike standard fabric belts that degrade under repeated impact, AstraRoll's nylon fabric construction absorbs stress individually through the warp and weft yarns, effectively resisting cutting, gouging, and core damage. The belt maintains good flexibility and troughability, bends smoothly around small-diameter pulleys, and resists ply delamination under continuous flex fatigue. It is especially suitable for lines with high impact from large lump materials, such as primary crusher discharge and quarry operations.

Technical Parameter

• Product Name: Custom Nylon Fabric Rubber Conveyor Belt
• Fabric Type: Nylon (NN) Canvas, Warp and Weft Both Nylon
• Tensile Strength Grades: NN100 / NN150 / NN200 / NN250 / NN300 / NN400 / NN500 (Customizable)
• Number of Plies: 2 – 10 Plies (Customizable)
• Belt Width: 300mm – 2500mm (Customizable)
• Belt Thickness: 5mm – 30mm (Customizable)
• Top Cover Thickness: 1.5mm – 12mm (Customizable)
• Bottom Cover Thickness: 0 – 4.5mm (Customizable)
• Rubber Grade: 8MPa – 25MPa (Customizable)
• Working Temperature: -30°C to +90°C (Customizable for cold or heat resistance)
• Abrasion Resistance: ≤200 mm³ (DIN standard)
• Adhesion Between Layers: ≥4.5 N/mm
• Elongation at Break: ≤400%
• Edge Type: Moulded Edge or Cut Edge
• Certification: ISO 9001, CE Certified
• Packaging: Inner round steel core, outer waterproof PP fabric

Application Industrial

Mining & Quarrying: Transport of ores, rock, crushed stone, and minerals at high volumes and steep inclines.

Stone Crusher Plants: Primary, secondary, and tertiary crushing line material transfer, especially under high-impact discharge points.

Aggregate & Sand Processing: Conveying gravel, sand, limestone, and crushed aggregate in screening and washing lines.

Cement & Construction: Transport of cement clinker, construction materials, and bulk solids.

Port & Terminal Handling: Loading and unloading of bulk vessels and stockpile transfer.

Coal & Power Plants: Conveying coal and biomass at medium to long distances and high speeds.

Recycling & Processing: Handling of construction waste and granular materials.

Why Choose AstraRoll's Custom Nylon Fabric Rubber Conveyor Belt?

High Tensile Strength & Impact Resistance: The nylon fabric carcass provides high tensile strength and excellent elasticity, effectively absorbing and resisting impact from large lump materials during loading and transfer. It performs reliably under high-load, high-speed, and long-distance conveying conditions.

Superior Abrasion & Tear Resistance: High-grade rubber covers resist abrasion, cutting, and gouging, extending service life and reducing replacement frequency in abrasive quarry and mining environments. The belt's special canvas structure distributes stress across individual yarns for enhanced impact and bite resistance.

Good Flexibility & Troughability: The nylon fabric construction maintains good flexibility and troughability, bends smoothly around small-diameter pulleys, and resists repeated flex fatigue without ply delamination. It adapts to various conveyor configurations, including inclined and curved routes.

Durable & Low Maintenance: Low elongation under tension and stable dimensional performance reduce take-up requirements and maintenance frequency. The belt resists chemical corrosion, moisture, and mildew, ensuring reliable long-term operation in demanding industrial environments.

Customizable Configuration: Tensile grade, ply count, belt width, cover thickness, rubber grade, and edge type are fully customizable to match your conveyor system and material characteristics. AstraRoll provides one-stop supply, strict quality control from raw material to finished product, and long-term technical support to reduce downtime and total cost of ownership.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
