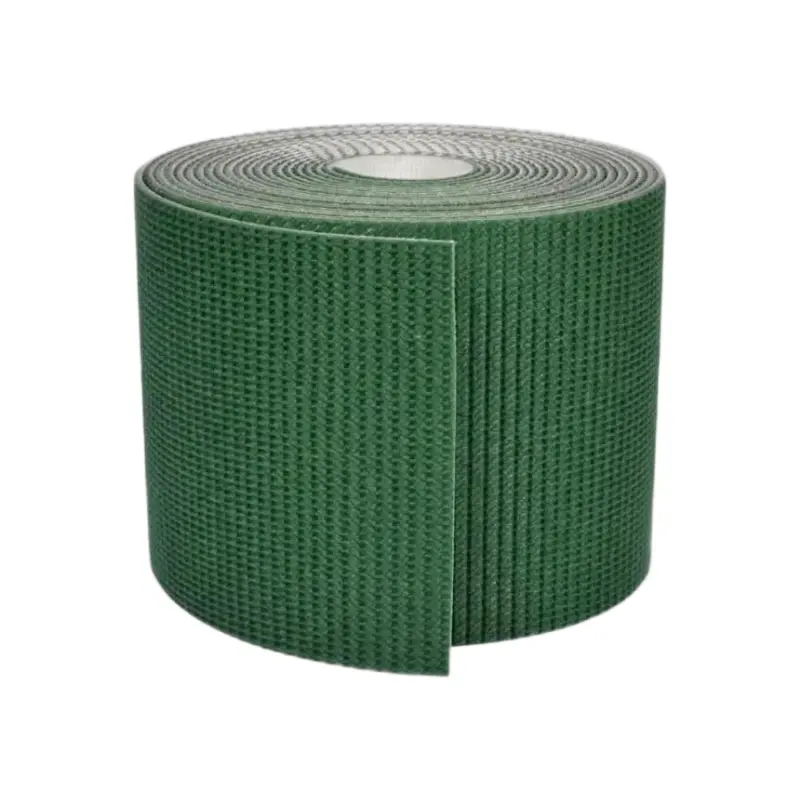

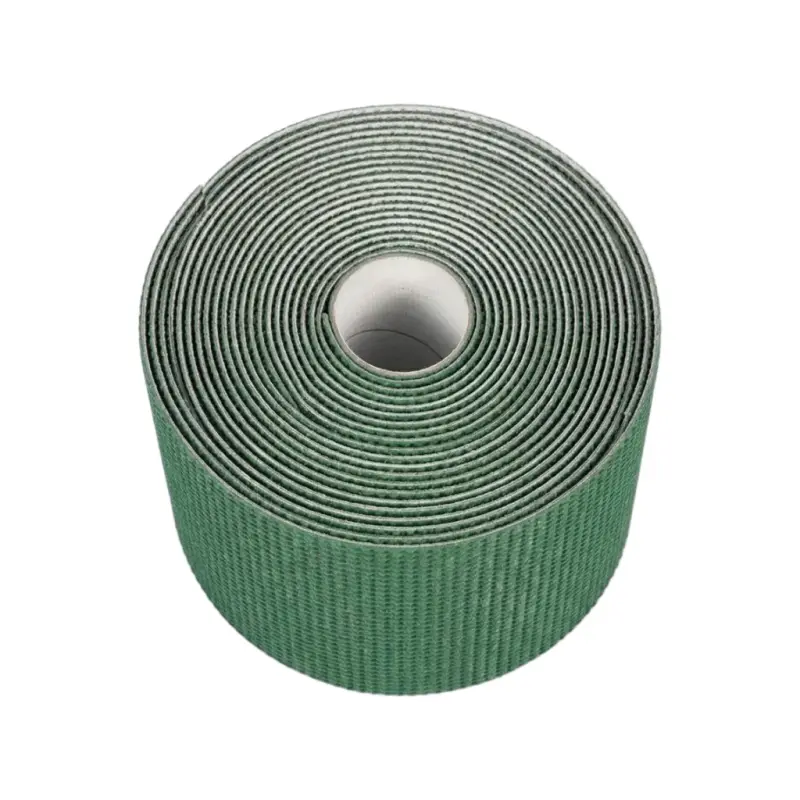

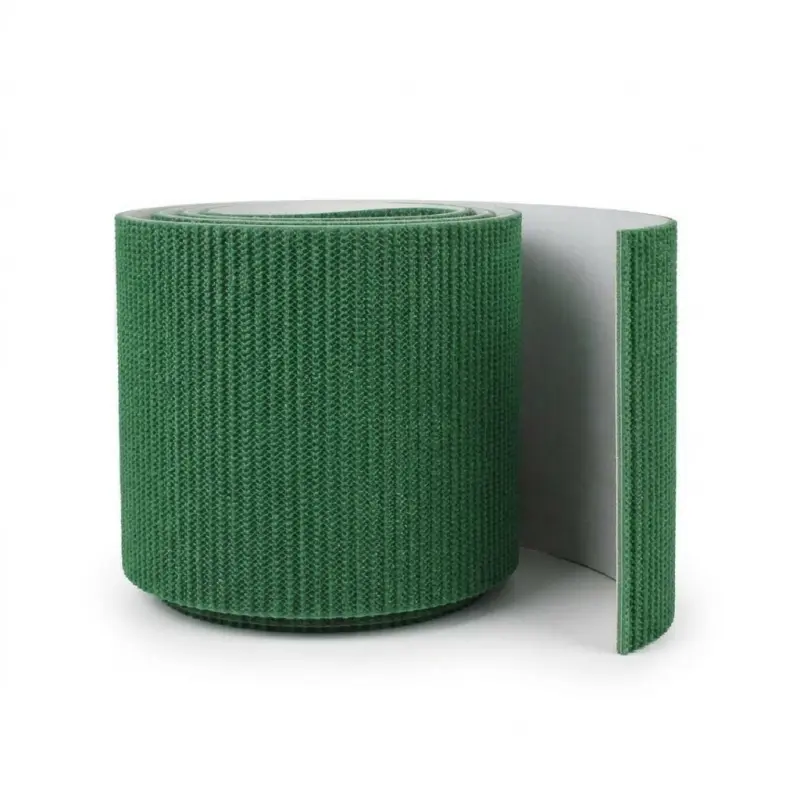

High Quality Industrial Green Rough Top PVC Conveyor Belt

Product Overview

AstraRoll’s High Quality Industrial Green Rough Top PVC Conveyor Belt is engineered for high-friction conveying in corrugated cardboard stackers, packaging lines, and logistics systems. The rough top surface provides excellent grip for inclined and decline conveying, preventing product slippage on slopes. Manufactured with durable PVC covers and high-tensile polyester fabric, it delivers dimensional stability, low noise, and reliable performance in continuous operation.

The belt is suitable for conveying cartons, boxes, paper bundles, and packaged goods in corrugated board production, printing, and packaging industries. The green rough top surface is specifically designed to keep stackable corrugated boards and loose paper bundles aligned on slopes, reducing product misalignment and material loss. Custom widths, lengths, and surface patterns are available to match specific conveyor configurations.

Technical Parameter

• Product Name: High Quality Industrial Green Rough Top PVC Conveyor Belt
• Belt Type: Rough Top PVC Conveyor Belt
• Surface Color: Green
• Material: PVC Cover with Polyester Fabric Reinforcement
• Number of Plies: 2 – 3 Plies (Customizable)
• Total Thickness: 4.5mm – 5mm (Customizable)
• Belt Width: 150mm – 3000mm (Customizable)
• Surface Hardness: 60 Shore A
• Tensile Strength: 8 N/mm
• Minimum Pulley Diameter: 30mm
• Temperature Range: -10°C to +80°C
• Oil Resistance: Good resistance to animal fats, vegetable oils, and mineral oils
• Chemical Resistance: Resistant to mild acids, alkalis, moisture, and mildew
• Weight: Approx. 2.8 kg/m²
• Edge Type: Cut Edge or Moulded Edge
• Jointing: Endless / Finger Splice / Steel Clipper (Customizable)
• Certification: CE Certified

Application Industrial

Corrugated Cardboard Stackers: High-friction conveying of corrugated boards and paper bundles on inclined and decline stacker lines.

Packaging & Carton Handling: Transport of cartons, boxes, and packaged goods on slopes and inclines.

Printing & Paper Converting: Feeding and transfer of paper sheets, printed materials, and paperboard.

Logistics & Warehousing: Inclined conveying of parcels, packages, and loose-loaded goods.

Food & Beverage: Transport of packaged food products on incline/decline lines (food-grade option available).

Why Choose AstraRoll‘s High Quality Industrial Green Rough Top PVC Conveyor Belt?

High-Friction Rough Top Surface: The textured rough top surface provides excellent grip for inclined and decline conveying, preventing product slippage and keeping corrugated boards and paper bundles aligned on slopes.

Durable PVC Construction: High-quality PVC covers and high-tensile polyester fabric reinforcement deliver dimensional stability, low noise, and long service life in continuous operation. The belt resists moisture, rot, and mildew, ensuring reliable performance in demanding environments.

Good Oil & Chemical Resistance: The PVC cover formulation provides good resistance to animal fats, vegetable oils, mineral oils, and mild chemicals, making it suitable for a wide range of industrial applications.

Wide Temperature Range: Operates reliably from -10°C to +80°C, suitable for ambient temperature variations in packaging, printing, and logistics facilities.

Customizable Configuration: Belt width, ply count, thickness, surface pattern, and jointing options are customizable to match specific conveyor configurations and material characteristics. AstraRoll provides one-stop supply, strict quality control from raw material to finished product, and long-term technical support to reduce downtime and total cost of ownership.
