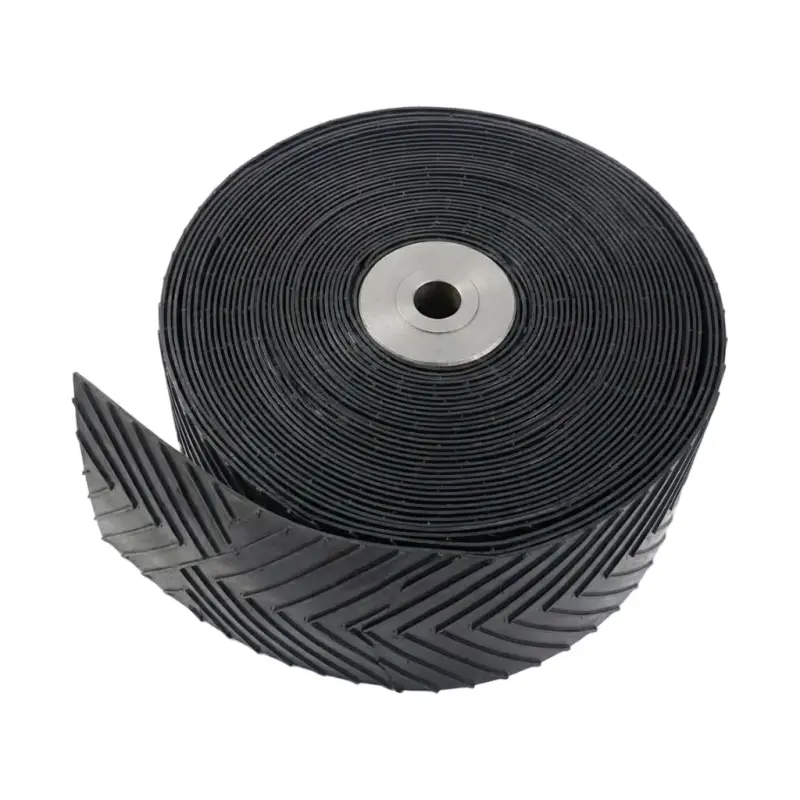

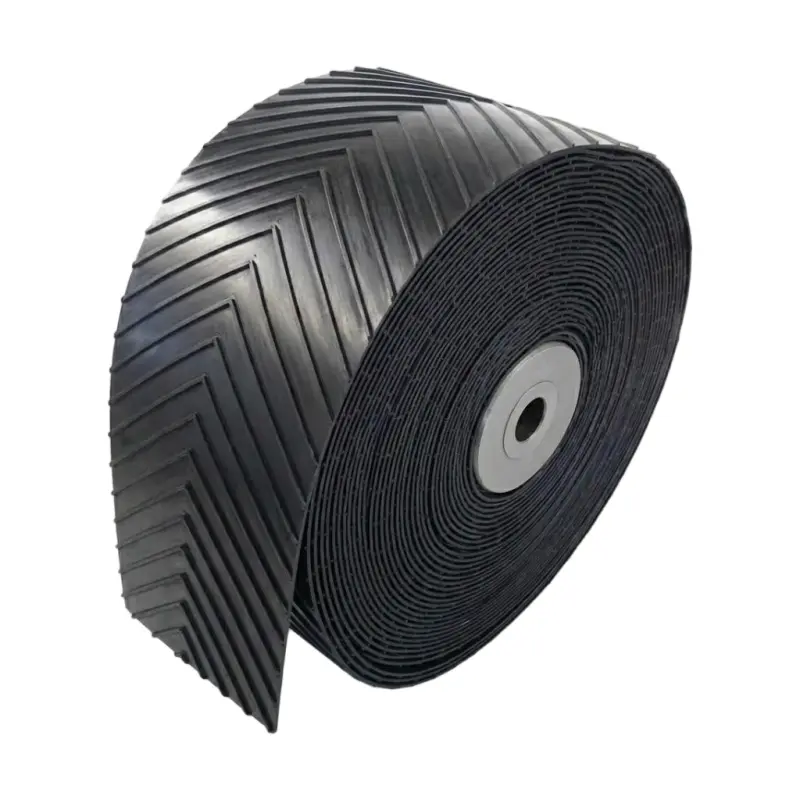

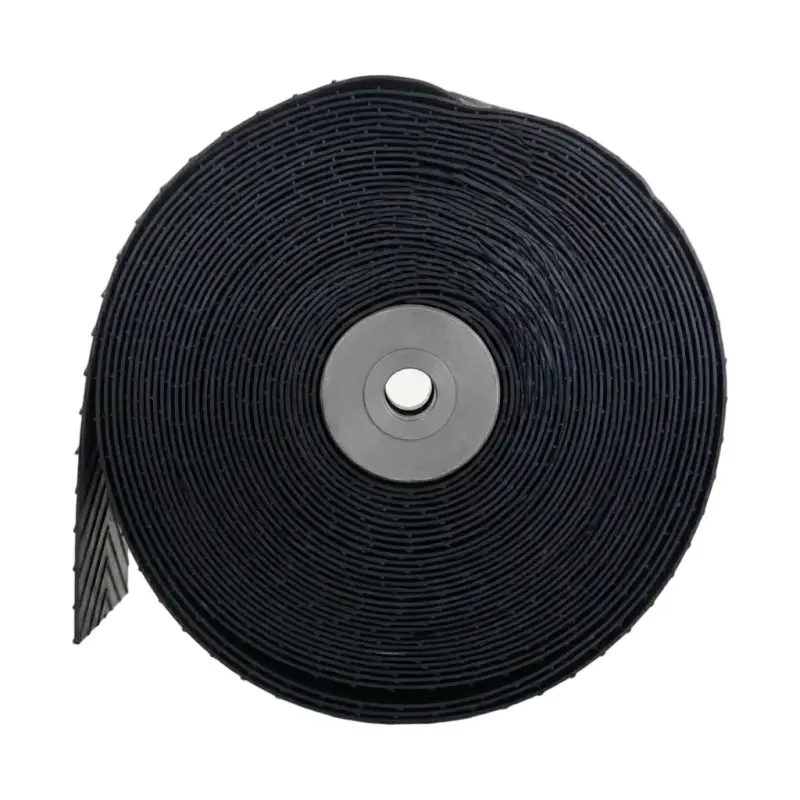

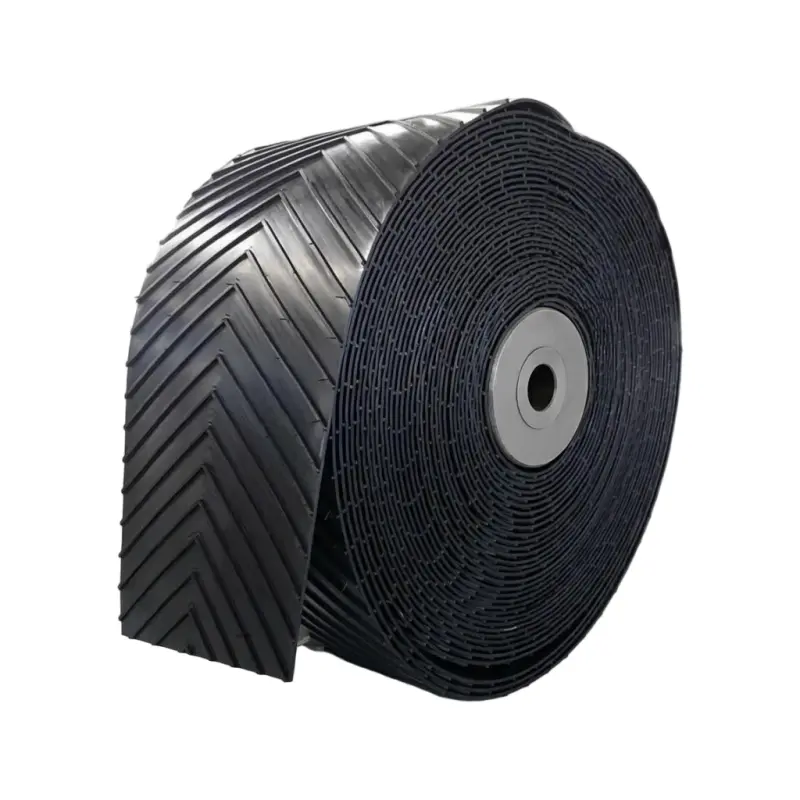

Custom Nylon Chevron Rubber Conveyor Belt

Product Overview

AstraRoll’s Custom Nylon Chevron Rubber Conveyor Belt is engineered for steep-angle bulk material transport where smooth-surface belts cannot maintain material position. By integrating high-strength nylon (NN) fabric plies with molded chevron cleats, the belt prevents material rollback and spillage on inclines from 30° to 45°. This design eliminates the need for expensive transfer points and reduces the overall conveyor footprint.

Unlike smooth-surface belts that lose material traction at steep angles, the chevron pattern creates a secure pocket that holds loose materials in place during transport. The nylon fabric carcass absorbs stress individually through warp and weft yarns, resisting cutting, gouging, and ply delamination under repeated flex fatigue. The belt maintains good troughability and bends smoothly around small-diameter pulleys, making it suitable for compact conveyor layouts.

Technical Parameter

• Product Name: Custom Nylon Chevron Rubber Conveyor Belt
• Fabric Type: Nylon (NN) Canvas, Warp and Weft Both Nylon
• Tensile Strength Grades: NN100 / NN150 / NN200 / NN250 / NN300 / NN400 / NN500 (Customizable)
• Number of Plies: 2 – 10 Plies (Customizable)
• Belt Width: 300mm – 2500mm (Customizable)
• Cleat Height: 5mm / 10mm / 15mm / 20mm / 25mm / 32mm (Customizable)
• Cleat Pattern: Open V / Closed V / Multi-V / Y-Type / Custom
• Top Cover Thickness: 1.5mm – 12mm (Customizable)
• Bottom Cover Thickness: 0 – 4.5mm (Customizable)
• Rubber Grade: 8MPa – 25MPa (Customizable)
• Working Temperature: -30°C to +90°C (Customizable for cold or heat resistance)
• Abrasion Resistance: ≤200 mm³ (DIN standard)
• Adhesion Between Layers: ≥4.5 N/mm
• Edge Type: Moulded Edge or Cut Edge
• Certification: ISO 9001, CE Certified
• Packaging: Inner round steel core, outer waterproof PP fabric

Application Industrial

Mining & Quarrying: Transport of ores, coal, crushed stone, and minerals at steep inclines.

Stone Crusher Plants: Primary, secondary, and tertiary crushing line material transfer under high-impact discharge points.

Aggregate & Sand Processing: Conveying gravel, sand, limestone, and crushed aggregate on inclined and decline lines.

Cement & Construction: Transport of cement clinker, construction materials, and bulk solids.

Agriculture: Handling grain, fertilizer, and bulk agricultural products on steep sloped conveyor lines.

Port & Terminal Handling: Loading and unloading of bulk vessels and stockpile transfer.

Why Choose AstraRoll’s Custom Nylon Chevron Rubber Conveyor Belt?

Prevents Material Rollback on Steep Inclines: The molded chevron cleats create a secure pocket that holds loose materials in place on inclines from 30° to 45°, preventing rollback and spillage without the need for expensive transfer points or reduced conveyor angles.

High Tensile Strength & Impact Resistance: The nylon fabric carcass provides high tensile strength and excellent elasticity, effectively absorbing and resisting impact from large lump materials during loading and transfer. It performs reliably under high-load, high-speed, and long-distance conveying conditions.

Superior Abrasion & Tear Resistance: High-grade rubber covers resist abrasion, cutting, and gouging, extending service life and reducing replacement frequency in abrasive quarry and mining environments. The hot-vulcanized chevron cleats maintain strong adhesion under repeated flexing.

Good Flexibility & Troughability: The nylon fabric construction maintains good flexibility and troughability, bends smoothly around small-diameter pulleys, and resists repeated flex fatigue without ply delamination. It adapts to various conveyor configurations, including inclined and curved routes.

Customizable Configuration: Tensile grade, ply count, belt width, cleat height, cleat pattern, cover thickness, rubber grade, and edge type are fully customizable to match your conveyor system and material characteristics. AstraRoll provides one-stop supply, strict quality control from raw material to finished product, and long-term technical support to reduce downtime and total cost of ownership.
