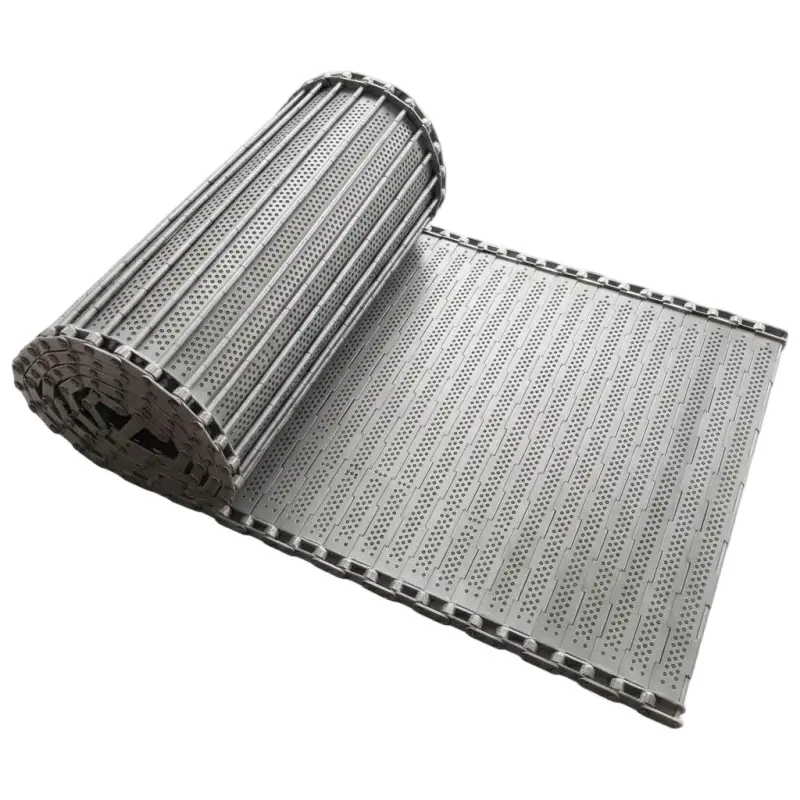

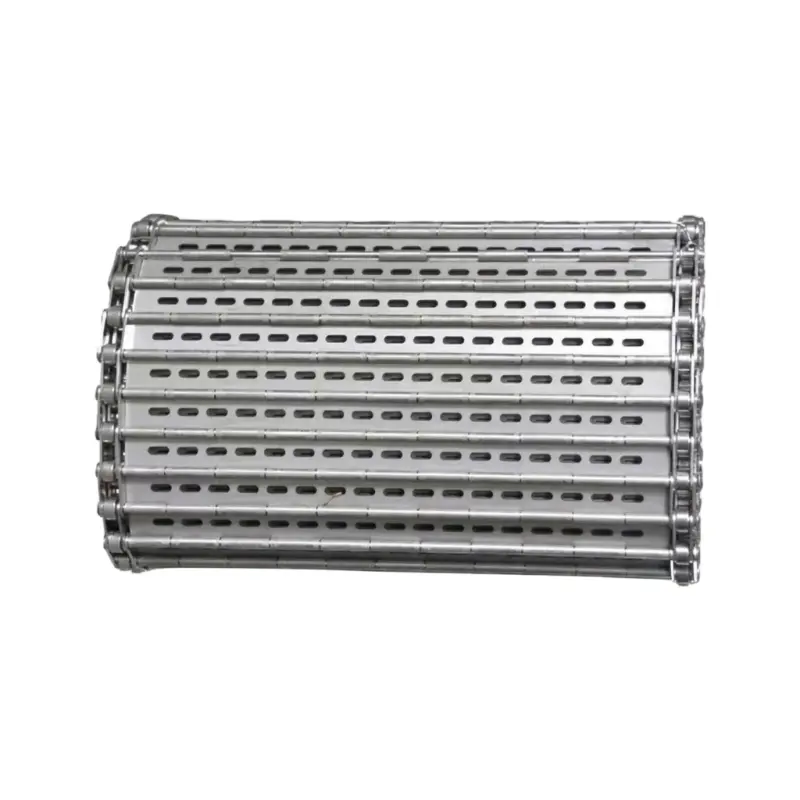

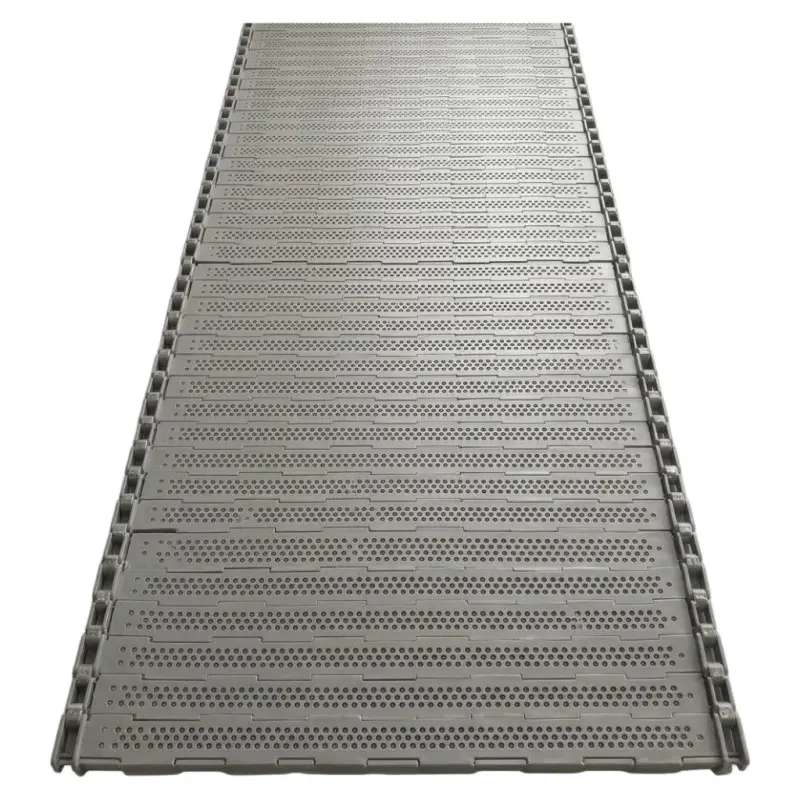

Custom Heavy Load Metal Chain Plate Link Conveyor Belt

AstraRoll’s Custom Heavy Load Metal Chain Plate Link Conveyor Belt is designed for heavy-duty bulk material and product transport where conventional rubber belts cannot withstand high loads, impact damage or high-temperature conditions. Constructed from interlocking precision-stamped steel plates driven by dual side-mounted roller chains, the belt forms a rigid, flat conveying surface that delivers exceptional load capacity and resistance to impact, abrasion and thermal stress.

Unlike mesh belts or rubber belts that deflect under heavy loads or sharp materials, the solid interlocking plate design maintains consistent surface flatness and structural integrity, eliminating product tipping and material spillage. The modular chain link construction allows the belt to flex smoothly around drive and tail pulleys while maintaining high tensile strength, adapting to both straight and curved conveyor layouts. Perforated plate options enable efficient air circulation and liquid drainage, making the belt suitable for drying, cooling, washing and heat treatment processes.

Product Name: Custom Heavy Load Metal Chain Plate Link Conveyor Belt

Material Options: Stainless Steel (SS304 / SS316L), Carbon Steel, Galvanized Steel

Chain Type: Double Side Roller Chain, Single Pitch / Double Pitch

Plate Type: Perforated Plate, Solid Plate, Slotted Plate (Customizable)

Plate Thickness: 0.8mm – 6.0mm (Customizable)

Belt Width: 100mm – 2000mm (Customizable)

Belt Length: Custom fabricated to exact conveyor dimensions

Pitch Size: 25.4mm / 31.75mm / 38.1mm / 50.8mm / Custom

Perforation Diameter: 2mm – 20mm (Customizable pattern & open area)

Max Load Capacity: Up to 500 kg/m² (depending on material & pitch)

Operating Temperature: -40°C to +400°C (higher temp grades available)

Surface Finish: Deburred, Polished, Galvanized, Passivated

Edge Type: Straight Cut Edge, Flanged Edge

Certification: ISO 9001, CE Certified

Packaging: Wooden pallet / steel crate with waterproof wrapping

Food & Beverage Processing: Conveying of baked goods, seafood, fruits, vegetables and packaged products through drying, cooling, washing and pasteurization lines.

Mining & Quarrying: Transport of crushed ore, coal, aggregate and heavy bulk materials under high-impact loading conditions.

Industrial Manufacturing: Heat treatment lines, parts washing systems, stamping press discharge, assembly and packaging lines.

Environmental & Waste Treatment: Solid-liquid separation, screening equipment, sludge dewatering and municipal waste conveying.

Agriculture & Grain Processing: Grain drying, seed processing and bulk agricultural product handling.

Logistics & Warehousing: Heavy unit load transport, pallet conveying and automated sorting systems.

Exceptional Heavy Load & Impact Resistance: The interlocking steel plate construction with reinforced roller chain drive delivers extremely high load capacity and impact resistance, handling heavy bulk materials and sharp-edged parts without deformation or belt breakage. It outperforms conventional rubber and mesh belts in heavy-duty industrial environments.

Superior Durability & Abrasion Performance: Premium stainless steel and carbon steel materials resist abrasion, corrosion and high-temperature degradation, extending service life and reducing replacement frequency. All plate edges are fully deburred to minimize wear on conveyor components and prevent material snags.

Versatile Perforated & Solid Configurations: Available in perforated, solid and slotted plate designs to suit specific process requirements. Perforated plates enable efficient air flow, liquid drainage and particle passage for drying, cooling and screening applications; solid plates provide full containment for fine powders and small parts.

Fully Modular & Low Maintenance: Modular link plate design allows individual components to be replaced on site without removing the entire belt, significantly reducing maintenance downtime and total lifecycle cost. The chain drive system delivers precise, slip-free tracking with minimal tension adjustment required.

Complete Customization & Engineering Support: Every belt is custom fabricated to your exact conveyor dimensions, load requirements and operating conditions.

AstraRoll provides full engineering support, material selection guidance and custom perforation patterns, as well as matching sprockets, guide rails and spare parts. Strict quality control from raw material to finished product ensures consistent, reliable long-term performance.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
