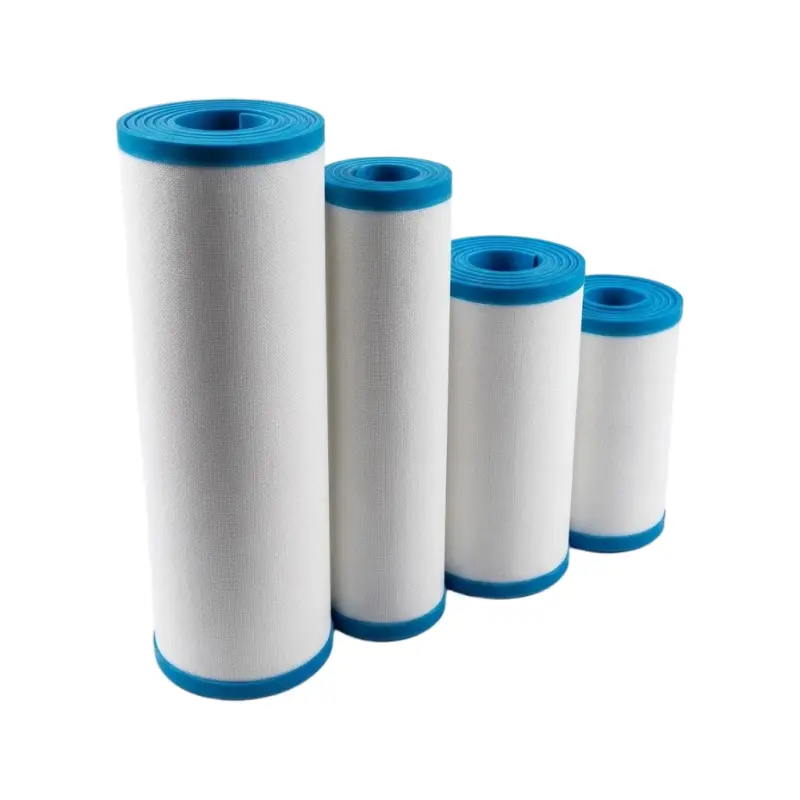

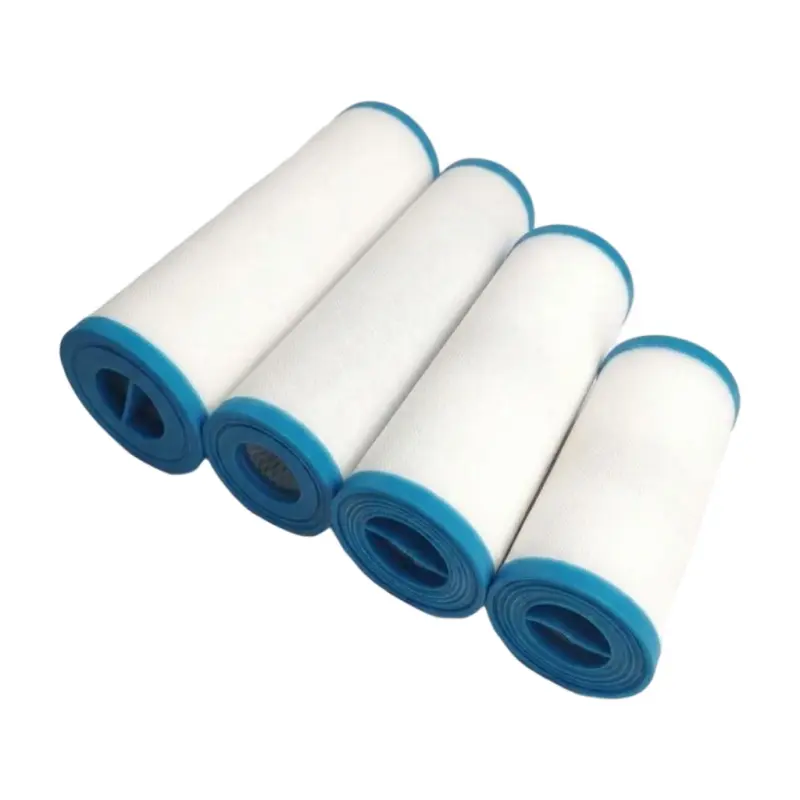

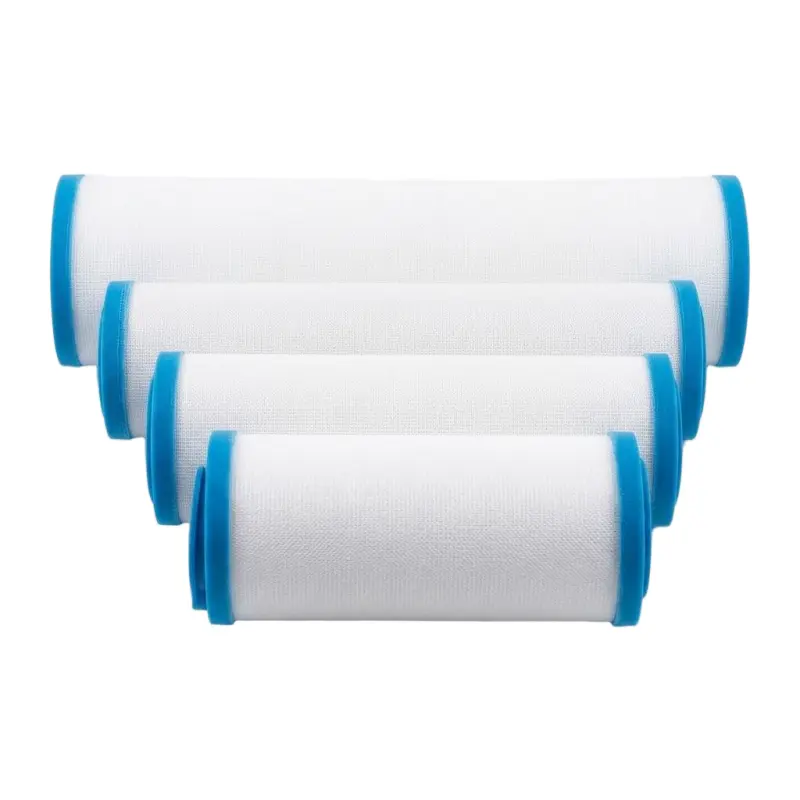

Custom Polyester Plain Weave Square Conveyor Belt

AstraRoll’s Custom Polyester Plain Weave Square Conveyor Belt is designed for continuous industrial conveying processes that demand consistent air flow, clean product contact and reliable dimensional stability. Constructed from high-tenacity polyester monofilament yarns woven into a uniform plain weave square mesh pattern, the belt provides balanced open area for efficient air circulation, liquid drainage and particle passage while maintaining a flat, supportive surface for products of all sizes.

Unlike woven belts with irregular mesh openings that cause uneven heating and product marking, the precision plain weave square structure delivers uniform airflow distribution and consistent surface support, eliminating hot spots and product damage in thermal processing. The polyester monofilament construction resists stretching, hydrolysis and microbial growth, delivering long service life in humid, high-temperature and food-contact environments. The belt tracks smoothly on conveyor rollers with minimal edge wear and low maintenance requirements.

• Product Name: Custom Polyester Plain Weave Square Conveyor Belt
• Material: Food Grade Polyester (PET) Monofilament
• Weave Type: Plain Weave
• Mesh Shape: Square Opening
• Filament Diameter: 0.3mm – 2.5mm (Customizable)
• Mesh Opening Size: 0.5mm – 15mm (Customizable)
• Belt Width: 100mm – 3500mm (Customizable)
• Belt Thickness: 0.6mm – 4.0mm (Customizable)
• Tensile Strength: 12 – 120 N/mm (Customizable by ply & filament)
• Operating Temperature: -10°C to +180°C (Continuous)
• Joint Type: Spiral Lace Joint, Clipper Joint, Welded Joint, Fabric Reinforced Joint
• Edge Treatment: Heat Sealed Edge, Rubber Coated Edge, Fabric Reinforced Edge, Hemmed Edge
• Open Area Ratio: 15% – 65% (Depending on mesh specification)
• Certification: FDA, EU 1935/2004, ISO 9001, CE
• Packaging: Rolled on cardboard core, wrapped in waterproof film

Food & Beverage Processing: Tunnel oven baking, cookie & snack conveying, fruit & vegetable washing & blanching, seafood cooling & freezing, bread & pastry proofing and drying lines.

Packaging & Converting: Pouch & package drying, label curing, film converting, and carton cooling conveying.

Pharmaceutical & Nutraceutical: Pill & tablet drying, granule cooling, and clean product conveying in sanitary production environments.

Agricultural & Grain: Seed drying, grain screening, and agricultural product dehydration processes.

Chemical & Industrial: Powder drying, filter cake dewatering, and general industrial product cooling & conveying.

Environmental & Waste Treatment: Sludge dewatering, solid-liquid separation, and wastewater screening processes.

Logistics & Sorting: Light product sorting, inspection line conveying, and automated assembly line transport.

• Uniform Airflow & Consistent Process Results: Precision plain weave square mesh openings deliver even air distribution across the full belt width, eliminating hot spots and ensuring uniform drying, cooling and heating results for consistent product quality.
• Food Grade Sanitary Construction: Manufactured from food-contact approved polyester monofilament with smooth, non-porous surfaces that resist microbial growth and are easy to clean. Fully compliant with FDA and EU food contact standards for safe food processing operation.
• Superior Dimensional Stability & Durability: High-tenacity polyester monofilament construction delivers excellent tensile strength, resistance to stretching and minimal elongation under load. The belt maintains accurate tracking and mesh integrity through repeated thermal cycling, flexing and washdown cycles, reducing downtime and replacement frequency.
• Smooth, Snag-Free Operation: Precision woven flat mesh surface with fully finished edges prevents product snagging, marking and damage, making it ideal for delicate food products and finished goods conveying.
• Full Customization & Engineering Support: Every belt is custom fabricated to your exact specifications including mesh opening size, belt width, filament thickness, edge treatment and joint type.

AstraRoll provides full application engineering support, material selection guidance and on-site installation advice to optimize belt performance and service life. Strict quality control from raw material to finished product ensures consistent, reliable long-term operation.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
