Custom Carbon Steel Rubber Disc Impact Idler Roller

Product Overview

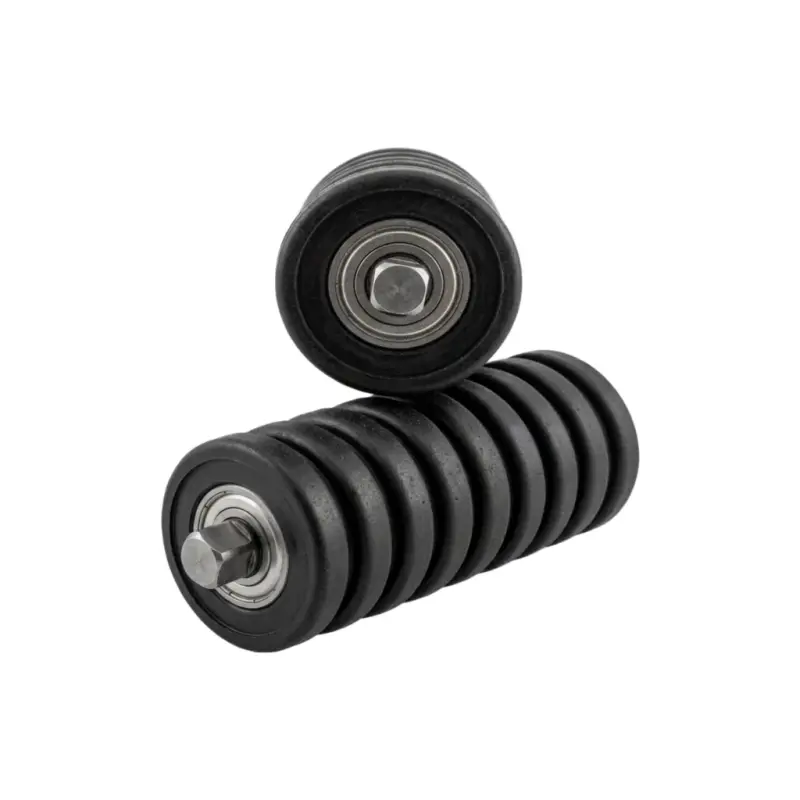

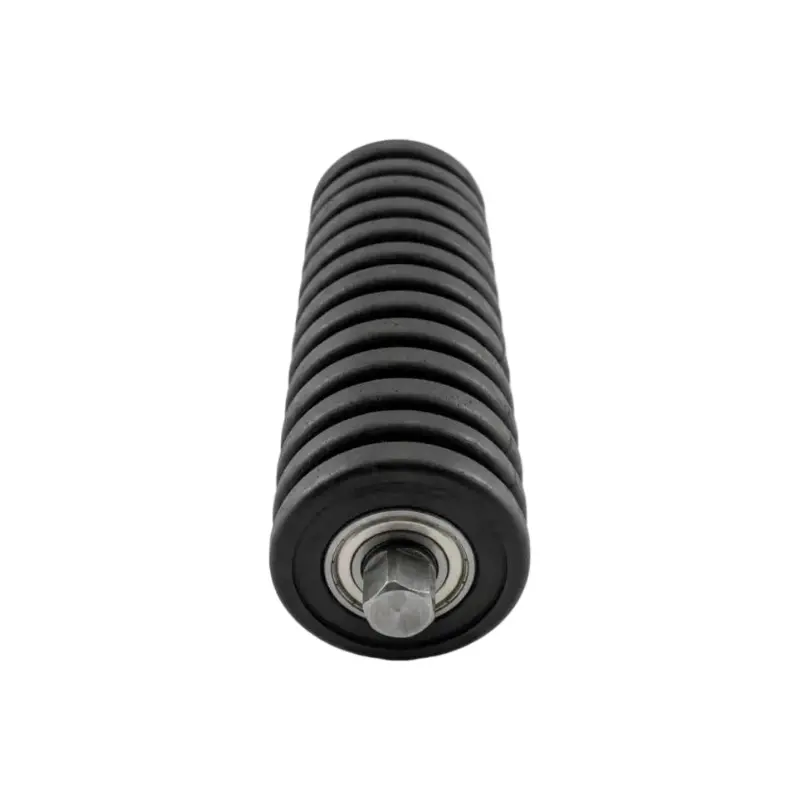

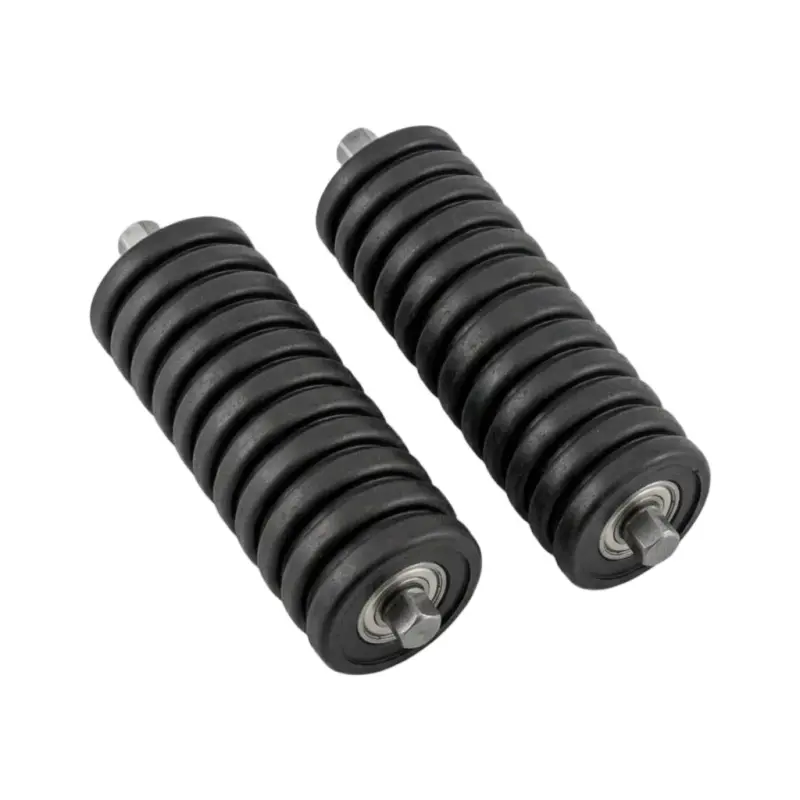

AstraRoll’s Custom Carbon Steel Rubber Disc Impact Idler Roller is engineered for shock absorption and anti-clogging performance at conveyor loading and transfer points. By integrating a Q235 carbon steel tube core with a series of rubber discs mounted along the roller body, this idler absorbs impact from large lump materials, reduces belt stress, and extends service life in demanding bulk material handling environments.

Unlike standard steel rollers that deform or crack under repeated heavy impact, the rubber disc construction provides a cushioning effect that protects both the belt and the roller structure. The gap between adjacent rubber discs creates a self-cleaning action during rotation, preventing wet and sticky materials from accumulating on the roller surface and maintaining stable belt tracking.

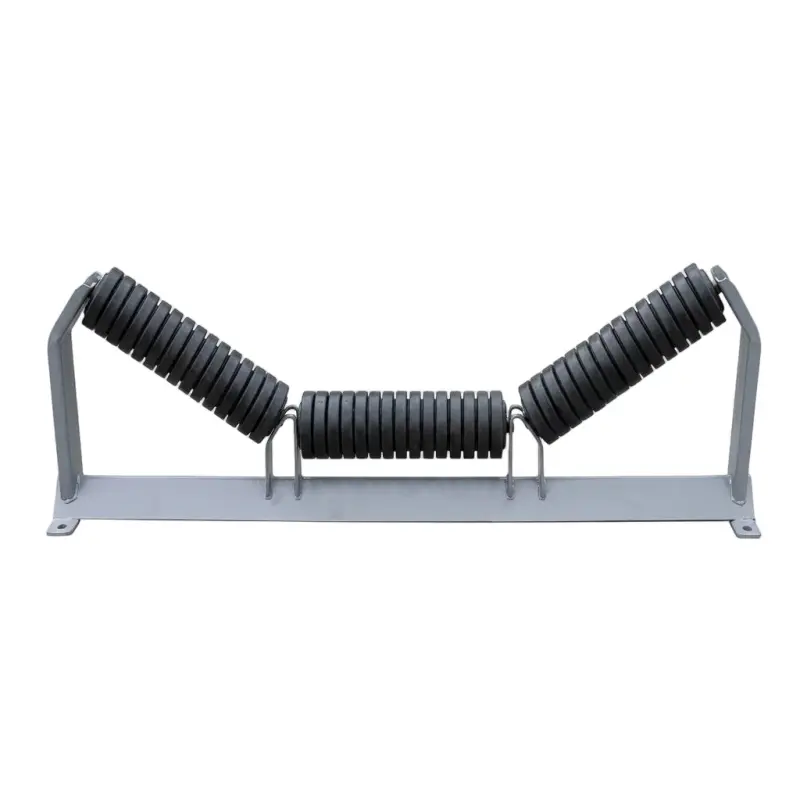

The roller is equipped with deep groove ball bearings and a dust-proof, water-proof multi-stage labyrinth seal, ensuring reliable operation in dusty and humid conditions. It is designed for use as a transition idler or impact idler at the tail piece and loading zone of belt conveyors, helping to form the desired troughing angle while absorbing material impact.

Technical Parameter

• Product Name: Custom Carbon Steel Rubber Disc Impact Idler Roller
• Tube Material: Q235 Carbon Steel (Equivalent to S235JR / DIN)
• Shaft Material: A3 / 45# Steel (Equivalent to C45 / DIN)
• Roller Diameter: 89mm / 108mm / 133mm / 159mm / 194mm (Customizable)
• Roller Length: 150mm – 600mm (Customizable)
• Rubber Disc Material: Industrial Rubber, Hardness 60–70 Shore A
• Rubber Disc Spacing: 100mm – 600mm (Customizable)
• Bearing Type: Deep Groove Ball Bearing, C3/C4 Grade (6204 / 6205 / 6306 / 6308)
• Seal Type: Multi-Stage Labyrinth Seal (Dust-Proof & Water-Proof)
• Surface Treatment: Rubber Coated / Rubber Lined / Rubber Fender
• Load Capacity: 50kg – 200kg (Depending on Configuration)
• Working Temperature: -20°C to +80°C
• Applicable Belt Width: 500mm – 2400mm
• Certification: ISO 9001, CE Certified

Application Industrial

Mining & Quarrying: Impact absorption at crusher discharge and transfer points for ore, coal, and rock.

Gravel & Sand Processing: Shock-absorbing support for belt conveyors handling abrasive aggregates.

Cement & Construction: Buffer support at loading zones for clinker, cement, and construction materials.

Port & Terminal Handling: Impact resistance at ship loader and stacker-reclaimer transfer points.

Coal Preparation Plants: Anti-clogging performance for wet and sticky coal conveying.

Recycling & Processing: Buffer support for construction waste and granular material handling.

Why Choose AstraRoll‘s Custom Carbon Steel Rubber Disc Impact Idler Roller?

Shock Absorption & Belt Protection: The rubber disc construction absorbs impact energy from large lump materials at loading and transfer points, reducing stress on the conveyor belt and preventing roller deformation. This extends the service life of both the idler and the belt, reducing maintenance and replacement costs.

Anti-Clogging Self-Cleaning Design: The gaps between adjacent rubber discs create a self-cleaning effect during rotation, effectively preventing wet and sticky materials from building up on the roller surface. This maintains stable belt tracking and reduces manual cleaning frequency in coal, clay, and other sticky material applications.

Durable Bearing & Sealing System: Deep groove ball bearings with C3/C4 clearance and a multi-stage labyrinth seal provide reliable operation in dusty, humid, and abrasive environments. The dust-proof and water-proof design reduces bearing failure and extends maintenance intervals.

Heavy-Duty Carbon Steel Construction: Q235 carbon steel tube and A3/45# steel shaft provide structural strength and load-bearing capacity for continuous operation in mining and quarrying applications.

Customizable Configuration: Roller diameter, length, rubber disc hardness, disc spacing, bearing type, and seal configuration are fully customizable to match specific conveyor systems and material characteristics.

AstraRoll provides one-stop supply, strict quality control from raw material to finished product, and long-term technical support to reduce downtime and total cost of ownership.
