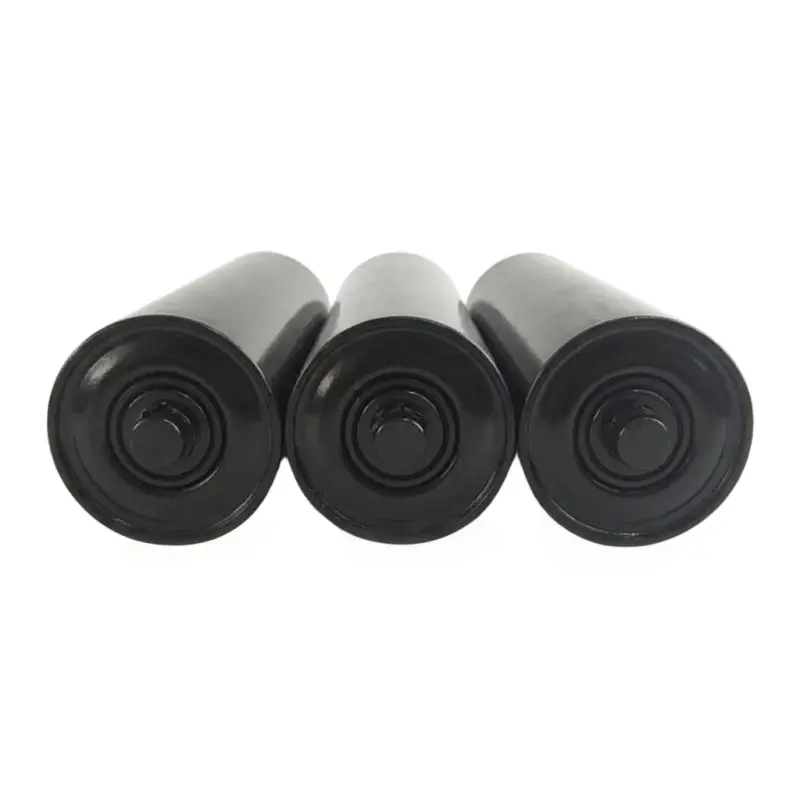

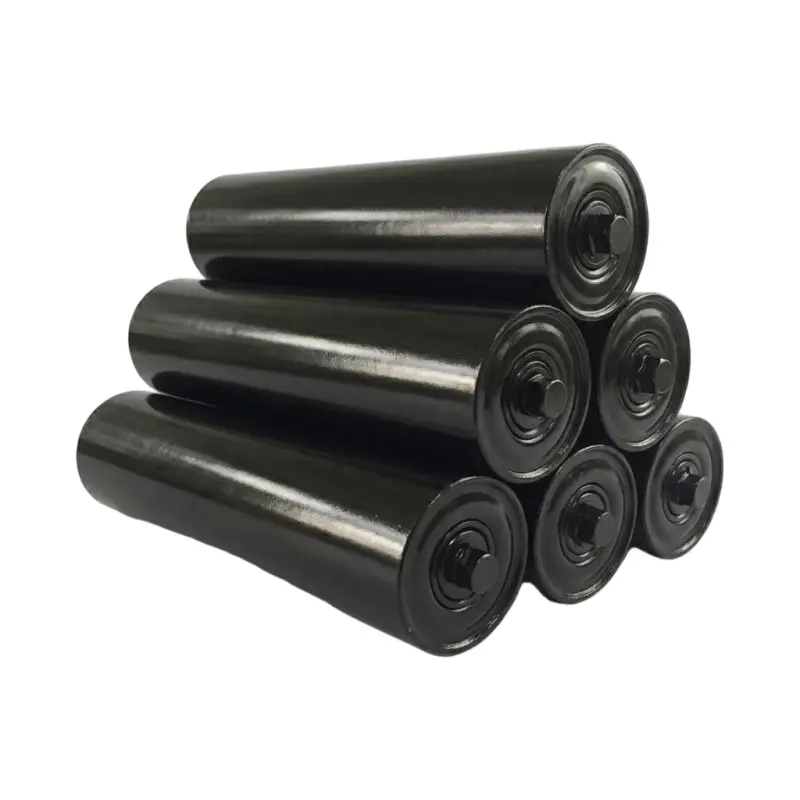

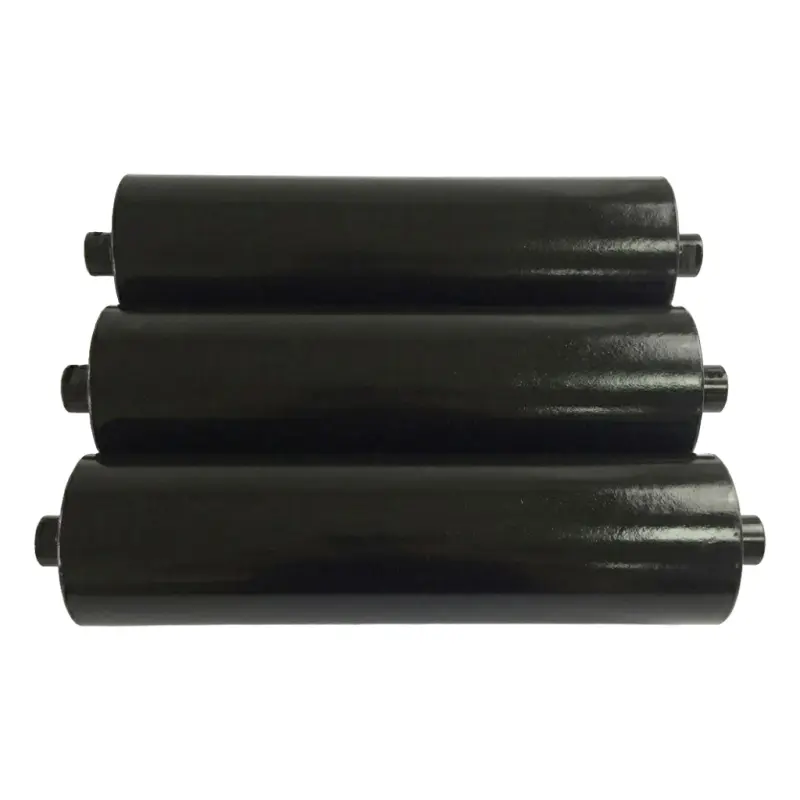

Custom Heavy Duty Steel Conveyor Trough Idler Roller

Product Overview

AstraRoll’s Custom Heavy Duty Steel Conveyor Trough Idler Roller is engineered as the carrying idler for trough idler sets. It is typically used in groups of three with a trough bracket to form a 20°, 35°, or 45° trough profile that cradles the conveyor belt, preventing material spillage and maintaining stable belt tracking.

Manufactured with Q235 carbon steel tubes and 45# steel shafts, the idler is equipped with deep groove ball bearings and a multi-stage labyrinth seal that prevents dust and moisture from entering the bearing housing. The labyrinth seal uses interleaved annular projections to form a tortuous path that blocks contaminant ingress, extending bearing life in dusty and humid environments.

The roller is dynamically balanced for smooth rotation, reducing vibration and belt wear. Custom diameters, lengths, tube thicknesses, shaft diameters, bearing types, and surface treatments are available to match specific conveyor systems. AstraRoll also designs and supplies complete belt conveyor systems for mining, quarrying, cement, coal, and bulk material handling.

Technical Parameter

• Product Name: Custom Heavy Duty Steel Conveyor Trough Idler Roller
• Tube Material: Q235 Carbon Steel (Equivalent to S235JR / DIN)
• Shaft Material: 45# Steel (Equivalent to C45 / DIN)
• Roller Diameter: 89mm / 108mm / 133mm / 159mm / 194mm (Customizable)
• Roller Length: Customizable to match belt width
• Tube Thickness: 3mm – 6mm (Customizable)
• Bearing Type: Deep Groove Ball Bearing, C3 Clearance (6204 / 6205 / 6305 / 6306 / 6307 / 6308 / 6309 / 6310)
• Shaft Diameter: 20mm / 25mm / 30mm / 35mm / 40mm (Customizable)
• Seal Type: Multi-Stage Labyrinth Seal (Dust-Proof & Water-Proof)
• Applicable Trough Angle: 20° / 35° / 45° (Matched with trough bracket)
• Surface Treatment: Anti-Rust Painting / Hot Galvanized / Electrostatic Spraying
• Working Temperature: -20°C to +80°C
• Applicable Belt Width: 500mm – 2400mm
• Standard: CEMA / DIN / JIS / ISO (Customizable)
• Certification: ISO 9001, CE Certified

Application Industrial

Mining & Quarrying: Belt support for ore, coal, and rock conveying on inclined and horizontal lines.

Cement & Construction: Carrying idlers for clinker, cement, and aggregate transport.

Coal Preparation Plants: Troughing support for coal conveying in dusty and humid conditions.

Port & Terminal Handling: Belt support for ship loading and stockpile transfer systems.

Power Plants: Carrying idlers for coal and biomass feeding lines.

Steel & Metallurgy: Idler support for sinter, coke, and bulk material handling systems.

Why Choose AstraRoll‘s Custom Heavy Duty Steel Conveyor Trough Idler Roller?

Heavy-Duty Steel Construction: Q235 carbon steel tube and 45# steel shaft provide structural strength and load-bearing capacity for continuous operation in mining and quarrying applications. The roller is designed for use in trough idler sets that form a “V” profile, preventing material spillage and maintaining stable tracking.

Dust-Proof & Water-Proof Sealing: Deep groove ball bearings with C3 clearance and a multi-stage labyrinth seal prevent dust and moisture from contaminating the bearing housing, reducing bearing failure and extending maintenance intervals in abrasive environments.

Smooth Rotation & Low Friction: Dynamically balanced rollers with precision bearings ensure low rotational resistance, reducing power consumption and belt wear. The applicable trough angle can be matched to specific conveyor configurations and material characteristics.

Customizable Configuration: Roller diameter, length, tube thickness, shaft diameter, bearing type, and surface treatment are fully customizable to match specific conveyor systems and material characteristics. AstraRoll provides one-stop supply, strict quality control from raw material to finished product, and long-term technical support to reduce downtime and total cost of ownership.

Complete Conveyor System Supply: In addition to idler rollers, AstraRoll designs and supplies complete belt conveyor systems for mining, quarrying, cement, coal, and bulk material handling.

From individual components to full conveying lines, AstraRoll supports your project from inquiry to installation.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
